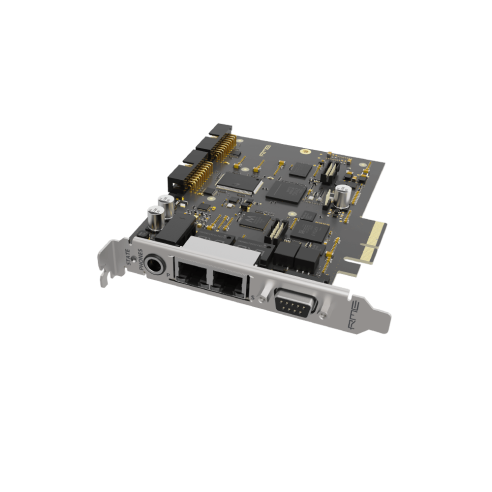

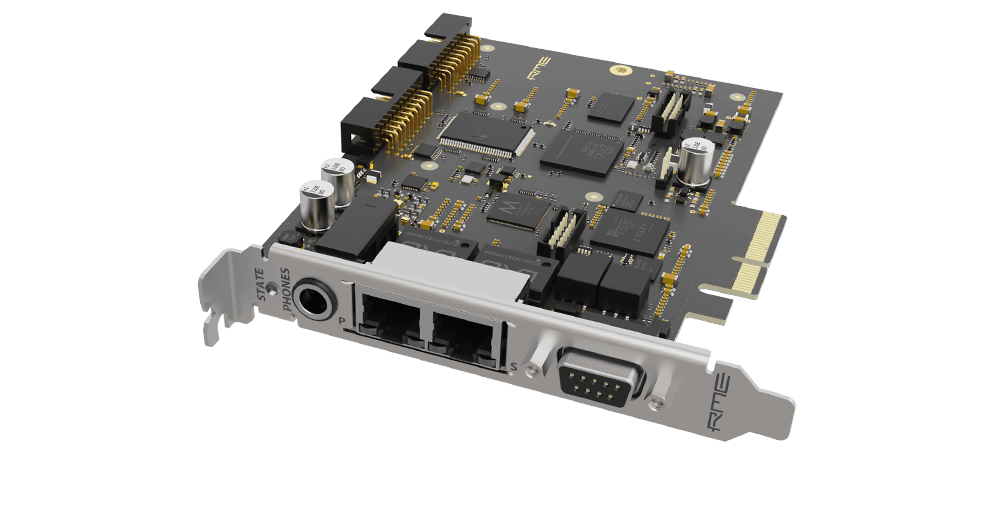

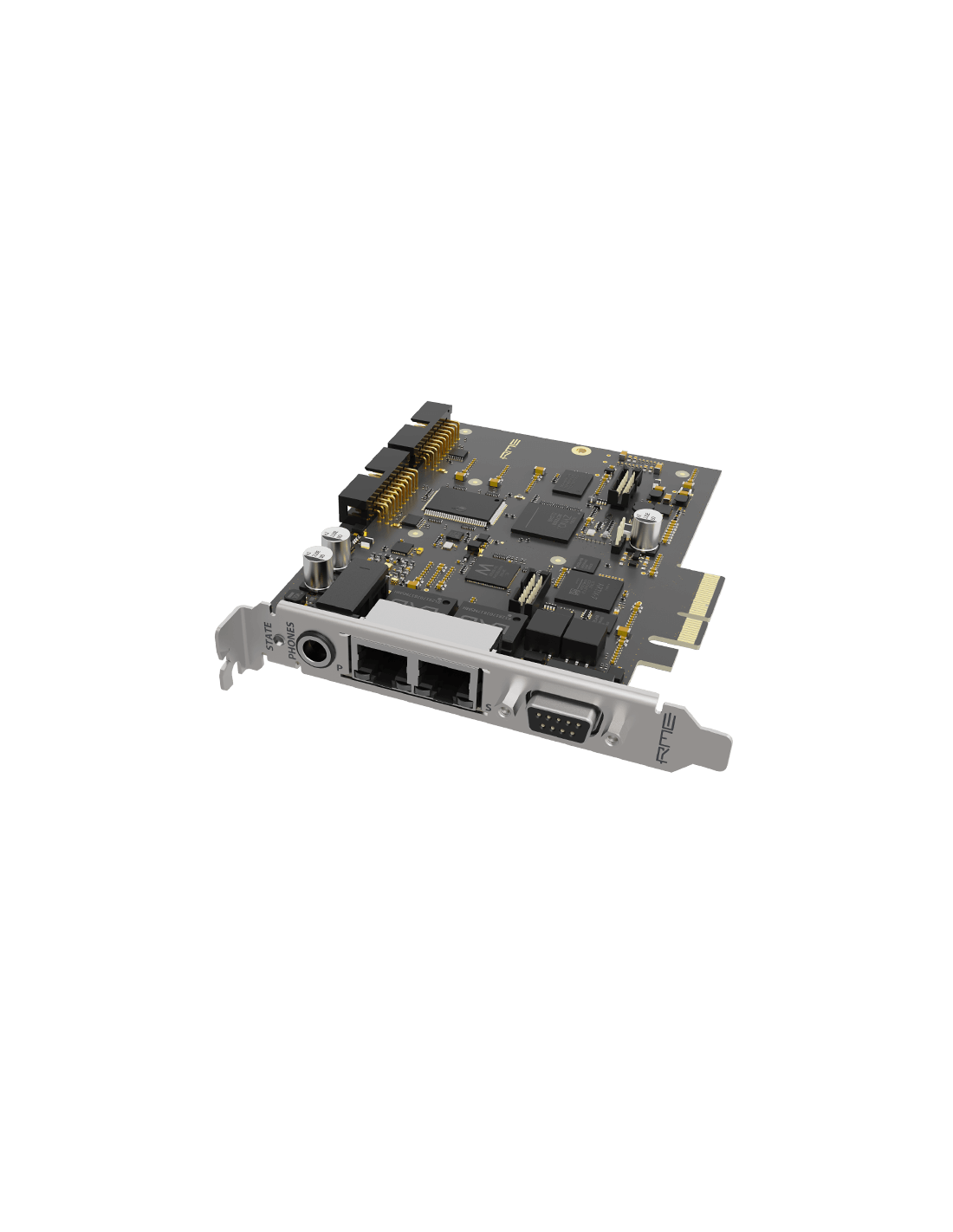

RME PREMIUM LINE HDSPe AoX-D

4-channel PCI Express card. MADI and Dante, 512 I/O channels, 24 bit/192kHz HDPSE AOXPCI Express audio interface with 512 channels, 4x MADI, Dante or AVB-Milan compatible. The HDSPe AoX (AVB) and HDSPe AoX-d (Dante) audio interfaces are the 2 new RME solutions for audio over IP in PCIe x4 format, equipped with 2 network ports, a headphone output and AES3 and MIDI ports, in addition to SteadyClock™ technology for all digital inputs and the possibility of being expanded with up to four optional MADI ports. Whether used in a Thunderbolt expansion chassis or installed in the workstation or inside dedicated audio processors, these cards send and receive up to 512 audio channels and offer extensive capabilities of mixing and routing through TotalMix.PCIE I/O connections: 512/256/128 channels with 48/96/192 kHz sample rates1x stereo headphone output, 1⁄4” TRS4 x MADI I/O (included coaxial BNC and optional SFP optical modules) AES3 I/O on DB9-XLR2 x RJ45 breakout cable 1 GigeWord Clock I/O (BNC) MIDI I/O on DB9 breakout cable - 2x DIN
