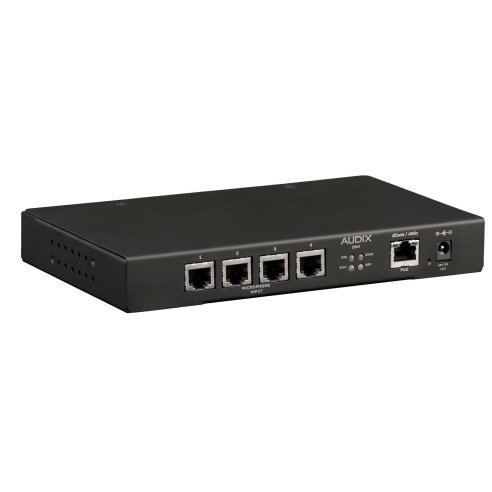

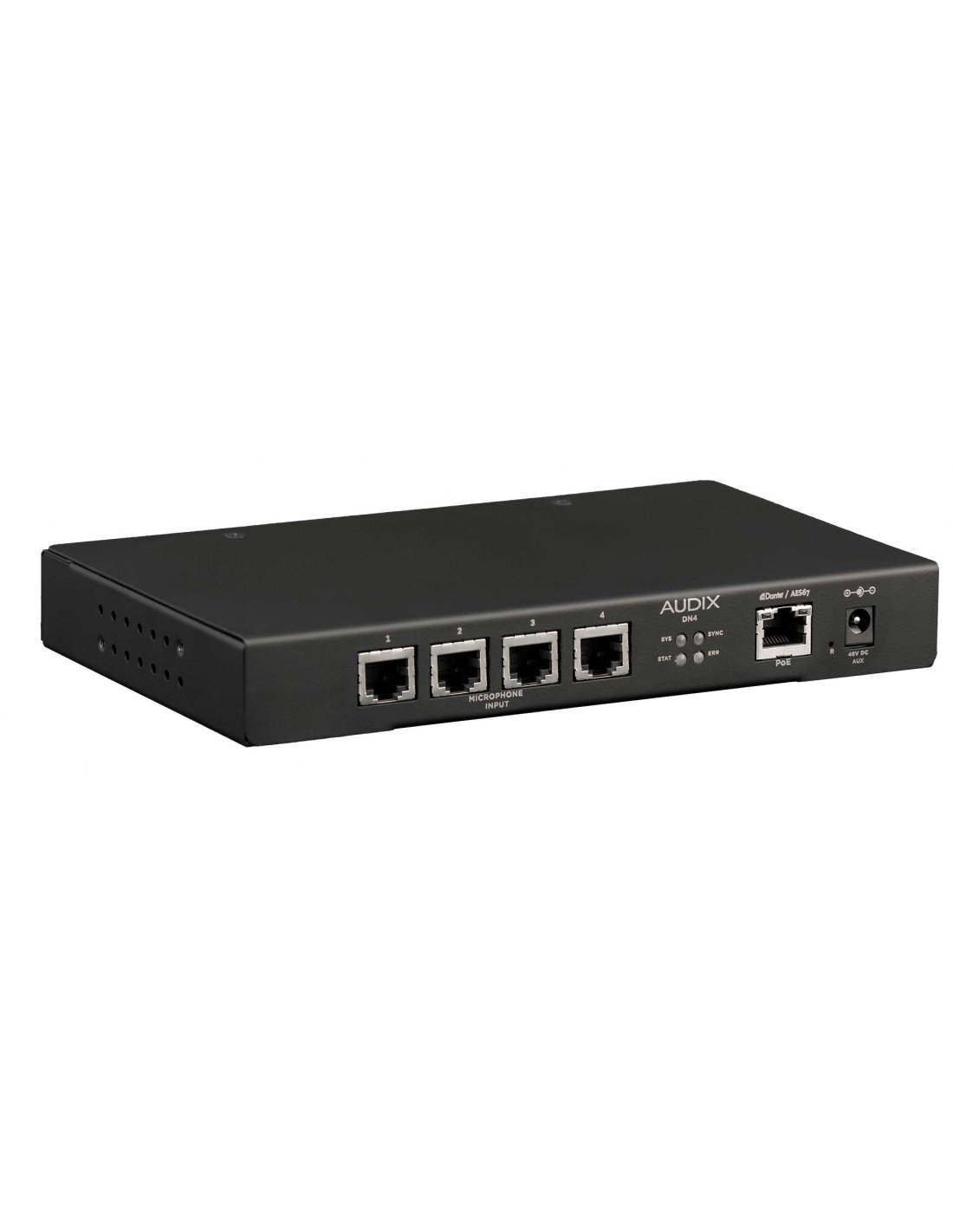

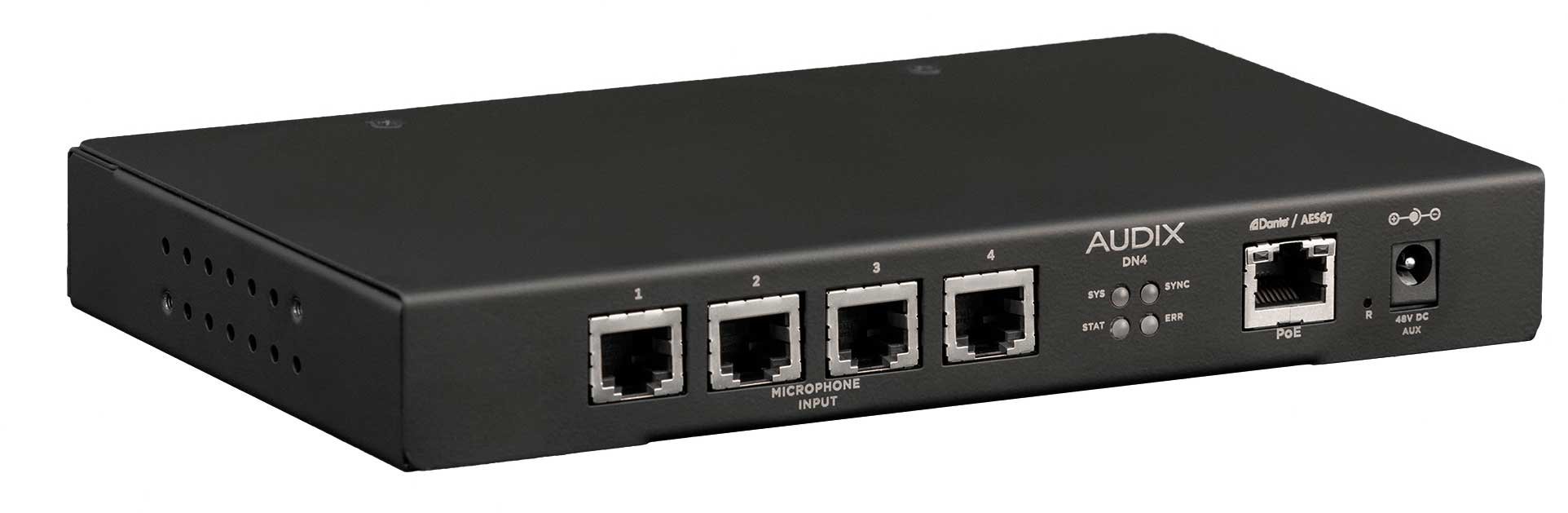

AUDIX DANTE DN4

The DN4 microphone interface is a fundamental part of Audix Dante. AES67 integrated microphone system, the fast and hassle-free way to transmit Audix audio performance over Ethernet networks. High-quality audio and all microphone functions, including closing the on-off contacts and LED status indicators, are available via a single CAT5 - CAT7 cable with RJ45 connections on both the interface and the microphone. This simple configuration eliminates wiring errors, speeds up installation, and reduces costs.

The DN4 features four RJ45 inputs for single-element pickup microphones equipped with Audix RJ45 and two logic outputs at 5 V per port, with the ability to provide DSP controlled LEDs connected to the network and one logic input per port for buttons. High-pass and low-pass filter settings are available on each audio channel, as well as eight selectable gain levels, with all settings configurable via software.

Technical characteristics:

Compatible with all analog single-element microphones equipped with Audix

RJ45.

24-bit, 48 kHz high-fidelity audio.

Balanced audio inputs with RFI filter.

48V phantom power

Each channel has eight selectable preamp gain levels, plus low pass and high pass filters

.

All channels are independently controlled.

Flash memory prevents loss of settings in the event of a power failure.

48 V or PoE power supply. Power supplies not included

.
