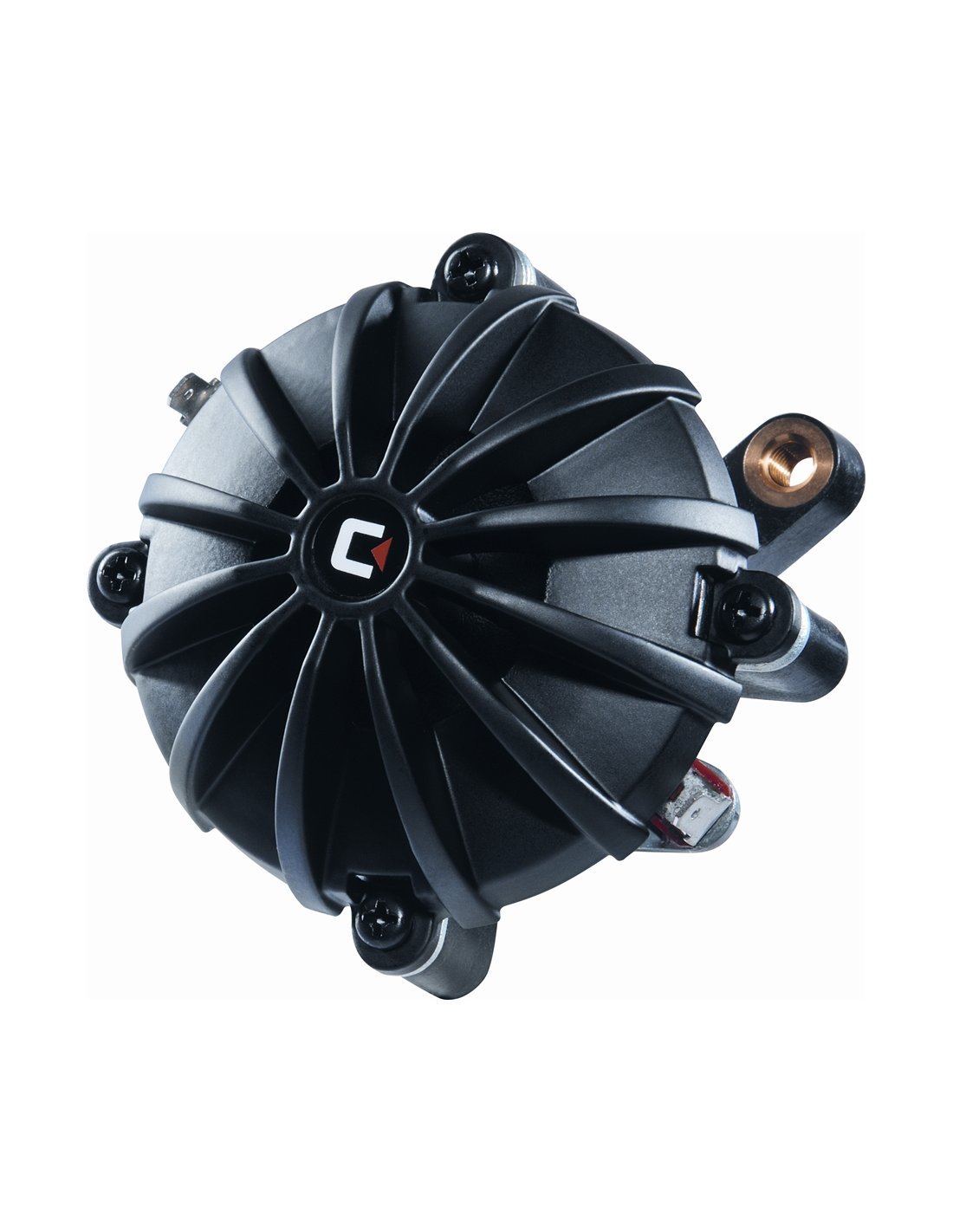

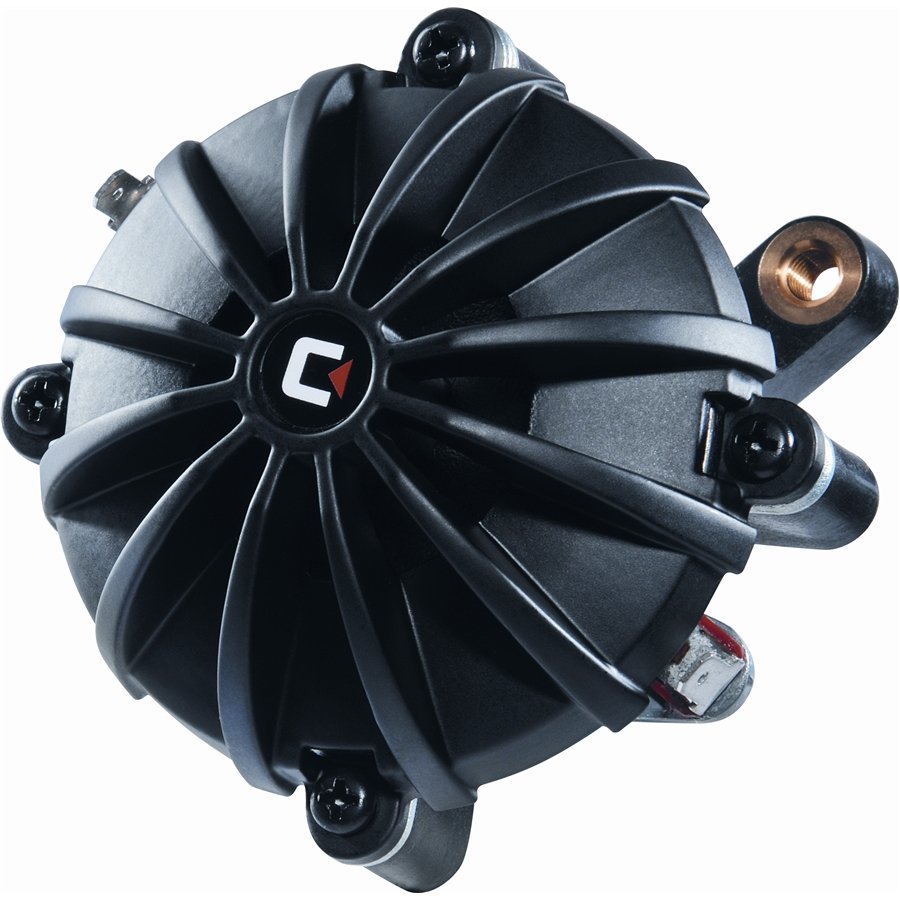

Celestion CDX1-1430 50W 8ohm HF Neodimio

Celestion - CDX1-1430 50W 8ohm - HF Compression Driver - Neodymium Compression Driver with neodymium



magnet, 1 output, 50Watt power, 8ohm impedance, aluminum diaphragm, screw fixing (bolt).

Features

- 1" exit neodymium compression driver with 1.4" copper clad aluminum voice coil

- 50Wrms power handling (AES standard) and 108dB sensitivity

- Copper sleeve on pole reduces inductive rise for improved HF performance -
Ferrofluid in magnet gap prevents sensitivity loss through thermal compression
-
Aluminum diaphragm combined with elastomer surround delivers lower distortion performance


- Finite Element Analysis (FEA) used to optimize both and acoustic magnet design

- Screw mounting adaptor available

General Specifications Power rating (1): 50Wrms
Continuous power rating (2): 100W
Nominal impedance: 8ohm
Sensitivity (3): 108dB
Frequency range: 2000-20,000Hz
Recommended min. crossover (12dB/Oct): 2500Hz
Voice coil diameter: 35mm/1.4in Voice coil material: Copper clad Magnet aluminum type: Neodymium Diaphragm material: Aluminum Surround material:
Elastomer

Information about

Mounting Maximum width: 90mm/3.5in
Depth: 58mm/2.3in
Weight: 0.47kg/1.0lb
Fitting: Flange (2 x M6 holes on 76mm, 3.0in PCD)
Throat exit: 25.4mm/1in

Compatible Horns H1-9040P, H1-7050 “No Bell” Note (1) Tested for two hours on plane

wave tube using continuous band-limited pink noise as per AES standard.











Power calculated on minimum impedance.

(2) Continuous Power Handling is defined as 3dB greater than the AES rating.

(3) Measured on axis at 1W/1m, using typical horn, in 2 anechoic environments.

To print the product sheet, click here For an overview of the entire Celestion CDX Neodymium series, click here To consult and download the original Celestion Pro Audio brochure, click here "Celestion
