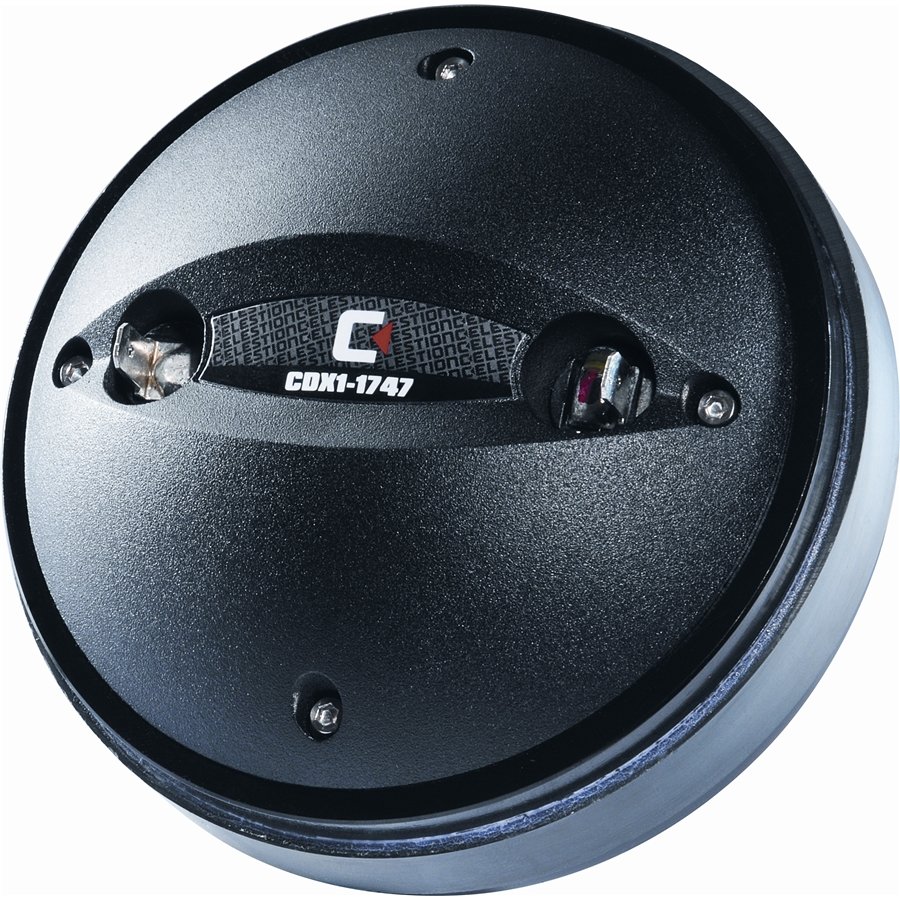

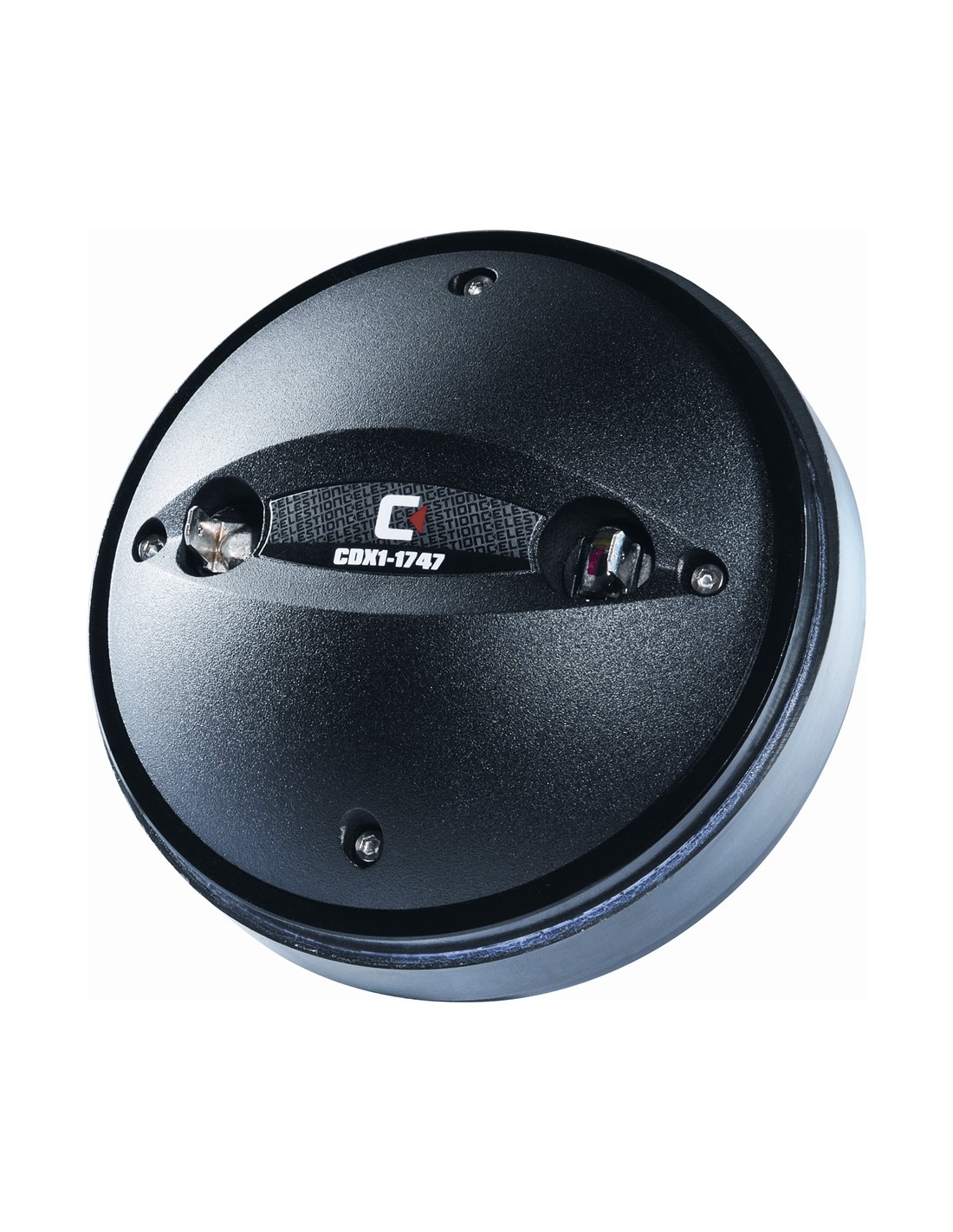

Celestion CDX1-1747 60W 8ohm HF Ferrite

Celestion - CDX1-1747 60W 8ohm - HF Compression Driver - Ferrite Compression Driver with ferrite

magnet, 1 output, 60Watt power, 8ohm impedance, polymide (polyimide)

diaphragm, screw fixing (bolt).

Do you want DIY audio?

For the design of a 15" 2-way PA speaker, click here

Design designed, tested and made available directly by Celestion

Features

- 1" exit, ferrite magnet compression driver with 1.75" edgewound copper clad aluminum voice coil -
60Wrms power handling (AES standard) and 110dB sensitivity
- Next generation Sound Castle™ soft clamping assembly reduces diaphragm stress for

reduced distortion and even greater reliability of performance

- One piece Polyimide diaphragm and surround

- Finite Element Analysis (FEA) used to optimize both magnet assembly and acoustic design

General Specifications

Power rating (1): 60Wrms

Continuous power rating (2): 120W

Nominal impedance: 8ohm

Frequency range: 1000-20,000Hz

Sensitivity (3):
110dB Recommended min. crossover (12dB/Oct): 2000Hz 12dB/Oct Voice coil diameter: 44mm/1.75in Voice coil


material: Edgewound Copper Clad Aluminum

Magnet type: Ferrite

Diaphragm material: Polyimide Surround material.

Polyimide

Mounting Information Width: 120mm/4.72in
Depth: 53mm/2.08in
Weight: 2.3kg/5.1lb
Fitting: Flange (2/3 M6 holes on 76/57.2, 3.0/2.224in PCD)
Throat exit: 25.4mm/1.0in Compatible H1-9040P, H1-7050 “No Bell” Note (1) Tested for two hours on plane wave tube using a continuous, band-limited

pink noise

signal as per AES standard.













Power calculated on minimum impedance.

(2) Continuous Power Handling is defined as 3dB greater than the AES rating.

(3) Measured on axis at 1W, 1m, using typical horn, in 2 anechoic environments.

To print the product sheet, click here For an overview of the entire Celestion CDX Ferrite series, click here To consult and download the original Celestion Pro Audio brochure, click here "Celestion
