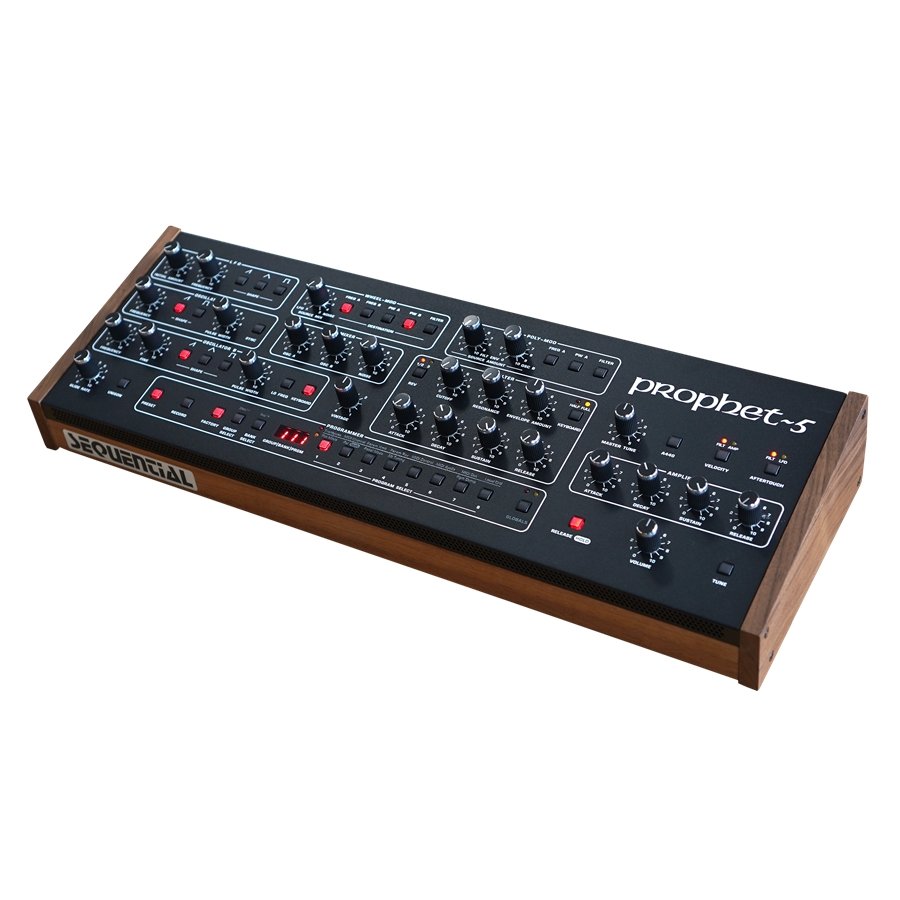

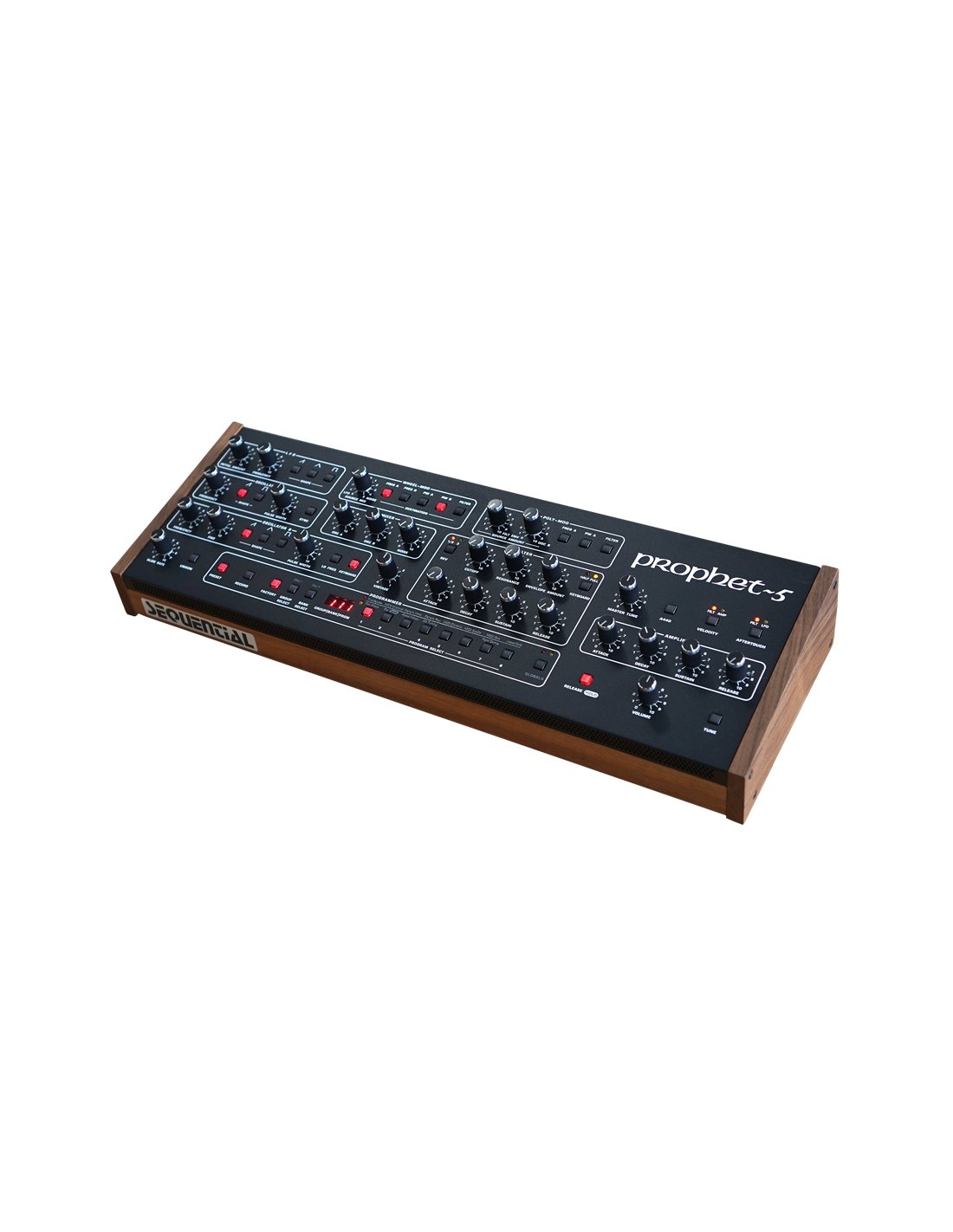

SEQUENTIAL PROPHET 5 DESKTOP

SEQUENTIAL PROPHET 5 DESKTOP is a 5-voice analog synthesizer module with 200 user memories and 200 factory memories, 2 VCOs (CEM 3340) per voice, OSC A with variable width saw/pulse shapes, OSC B with variable width saw/triangle/pulse shapes, waveforms that can be reproduced simultaneously on both oscillators, Hard-sync, Unison and Chord Memory modes. It also has 2 4-pole resonant LP VCF, Rev1/2 or Rev3 filter choice button, 1 LFO, 2 ADSR, Wheel-Mod mode with 2 sources and 5 destinations, Poly-Mod mode with 2 sources and 3 destinations, Glide, vintage-style potentiomenters. It has MIDI In, Out and Thru DIN connections, USB type B, main mono output via 1/4” TS jack, headphone output via stereo 1/4" TRS jack, 2 CV in/out, 2 GATE in/out, 1 1/4” TRS jack input for expression pedal (Amp Volume), 1 1/4” TRS jack input for expression pedal (Cutoff Filter), 1 1/4” TS jack input for sustain pedal

• Oscillators: 2 CEM 3340 VCO per voice
• Simultaneously selectable waveforms: Sawtooth Oscillator A, Square, Sawtooth Oscillator B, Triangular, Square, Pulse Width per Oscillator
• Hard Sync: oscillator 1 synchronization with oscillator 2
• Low pass filter: Four-pole resonant per voice, switchable between authentic versions of the Prophet-5 Rev1/2 filter and the Prophet-5 Rev3 filter
• Four-stage envelope generator (ADSR)
• Vintage knob to set the properties of various Prophet 5 models (behavior of oscillators, envelopes, amplifiers and other parameters)
• 200 factory programs and 200 user memory locations in 5 banks with 40 programs each
• Direct access to programs including access to a Prophet 5-style button to 8 programs
• 1 Mono line output: 6.3 mm jack
• Stereo headphone output: 6.3 mm jack
• MIDI In/Out/Thru
• USB
• CV input and output: 6.3 mm jack
• Gate input and output: 6.3 mm jack
• Low-pass filter expression cutoff pedal input
• Volume pedal input
• Sustain pedal input
• Dimensions: 527 x 762 x 188mm
• Weight: 4.5 kg
