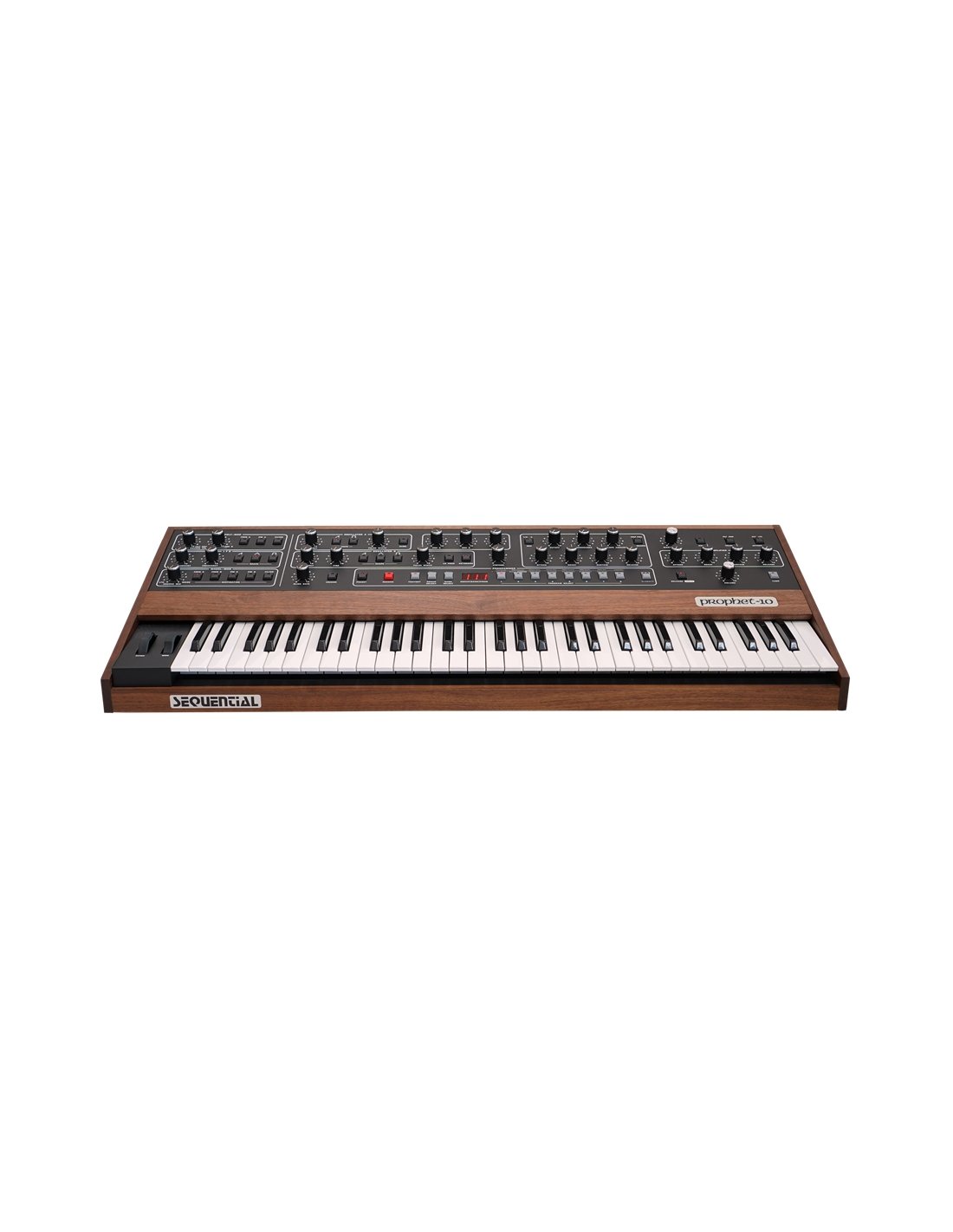

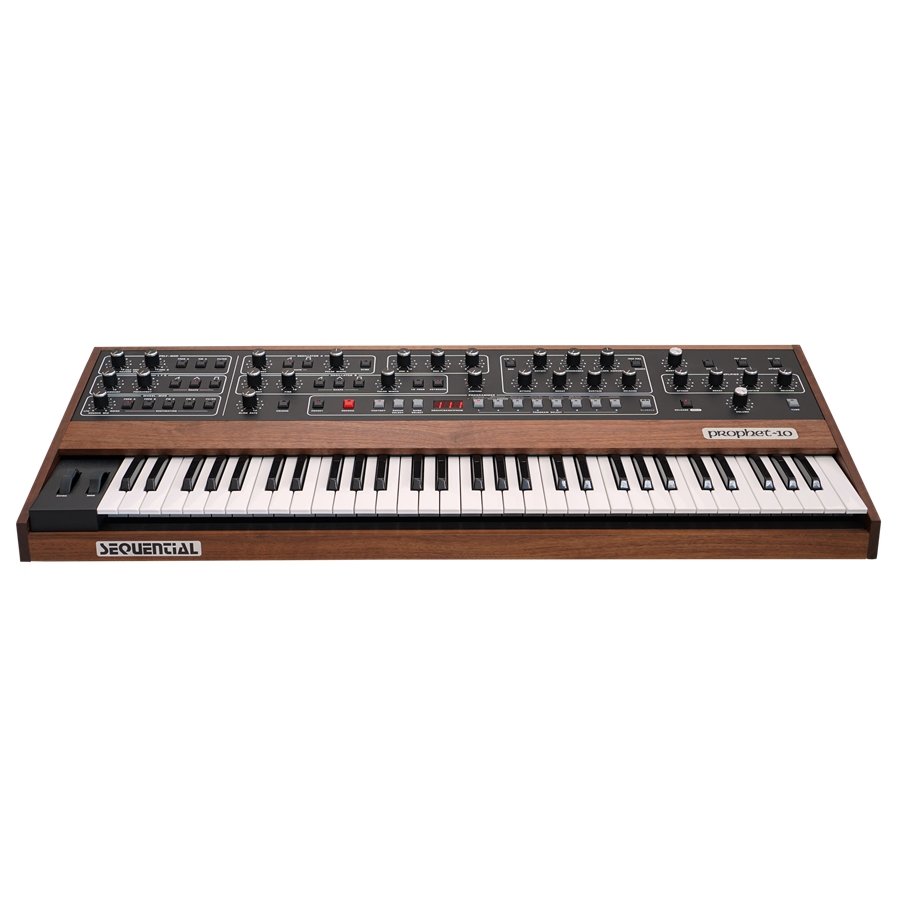

Prophet-10 Specifications
OSCILLATORS
Two authentic CEM 3340 VCoS polyphony voice analog synth
- for voice Simultaneously selectable wave shapes
- . Oscillator A: sawtooth, press. Oscillator B: sawtooth, triangle, pulse.
Pulse width per oscillator Hard sync: oscillator 1 syncs to oscillator 2 Low frequency mode (oscillator 2) Keyboard tracking on/off (oscillator 2)
MIXER
Oscillator 1 amount Oscillator 2
- amount
- White noise amount
LOW-PASS Filter Four-pole, resonant, low-pass filter
for voice Switchable between authentic versions of the Prophet-5 Rev1/2 filter and Prophet-5 Rev3
- filter Rev1/2 filter is a Dave Rossum-designed 2140,
- the modern
counterpart of the original 2040 filter found in the Prophet-5 Rev1 and Rev2 Rev3 filter is a Doug Curtis-designed CEM 3320 Filter can be driven into self-oscillation with the Resonance control Keyboard tracking: off, half, full FILTER ENVELOPE Four-stage (ADSR) envelope generator Velocity modulation of envelope amount AMPLIFIER ENVELOPE
Four-stage (ADSR) envelope generator Velocity modulation of envelope amount low FREQUENCY OSCILLATOR
- Three wave shapes: sawtooth, triangle, square. All waveshapes can be engaged simultaneously
- Both Initial Amount and mod wheel control Mod
- destinations: oscillator A frequency, oscillator B frequency, oscillator A and B pulse width, filter cutoff
POLY MOD Sources: filter envelope and
oscillator B
- Destinations: oscillator A frequency, oscillator A pulse width, filter cutoff
VINTAGE KNOB
- Recreates the characteristics of various Prophet-5 models by varying the behavior of oscillators,
- envelopes, amplifiers, and other parameters. Go from a very stable “4” — as in Prophet-5 Rev4, (the new version) — all the way to “1,” as in Prophet-5 Rev1, the rarest and most temperamental of all Prophet-5s
.
AFTERTOUCH
- Channel (mono) aftertouch
- Destinations: filter cutoff frequency, LFO amount
PERFORMANCE CONTROLS
Full-sized,
- semi-weighted, premium Fatar 5-octave keyboard with velocity and aftertouch
- Mod wheel spring-loaded pitch wheel with selectable range per program (1 to 12 semitones up and
down) Polyphonic glide (bearing) Unison (monophonic) mode with configurable voice count, from one to all ten voices and key modes Preset switch: when Off, the front panel is live; what you see is what you hear
PATCH MEMORY
- 200 user and 200 factory programs in 5 banks of 40 programs each
- Direct program access, including Prophet 5-style single-button access to the current set of 8 programs
IN/OUT
- Mono output (1 x 1/4” phone jack) Headphone output (stereo, 1/4” phone jack)
- MIDI in,
- out, and thru USB ports for bidirectional MIDI
- communication
- Control voltage in/out (1 x 1/4” phone jack) 0- +5V input/output signal. Configured for 1-volt-per-octave operation.
- Gate in/out (1 x 1/4” phone jack). Accepts a 1.5 to 15-volt on/off signal to gate the envelopes of a single voice on the Prophet-10. Outputs at 15-volt on/off used to gate the envelopes of an external synth.
- Low-pass filter cutoff expression pedal input Volume expression pedal input
- Sustain footswitch input
