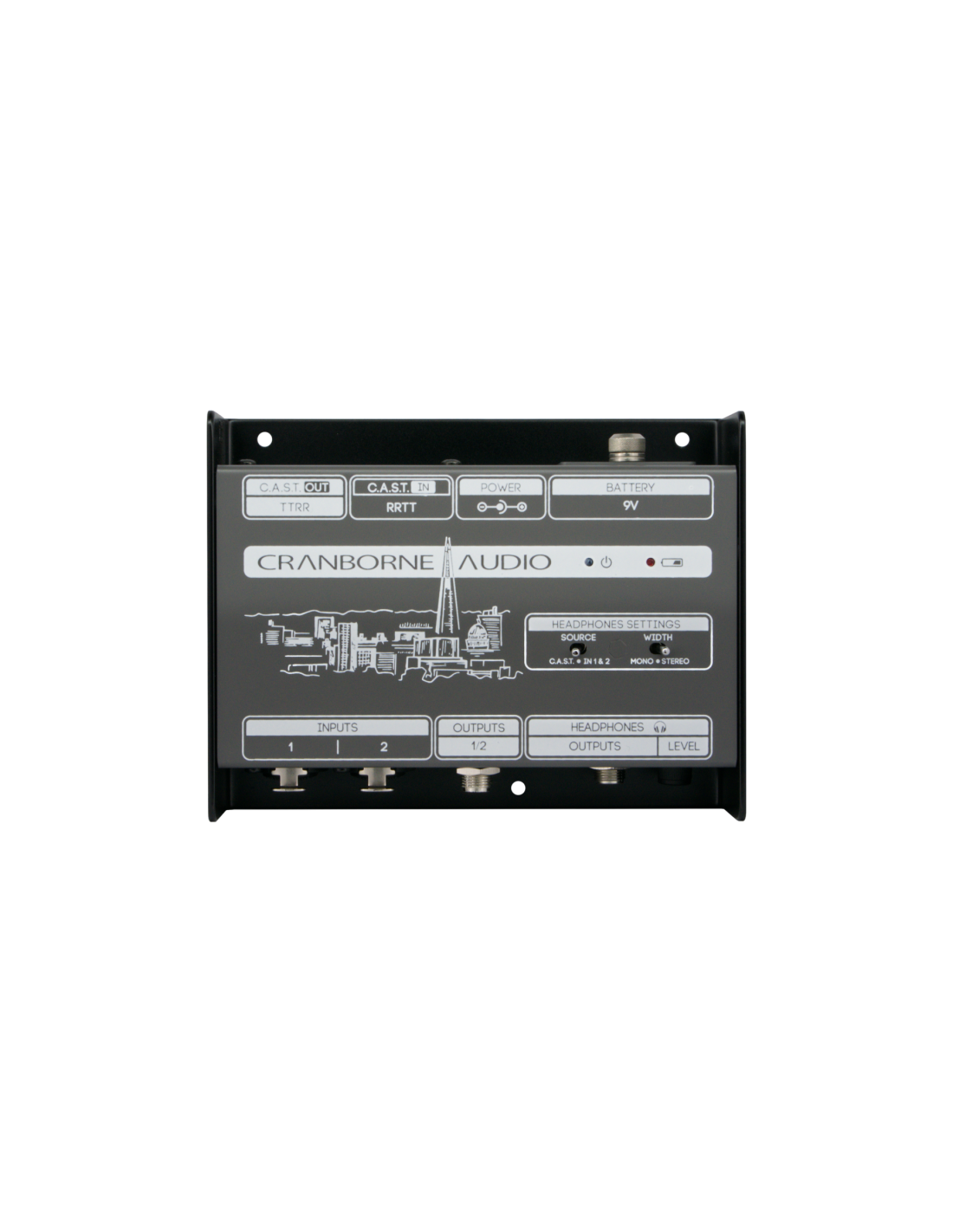

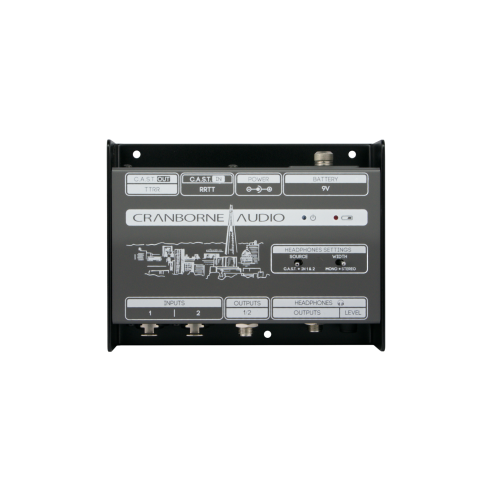

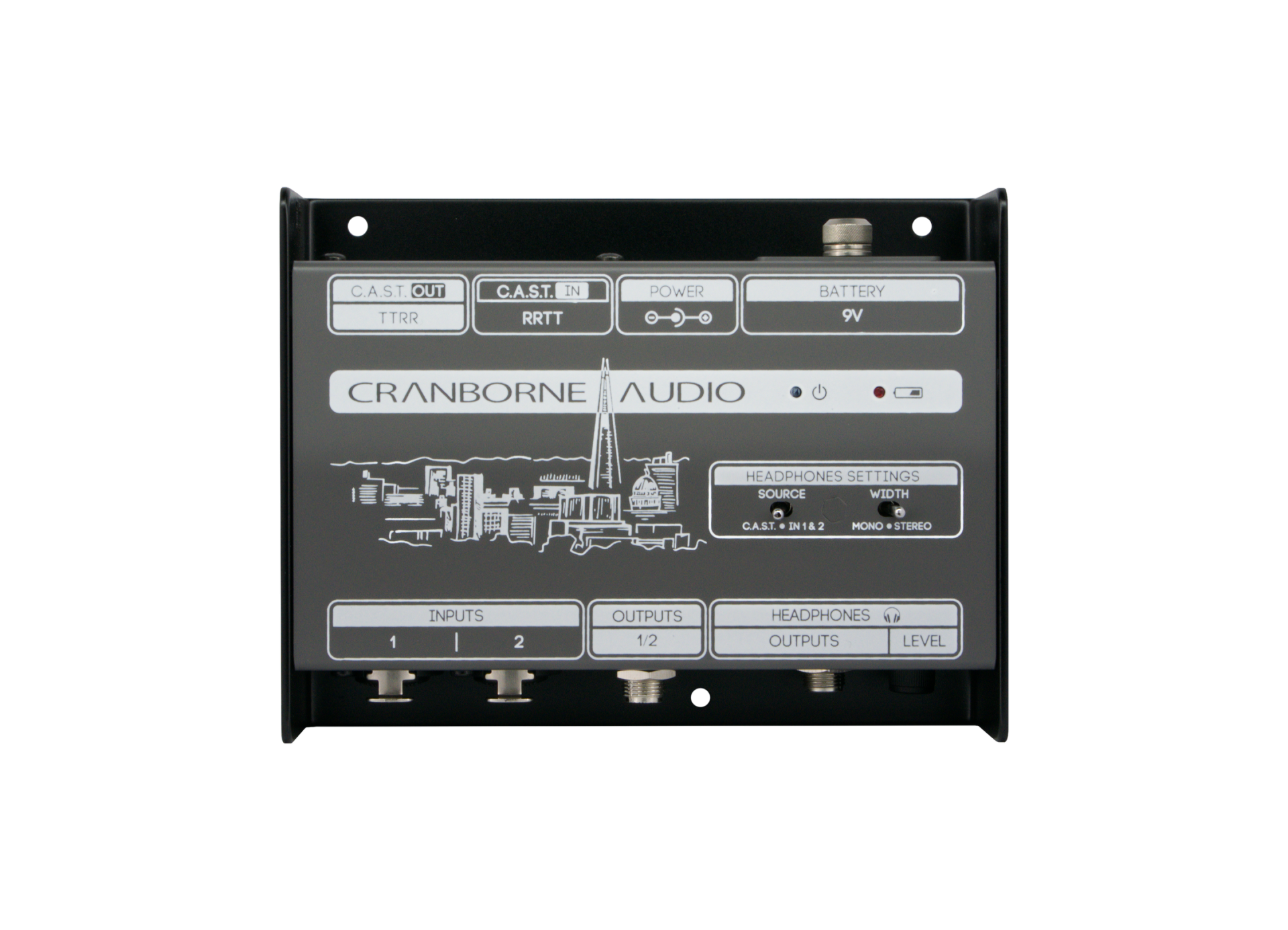

CRANBORNE AUDIO N22H

C.A.S.T. audio distribution system with Cranborne N22H headphone amplifierEasier listening than Main22h is a high-quality stand-alone headphone amplifier, a device for rationalizing wiring and an advanced signal distribution system for headphones.Amplification distributed through Cat 5N22H is a headphone amplifier that can be used wherever you need, with a simple Cat 5 cable. If paired with another C.A.S.T. product, the N22H can transmit two mic/line signals to the connected device and receive the monitor mix to be sent directly to its headphone outputs. Quality amplificationThe N22H is a small instrument for musicians and technicians looking for quality amplification for headphones, in the studio or on stage, with the same characteristics as the 500R8 interface. By setting the source to “switch 1&2”, the line signals connected to the N22H inputs will be sent directly to the headphone amplifier for stand-alone, portable and powerful amplification. No cable clutter. The C.A.S.T. system replaces four balanced XLR cables with a single CAT 5.C.A.S.T (Cat 5 Analogue Signal Transport) cable uses the copper pairs inside the Cat5 cable to transmit 4 channels over distances of up to 100 meters. Cranborne developed C.A.S.T. to create the perfect platform for audio distribution in studios and on stages, reducing cable clutter, improving sound performance, reducing costs and improving flexibility in the distribution of audio channels. The C.A.S.T. system allows you to transform the classic tangle of cables into a work of art, clean and tidy cabling. Advanced C.A.S.T. ExpanderConnect the N22H to the C.A.S.T. inputs of a 500R8 or a 500ADAT: the sources connected to the N22H will be sent directly to the interface to be recorded. The same C.A.S.T. connection will carry a stereo mix monitor generated by the 500R8/500ADAT to the headphone amplifier and the double 1/4” jack outputs, for zero latency analog listening. Standalone Cat5 Snake The use of the N22H and the N22 will replace bulky and expensive analog multicore, allowing the balanced audio signal to be transmitted between two locations. It is possible to connect the N22H with your audio interface and distribute the audio in a vocal booth, in a recording room or in a corridor to be temporarily soundproofed, using a single Cat 5 cable. Reference quality standalone headphone amp Characterized by the same quality as the flagship 500R8 interface, the N22H headphone amp is the tool for all technicians who want to properly amplify their headphones. With the source selector on the “1&2” switch, you can send the line sources connected to the N22H inputs directly to the headphone amplifier, without the need to use a C.A.S.T. With an output impedance of 0.33 Ohm, up to 500mA of power per channel and a signal path with very low distortion (THD = 0.0003%, 1kHz), the N22H headphone amplifier offers crystal clear amplification with sufficient volume to drive any headphone. It can also be powered with a 9v battery or with an external 9v power supply.
