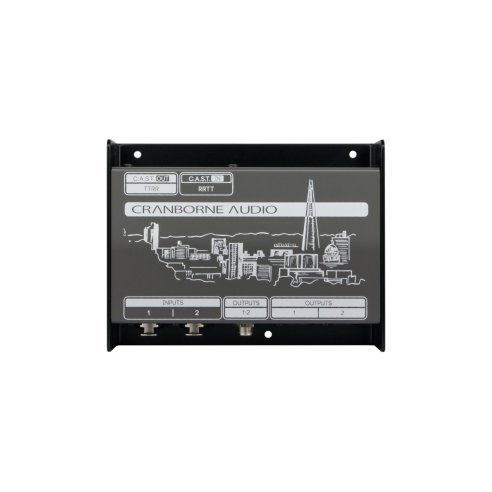

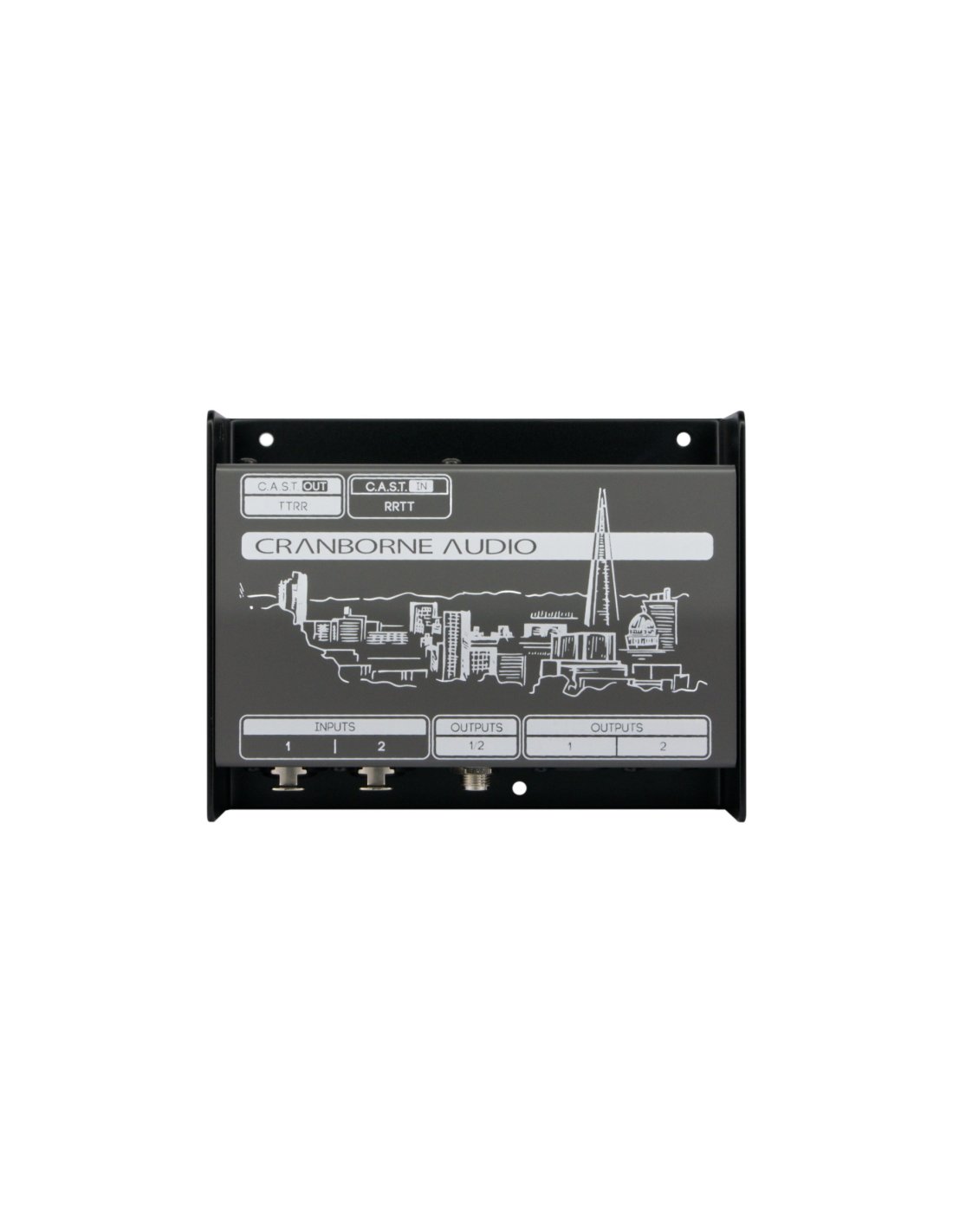

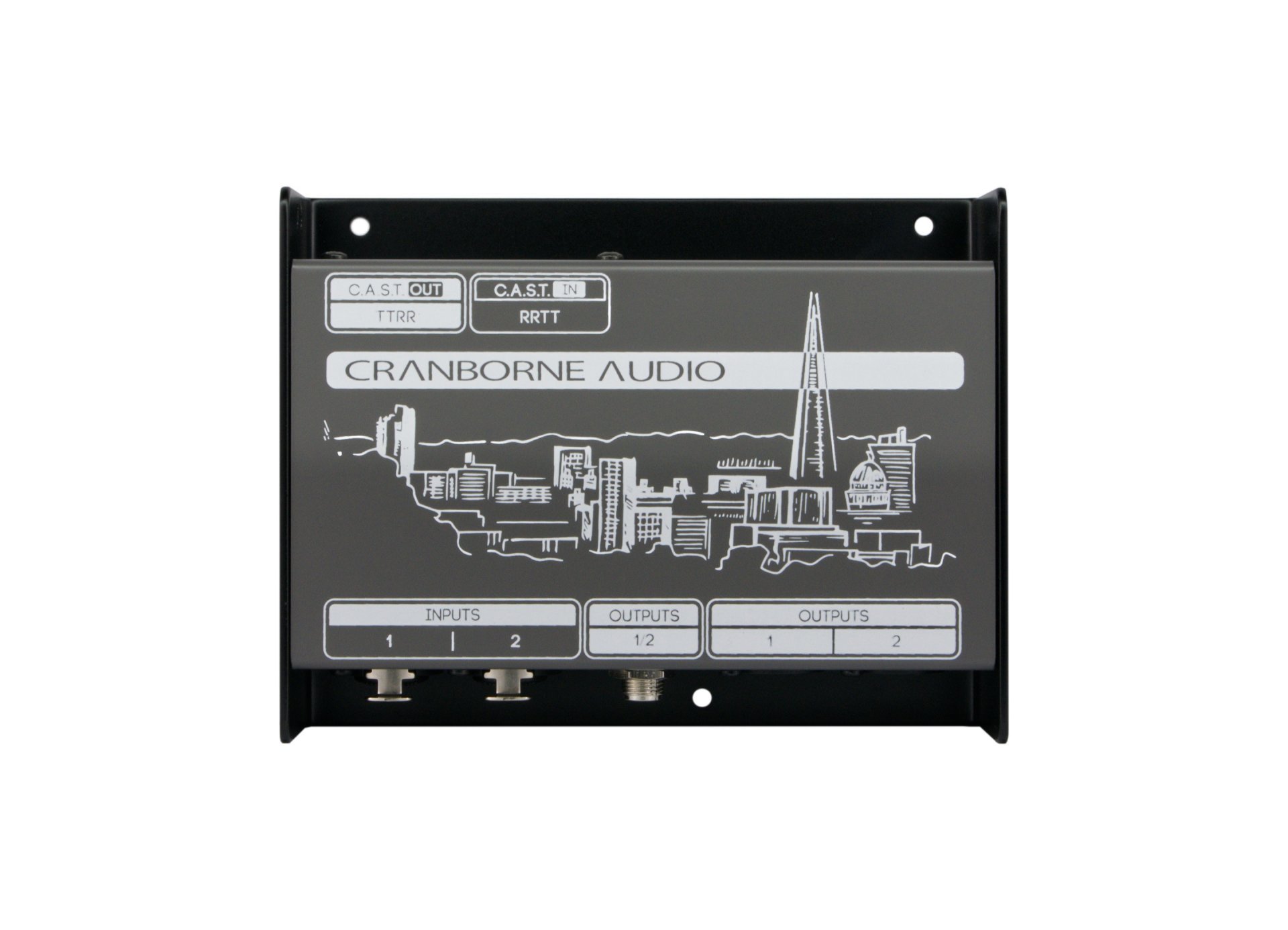

CRANBORNE AUDIO N22

Cranborne N22 C.A.S.T. Audio distribution system Audio distribution: an orderly and economic solutionCranborne N22 is, at the same time, an audio distribution system via C.A.S.T. and a 4-channel cat5 multicore. Standalone cable management tool In simple words, N22 replaces 4 balanced XLR cables with a Cat 5 cable over distances of up to 100m. Thanks to the C.A.S.T system, N22 is perfect for distributing audio in the studio or on stages with a lean and affordable wiring, using a Cat5 cable to carry a balanced analog audio signal to and from other compatible products (for example, another N22) .Breakout Box C.A.S.T. AdvancedStudios that already use a Cranborne Audio audio interface can simply connect the N22 to the C.A.S.T. IN port and the audio connected to the N22 inputs will appear directly on the audio interface, ready to be recorded. The same type of CAT 5 C.A.S.T. connection can transmit a monitor mix generated by the interface directly to the balanced XLR and 1/4” Jack outputs for monitoring or reamping. No cable clutterThe C.A.S.T. system replaces four balanced XLR cables with a single CAT 5.C.A.S.T (Cat 5 Analogue Signal Transport) cable uses the copper pairs inside the Cat5 cable to transmit 4 channels over distances of up to 100 meters. Cranborne developed C.A.S.T. to create the perfect platform for audio distribution in studios and on stages, reducing cable clutter, improving sound performance, reducing costs and improving flexibility in the distribution of audio channels. The C.A.S.T. system allows you to transform the classic tangle of cables into a work of art, clean and tidy cabling. C.A.S.T. ExpanderConnect the N22 to the C.A.S.T. IN ports of a 500R8 or a 500ADAT: the audio present at the inputs of the N22 will be sent directly to the interface to be recorded. Meanwhile, a stereo mix monitor generated by the 500R8/500ADAT will be routed from the same C.A.S.T. connection directly to the 1/4” jack and XLR line outputs. Frusta Cat5 Standalone You can replace bulky and expensive analog multicores using two N22 units to transmit and receive audio between two different stations. For example, you can use an N22 connected to an audio interface to distribute a signal in a vocal booth, in a live room or, perhaps temporarily, in a corridor to be soundproofed using a single CAT5 cable. Audio distribution for headphones with N22HThe older brother of the N22 is the N22H. Equipped with all the functionality of the smaller model, but with reference quality and a headphone amplifier with high power output. Using the same design as the flagship 500R8, the N22h headphone amplifier is a crucial tool for technicians who want to drive their headphones properly. By connecting an N22 with an N22H, the C.A.S.T. system can be used to carry the headphone amplification wherever it is necessary, only with a CAT5 cable. With an output impedance of 0.33 Ohms, up to 500mA of power per channel and low distortion (THD = 0.0.0003% at 1kHz), the N22H's headphone amp offers clean amplification with enough volume to drive any type of headphones. It can also be powered with a 9v battery or an external 9v power adapter. Key Features Two combo inputsTwo 1/4” headphone jack outputs ∙ Two XLR outputs C.A.S.T IN port (RRTT) C.A.S.T OUT (TTRR) Port Advanced connectivity with 500R8, 500ADAT, and Camden EC2Cat5 connectivity with a second N22 or N22H fully passive operationsCompatible with any shielded Cat5 cable for distances up to 100 microCrosstalk using improved Cat6 and Cat7 Robust metal housing Fixing holes permanent installations
