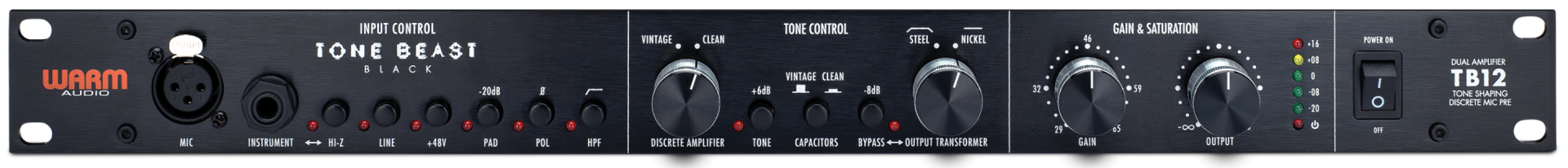

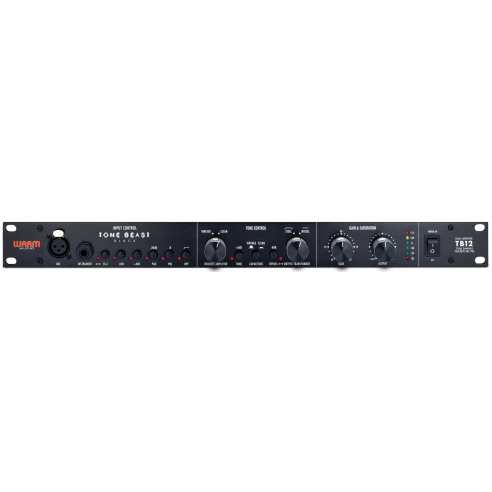

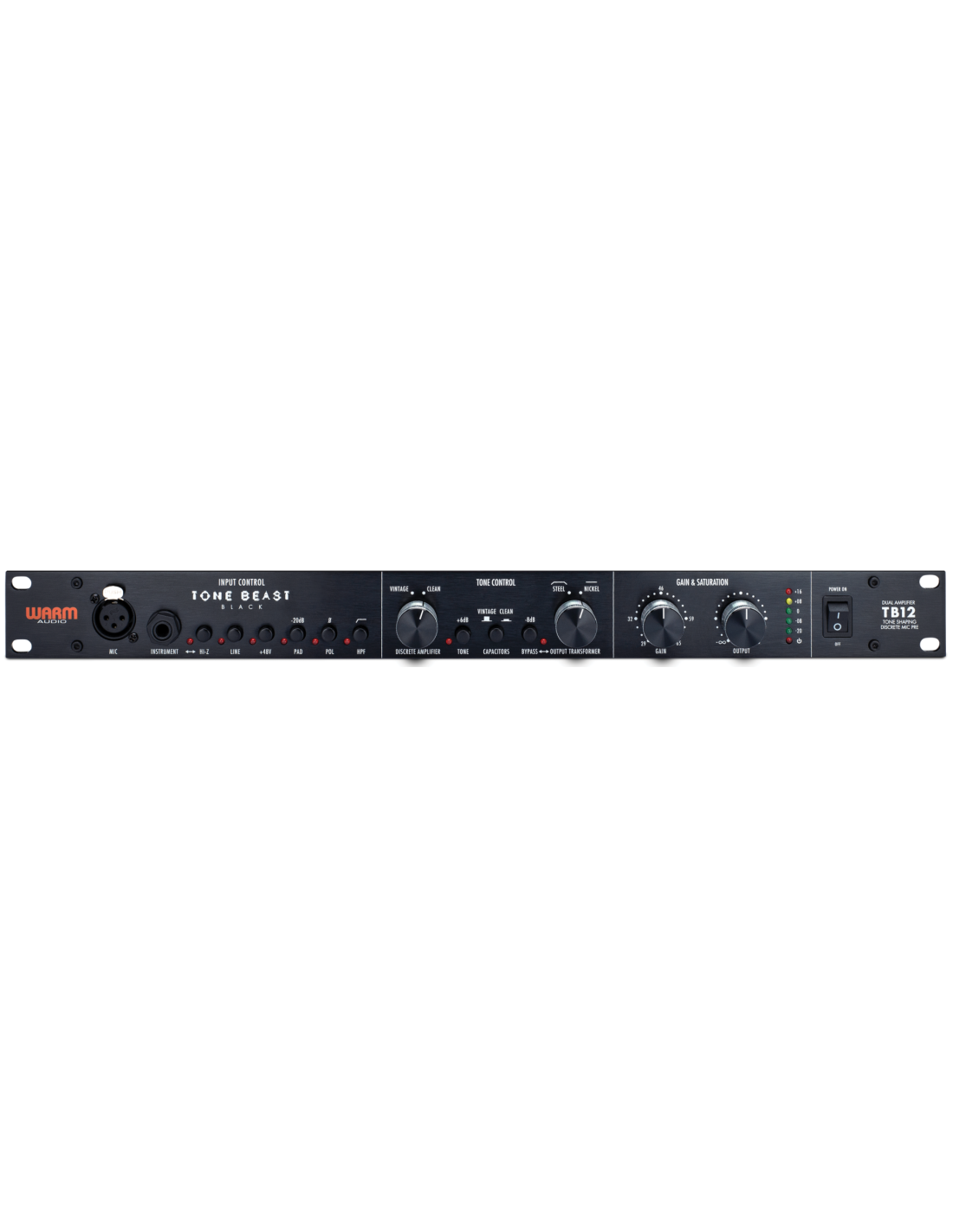

WARM AUDIO TB12 Tone Beast Black

Microphone Preamplifier with Tone Shaping - Black Version Warm Audio Tone Beast TB12 is one of the best microphone preamplifiers on the market in its price range.
It uses quality components built in the USA, normally found in much more expensive machines.
In addition to its unparalleled quality and convenience, the Tone Beast excels in flexibility thanks to unique characteristics capable of shaping the sound, as if you had several preamps with different circuitry available.
Professionals and musicians will appreciate the power and flexibility of the Tone Beast, capable of heating and shaping the sound both during shooting and during mixing.

The input stage can accommodate any type of source, line or microphone.
Thanks to the switch called TONE, the impedance is varied from 600 ohms to 150 ohms: this involves an increase of +6dB, bringing the maximum gain from +65dB to +71dB.
This, in addition to making the unit the perfect complement to ribbon microphones, allows you to decisively change the sound paste to connected microphones or instruments.
The TONE control affects all inputs (MIC, LINE and Hi-Z).
The 600 ohm impedance is recommended for condenser and dynamic microphones while setting it to 150 ohms (TONE button pressed) we will be able to drive without problems even the most difficult to amplify ribbons.
The TONE label is due to the fact that the frequency response is also modified, so it is advisable to try the Tone Beast with the button in both positions and check which solution is most popular, regardless of the source!

Switch x731/x18: two completely different discrete operational amplifiers can be selected: one based on the style of the classic OP AMP 1731, characterized by vintage sounds, the other based on the 918, more modern and transparent.
Both components are mounted on standard 6-contact pinout, which allows the user to use other OP AMPs of their choice.



CAPACITORS SWITCH

Two different capacitors can be selected, another arrow in the TONE BEAST arc!


STEEL and NICKEL, that is, a TANTALUM condenser (vintage sound) and a decidedly “clean” ELECTROLYTIC capacitor.



OUTPUT Transformer Switch

The output transformer can be totally bypassed, to ALSO have a transparent preamp without transformers (the output is attenuated by 8dB).



OUTPUT Trasformer Selector Switch

This switch allows you to choose between two different CINEMAG output transformers.
The 'Steel Core' has a decidedly Vintage flavor with a slight emphasis on averages; the '50% Nickel Core', designed by CineMag specifically for the Tone Beast, has more 'Clean' sound characteristics.
The nickel version undergoes a particular processing process that, while maintaining a very linear response, maintains a very soft sound imprint, impossible not to fall in love with its sound!!!

TECHNICAL SPECIFICATIONS:
• 71db of gain
• The transformer section offers both steel and 50% nickel cinemag output transformers to vary their character
• Transformer bypass selector to remove the output transformer from the circuit
• Discrete opamp selection to choose between opamp 1731 (vintage) and 918 (cleaner) style. These are on sockets and can be replaced with 6-pin 2520 series opamps of your choice
• Impedance selector to switch to an input impedance between 150 and 600 ohms
• Hi-z 2 meg ohm “true input” input on the front panel sends the instrument signal through the entire circuit, including both the cinemag transformers and the discrete opamps. Great for guitars, basses, keyboards and other instruments with 1/4” jack output
• Hipass filter 80hz • Polarity reversal
• Uses premium grade cinemag transformers
• +48v phantom power
• Output attenuation for flexibility in the saturation of both opamps and transformers
• ¼” insert to use inline compressors, eq etc.
• Balanced xlr mic inputs (front and rear), balanced line trs and unbalanced ¼” instruments
• Balanced XLR outputs and trs • Pad -20db • Vu meter LED



• 19" rack-mountable
• Internal power supply selectable between 115/230
• Capacitor selection between tantalum and
