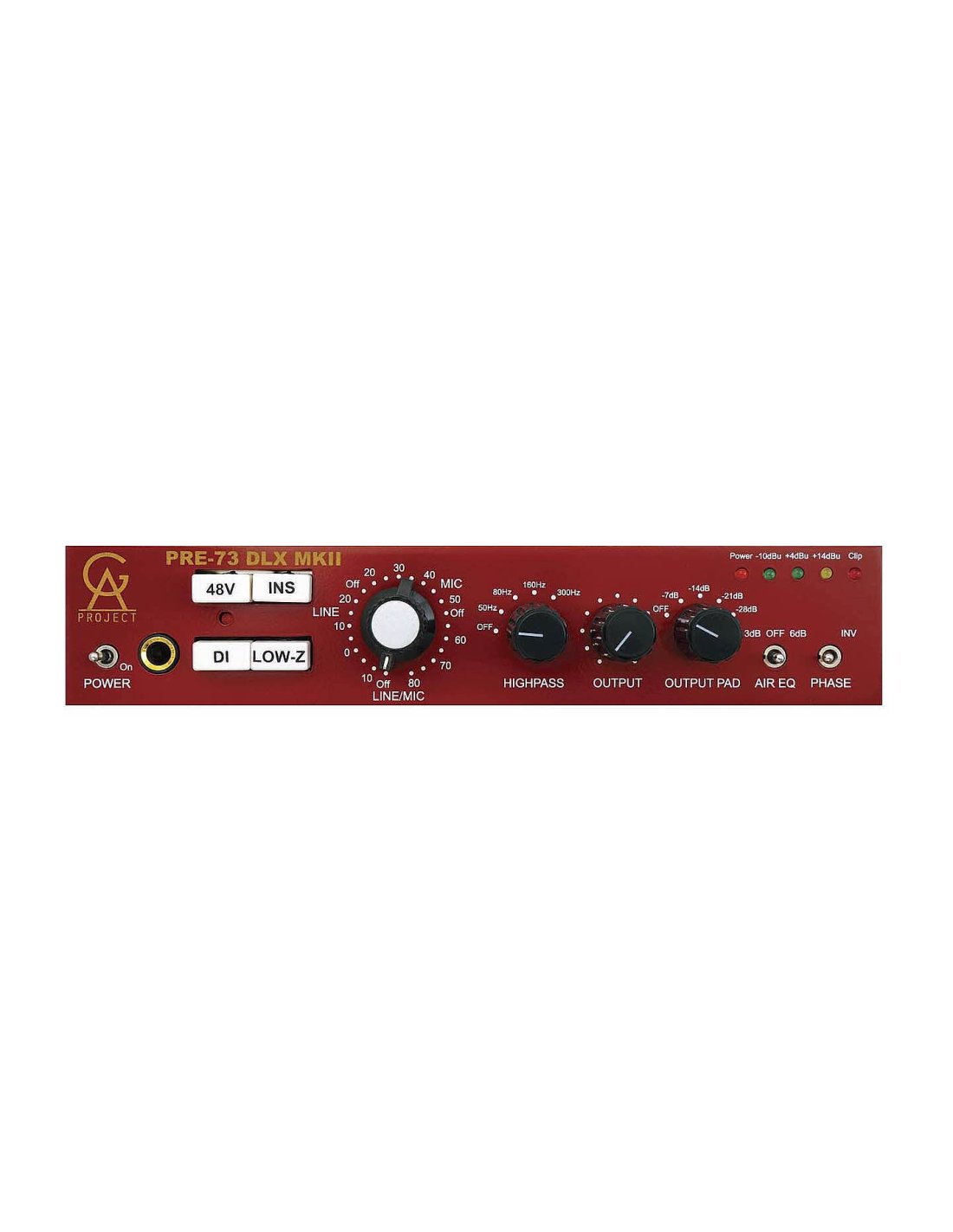

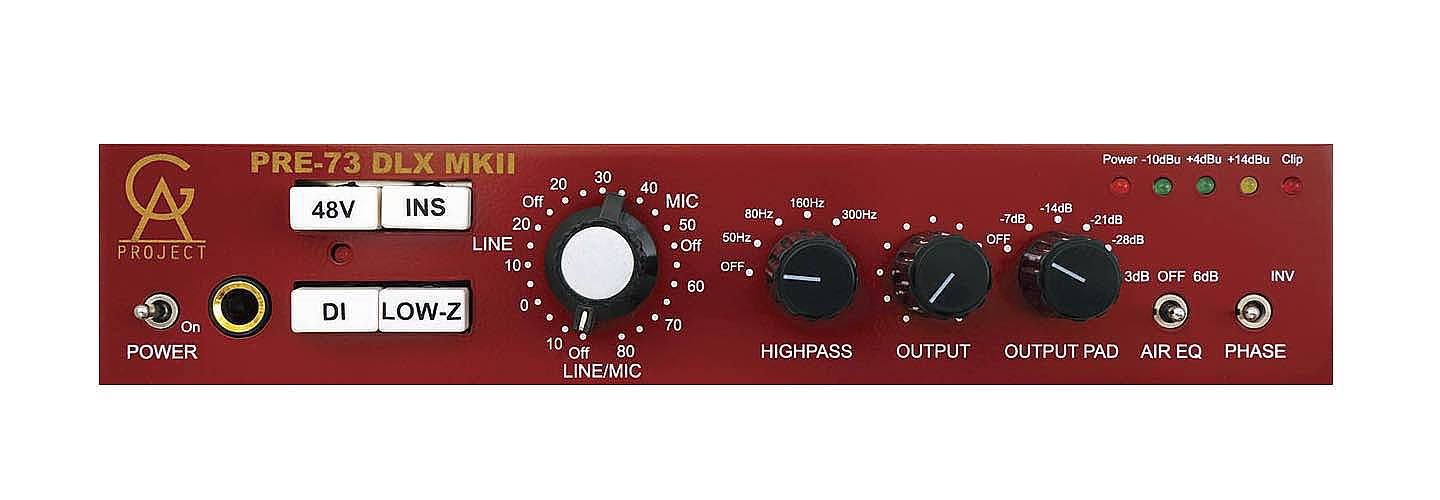

GOLDEN AGE PROJECT Golden Age Project Pre-73 Dlx Mkii

High-quality 1-channel microphone pre, made with discrete components and independent transformers for mic input, instrument and output, equipped with a circuit inspired by the famous Neve 1073, Mic inputs with Combo, Line connector with high impedance Combo and Instrument connector with 1/4” TRS Jack, insert with 1/4” TRS Jack, output with XRL connectors and 1/4” TRS Jack, adjustable mic gain up to 80dB, Air switch for 3/6 dB boost at 30kHz, variable HPF, microphone input impedance adjustable to 300 or 1200 Ohm input active with impedance adjustment and the possibility of excluding the microphone input transformer, phase inversion, 48V phantom power, insert In/Out button, ground lift, LED level indicator, output level adjustment with attenuator and 600Ohm terminator. Predisposition for mounting Carnhill transformer.
