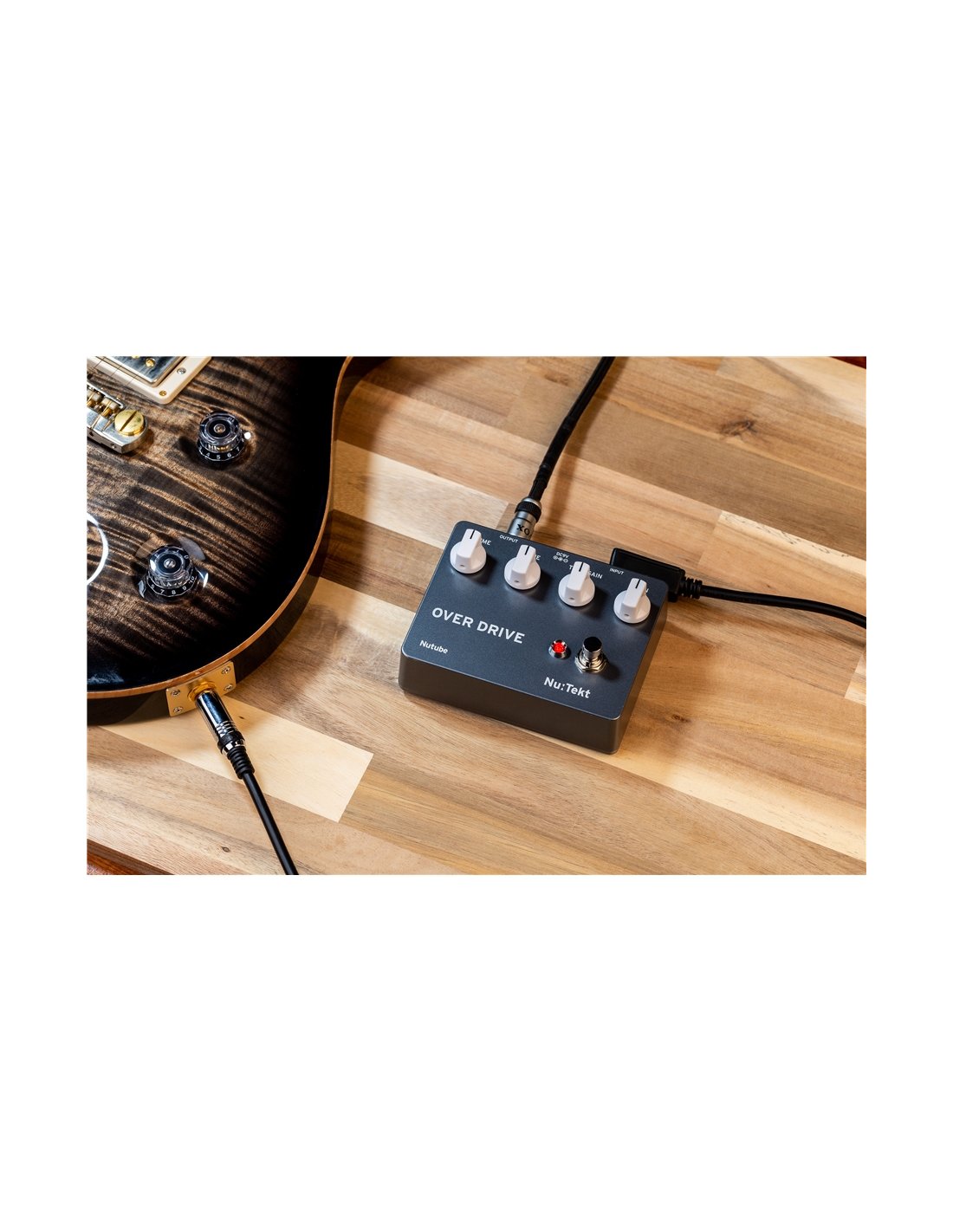

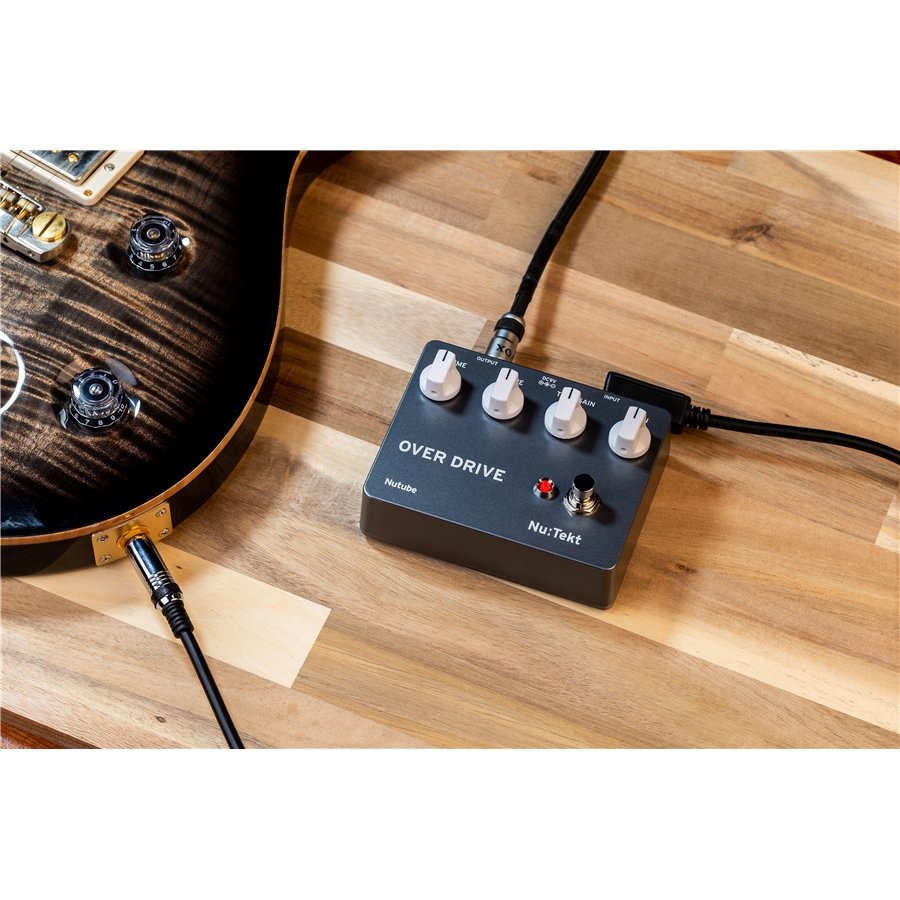

Korg Nu:Tekt OD-S

OD-S

NUTUBE OVERDRIVE KIT

Building your pedal has never been easier

Now you can assemble your effects pedal from scratch, thanks to the OD-S Overdrive kit from Nu:Tekt by KORG. Have fun with DIY and easily build and customize your overdrive pedal. No soldering is necessary! OD-S is equipped with Nutube, a completely analog triode valve with a warm sound rich in harmonics as required by the most demanding guitarists

Build your effect pedal

Building a pedal is a daunting task that doesn't always lead to great results. With the Korg Nu:Tekt OD-S KIT you will have an extremely simple assembly experience, without soldering and you can adapt the pedal to your sound

Authentic tube sound

Nutube is a revolutionary new analog valve developed by KORG INC. in collaboration with Noritake Itron Corporation. Like conventional valves, Nutube is built with an anode, grid, and cathode and operates exactly like a complete triode tube, effectively generating the same response and characteristic harmonic richness. All this with a considerably smaller footprint and with greater energy efficiency

Wide sound range OD-S has two

GAIN potentiometers. In addition to adjusting the valve input level (GAIN), you can vary the anode load of the tube amplifier circuit using the TUBE GAIN potentiometer. This allows you to precisely adjust, as you like, the sound processed by the valve. Korg Nu:Tekt OD-S also has a switch for selecting two different types of overdrive (LOW and HIGH range) together with a True Bypass. A perfect pedal for your live performances

For the advanced user who wants to further modify their sound, the layout that lends itself to customization in an extremely simple way allows you to replace the discrete components to create a unique pedal, which fully reflects your sound needs. The possibilities are endless. The circuit diagram can be downloaded from the website

Technical specifications Korg Nu:Tekt OD-S: Vacuum Tube:

• Nutube 6P1 Connections:
• input and output on monaural jack connectors; DC 9V stereo minijack Power supply: 1 x 9V
• alkaline battery (6LF22/6LR61), or KA181 DC9V adapter (not included) Battery
• life: about 10 hours
• Consumption:46 mA
Dimensions and weight: 122 × 96 × 55 mm; 340 grams (without batteries) Optional: KORG AC adapter KA181 (DV9V
