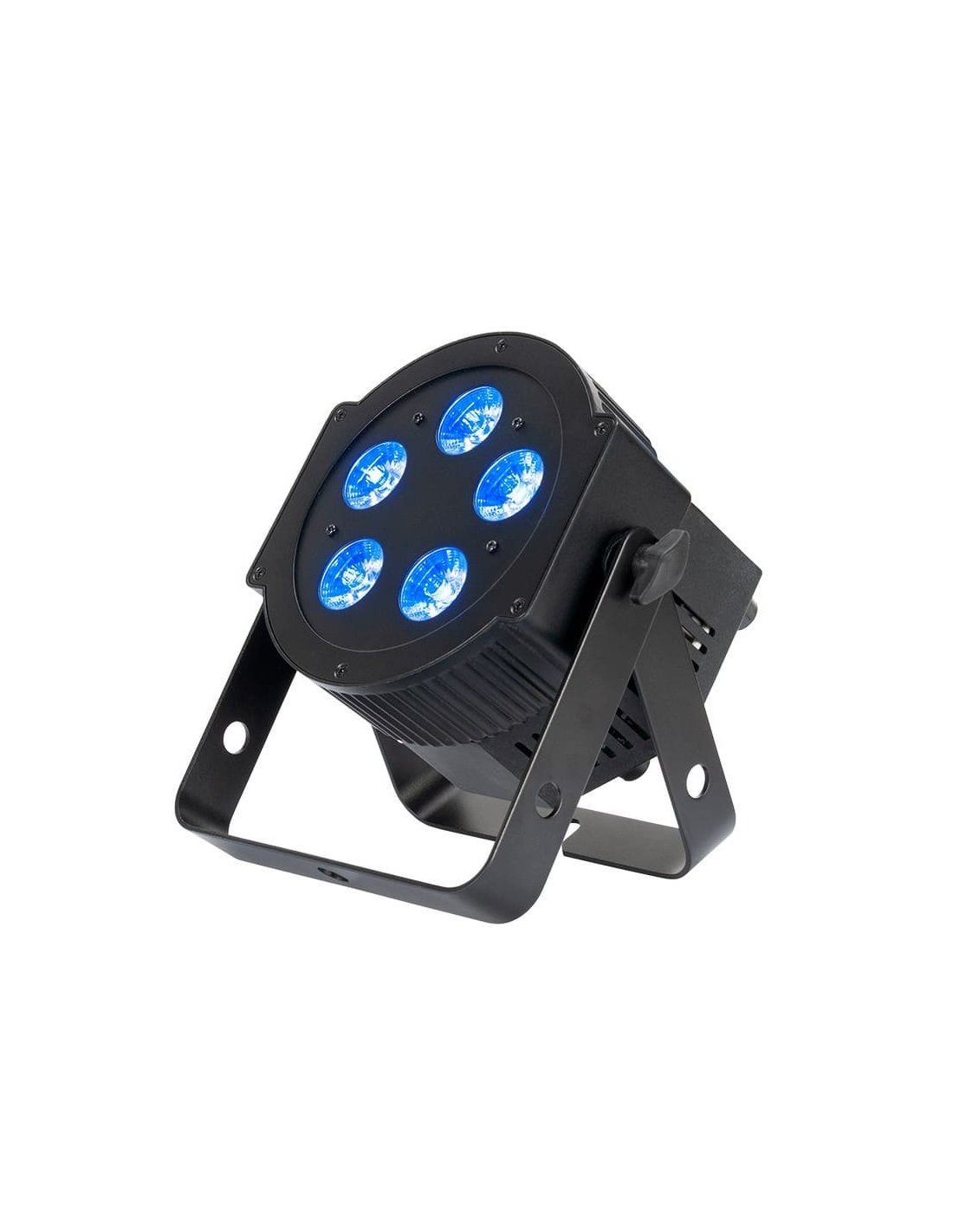

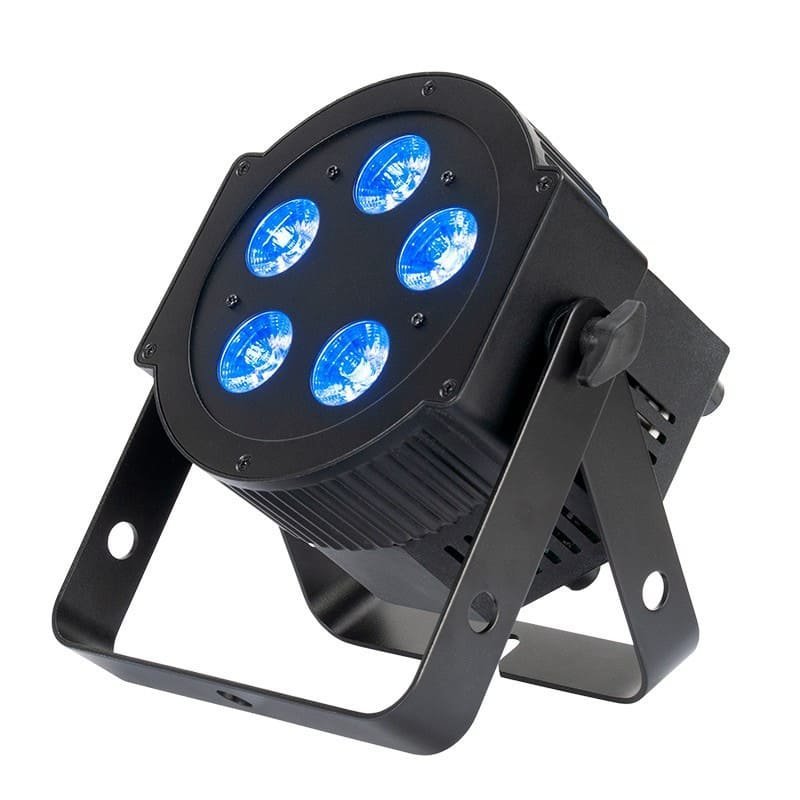

AMERICAN DJ 5PX HEX

ADJ 5PX Hex is a versatile LED projector equipped with 5 HEX LEDs (6 in 1) of 12 Watt. The 30° projection angle, the soft color mix (red, green, blue, white, amber and UV) and the 63 built-in macro colors make it ideal as a wash projector. This projector, in addition to being suitable for lighting stages, is perfect for bottom-up lighting of any event thanks to the intelligent design (patent-pending) of the DMX and power connectors. The professional features of 5PX HEX include: 4 DMX modes (6, 7, 8 and 12 channels), 5 operating modes, 5 attenuation curves, no flicker and display with a 4-button DMX menu. The built-in Locking Power inputs and outputs allow you to chain different 5P HEX. 5PX HEX is compatible with the easy-to-use wireless remote control Dotz Par RF (Includes) sold separately). Alternatively, the device can be controlled with a DMX control unit or through the built-in automatic programs

Specifications:

Source:

• 5 RGBAW + UV LEDs (red, green, blue, amber, white and UV LEDs)

• Individual LED power: 12W

• Average LED lifespan: 50,000 hours

Optics:

• Beam angle: 30°

• Including filter frame for optional

buttons on the back

• 5 operating modes: static color mode, RGBAW and UV dimmer modes, integrated program sequences, sound active mode and DMX control • 4 DMX

channel modes: 6, 7, 8 and 12 channels • Electronic dimmer:

0 - 100% •

63 integrated color macros • 7 integrated

programs, Sound Active mode • 5 selectable dimmer curves (standard,

stage, TV, architecture and theater) •

also with the optional Dotz PAR RF remote control (cod. 1223200035)

• LED pulses and strobe effect

Colors:

• RGBAW + UV color mixing

Construction: • Metal housing • Fan cooling • Double electrical bracket:

• Automatic

switching power supply

: 100-240V 50/60Hz

Connections:

• DMX inputs and outputs with 3- and 5-pole block

• Block of power inputs and outputs Dimensions and

weight: • Dimensions (LxWxH):

114 x 208 x 222 mm • Weight:
