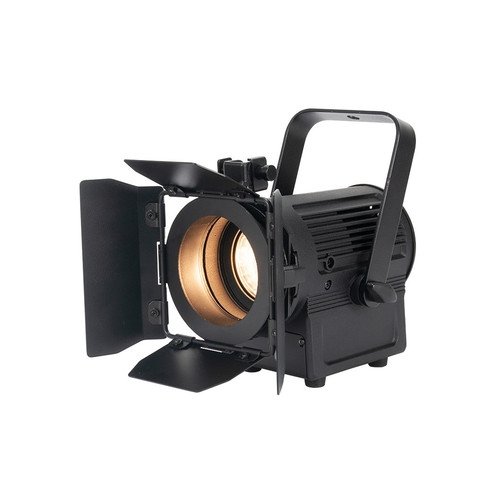

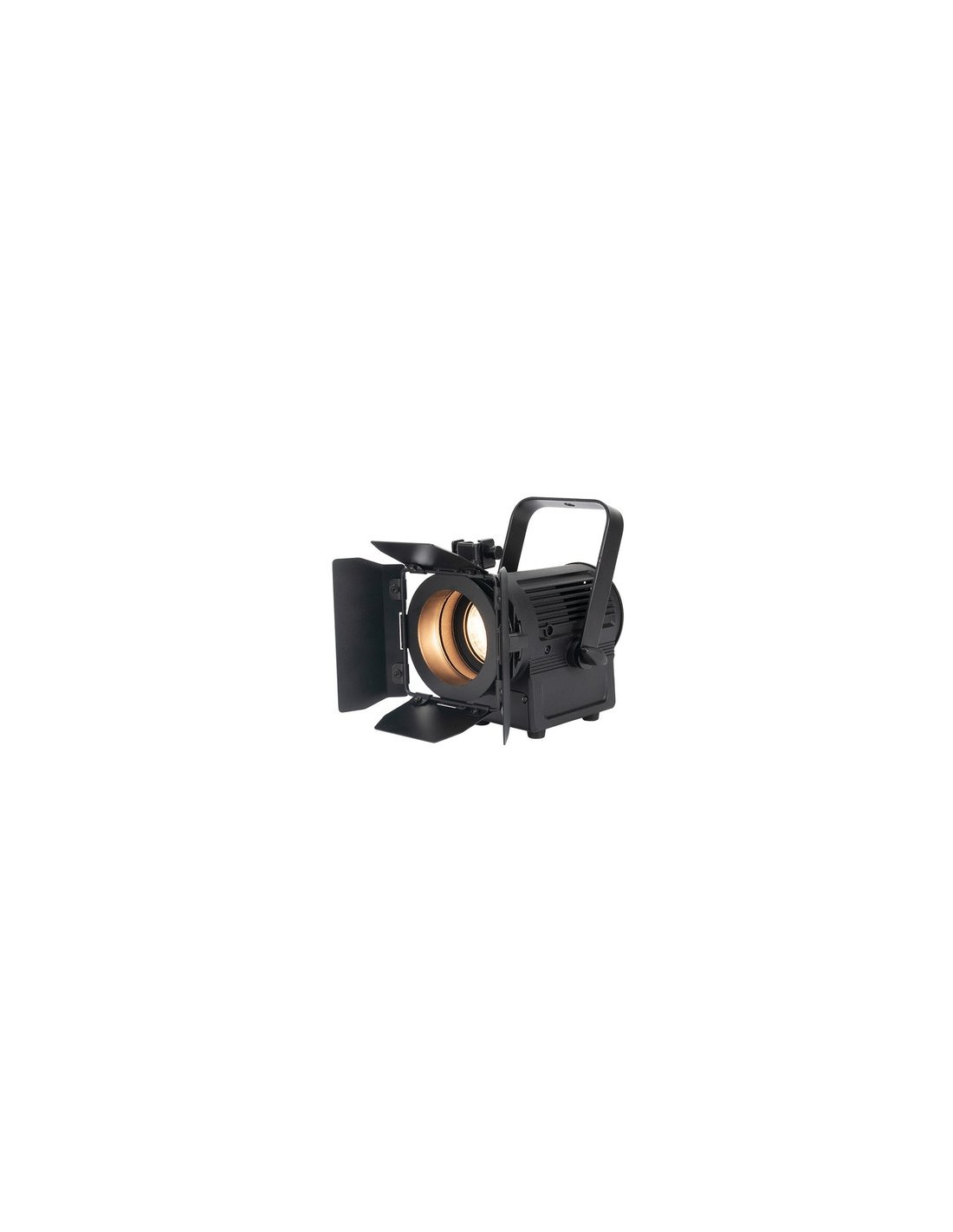

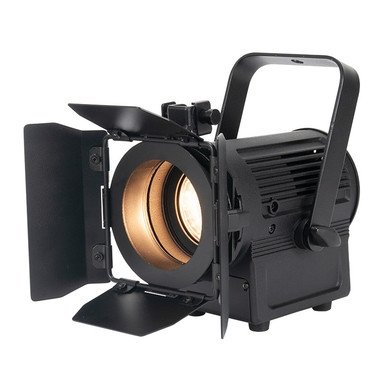

AMERICAN DJ ENCORE FR20 DTW

AMERICAN DJ ENCORE FR20 DTW Part of the Encore

stage light series, the Encore FR20 DTW luminaire is equipped with a 2-inch Fresnel lens and powered by a 17 W warm white LED motor. It produces a soft-edged beam for theatrical, theatrical and commercial use at 3000K. It comes with barn doors to adjust beam dispersion and a manual knob to change the dimming from 100% to 0% with a warm dim function. It is also Triac dimmable, compatible with ADJ dimmer packs or standard wall dimmers

The Encore FR20 DTW features a suspension bracket, lugs for manual light beam modeling, and an additional lens filter to change the beam angle from 19 degrees to 45 degrees.

SPECIFICATIONS

Source

• Light source: 1 COB WW LED

• Individual LED power: 17 W

• Average LED lifespan: about 50,000 hours

• Color Temperature: 3000K

• CRI: 92

Optics

• Beam Angle: 19 degrees

• Additional 45-degree lens kit included

Control

• 2 operating modes: manual adjustment potentiometer or DMX control via external TRIAC dimmer • Electronic dimmer

: 0 - 100% through potentiometer

Colors

Warm white 3000K

Construction

Robust extruded aluminum housing •

Manual adjustment knob on the back •

Multi-voltage 100-240V 50/60Hz

• Power consumption: 17 W

Connections

Fixed power cable Dimensions and weight •

Dimensions

(LxWxH):

Without fins: 185 x 160.89 x 209.85 mm With fins: 269.21 x 160.89 x 209.85 mm

• Weight: Without fins: 1.95 kg

With flaps: 2.25 kg
