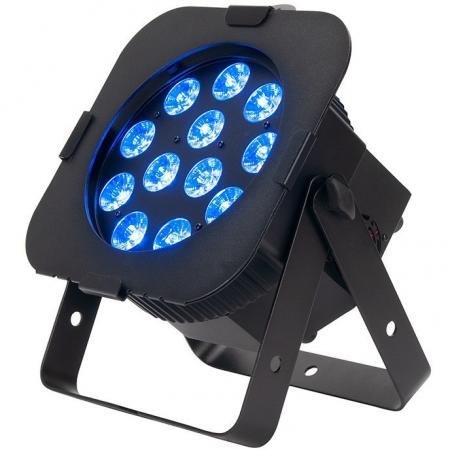

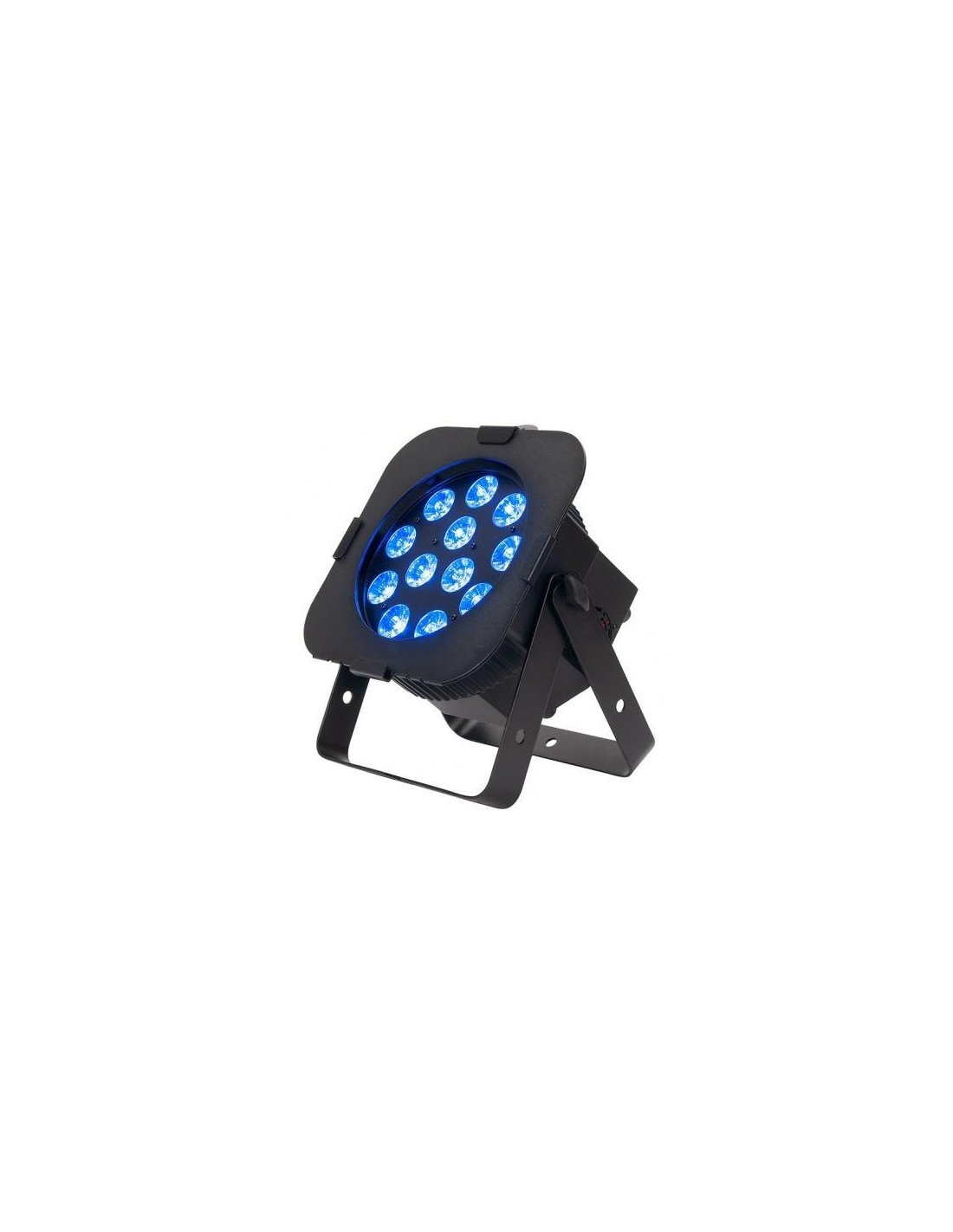

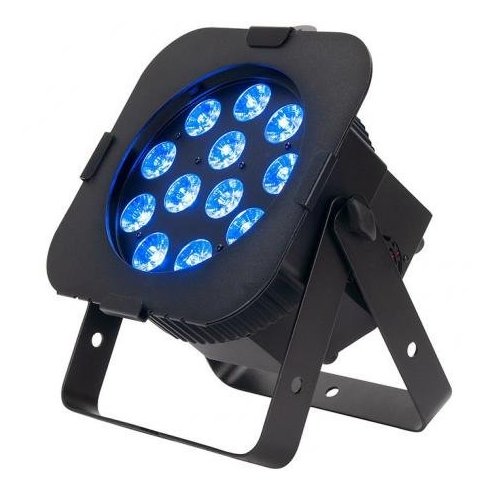

AMERICAN DJ 12PX HEX

The ADJ 12PX HEX is a versatile Par LED luminaire with 12 x 12 Watt, 6-IN-1 HEX LEDs made entirely of metal. With a 25-degree beam angle, users can produce large washes with uniform color mixing from 63 built-in color macros that use red, green, blue, amber, white, and UV LEDs. Not only is this LED Par great for stage lighting, but with its patent-pending, cleverly designed power and DMX connectors, it's great for illuminating a place or used as a scenography

12PX HEX HEX's professional features include: 4 DMX modes (6, 7, 8, and 12 channels), 5 operating modes, 5 adjustment curves, flicker-free operation, and a 4-button DMX menu with digital display. Users can choose 3-pin or 5-pin DMX connectors

The 12PX HEX is compatible with the optional, easy-to-use Dotz Par wireless RF remote control. Alternatively, the equipment can be operated via a DMX controller or the unit's integrated programs

MAIN FEATURES

• Light source: 12 RGBWA+UV LEDs (red, green, blue, white, amber and UV LEDs)

• Individual LED power: 12W

• Average LED lifespan

OPTICS

• Beam angle: 25 degrees

• Gel frame for diffusion filters included (optional diffusion filters)

CONTROL

• 5 operating modes: static color mode, RGBWA+UV dimmer mode, program mode, active audio mode and DMX control • 4 DMX modes: 6, 7, 8 and

12 channels • Electronic dimming:

0 - 100% •

63 integrated color macros • 7 integrated programs, active audio mode •

curves (Standard,

Architectural, Theater)

• Optional Dotz PAR RF remote control available (order code 1223200035)

with side locking with 3 and 5 pins

• Power In/Out connections with side locking

DIMENSIONS AND WEIGHT • Dimensions

(LxWxH): 135.8 x 249 x 297.4
