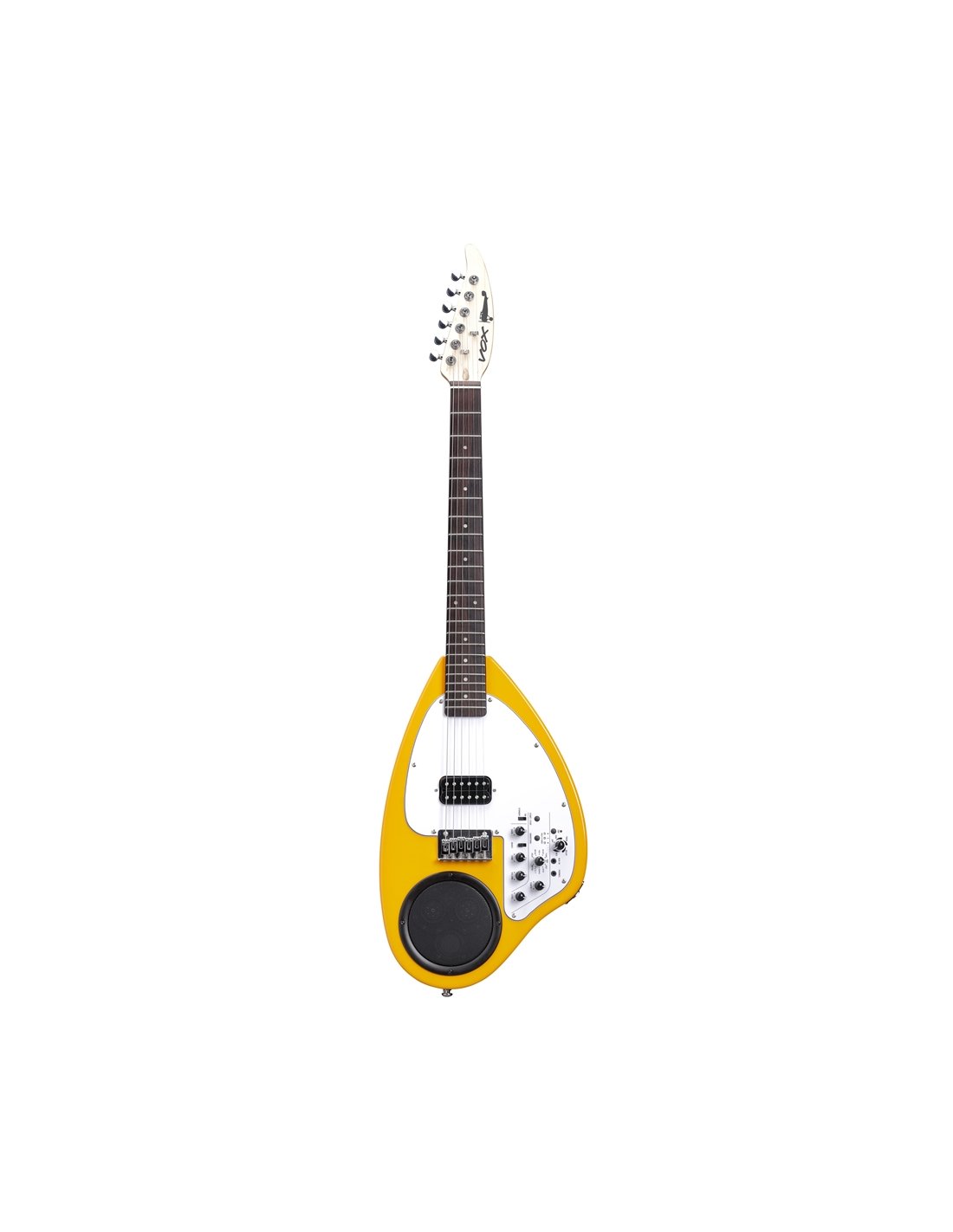

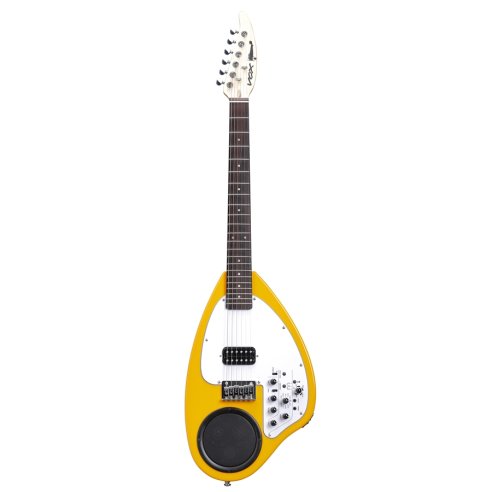

The APC-1 Orange Metallic is Vox's small-scale travel guitar with speakers, amp section, effects section and integrated drum muchine, with a design that recalls the past with the typical shape of Vox guitars of the 60s. It is built with a Poplar body, a Maple neck and a Purple Heart fingerboard. Thanks to the control panel, you will be able to manage the sound with gain, tone, volume and boost controls, activate the rhythm section with 33 rhythm patterns, insert effects such as chorus, delay, reverb and tremolo and listen to everything directly from the

Overview of the APC-1 Orange Metallic by Vox

The APC-1 is a guitar equipped with speakers that mimics the iconic shape of VOX guitars from the Sixties. It is equipped with an amplifier with an analog circuit that uses extensive VOX technology for reproducing the sound of amplifiers and a rhythm machine that uses VOX MINI GO, the digitally modeled amplifier. This guitar is equipped with all the necessary functions for sound production. Without the need for an amplifier or additional effects, it can be played alone and is suitable for various environments such as the living room, the outside or as a travel guitar

Built-in speaker

The guitar incorporates Techtonic Audio's wide-direction speakers, which allow you to hear the sound even when you're not directly in front of you. This feature makes it particularly suitable for guitarists. To address previous weaknesses of loudspeaker guitars, such as 'insufficient bass' and 'easy feedback', a newly designed enclosure with a passive radiator dramatically improves sound quality. The seismically isolated speaker unit also minimizes feedback, overcoming this common drawback. It truly represents the new generation of guitars equipped with integrated speakers

Effects and Drum Machine

The APC-1 includes various effects such as chorus, tremolo, delay, and reverb. The delay and reverb are also equipped with tap tempo functions. The rhythm machine offers 11 genres, including a metronome, and each genre offers 3 variations, for a total of 33 integrated rhythm patterns

Strengths of the Vox APC-1 Orange Metallic

• All in one, from amplifier to rhythm! An electric guitar that can be played anywhere!


• The unique shape of a real VOX guitar from the Sixties.


• The amplifier section and rhythm machine integrate VOX amplifier technology.


• Techtonic Audio wide-direction speaker and passive radiator.


• The speaker's isolation mount suppresses feedback.

Vox APC-1 Orange Metallic Specifications

Body: Poplar Neck:
Maple

Keyboard: Purple Heart
Scale
Length: 610mm

Bridge: Hard Tail

Pickups: Humbucker x2

Speaker: Tektonic Audio 4.6cm x1 + Passive Radiator x2

Controls: Guitar (PU SELECTOR, GAIN, BOOST on/off, TONE, VOLUME) - Rhythm (START/STOP, GENRE*, VARIATIONS,
TEMPO, LEVEL) - Effect (TAP, EFFECT**)

(*) 8BEAT, 16BEAT, ROCK, METAL, POP, R&B, JAZZ, LATIN, DANCE, ODD, METRO
(**) CHO, TREM, ECHO, REV)
