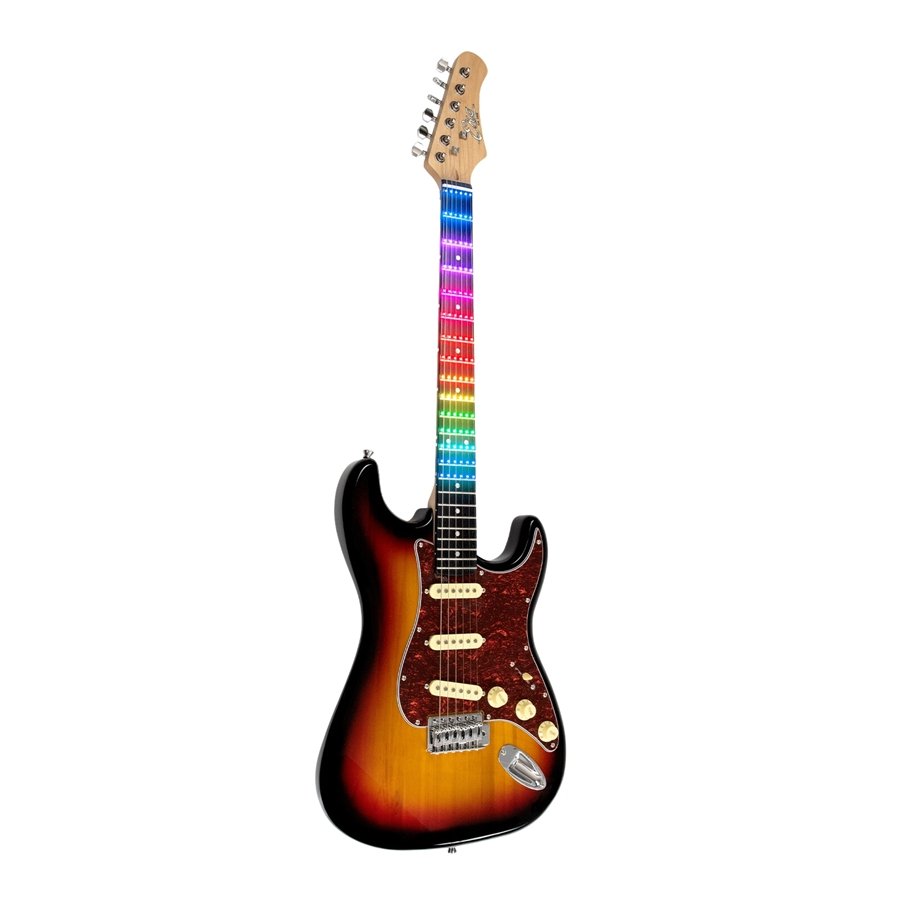

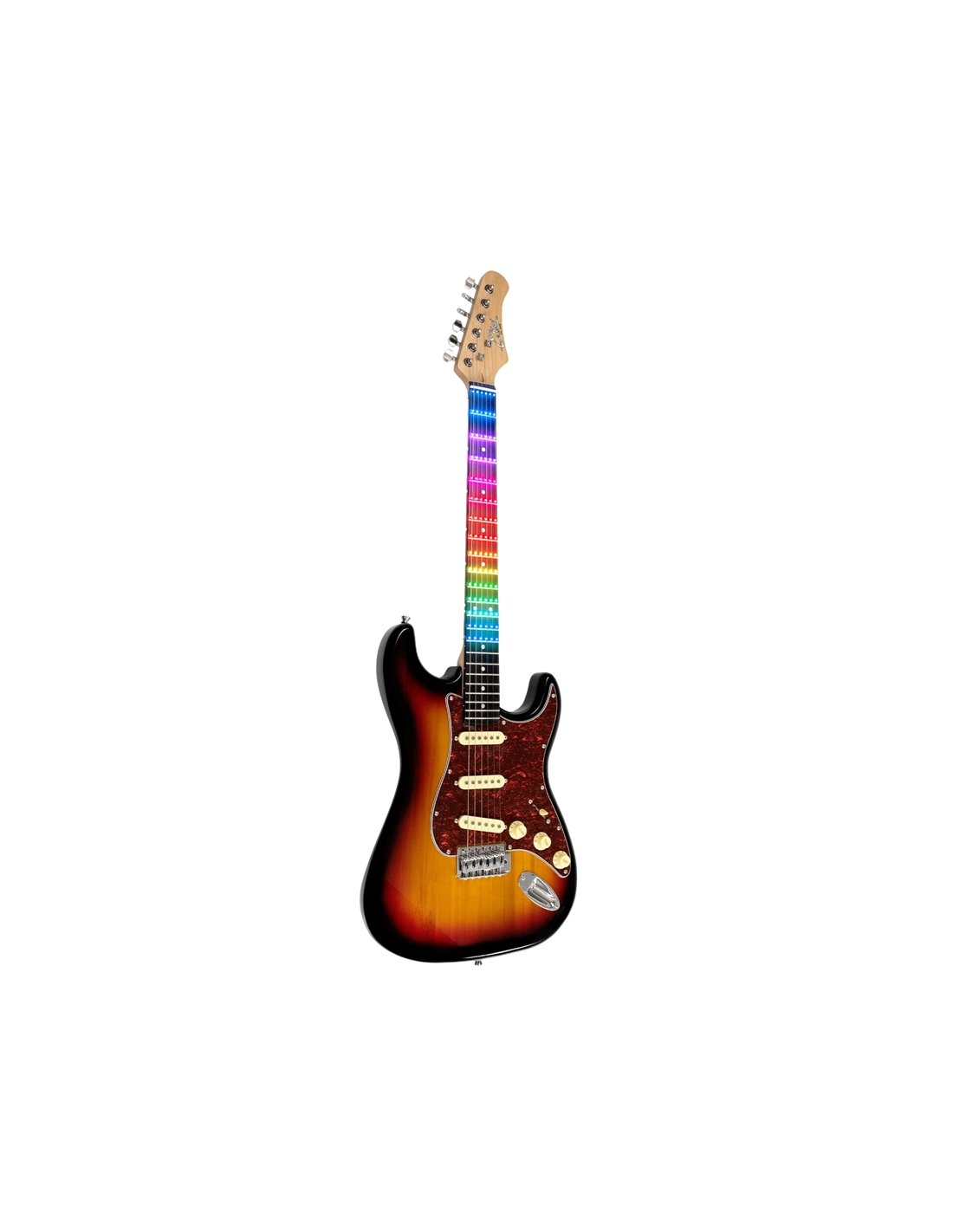

The S-300 Sunburst Visual Note is the electric guitar from the “Visual Note” series by Eko Guitars with a poplar body, a maple neck and an Eko WPC resin keyboard equipped with a Visual Note LED foil that interfaces with the dedicated APP. It is equipped with Eko pickups in S-S-S configuration, Volume and two-tone controls, 5-way blade switch and bridge with tremolo lever. In the APP there are video lessons, exercises, tuners, scales and arpeggios that are transferred in real time directly to the keyboard's LEDs to guide the user in learning in

OVERVIEW OF THE S-300 SUNBURST VISUAL NOTE BY EKO GUITARS

Visual Note is a device consisting of an LED foil and a control unit to be applied directly to the guitar keyboard (electric, acoustic, classical) and an APP capable of managing all its functions. Visual Note is mainly aimed at guitar students and teachers, providing all the necessary tools for both learning and teaching. This system allows you to learn the guitar independently, wherever, whenever and however you want, following the guide lights directly on the guitar keyboard and the reference audio. If you are a teacher you can assign exercises, scales, arpeggios and tracks (via APP) that the student will instantly view and follow on their keyboard. A super interactive, direct, engaging teaching and learning method, teaching 2.0

The “Tribute Starter” series was created to offer the possibility to all guitarists and bassists, especially beginners, to have an instrument with characteristics similar to guitar and bass models that have made the history of music. Thanks to the fantastic quality/price ratio, these budget instruments are easily able to satisfy the idea and desire to play an instrument with a classic design. The S-300 has a Poplar body, Maple neck and Resin fingerboard. It has three Eko pickups in S-S-S configuration, Volume controls, 2 Tones and a 5-way selector. It has a 42mm nut, a 650mm scale length, the keyboard consists of 22 keys with a 14" radius and a tremolo lever is also included. The S-300 V-NOS is available in Black, Cream, Sunburst, Chrome Red and Metallic Blue. The sound, as well as the design, is inspired by stratoid guitars, therefore with a brilliant and present timbre: undoubtedly a very versatile guitar, with which you can play blues, pop, rock, funky music

INSTRUCTIONS ON HOW TO USE VISUAL NOTE

1. DOWNLOAD THE Visual Note APP from your store (Google Play or App Store).


2. IGNITION: turn on the device by pressing the button with the Visual Note logo for at least 2 seconds, when the device is turned on the LED on the control unit and the first row of LEDs on the foil will be active and green in color. To turn off the device, press the button again
.

3. BLUETOOTH CONNECTION: when the device is connected to the App, the LED on the control unit and the first row of LEDs on the foil will be active and blue in color.


FIRST PAIRING PROCEDURE: press the Bluetooth symbol in the app and wait for the device to connect automatically.

4. BATTERY/CHARGING: A USB charging cable with a magnetic safety anchor is included in the package. Connect it to a charger and the LED on the control unit will turn red, when it turns off the charging will be complete. After 5 minutes on stand-by without a Bluetooth connection, the device turns off automatically.


BATTERY LIFE: 10h CHARGING TIME: 3h

5. LED ON THE CONTROL UNIT: Green
   LED: device turned on blue
   LED: device connected via Bluetooth Red
   LED: device being recharged





6. QUICK RELEASE SUPPORT: you can easily unhook the control unit and recharge it more easily or replace it quickly with
an already charged one.

7. HANG UP THE GUITAR: when using a guitar holder with attachment to the headstock, always check that it does not interfere with the control unit mounted on the back of the headstock itself.

VISUAL NOTE APP OVERVIEW

Download the Visual Note APP, available for IOS and Android devices, and you can start the innovative learning experience thanks to its contents that communicate in real time with LED foil. With the purchase of an Eko Visual Note guitar you will have the opportunity to take advantage of the following functions free of charge

Lessons: introduction + first 2 levels, where each UNIT consists of exercises, explanations, tablatures, scores, songs and video lessons created by Massimo Varini, which will accompany the student on the learning path starting from scratch.

Songs, Riffs & Assoli: 3 songs and 3 riffs with which the student will put the teachings into practice, playing tracks and phrases inspired by the great classics of music.

Tuner: you can tune your guitar easily, guided by the LEDs, and you can experiment with particular tunings thanks to the numerous tuning templates present here.

Chords, Scales, Arpeggios: a complete handbook on all the positions and forms of major, minor, increased, decreased chords, with 7, maj7 and min7; complete geometries on a natural major, minor and pentatonic scale in all tones and melodic arpeggios based on all major, minor, increased and decreased chords, in all forms.

*It is possible to unlock additional content by subscribing to Visual Note directly from the APP.

STRENGTHS OF THE S-300 SUNBURST VISUAL NOTE BY EKO GUITARS

SPECIFICATIONS OF THE S-300 BLACK VISUAL NOTE BY EKO GUITARS

: Maple Keyboard
Material: Eko WPC (Wood Polymers Composite) resin Body
Finish: Gloss Handle
Finish: Satin Handle
Shape: Eko Low C Nut
Width: 42 mm
Radius: 14”
Scale: 650 mm
Number of Keys: 22 Keys
Type: 1.8mm x 1.0mm in Silver/Nickel Bridge: &
