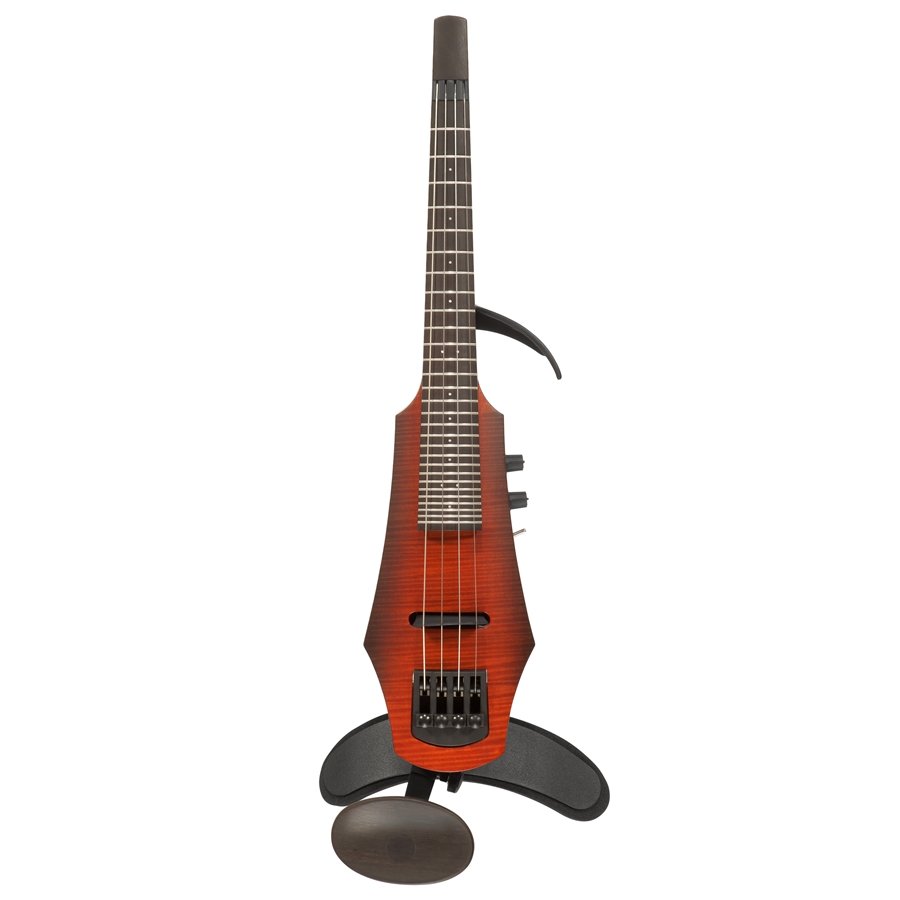

NS Design NXTa Fretted Electric Violin 4 Sunburst

The NxTA (active) series includes 4- and 5-string violins, fret violins and electric violas. Built in the Czech Republic, each instrument incorporates elegance, ergonomics, ease of use and a full tone. In any setting, it sets standards for performance and versatility

.

Polar Pickup System

The heart of this series is the Polar Pickup System, whose piezoelectric components convert the vibration of the string directly to the output signal. This provides a balanced and rich output, with a wide range of expressive opportunities. Arco and Pizzicato have different characteristic vibrations and the Polar Pickup System faithfully captures both

.

nXTA Dual Mode Output

The new DUAL MODE electronics bring greater versatility.

Active Mode: Using a charger, connect your instrument to the outlet for 60 seconds to charge the circuit for up to 16 hours of performance. The instrument can be connected to devices with high or low impedance, without the need for DI Box. Since there is no loss of signal in the instrument's frequency spectrum, the fundamentals of each note remain clear and strong, even with extra long cables.

Passive Mode: NxTA instruments can be played in “Passive Mode” by connecting them to a direct box or amplifier with high impedance input. This mode provides the same performance as the original NXT.

Eco Friendly operation: NxTA tools do not use batteries, eliminating battery problems and costs and at the same time protecting the environment.

Custom backrest
This instrument is one of the lightest on the market, and is equipped with the NS Design backrest which, thanks to its padding and aluminum base, adapts perfectly to the player's body.

Adjustable bridge
The bridge can be adjusted thanks to the special adjustment screws: high and powerful, low and fast, or any other setting in between.

Controls
Volume
control, tone control with push-pull to select Active or Passive output mode.

Arc/Pinched Switch

Specifications:

Length/Width: 540/110mm

Thickness: 45mm

Weight: 510g (4 strings) Weight:
539g (5 strings)
Weight:
567g (4 fretted strings)
Weight:
595g (5 fretted strings)

Scale: 330mm/13"

Body/Neck: in hard grain maple, with black or flamed top

Keyboard: Asymmetric, hand-graduated Hardware tuning: Precision mechanics 40:1 Bridge: Black maple adjustable with screws on the rear Pickup: Polar Directional Piezo system.





Strings: NS Design Standard Strings, compatible with traditional violin strings. Strings with synthetic core not recommended.

Case: Hard, padded, with handle and shoulder strap, separate compartments for backrest and accessories. external zip. “
