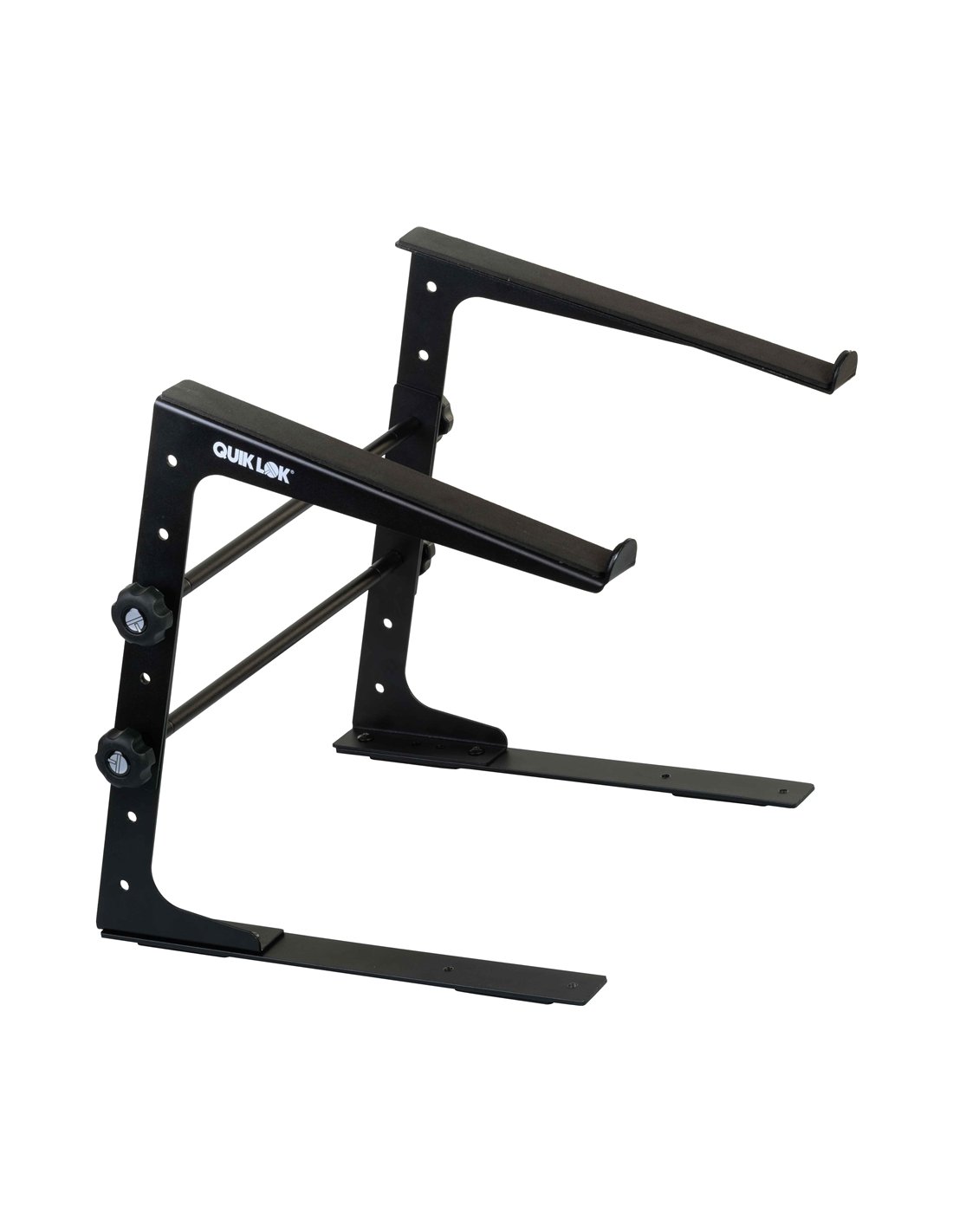

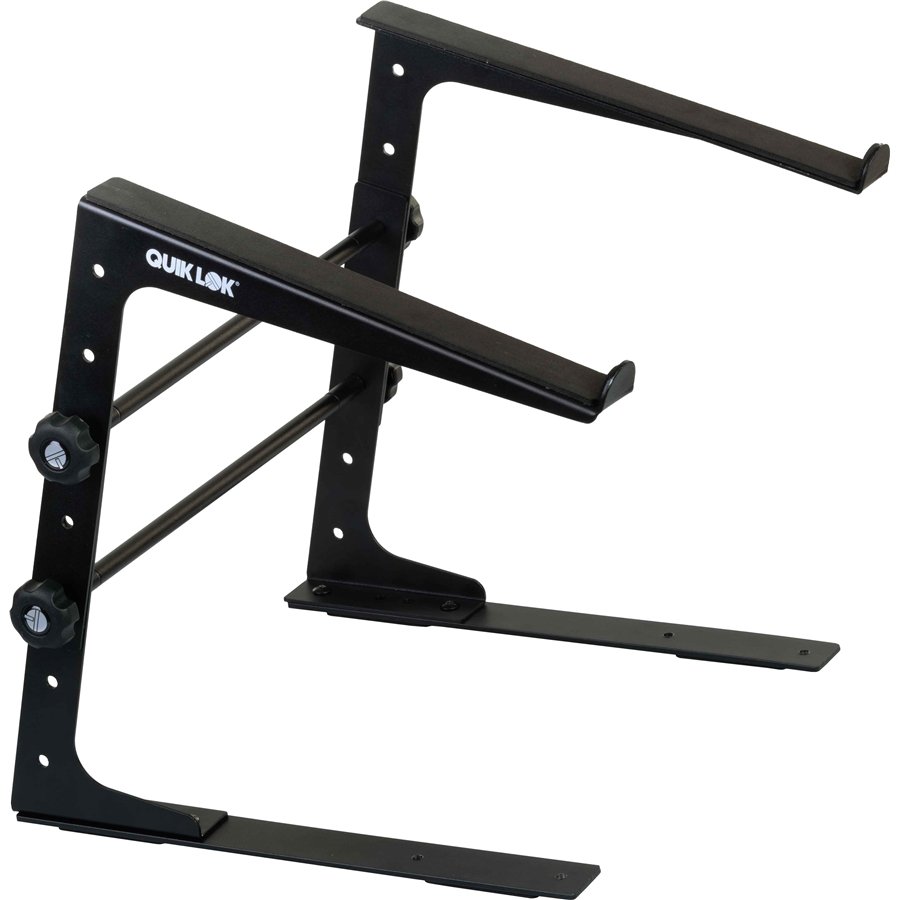

LPH/009 is the multifunctional and modular table stand developed by Quiklok to meet all the needs of the modern musician who can set up their home recording studio without heavy and cumbersome machinery as was the case in the past.

Thanks to its minimal design, the LPH 009 stand adapts perfectly to all needs, making your workstation more tidy, clean and functional.

Quik Lok has in fact made various parts interchangeable and added accessories that allow a harmonious integration into the most diverse places of work or leisure.

LPH/009 can be self-supporting thanks to the base with two plates 30.5 cm long and 3 cm wide with rubber strips that prevent scratches and unexpected slips in the support surface, at the same time two clamps are supplied that allow attachment to worktops up to 4.5 cm high, allowing you to free up space on the workstation. These clamps are attached thanks to two screws placed on both sides of the clamp, allowing for attachment to both horizontal

It is adjustable in height in 4 positions thanks to two rear bars with side tightening screws from a minimum of 24 cm in the back and 17 cm in the front up to a maximum of 37 cm in the back and 31 cm in the front in increments of 4 cm for intermediate positions.

The rear bars are also adjustable thanks to two supplied threaded extensions that allow a width ranging from a minimum of 23.2 cm to a maximum of 28.5 cm with an intermediate position of 25.8 cm using a single extension.

The upper shelf, on the other hand, consists of two plates 27 cm long and 3 cm wide with a front stopper, also covered in soft rubber to protect the base of the laptop placed above the support.

To complete the accessories supplied, there is a perforated plate 29.8 cm wide and 27.7 cm deep that can be easily attached by placing it on the bars of the upper floor, obtaining a surface capable of accommodating equipment narrower than the width of the stand, such as mixers, midi controllers or small studio monitors.

TECHNICAL SPECIFICATIONS OF QUIK LOK LPH/009 MULTIFUNCTIONAL TABLE STAND

Material: Steel

Weight: 3.2 kg

Finish: Black satin Tightening

knobs: 4 adjustable, 2 on each side Minimum

height: 24 cm in the back, 17 cm in the front Maximum

height: 37 cm in the back and 31 cm in the front in increments of 4

cm for intermediate positions Minimum

width: 23.2 cm Maximum

width: 25.8 cm Shelf

dimensions: 29.8 cm wide, 27.7 cm

deep Table clamps: x 2
