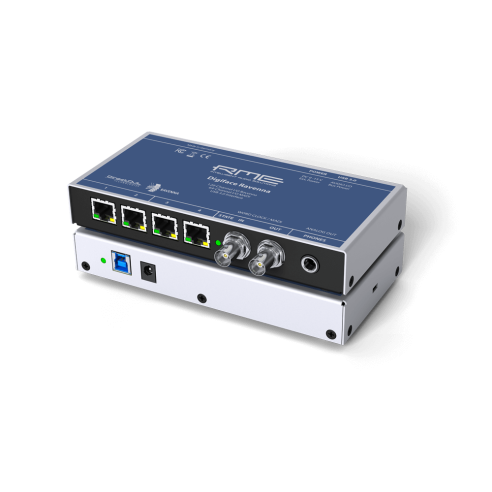

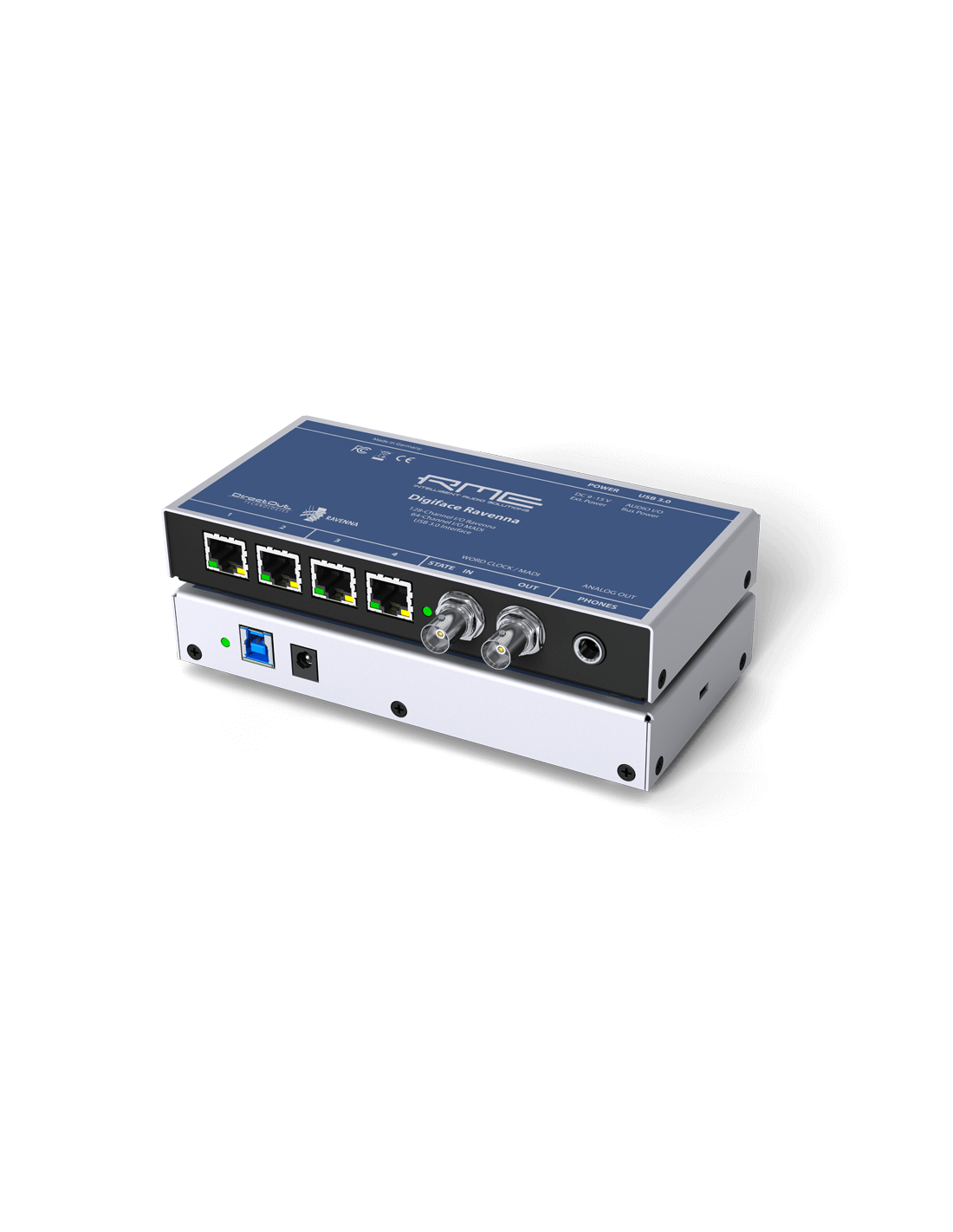

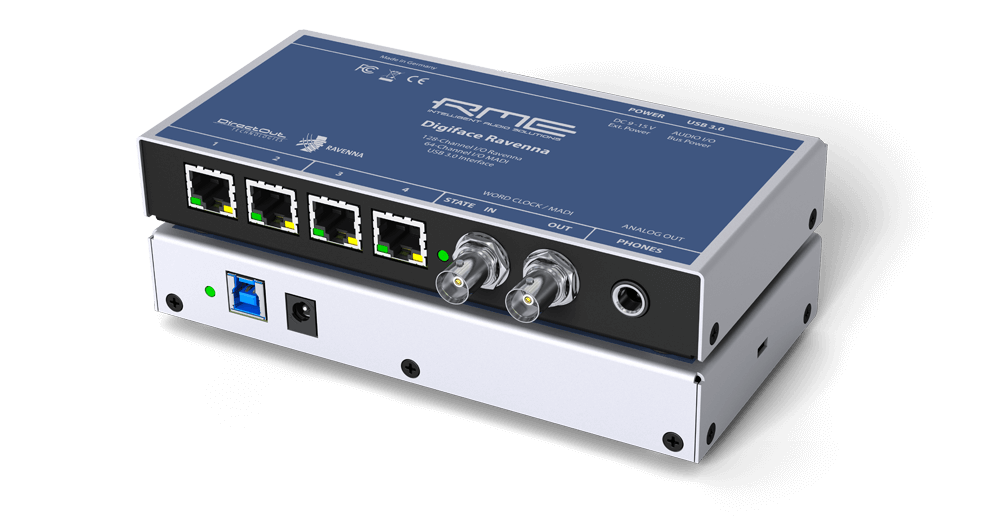

USB 3.0 interface 128 Ravenna channels and 64 MADI channels - 192kHz Digiface Ravenna The Digiface Ravenna is a lightweight and portable audio interface, based on the tried and tested Digiface Dante, equipped with a RAVENNA module developed by DirectOut and all the features that RME is famous for: USB 3, MADI, TotalMix FX and exceptional options both in USB and stand-alone mode. RAVENNA portable USB solution The combination of renowned RME (Mac/Windows) drivers and the RAVENNA implementation of DirectOut offers a reliable and flexible AoIP audio interface. Equipped with the latest TotalMix FX, it can handle as many independent submixes as there are available outputs. The high-quality headphone output offers quick listening to any audio channel, but it can also be used as a line output to provide an additional analog stereo mixdown. Ravenna & MADI RME has made the two BNC sockets for the word clock I/O switchable into MADI I/O, with a maximum of 64 channels. The total sum of Ravenna and MADI, 128 channels, is transferred via USB 3.0 and managed through the included RAVENNA web server or RME's TotalMix FX, for simple and complete control of all audio. From a network point of view, the interface is equipped with a complete RAVENNA stack with AES67 and ST2110-30/31 support and redundant audio-over-IP streaming according to ST2022-7. In addition, the interface can be used as a 64-channel RAVENNA/MADI mobile converter without the need for a USB connection to a computer. The MADI I/O coaxial connectors can also be configured to work as a word clock synchronization I/O. TotalMix FX & TotalMix Remote Like all the latest RME interfaces, the Digiface series includes the powerful TotalMix FX digital mixer. The TotalMix FX allows virtually unlimited mixing and routing operations, with all inputs and playback channels simultaneously, to any hardware output. The Digiface series includes a section dedicated to the Control Room with Talkback, Main Monitor/Phones, fader groups, mute groups, complete remote control via MCU or OSC protocol and much more. The Digiface series does not support DSP-based effects (FX), such as EQ or reverb. In addition, RME's latest software, TotalMix Remote, increases the power of RME interfaces by allowing remote control via iOS, PC or Mac. Thanks to a simple configuration process (just enter the IP address of the computer you want to control with TotalMix Remote), users can quickly adjust any aspect of TotalMix FX on a host system while walking around the studio with their tablet or from a control room located elsewhere in the facility. Technical specifications Gigabit Ethernet RJ45 port 100 Mbit/s, 1 Gbit/s standard port LED: connection yellow, green data transmission Supports straight cables and crossovers (Auto MDI-X) Remote control of the unit on network (TotalMix Remote) RAVENNA module Supports RAVENNA, AES67, ST 2110-30/-31, ST 2022 Network Level 3 Modes: Switching and redundancy according to ST 2027 32 streams 128 Single Speed channels, 64 Double Speed channels, 32 Quad Speed channels Clock sources: PTP, internal Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz, +/-12.5 Routing: Channel-based routing matrix Configuration: GUI browser, globcon control, NMOS IS-04/IS-05 Coaxial MADI input via BNC, 75 Ohms, according to AES10-1991 High sensitivity input stage (< 0.2 Vpp) Accepts 56 and 64 channel modes, plus 96k Standard Frames: up to 64 channels 24 bit 48 kHz S/MUX: up to 32 channels 24 bit 96 kHz S/MUX4: up to 16 channels at 24 bit AES192 kHz Block range: 25 kHz - 54 kHz Coaxial MADI output via BNC, 75, Ohm 10-1991 Output voltage 400 mVpp Cable length: up to 50 m Generates modes at 56 channels and 64 channels, plus 96k Frame Standard: up to 64 channels 24 bit 48 kHz S/MUX/96k Frame: up to 32 channels 24 bit 96 kHz S/MUX4: up to 16 channels 24 bit 192 kHz Analog headphone output 129/130 Dynamic Range (DR): 110 dB RMS unweighted, 113 dBA Frequency Response at 44.1 kHz, -0.5 dB: 0 Hz - 20.8 kHz Frequency Response at 96 kHz, -0.5 dB: 0 Hz - 45 kHz Frequency Response at 192 kHz, -1 dB: 0 Hz - 89 kHz THD -1 dBFS: - 96 dB, 0.0016% THD+N at -1 dBFS: -95 dB, 0.0017% Channel separation: > 100 dB Output: 6.3 mm TRS jack, unbalanced Output impedance: 2 Ohm Output level at 0 dBFS, 1 kOhm load: +9.5 dBu Maximum power @ 0.1% THD: 50 mW BNC word clock input, unterminated (10 kOhm) Switchable internal termination 75 Ohm Double/quad speed automatic detection and single speed conversion ClockBNC word output Maximum level: 5 Vss Level with 75 Ohm termination: 4.0 Vss Internal impedance: 10 Ohm analog headphone output 129/130 Dynamic range (DR): 110 dB RMS unweighted, 113 dBA in frequency response 4.1 kHz, -0.5 dB: 0 Hz - 20.8 kHz Frequency response at 96 kHz, -0.5 dB: 0 Hz - 45 kHz Frequency response at 192 kHz, -1 dB: 0 Hz - 89 kHz THD@-1dBFS: -96dB, 0.0016% THD+N at -1 dBFS: -95 dB, 0.0017%. Channel separation: > 100 dB Output: 6.3 mm TRS jack, unbalanced Output impedance: 2 Ohms Output level at 0 dBFS, 1 kOhm load: +9.5 dBu Maximum power @ 0.1% THD: 50 mW Digital Clock: Internal, RAVENNA (PTP), word, MADI Supported sample rates: 44.1 kHz up to 192 kHz
