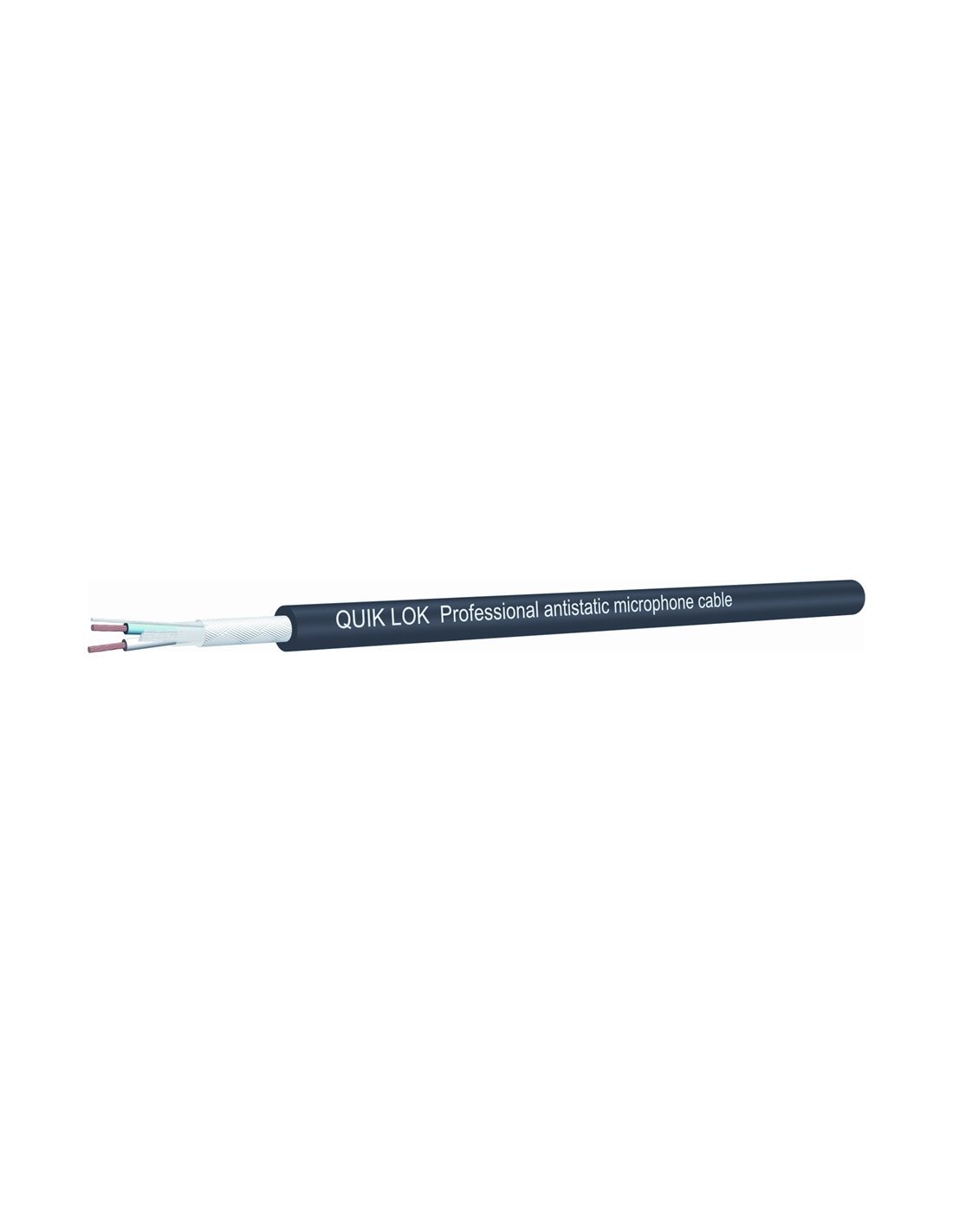

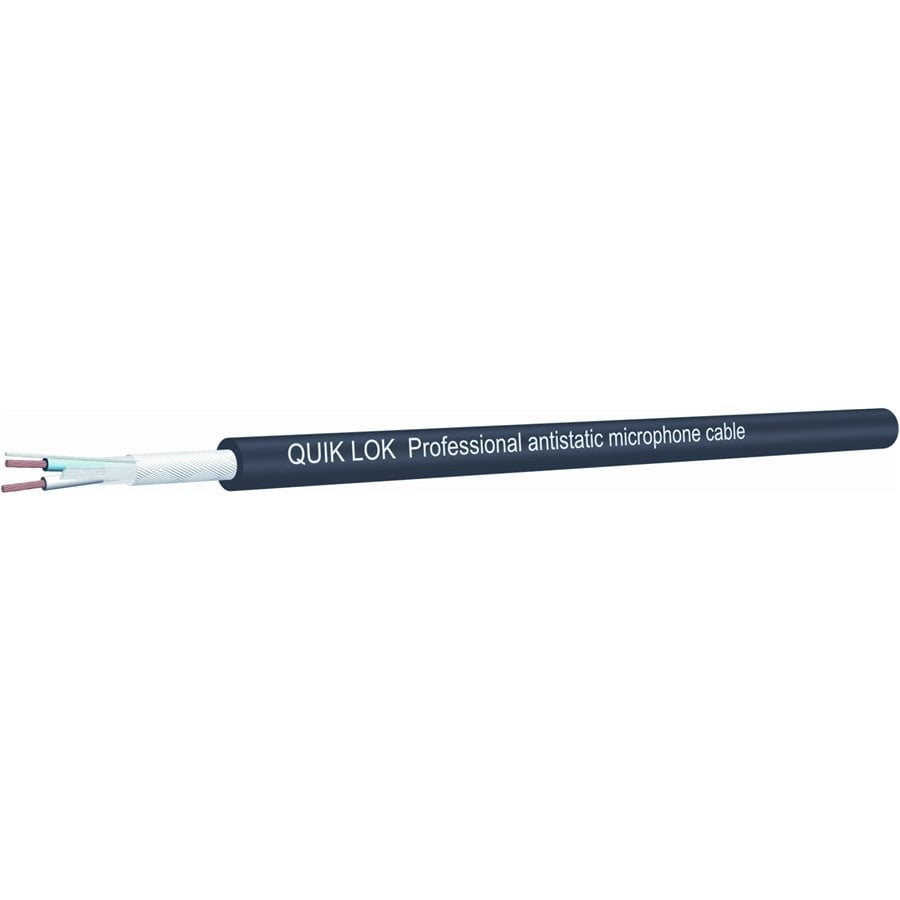

Quik Lok CM/780 BK Cavo microfonico in bobina

CM/780 BK

Microphone cable MADE IN ITALY

Balanced microphone cable in 100 m coil, Ø 6.30 mm with 2 x 0.50 inner conductor + shield, Ø 1.70 mm insulation in LPE cross-linked polyethylene and PVC sheath hardness 60 Shore Mic.2x0.22+sch. bob.

Reel length: 100 meters

Color: black

A cable with high mechanical and electrical qualities, built to meet the needs of highly professional users in recording studios, mobile or desktop installations.

Built to be used in the toughest conditions such as stages and mobile installations, they provide excellent mechanical resistance while maintaining maximum flexibility and electrical characteristics that guarantee, like all our cables, absolutely transparent signal transfer and high immunity to disturbances.

Mechanical characteristics Mechanical
characteristics:: Internal
conductor:: 2 x 0.50 (28 x 0.15 tinned copper AWG 20)
Weight:: 51.5 Kg/Km
Insulation:: LPE cross-linked polythene Ø 1.70 mm (color - white/blue)
Sheath:: PVC Ø 6.35 hardness 60 shore
Screen:: Braid 8 x 0.10 tinned copper 90% corded with cotton padding + TNT tape Electrical

characteristics:: Resistance on the conductor:: <37 Ohm/Km Conductor/screen capacity:: 92 PF/m Conductor/conductor capacity: 54 pF


/m Insulation
resistance:: >5000 mOhm/km Operating
Temperature:: -30°/+70° Available
colors:: Black Coil
length:: 100 m
Specifications
Inner conductor size:: 2 x 0.50 mm² (20 AWG)
Strands x conductor:: 28 x 0.15 Tinned
Insulation Copper:: Dual color LPE Polythene - Ø 1.70 mm
Core arrangement:: Twisted to pairs with drain wire and cotton filling
Shielding:: Braided tinned copper shielding (8 x 0.10) - 90% Outer coverage jacket:: PVC Polyvinyl Chloride: 60 Shore Overall

: 6.35 mm
Weight:: 51.5 Kg (114.44 lbs) per 1000 m (3280 ft)
Mechanical/Electric Characteristics
Conductor resistance at 20°:: <37 Ohm/Km
Conductor/shielding capacitance:: 92pf/m Conductor/conductor capacitance:: 54pF/m
Insulation resistance at 20°:: >5000 Mohm/Km
Working temperature:: -30°/+70°
Color:: Black
CM/780 BK Microphone cable MADE IN ITALY Balanced microphone cable in 100 m coil, Ø 6.30 mm with internal conductor diameter 2 0.50 + screen, insulation Ø 1.70 mm in

LPE cross-linked polythene and PVC sheath hardness 60 Shore Cable Mic.2x0.22+sch. bob.

Reel length: 100 meters

Color: black

A cable with high mechanical and electrical qualities, built to meet the needs of highly professional users in recording studios, mobile or desktop installations.

Built to be used in the toughest conditions such as stages and mobile installations, they provide excellent mechanical resistance while maintaining maximum flexibility and electrical characteristics that guarantee, like all our cables, absolutely transparent signal transfer and high immunity to disturbances.

Mechanical characteristics Mechanical
characteristics:: Internal
conductor:: 2 x 0.50 (28 x 0.15 tinned copper AWG 20)
Weight:: 51.5 Kg/Km
Insulation:: LPE cross-linked polythene Ø 1.70 mm (color - white/blue)
Sheath:: PVC Ø 6.35 hardness 60 shore
Screen:: Braid 8 x 0.10 tinned copper 90% corded with cotton padding + TNT tape Electrical

characteristics:: Resistance on the conductor:: <37 Ohm/Km Conductor/screen capacity:: 92 PF/m Conductor/conductor capacity: 54 pF


/m Insulation
resistance:: >5000 mOhm/km Operating
Temperature:: -30°/+70° Available
colors:: Black Coil
length:: 100 m
Specifications
Inner conductor size:: 2 x 0.50 mm² (20 AWG)
Strands x conductor:: 28 x 0.15 Tinned
Insulation Copper:: Dual color LPE Polythene - Ø 1.70 mm
Core arrangement:: Twisted to pairs with drain wire and cotton filling
Shielding:: Braided tinned copper shielding (8 x 0.10) - 90% Outer coverage jacket:: PVC Polyvinyl Chloride: 60 Shore Overall

diameter:: 6.35 mm
Weight:: 51.5 Kg (114.44 lbs) per 1000 m (3280 ft)
Mechanical/Electric Characteristics
Conductor resistance at 20°:: <37 Ohm/Km
Conductor/shielding capacitance:: 92pF/m Conductor capacitance:: 54pF/m Insulation resistance at 20°:: >5000 Mohm/Km Working temperature::
-30°/+70° Color:: Black
