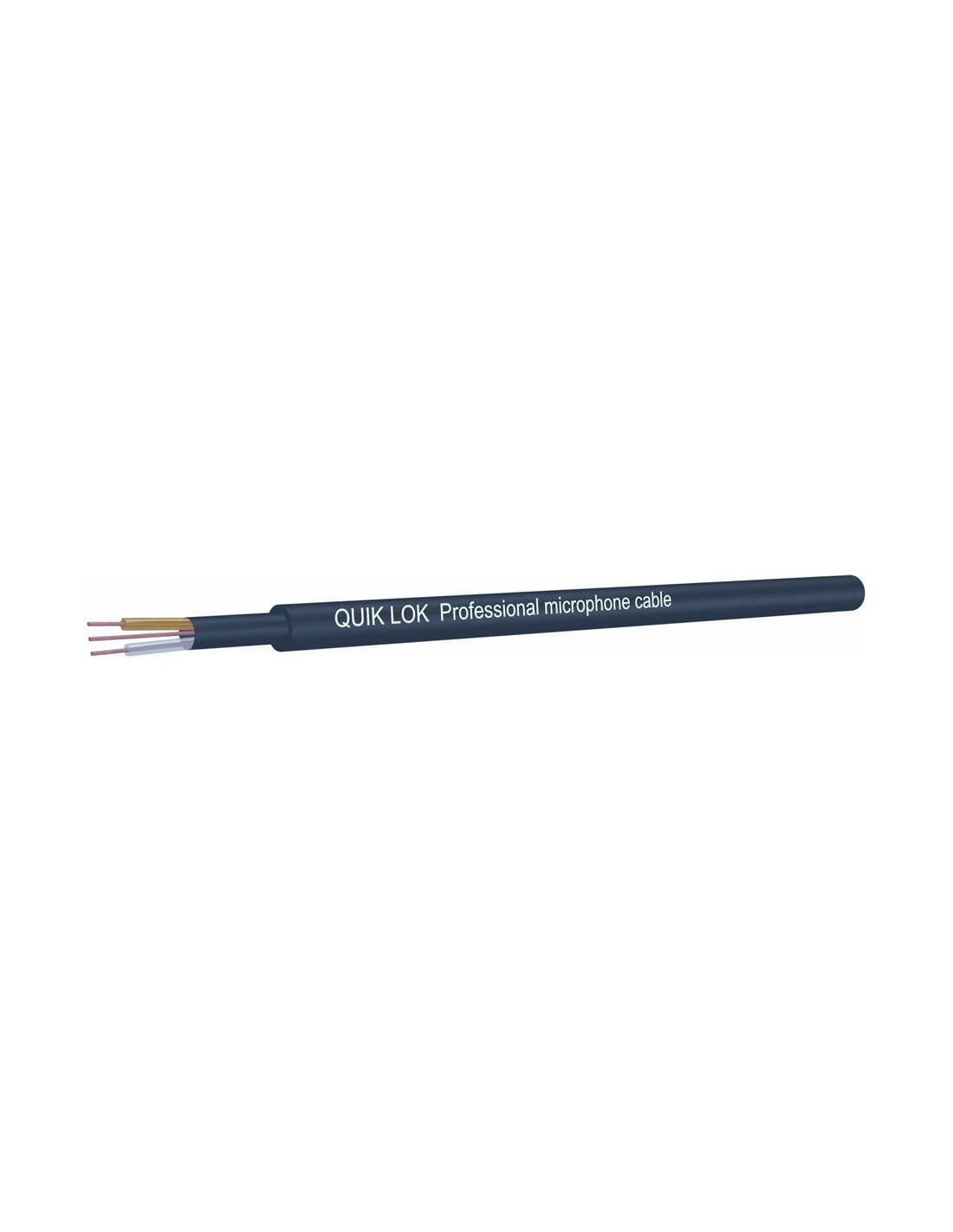

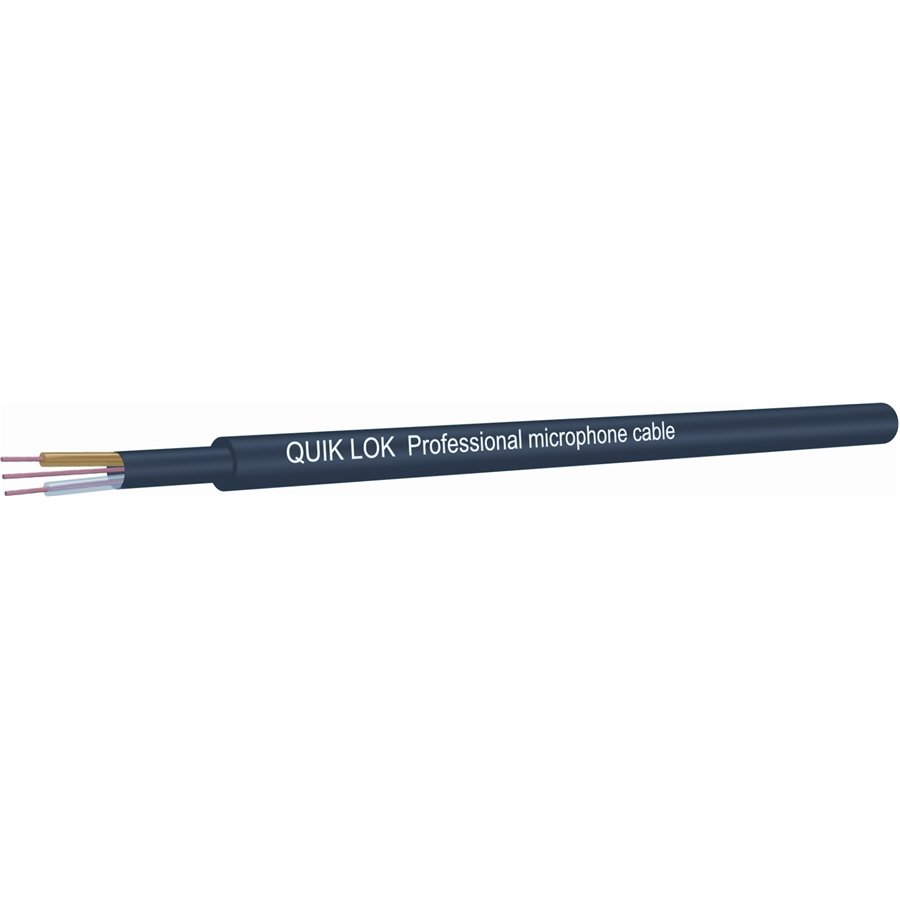

Quik Lok CM/675 BL Cavo microfonico in bobina
Quik Lok CM/675 BL Cavo microfonico in bobina

Quik Lok CM/675 BL Cavo microfonico in bobina

Ref. Product: 20.00146 | Condition: New Product
€1.40
Tax included
Available in 7/10 working days
Shipping fees 7,50 € ㅤ ㅤ ㅤ

icon-payment
Payment 100% secure icon-paymenticon-paymenticon-paymenticon-payment
icon-corriere

Shipping via express courier (24/48 hours) with tracking

Pay in instalments with Findomestic

icon-reso

Quick and easy returns up to 30 days

2-year extended warranty available

icon-payment

Do you need help? Contact us now Click here or call at (+39) 02 8395060.

Share this product:


CM/675 BL



MICROPHONE CABLE MADE IN ITALY

Professional balanced



cable recommended for the use of standard connections.

Mic.2x0.22+Sch. bob cable.

Reel Length: 100 meters

Color: Blue



Built to be used in the toughest conditions such as stages and mobile installations, they provide excellent mechanical resistance while maintaining maximum flexibility and electrical characteristics that guarantee, like all our cables, an absolutely transparent signal transfer and a high immunity to disturbances

.


<52 ohm="" km="" br="">Mechanical characteristics Mechanical
characteristics:: Inner
conductor:: 2 x 0.22 (7 x 0.20 Red Copper AWG 22)
Insulation:: Polythene Ø 1.45 mm (color - white/red)
Screen:: Drain Wire 0.22 7 x 0.20 Red Copper + PVC 100% Conductor
Sheath:: PVC Ø 6 mm hardness 65 Shore
Weight: 39.5 Kg/Km Electrical

Characteristics:
Resistance on the conductor:: Conductor/conductor capacity:: 60 pF/m Insulation resistance:: >5000 Mohm/km

Operating Temperature:: -30°/+70° Available
colors:: Blue Coil
length:: 100 m
Specifications
Inner conductor size:: 2 x 0.22 mm² (22 AWG)
Strands x conductor:: 7 x 0.20 Bare Copper (BC)
Insulation:: PE (Polyethylene) Ø 1.45 mm
Shielding:: Bare copper 0.22 drain wire (7 x 0.20) + 100% Conductive PVC
Outer jacket:: PVC Polyvinyl Chloride - Hardness grade: 65 Shore
Overall diameter: 6.00 mm
Weight:: 39.5 Kg (87.78) per 1000 m (3280 ft) Mechanical/Electric Conductor Characteristics

resistance at 20°:: Conductor/conductor capacitance:: 60pF/m
Insulation resistance at 20°:: >5000 Mohm/Km
Working temperature:: -30°/+70°
Color:: Blue CM/675 BL Microphone cable MADE IN ITALY Professional balanced cable recommended for the use of standard connections.



<52 ohm="" km="" br="">



Mic.2x0.22+Sch. bob cable.

Reel Length: 100 meters

Color: Blue



Built to be used in the toughest conditions such as stages and mobile installations, they provide excellent mechanical resistance while maintaining maximum flexibility and electrical characteristics that guarantee, like all our cables, an absolutely transparent signal transfer and a high immunity to disturbances

.


<52 ohm="" km="" br="">Mechanical characteristics Mechanical
characteristics:: Inner
conductor:: 2 x 0.22 (7 x 0.20 Red Copper AWG 22)
Insulation:: Polythene Ø 1.45 mm (color - white/red)
Screen:: Drain Wire 0.22 7 x 0.20 Red Copper + PVC 100% Conductor
Sheath:: PVC Ø 6 mm hardness 65 Shore
Weight: 39.5 Kg/Km Electrical

Characteristics:
Resistance on the conductor:: Conductor/conductor capacity:: 60 pF/m Insulation resistance:: >5000 Mohm/km

Operating Temperature:: -30°/+70° Available
colors:: Blue Coil
length:: 100 m
Specifications
Inner conductor size:: 2 x 0.22 mm² (22 AWG)
Strands x conductor:: 7 x 0.20 Bare Copper (BC)
Insulation:: PE (Polyethylene) Ø 1.45 mm
Shielding:: Bare copper 0.22 drain wire (7 x 0.20) + 100% Conductive PVC
Outer jacket:: PVC Polyvinyl Chloride - Hardness grade: 65 Shore
Overall diameter: 6.00 mm
Weight:: 39.5 Kg (87.78) per 1000 m (3280 ft) Mechanical/Electric Conductor Characteristics

resistance at 20°::

<52 ohm="" km="" br="">Conductor/conductor capacitance:: 60pF/m
Insulation resistance at 20°:: >5000
Mohm/Km Working temperature:: -30°/+70° Color:: Blue
