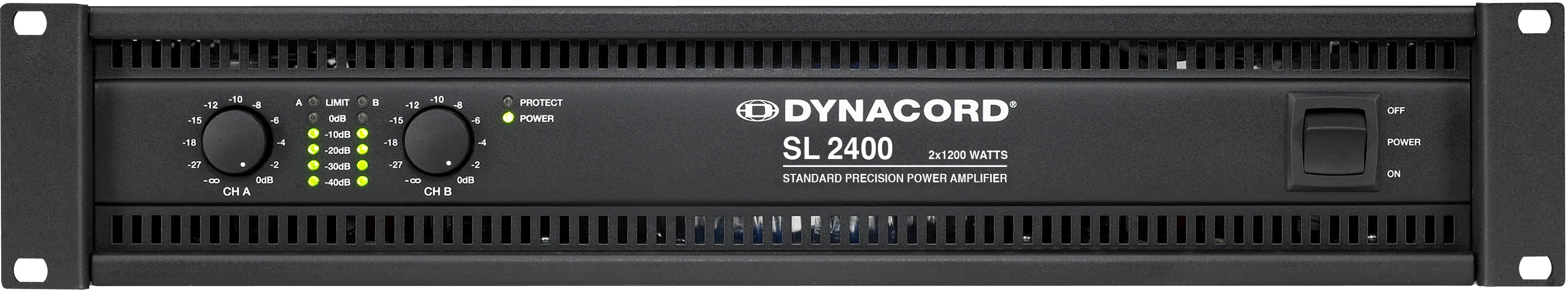

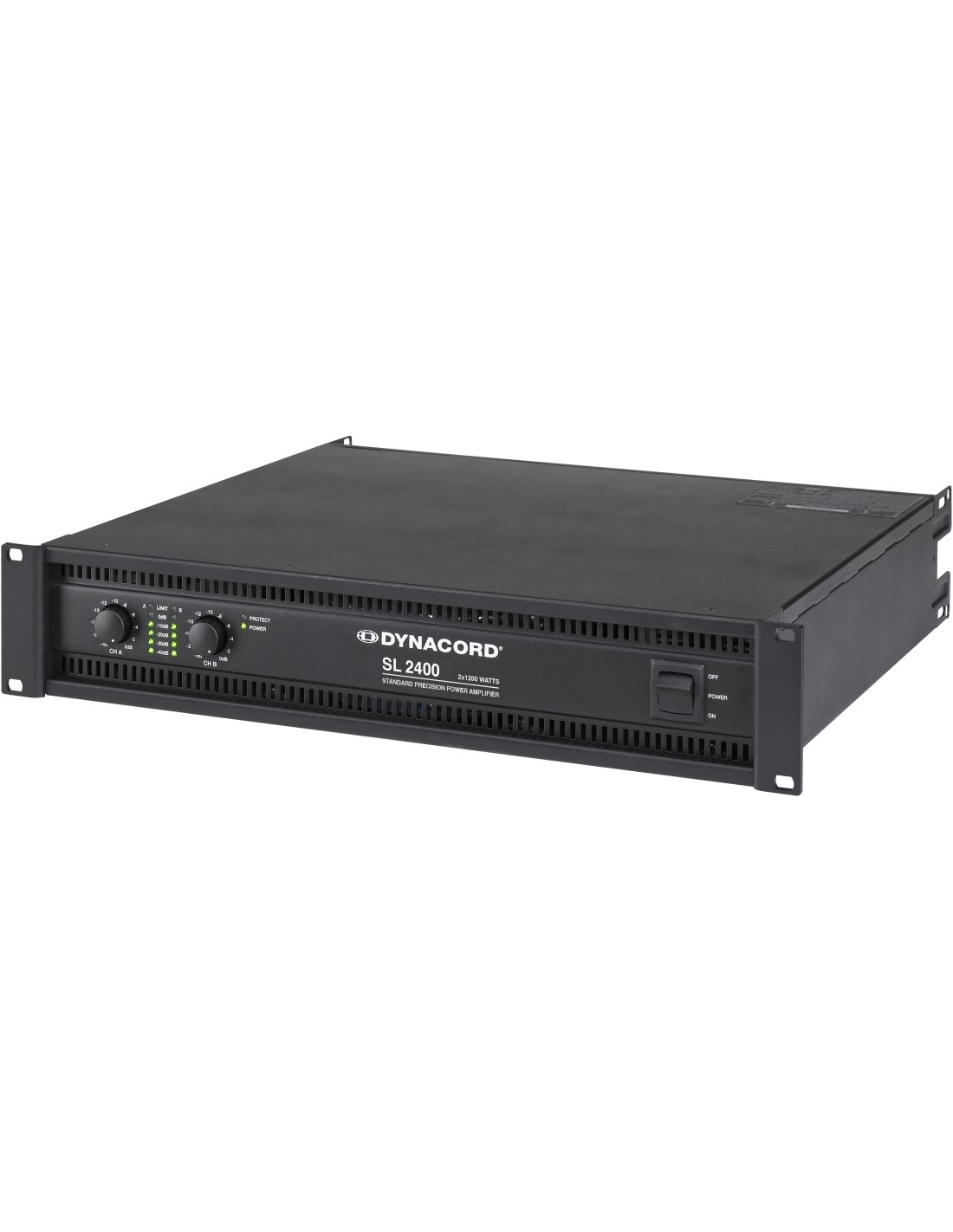

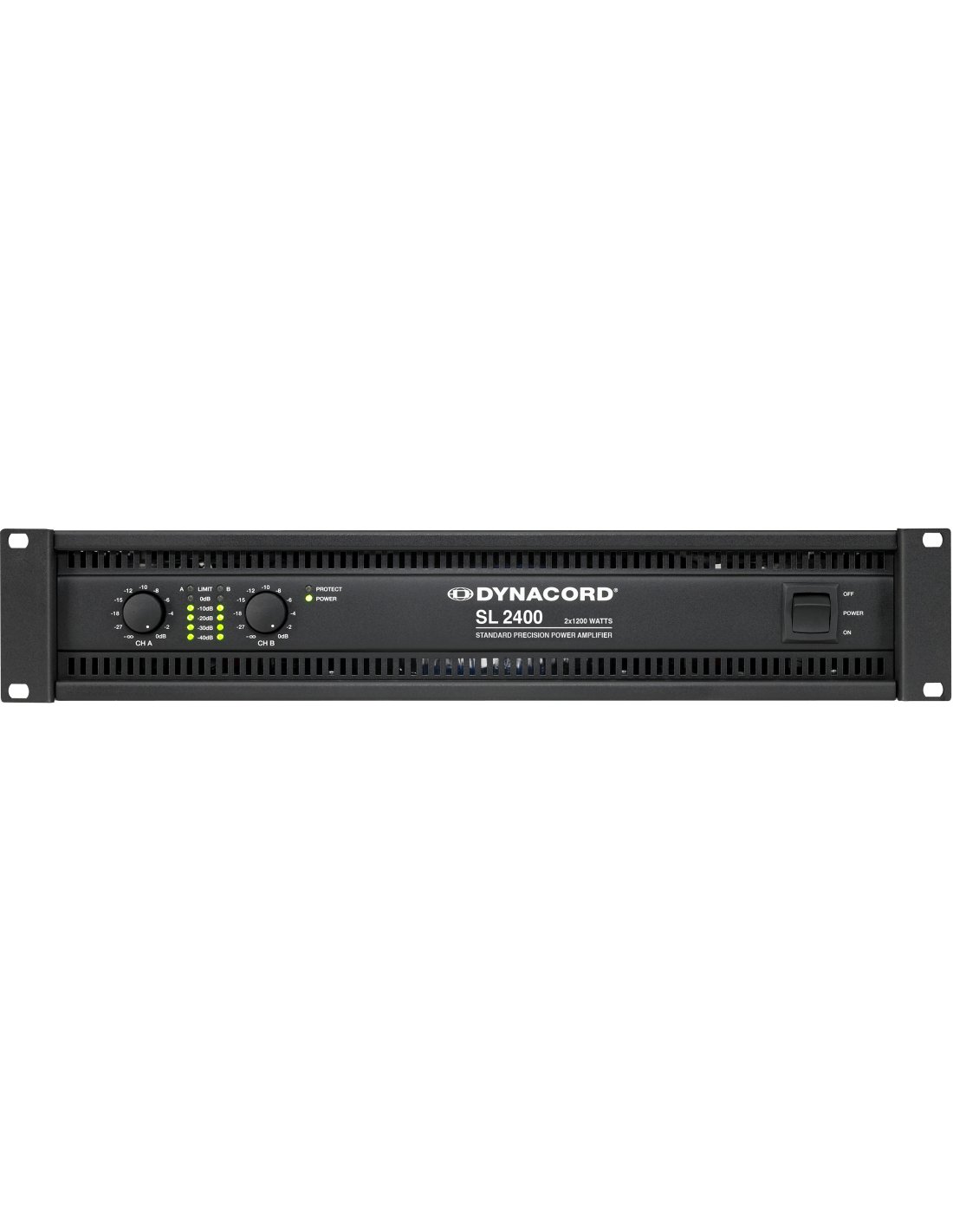

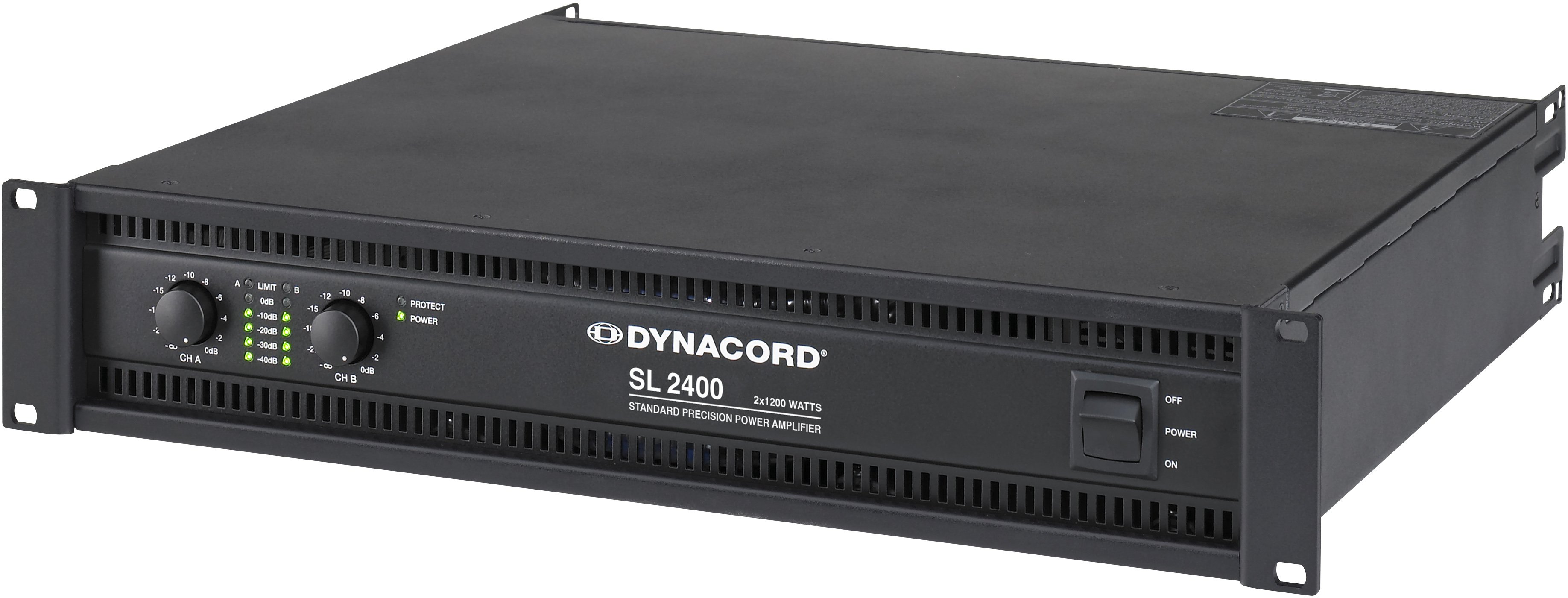

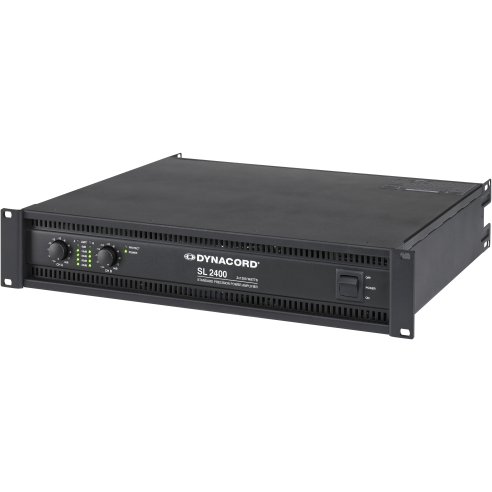

DYNACORD SL 2400

2-channel power amplifier. Class H topology. Stereo mode output power (THD 1%, 1kHz): 2x 750W in 8, 2x 1,200W in 4, 2x 1,800W in 2. Bridge-mode output power (THD 1%, 1kHz): 1x 2,400W in 8, 1x 3,600W in 4. Frequency response: 10Hz to 40kHz (±1dB). Gain: 32 dB. Input sensitivity: +6.6 dBu. Maximum RMS output voltage range: 90.6 V. Power consumption at 4A of maximum output power: 850W. It incorporates gain control and indicators (LEDs) for the output level, limiter, protection and power supply on the front. Protection circuits for: overheating, overload, short circuit, EMF return, peak current, inrush current, HF and DC output and soft start. Signal input/output via XLR3. Load output with Speakon connector. Dimensions (W x H x D), mm: 483 (19') x 88.1 (2U) x 421.5. Weight: 17.7 kg
