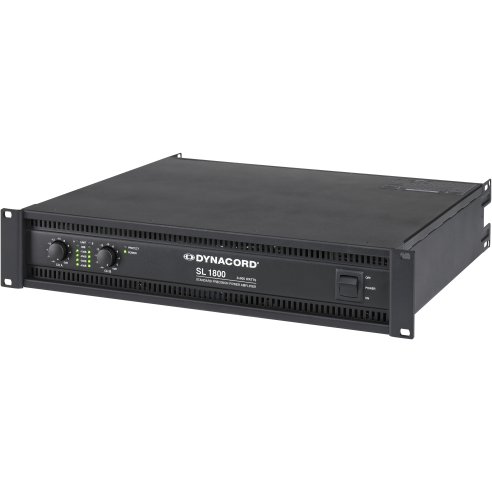

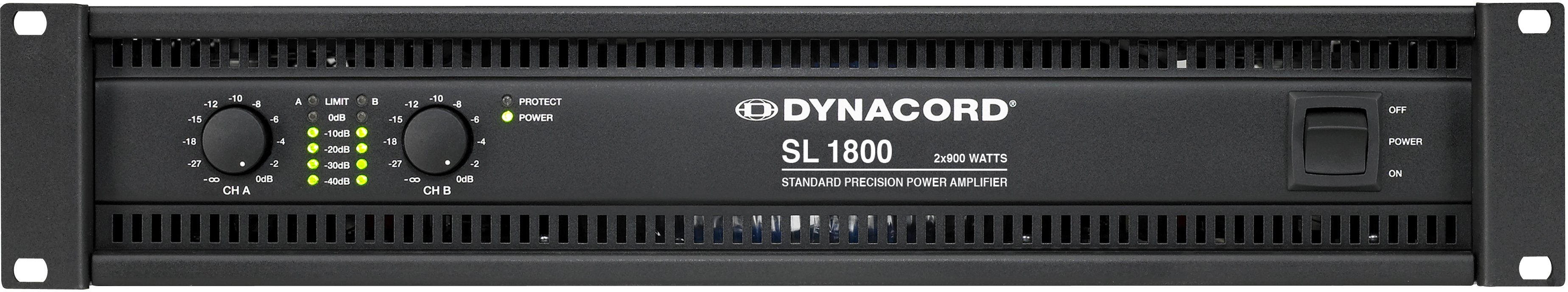

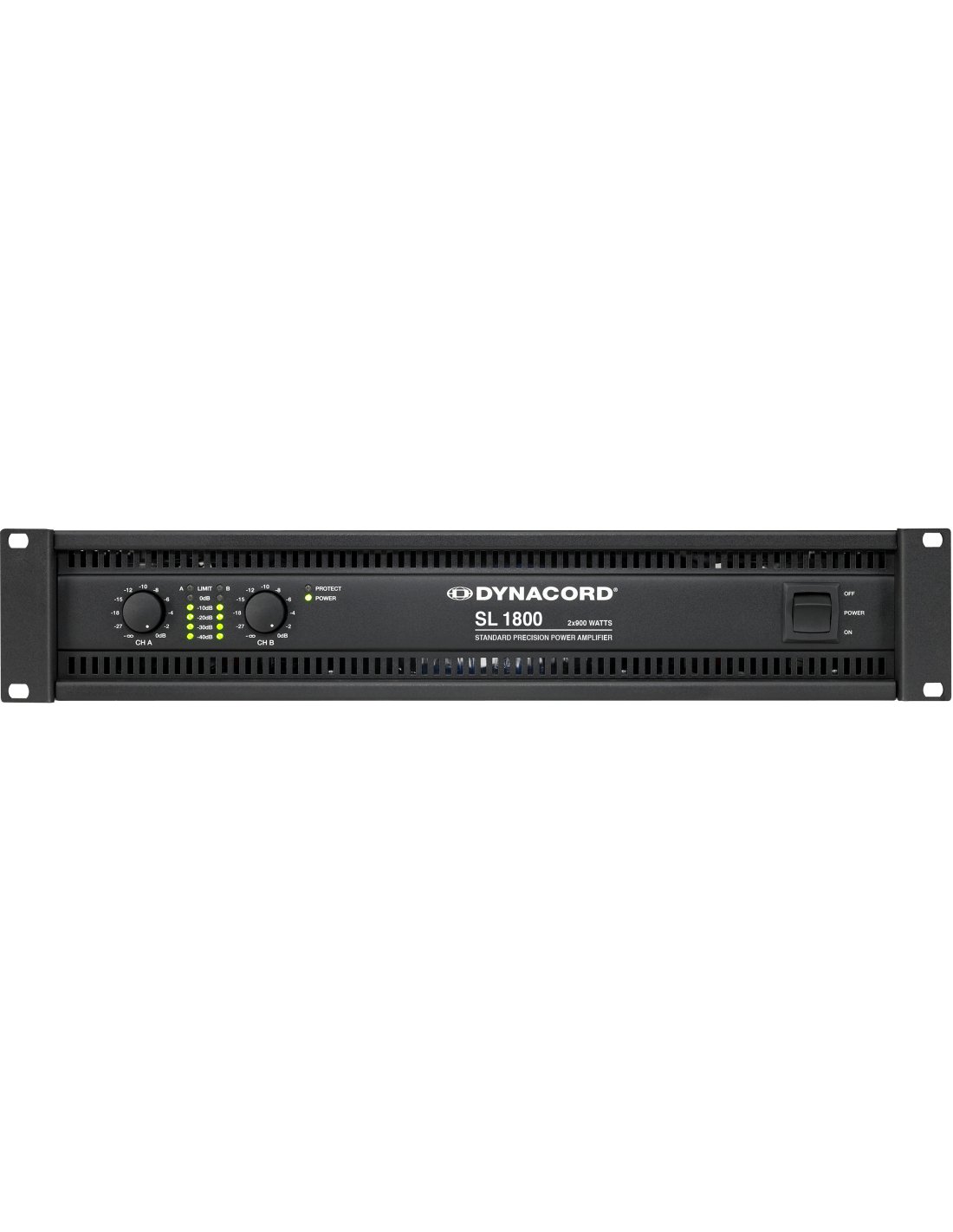

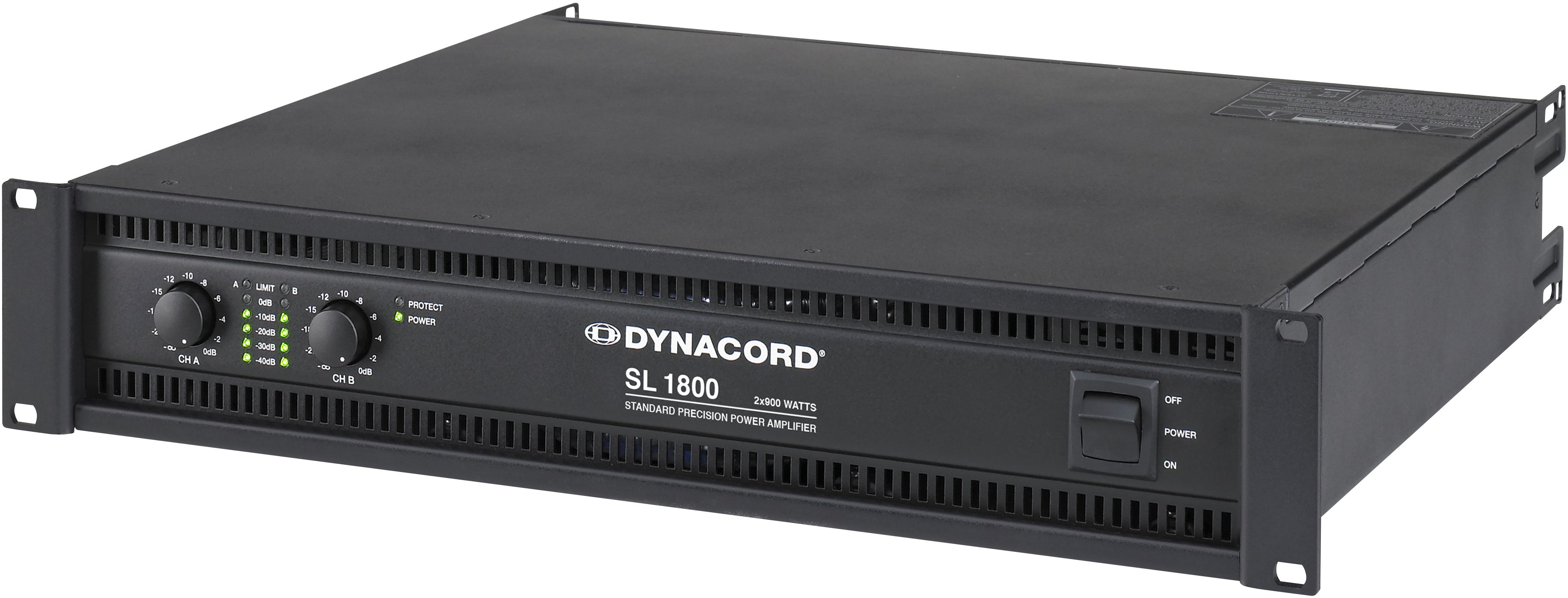

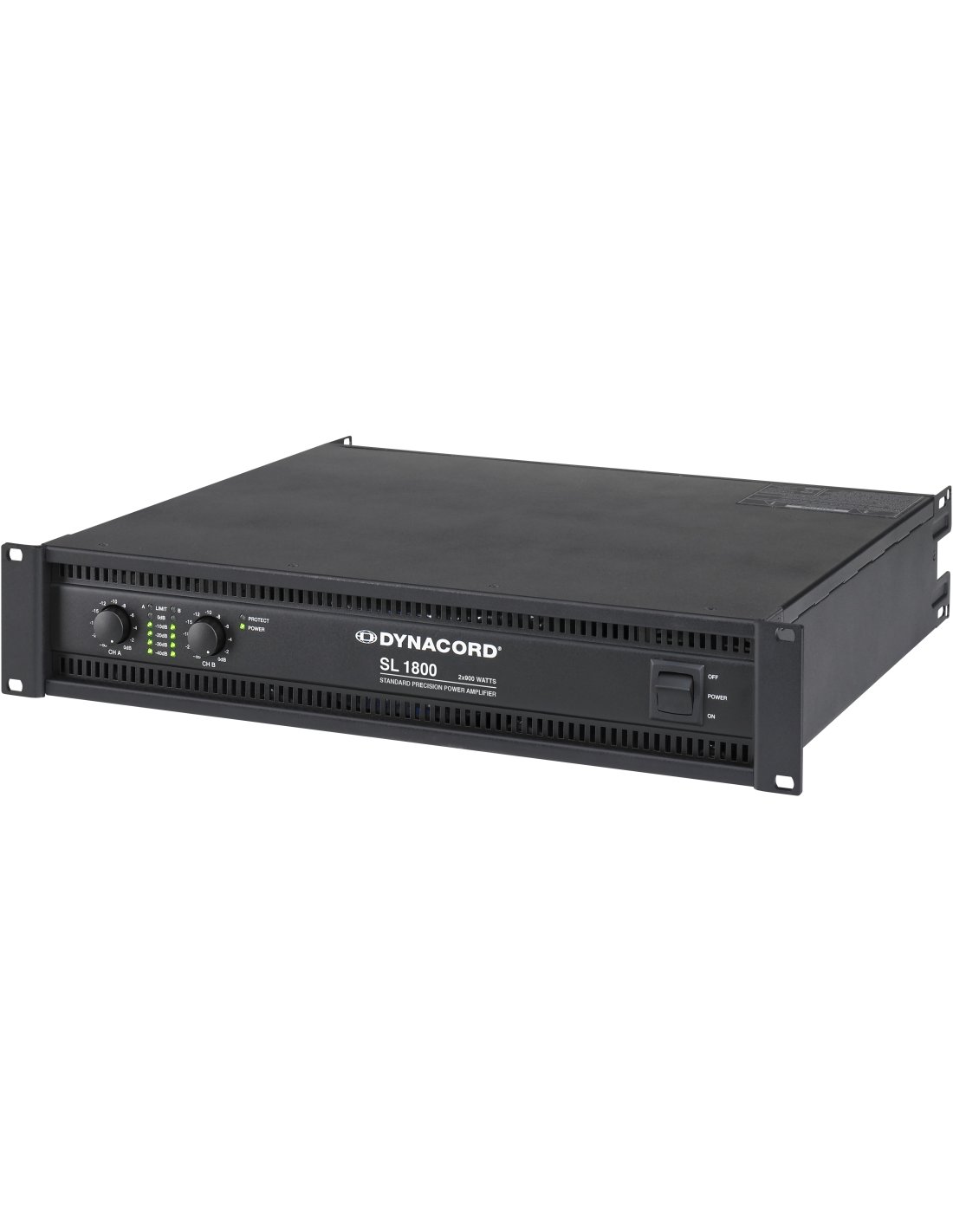

DYNACORD SL 1800

2-channel power amplifier. Class H topology. Stereo mode output power (THD 1%, 1kHz): 2x 550W in 8, 2x 900W in 4, 2x 1,250W in 2. Bridge-mode output power (THD 1%, 1kHz): 1x 1,800W in 8, 1x 2,800W in 4. Frequency response: 10Hz to 40kHz (±1dB). Gain: 32 dB. Input sensitivity: +5.1 dBu. Maximum RMS output voltage range: 78.8 V. Power consumption at 4A, maximum output power: 700W. It incorporates gain control and indicators (LEDs) for output level, limiter, protection and power supply on the front side. Protection circuits for: overheating, overload, short circuit, EMF return, peak current, inrush current, HF and DC output and soft start. Signal input/output via XLR3. Load output with Speakon connector. Dimensions (W x H x D), mm: 483 (19') x 88.1 (2U) x 421.5. Weight: 16.3 kg
