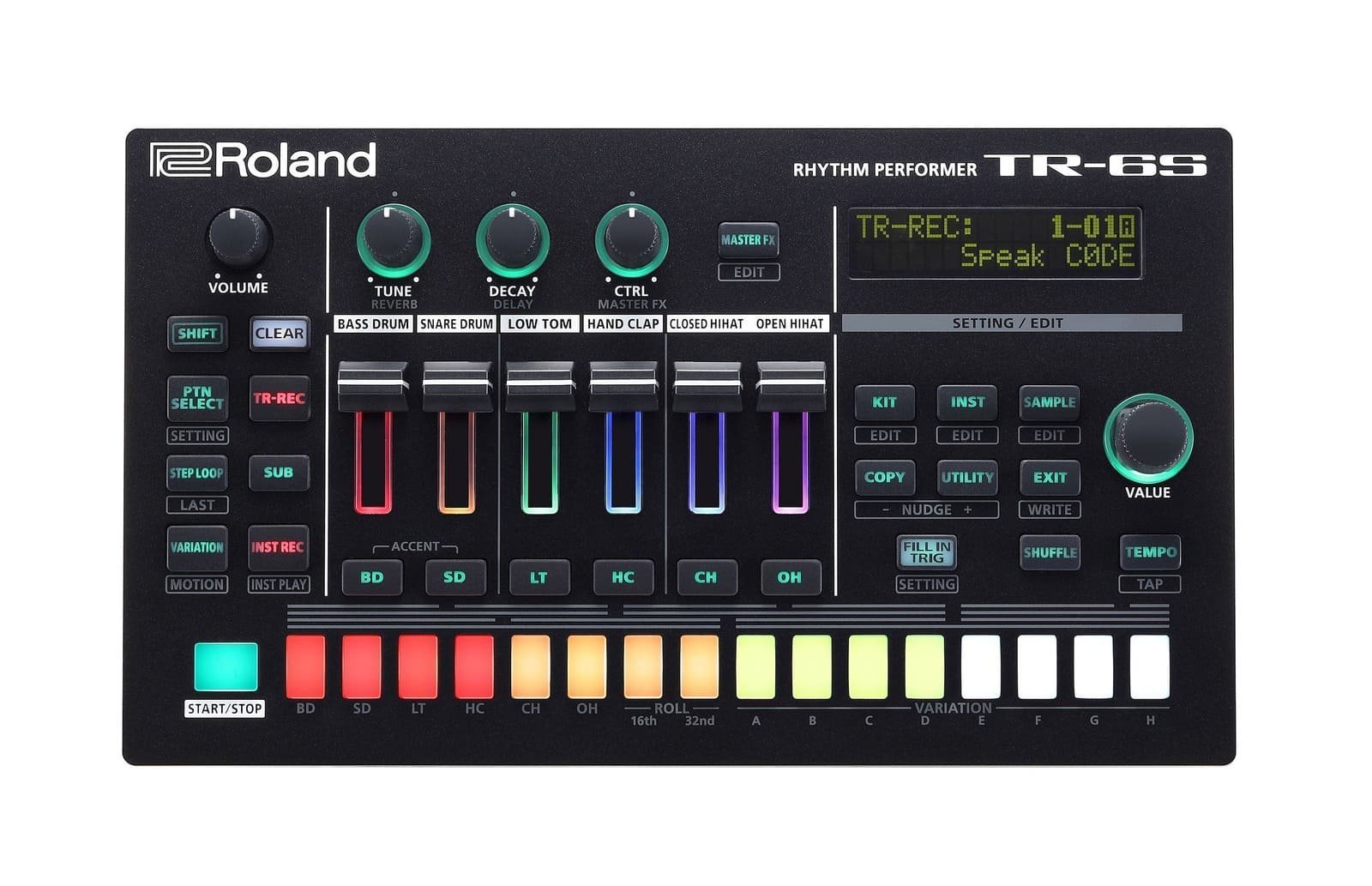

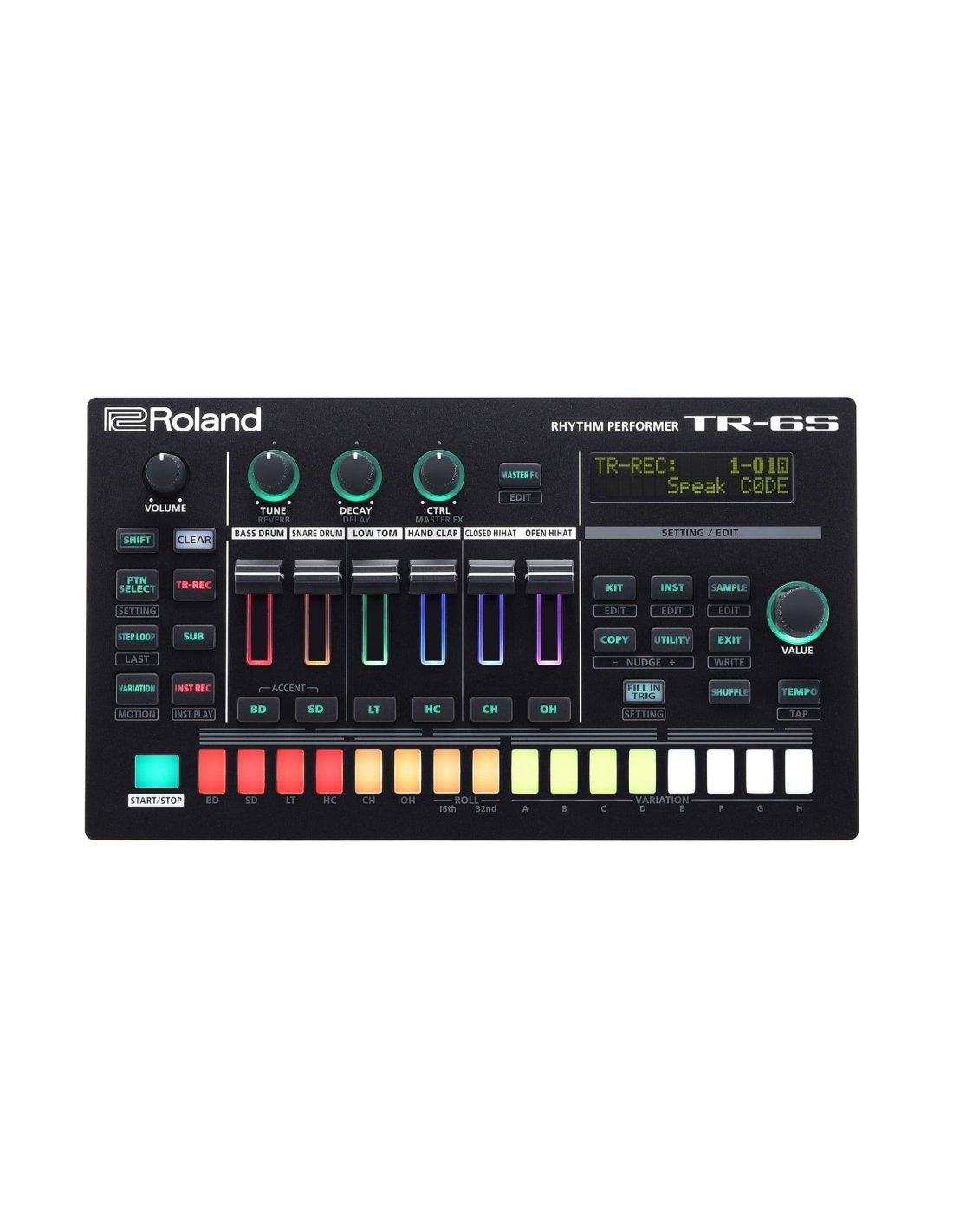

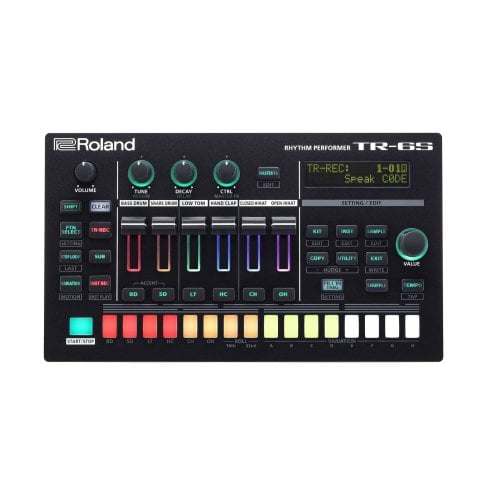

ROLAND TR-6S

COMPACT SIZE GREAT BEATS.
Compact six-track drum machine,
with real TR sounds, samples, FM tones, effects.
Roland TR drum machines have had their full impact on musical production for more than 40 years—and their influence today is stronger than ever.
Based on the success of the TR-8S, TR-6S is a compact and affordable instrument with the same unmistakable sound as the superior model,
capable of shaking the systems and making clubbers from all over the world dance. Raise the level of your tracks,
create beats on the fly and experience the pleasure of producing your music directly and effectively.
With TR-6S,
the sound of the most classic tracks, today's genres and tomorrow's hits is always at your fingertips.

ALL THE SOUNDS AND MUCH MORE
Lively replicas of the 808, 909, 707 and 606 timbres,
which sound and respond just like their vintage counterparts Freely
combined presets, personalized
samples and futuristic FM

tones THE RECOGNIZED SUPERIOR STANDARD FOR BATTERY PROGRAMMING
Classic TR-REC step-sequencer
Better thanks to recording in real time, sub-step for “ratched” parts, and recording of movements for ever varied rhythms Play an entire
set without ever repeating yourself: 128 patterns,
each with eight variations and two types of fills, plus real-time editing

IMPORT OF SAMPLES
Import and sequences of mono and stereo samples via SD card,
in addition to the 300 pre-loaded samples POSITIVE

EFFECTS
Create punch, spatiality, warmth or character with high-quality effects Essential
compressors and EQs at your fingertips
Rich reverbs, delays, and modulation effects Expand creativity with filters, LFO,
and new powerful effects

Specifications:

User Drum Kit:128
User Patterns:128
Step Sequencer
6 instrument parts
16 steps for 1 variation
8 (A - H) variations for 1 pattern
2 Fill-in patterns for 1 pattern INST tone (Tone can be assigned to


each 6 instrument parts freely.)
BASS DRUM: 11 ACB tones
SNARE DRUM: 8 ACB tones
TOM: 19 ACB tones
RIM SHOT: 3 ACB tones
HAND CLAP: 5 ACB tones
HI HAT: 8 ACB tones
CYMBAL: 8 ACB tones
PERCUSSION: 24 ACB tones
FM: 66 tones
PRESET SAMPLE: 300 tones or greater
USER SAMPLE (imported form SD CARD for playback): Avarable format: WAV, AIFF
Total time for all samples: Approximately 600 sec (at 44.1 kHz, mono) * The maximum length of a single audio file that can be imported is approximately 180 seconds (at 44.1 kHz, mono)

* The maximum length of

* Available format of Sample:
WAV 96 kHz maximum/8-bit, 16-bit, 24-bit, 32-bit, 32-bit float (mono, stereo)
AIFF 44.1kHz, 48kHz, 96 kHz/8bits, 16-bit, 24-bit, 32-bit, 32-bit float (mono, stereo)

Effects:
INST FX: THRU, HPF, LPF/HPF, H BOOST, L BOOST, L/H BOOST, ISOLATOR,
TRANSIENT, COMPRESSOR, DRIVE, COMP+DRV, CRUSHER, SATURATOR, FREQ SHIFT, MOD,
REVERB: ROOM, HALL1, HALL2, PLATE, DELAY MODE: DLY, PAN, TAPE ECHO MASTER FX: HPF, LPF/HPF, H BOOST, L BOOST, L/H BOOST, L/H BOOST, ISOLATOR,


TRANSIENT, TRANSIENT2, COMPRESSOR, DRIVE, OVERDRIVE, DISTORTION, FUZZ,
CRUSHER, PHASER, FLANGER, SBF, NOISE
Other: SCATTER (as one of AUTO FILL IN function), SIDE CHAIN

Display:
16 characters, 2 lines (backlit LCD)
External Storage
SD Card (SDHC supported) for backup/restore function and import sample data

Connectors:
PHONES jack: Stereo miniature phone type
OUT (L/MONO, R) jacks: 1/4-inch phone type MIDI (IN, OUT) connectors USB port: USB B type (Audio,
MIDI) Power Supply NI-H battery (AA),


HR6) x 4
Alkaline battery (AA, LR6) x 4
Obtained via USB port (USB bus power)
Current Draw
500 mA
Expected battery life under continuous use
Alkaline battery: Approx. 4.5 hours
Ni-MH battery: Approx. 5.5 hours (When using batteries having a capacity
