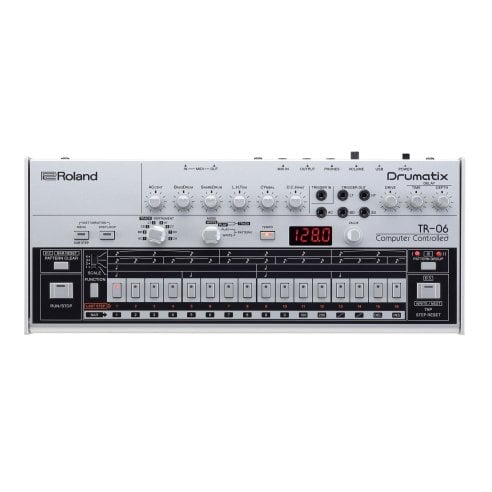

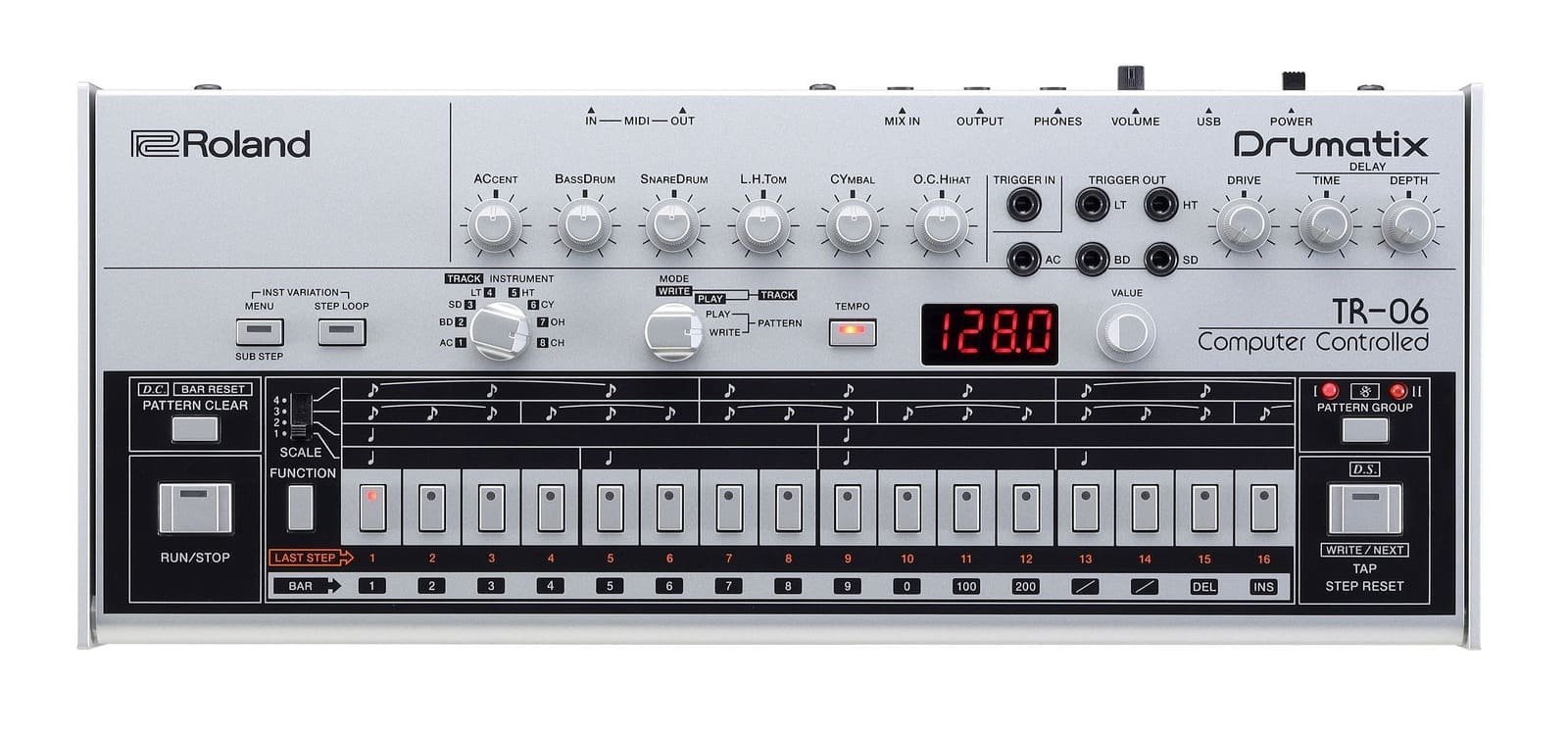

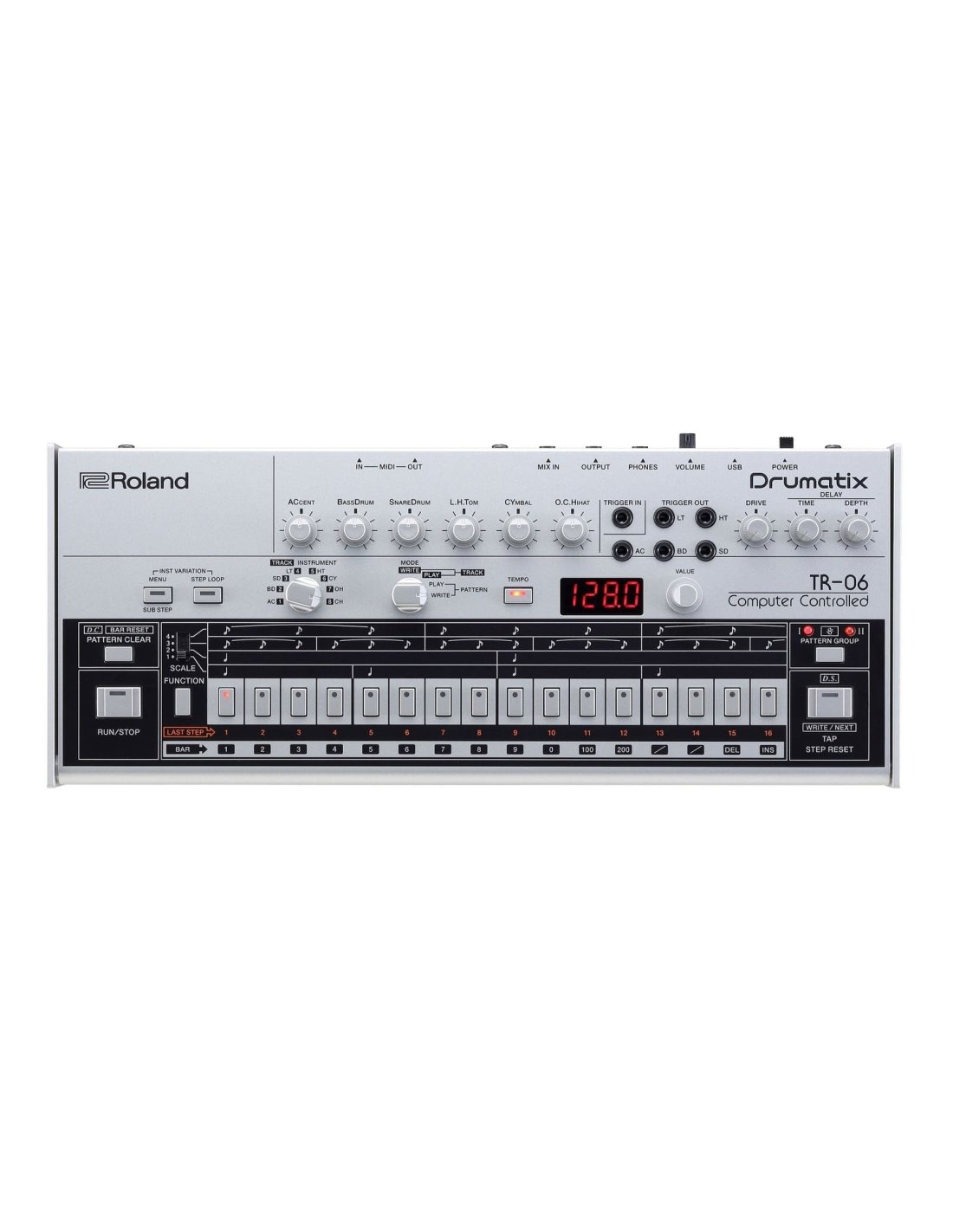

ROLAND TR-06

TR-06 is a detailed replica of the classic Roland TR-606, with new interesting new features. The new Roland Boutique version has the distinctive sound and iconic look of the original, with more sound editing options, innovative sequencing capabilities and a wide choice of triggers to drive modular devices.

Specifications

User Memory

Patterns: 128 (16 patterns x 8 banks)
Tracks: 8

Steps 32

steps

Sequencer Functions

STEP LOOP
SUBSTEP
FLAM
INTRO/FILL IN
PROBABILITY
SUBSTEP PROBABILITY
MASTER PROBABILITY

Instruments

BD: BASS DRUM*
SD: SNARE DRUM*
LT: LOW TOM*
HT: HI TOM*
CY: CYMBAL*
OH: OPEN HI HAT CH: CLOSED HI HAT * Variation sounds included Controllers VOLUME

knob
RUN/STOP button
PATTERN CLEAR button
MENU/SUB STEP button STEP LOOP button
FUNCTION button
TEMPO button

STEP buttons (1-16)
PATTERN GROUP button and indicators
TAP/STEP RESET button
SCALE selector switch
INSTRUMENT selector knob
MODE selector knob
VALUE knob Instrument Level knobs (AC, BD, SD, LT/HT, CY, OH/CH)
Effect knobs (DRIVE, TIME, DEPTH) Effects Compressor Delay Effects: DELAY, PAN DELAY, TAPE-ECHO, REVERB
, FLANGER, SIDE BAND Filter

Drive Effects: SATURATOR, BIT CRUSHER, DISTORTION, LPF/HPF

Indicators

7 segments, 4 characters (LED)

CONNECTORS

TRIGGER IN jack: mono miniature phone type
TRIGGER OUT jack x 5 (AC, BD, SD, LT, HT): mono miniature phone type
PHONES jack: stereo miniature phone type
OUTPUT jack: stereo miniature phone type
MIX IN jack: stereo miniature phone type
MIDI (IN, OUT) connectors
USB port: Micro-B type (Audio, MIDI)

Power Supply

Rechargeable Ni-MH battery (AA, HR6)

x 4 Alkaline battery
(AA, LR6) x 4
USB bus power

Current Draw

500 mA (USB bus power)

Expected battery life under continuous use

Rechargeable Ni-MH battery: Approx. 5 hours
* This can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions

of use.
