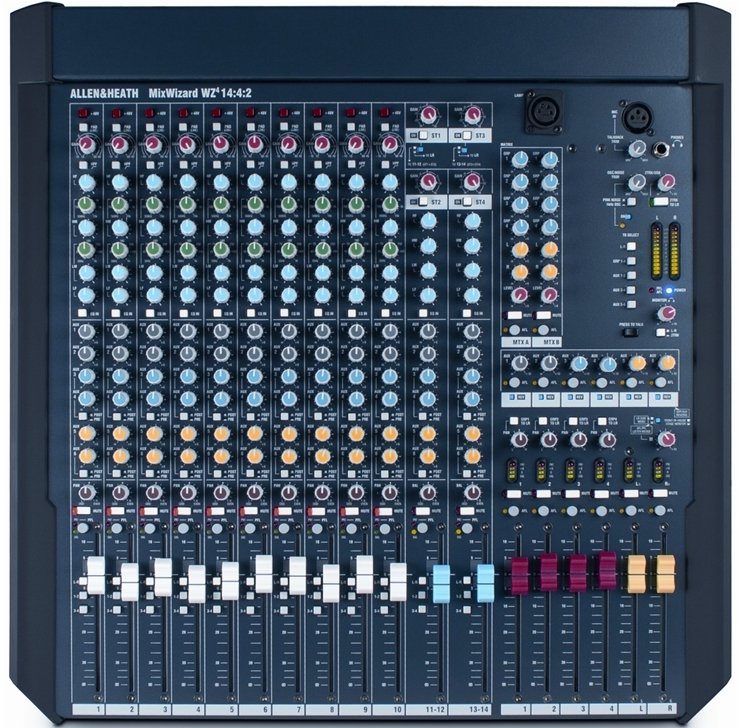

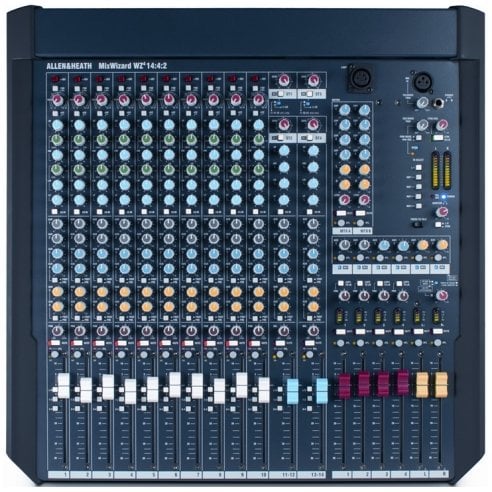

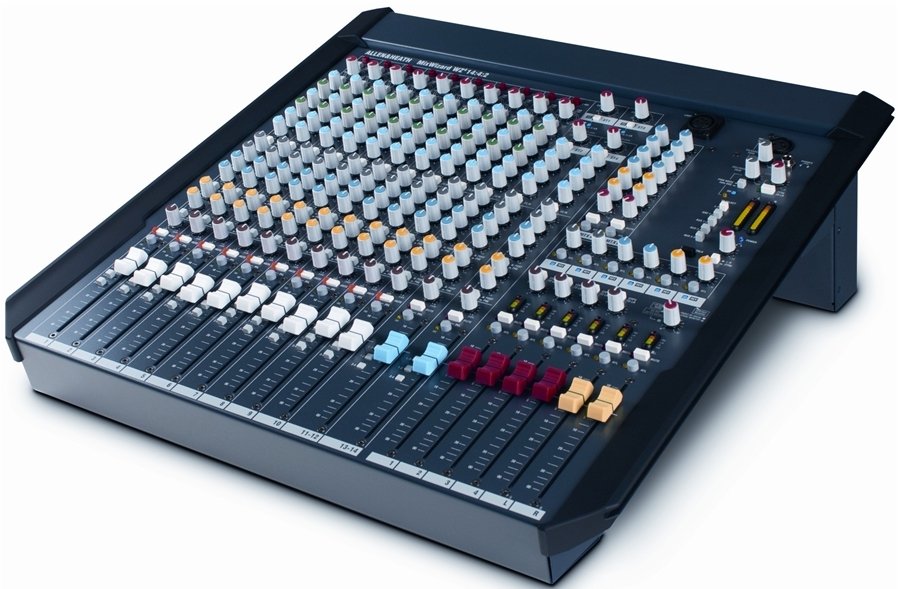

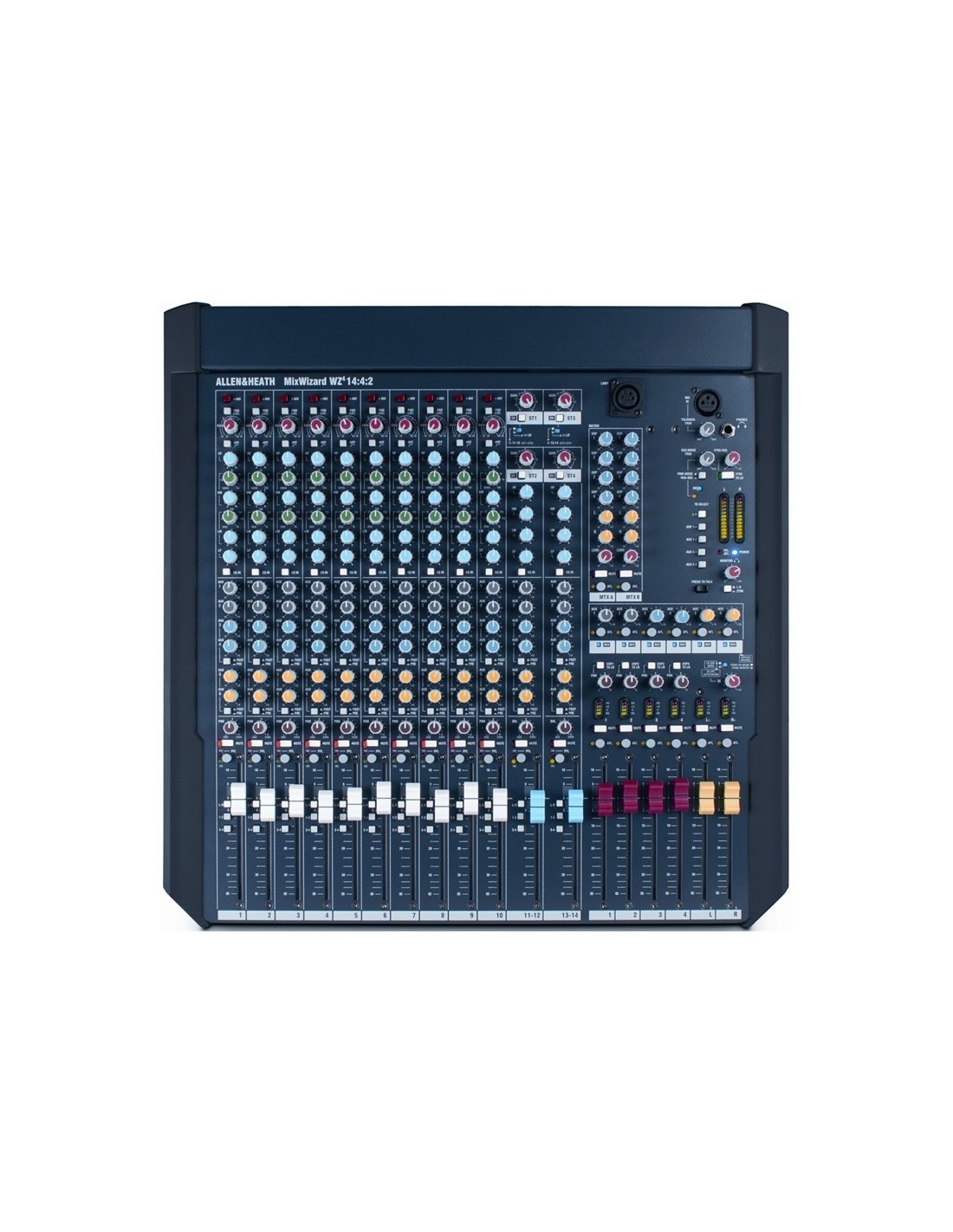

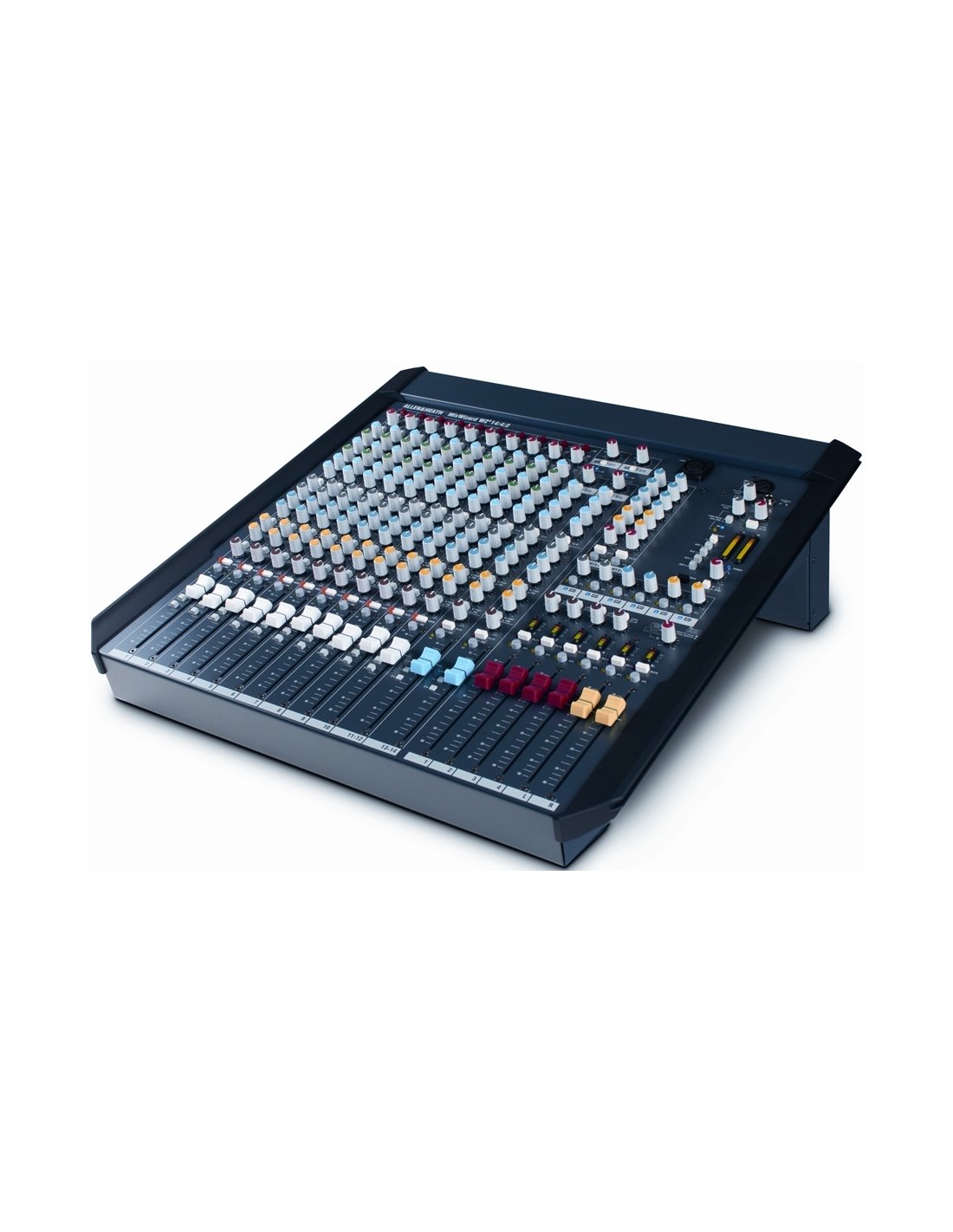

Allen & Heath MixWizard4 14:4:2

The WZ4 14:4:2 is a very versatile live mixer because it can be used in the hall, on stage or meet both needs at the same time.

The WZ4 14:4:2 has 4 EQ bands, including 2 parametric for medium frequencies, excellent quality 100mm faders, 6 aux sends, 12 segments for the meter bar and the exclusive QCC connector for using the product in desktop mode or mounted on a rack or flightcase.

The new features of the 4th generation of MixWizard include 2 new digital effect engines with 20 studio-quality presets, the EQ in/out switch and the multichannel USB interface with the optional 16-channel card for multi-track recording and 2-track playback.

For those who are still looking for a quality analog mixer with compact dimensions and a sturdy frame, Wizard4 is the solution.

FoH/Monitor/Dual Mode

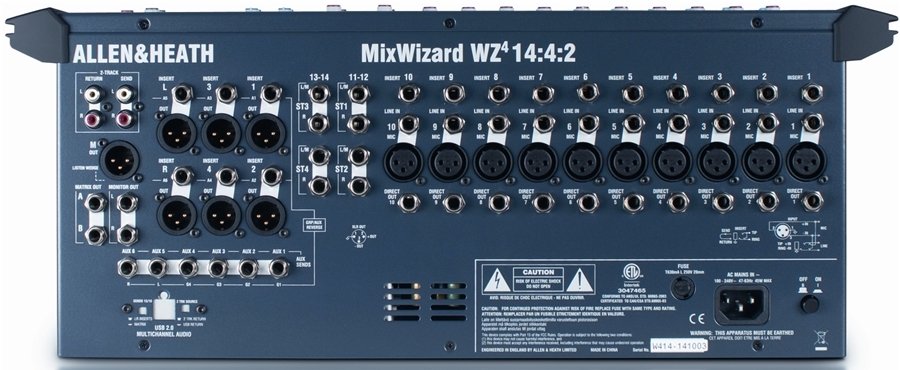

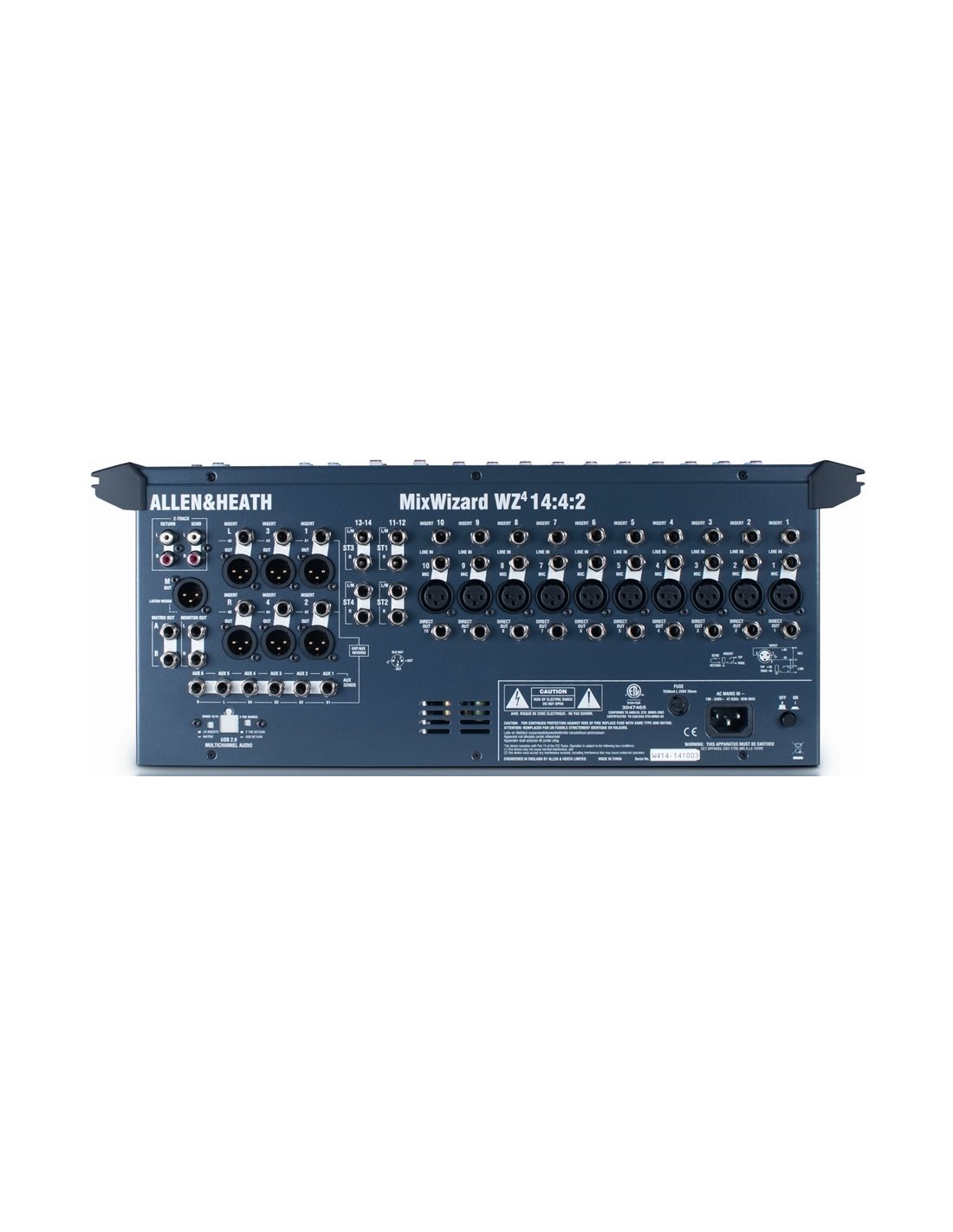

In FoH mode, the 4 groups with inserts, the 100mm faders and the XLR outputs allow a more accurate balance management for mixing on L&R. The L&R master has the possibility to insert external machines. The left and right faders are separate, the output connections have an XLR connector. Equalizers or signal processors can be easily inserted both in groups and in the main

In Monitor mode, aux sends can be patched to group and L&R faders, also taking advantage of insert connections and XLR outputs. Listening to the AFL and PFL is diverted to the Mono output to provide a real 'wedge' to the stage sound engineer. Basically, this is a perfect stage mixer with 6 aux plus the ability to use the groups available on the aux master controls.

In Dual Mode mode, some aux can be used to manage monitors on stage and sub-groups for L&R; in this way the sound engineer can manage the FoH audio system and the monitors on stage from the same mixer.

The WZ4 14:4:2 is a very versatile live mixer because it can be used in the hall, on stage or meet both needs at the same time.

The WZ4 14:4:2 has 4 EQ bands, including 2 parametric for medium frequencies, excellent quality 100mm faders, 6 aux sends, 12 segments for the meter bar and the exclusive QCC connector for using the product in desktop mode or mounted on a rack or flightcase.

The new features of the 4th generation of MixWizard include 2 new digital effect engines with 20 studio-quality presets, the EQ in/out switch and the multichannel USB interface with the optional 16-channel card for multi-track recording and 2-track playback.

For those who are still looking for a quality analog mixer with compact dimensions and a sturdy frame, Wizard4 is the solution.

FoH/Monitor/Dual Mode

In FoH mode, the 4 groups with inserts, the 100mm faders and the XLR outputs allow a more accurate balance management for mixing on L&R. The L&R master has the possibility to insert external machines. The left and right faders are separate, the output connections have an XLR connector. Equalizers or signal processors can be easily inserted both in groups and in the main

In Monitor mode, aux sends can be patched to group and L&R faders, also taking advantage of insert connections and XLR outputs. Listening to the AFL and PFL is diverted to the Mono output to provide a real 'wedge' to the stage sound engineer. Basically, this is a perfect stage mixer with 6 aux plus the ability to use the groups available on the aux master controls.

In Dual Mode mode, some aux can be used to manage monitors on stage and sub-groups for L&R; in this way the sound engineer can manage the FoH audio system and the monitors on stage from the same mixer.
