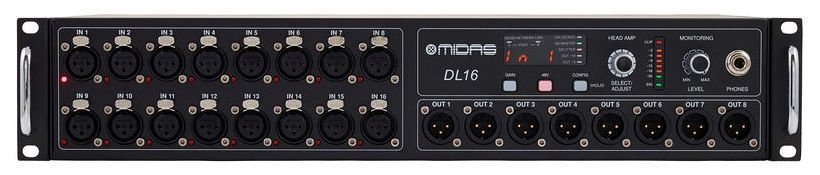

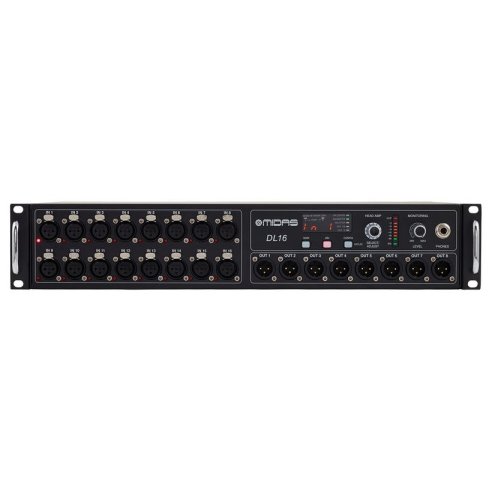

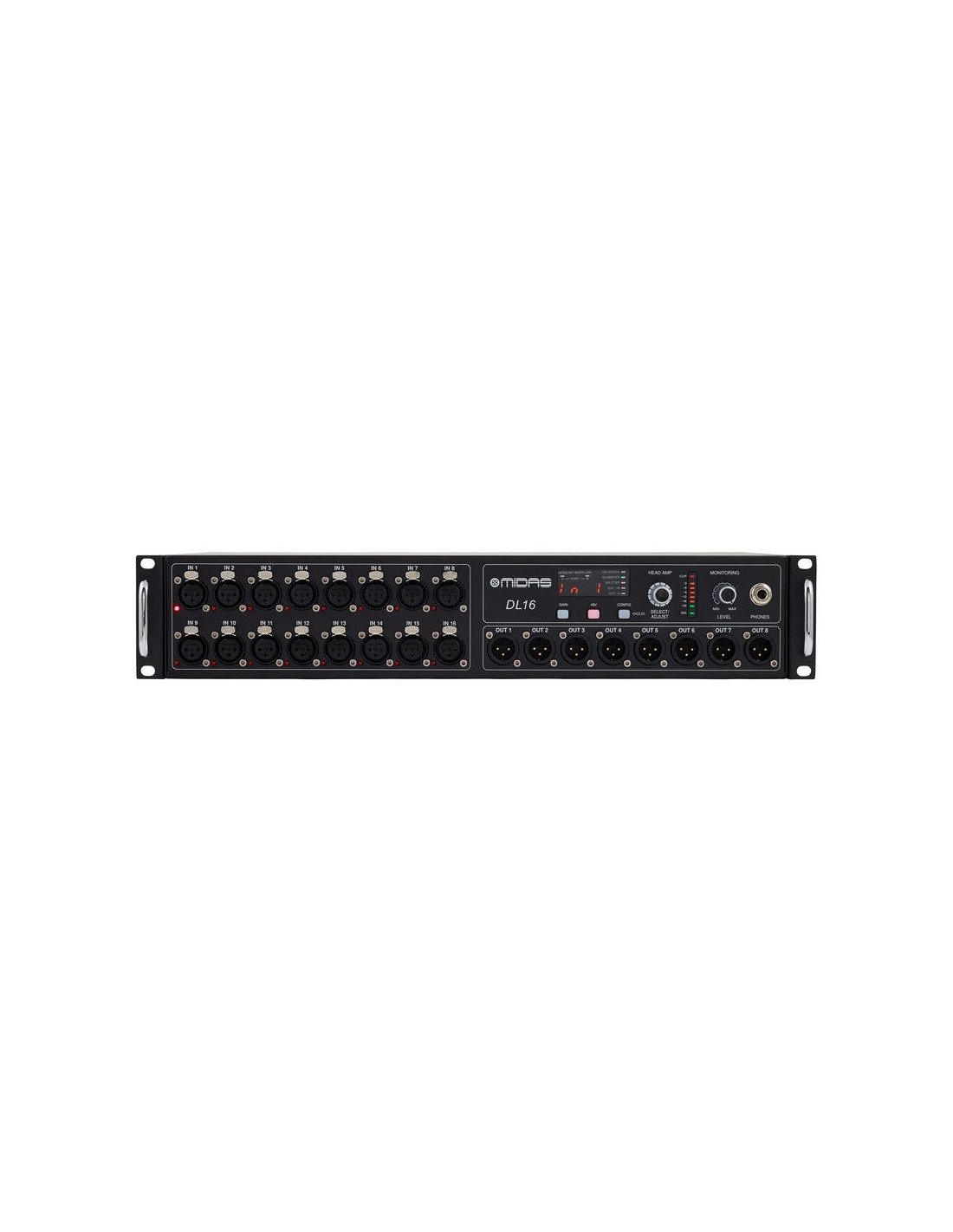

STAGE BOX 16 INPUT/8 OUTPUT WITH 16 MICROPHONE PREAMPLIFIERS |
Digital mixing has revolutionized practically everything in the workflow of live entertainment productions, and now the same cutting-edge technology brings the signal distribution of live production into the modern era. The DL16 Stage Box offers 16 of the award-winning microphone preamps with selectable 48V Phantom power, 8 balanced analog XLR returns at the end of the stage, an integrated Ultranet output for connecting to Behringer P16-M personal mixer monitors, plus connectivity for your ADAT-compatible devices. If your application requires more inputs, or you simply want to keep the corio cables tidy, putting a DL16 on the front of the stage and another behind the drums provides 16 additional inputs for microphoning the sound of the drums and guitar/bass amplifiers. The best part: all you need is a single CAT5 cable for the stage box |
Features
- 16 Midas Pro microphone preamplifiers with 48V phantom power
- 8 Electronically balanced low impedance line outputs
- Ultranet personal monitoring system connectivity for in-ear applications Audio connectivity and digital control for Turbosound speaker systems with network
- functionality
- Ultranet
- Double AES50 SuperMac port for cascading additional DL16 stageboxes
- Double ADAT outputs that provide a 16-channel digital output on two TOSLINK optical connectors Remote operation via shielded CAT5e cable up to
- 100m in length All settings are programmable from the front panel controls or from the console
- Status indicator LEDs on the front panel
- Headphone output that can be assigned to any of the inputs or outputs for MIDI In/Out stage monitoring for
- bidirectional communication between Midas M32 series consoles and MIDI devices on stage Neutrik EtherCon AES50 and
- Ultranet network ports Robust 2U rackmount chassis for
longer life in portable applications
