Radial Engineering Exo-Pod

EXO-POD

• • • • 14-output passive





        design with isolation transformer Adjustable
        output with
    • • “Set & Forget” Trim control Balanced
        • • XLR line level
            input
        with
    expandable input Structure
    in exceptionally robust 14-gauge steel

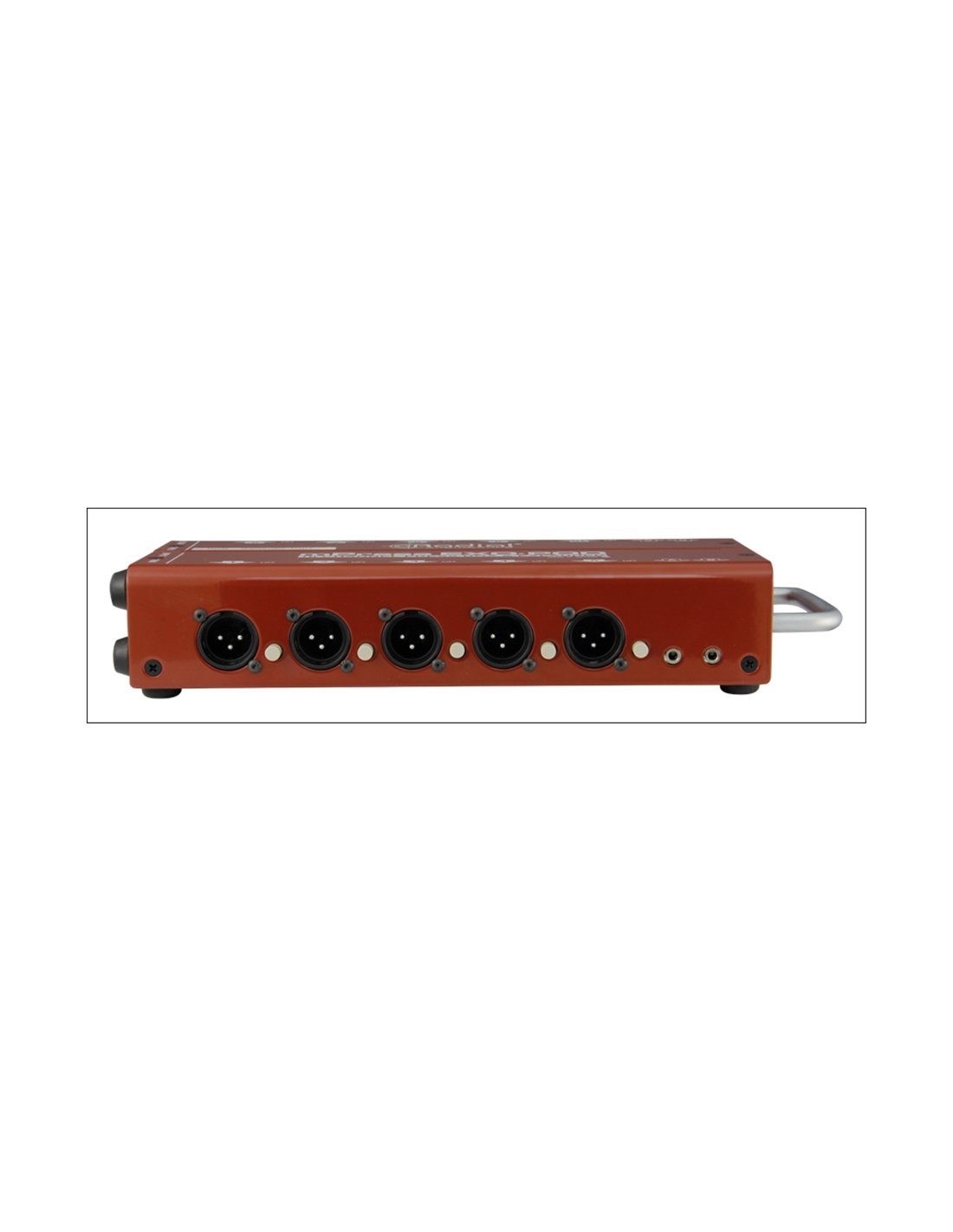

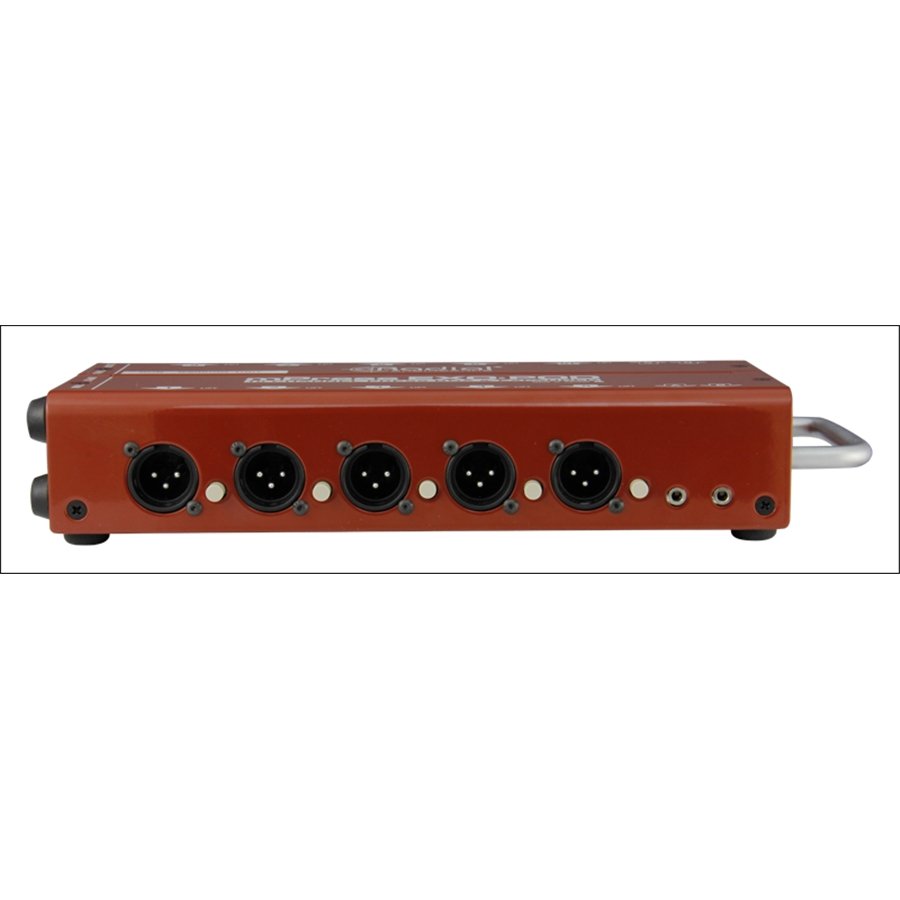

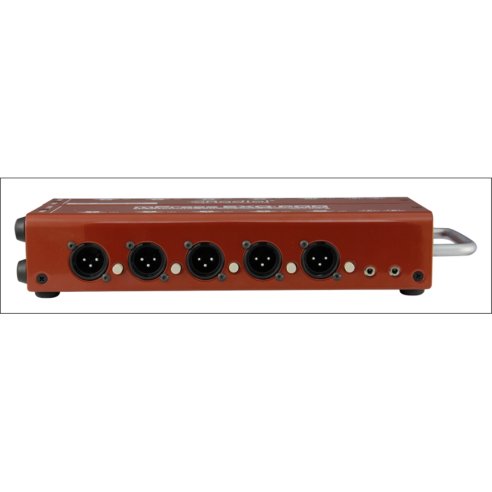

Radial Exo-Pod is a passive transmission splitter that can take the balanced line output from a mixer and distribute the signal to 14 portable recorders, camcorders or wireless receivers. It can also be used in combination with the Radial mPress master box, creating a modular solution for hundreds of individual users

The compact floor-box is characterized by a 14-gauge steel structure resistant to the rigors of touring. The steel frame also provides excellent protection against magnetic fields produced by lighting dimmers, power transformers and electrical cables. The protective bumper preserves the connectors and the trim switch, and the sturdy steel handle allows you to carry Exo-Pod with ease. The connection to and from the Exo-Pod starts with a balanced XLR input, ten balanced XLR outputs and four 3.5 mm mini TRS connectors for camcorders, portable recorders, tablets or other multimedia systems. An input adjustment trim allows the broadcast technician to reduce the output level locally. All outputs are transformer isolated to eliminate disturbances and hums often caused by ground loops. The XLR outputs are integrated with individual ground lift switches for additional noise reduction

Exo-Pod is totally passive, and does not require any power supply. Simply connect your line-level source to power up to 14 microphone inputs at once with excellent audio performance, excellent noise to signal ratio

Radial Exo-Pod is a simple everyday solution!
