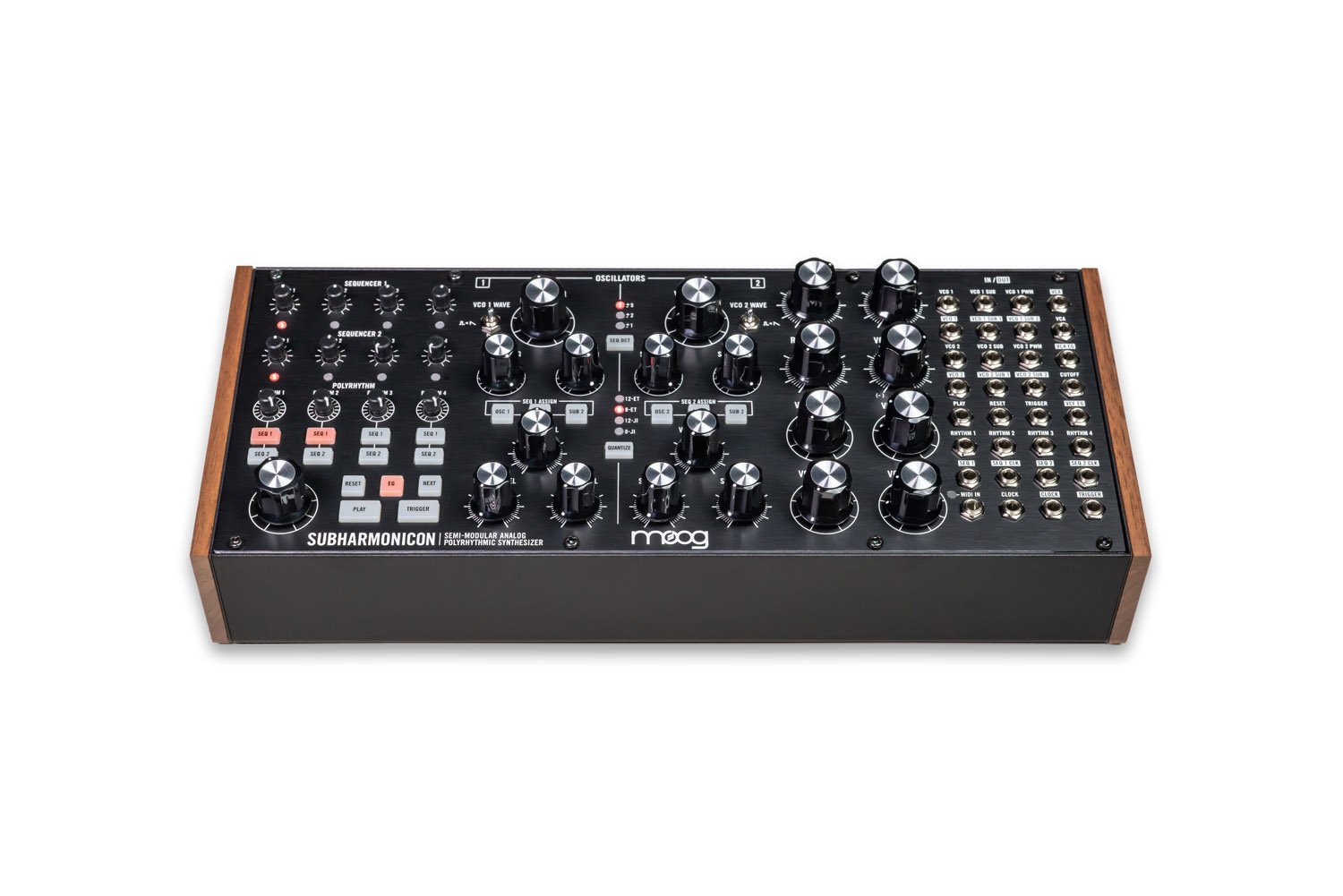

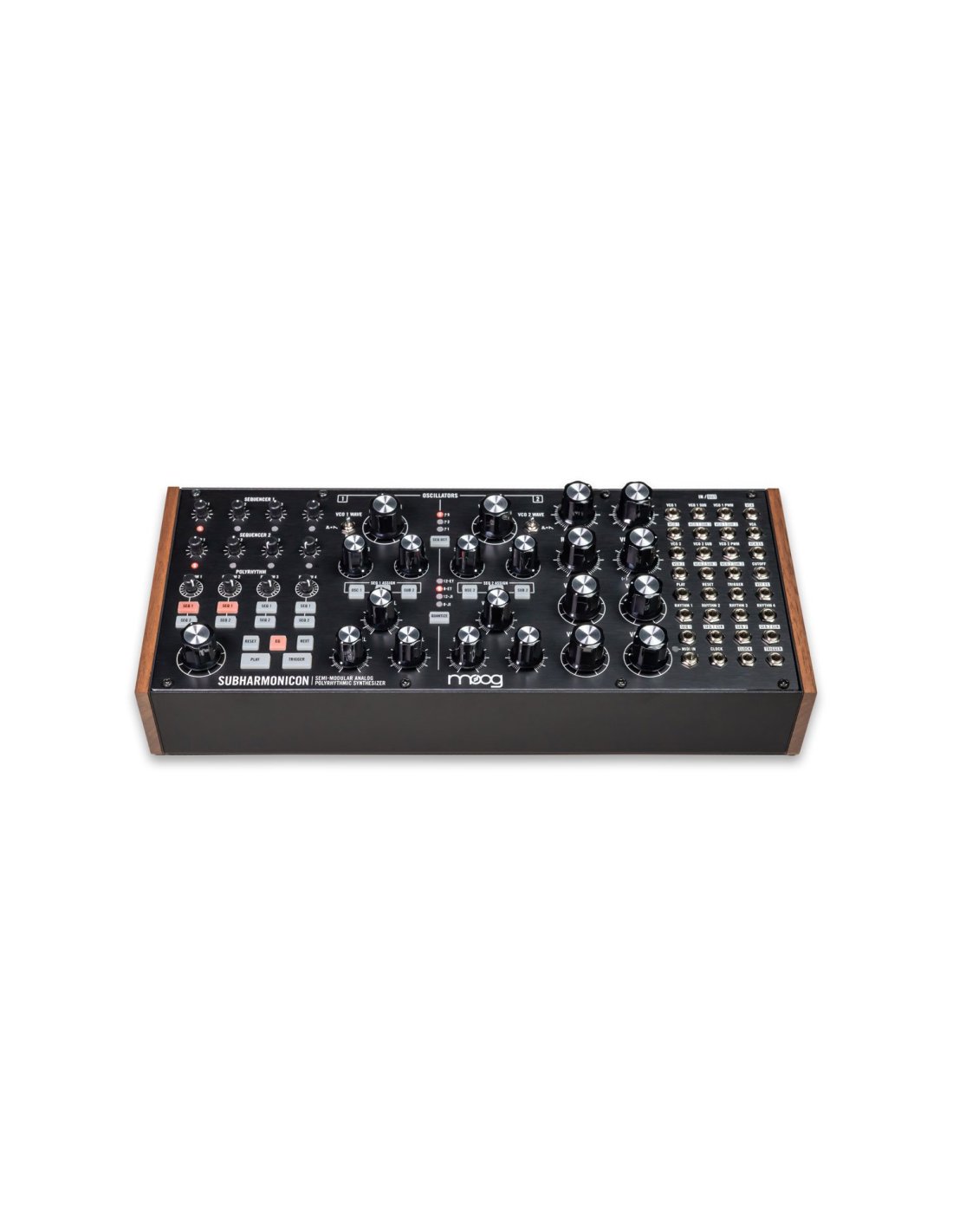

The Moog Subharmonicon is a powerful, versatile and innovative tool with which to create unique and impactful soundscapes, as well as the most complex polyrhythms, all with extreme promptness guaranteed by a very simple and intuitive approach to synthesis.
Key Features:
ANALOG SOUND ENGINE
● SOURCES: VCO 1, SUB 1, SUB 2/VCO 2, SUB 1, SUB 2
● FILTERS: Self-Oscillating Ladder Filter, Low-Pass, 4-Pole (-24 dB/octave)
● ENVELOPES: VCA EG (Attack, Decay); VCF EG (Attack, Decay)
ANALOG SEQUENCER (x2)
● STEPS: 4 Steps per Sequencer, selectable quantization
● CLOCK: Driven by Rhythm Generator
RHYTHM GENERATOR (x4)
● RHYTHM: Derivative divided by Time by an integer value (1-16)
● CLOCK: 20 BPM to 3,000 BPM (Beats per Minute; 1 Pulse per Quarter-note), MIDI Clock, EXT CLOCK
PATCHBAY
● JACKS: 32 x 3.5mm
● INPUTS: 17 Inputs Jack
● OUTPUTS: 15 Output Jacks
● MIDI: 3.5mm MIDI Input
BACK PANEL
● AUDIO: 1⁄4” TRS Headphone or 1⁄4” TS Instrument
● POWER: Power supply connection
● SECURITY: Kensington lock slot
WEIGHT AND DIMENSIONS
10.67 x 31.93 x 13.31 cm
1.58 kg
EURORACK SPECIFICATIONS
● 360mA (maximum) from +12VDC (10-pin header)
● 60HP (1” /26mm Module Depth)
