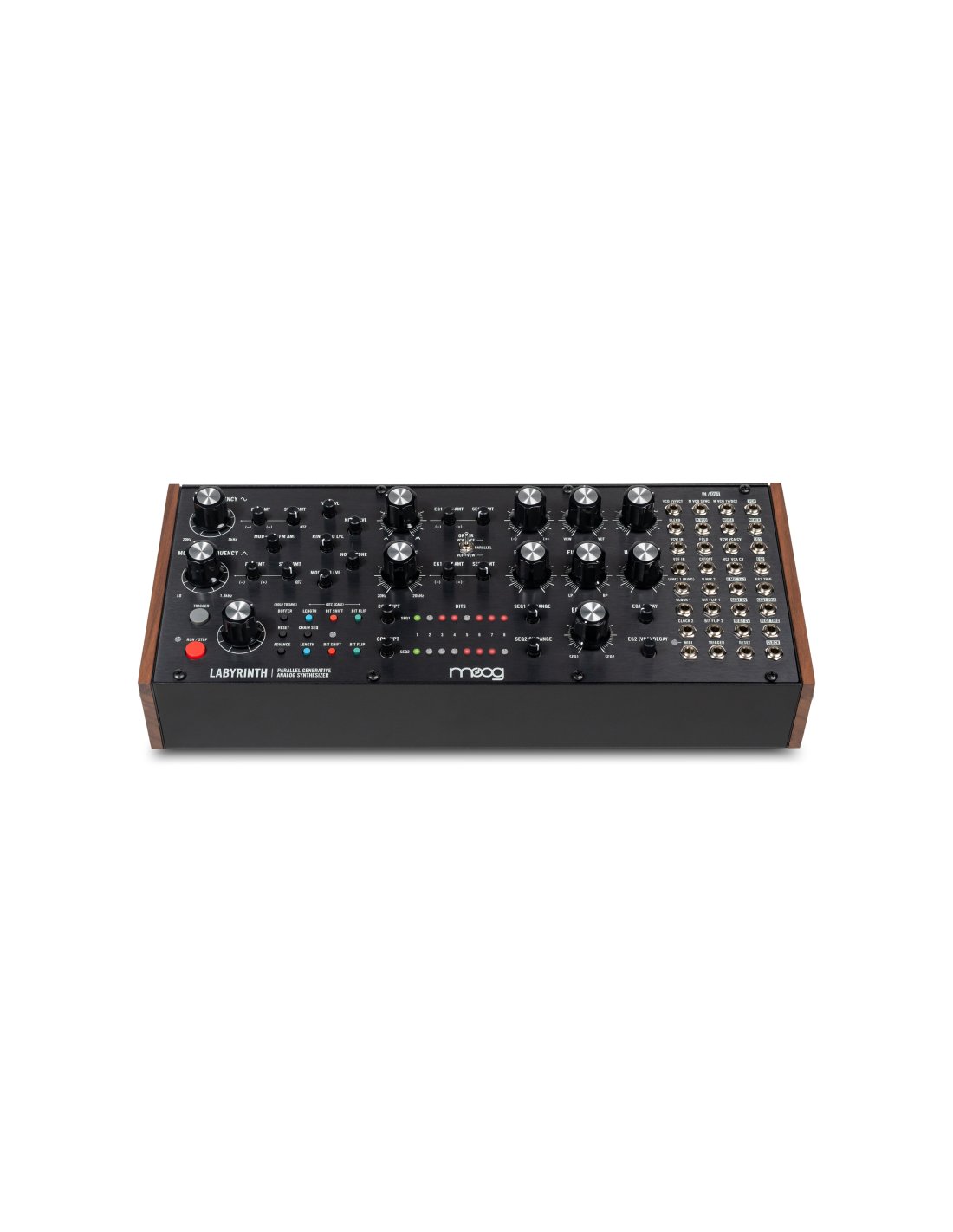

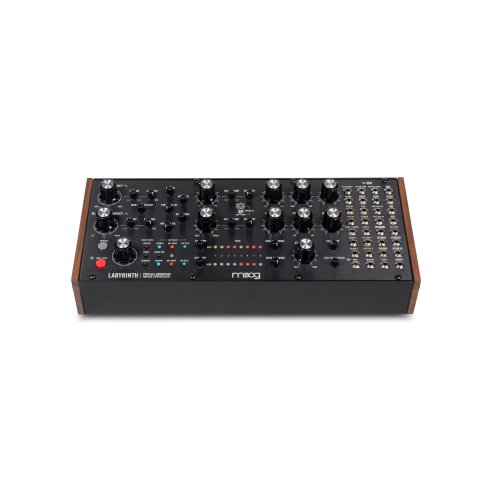

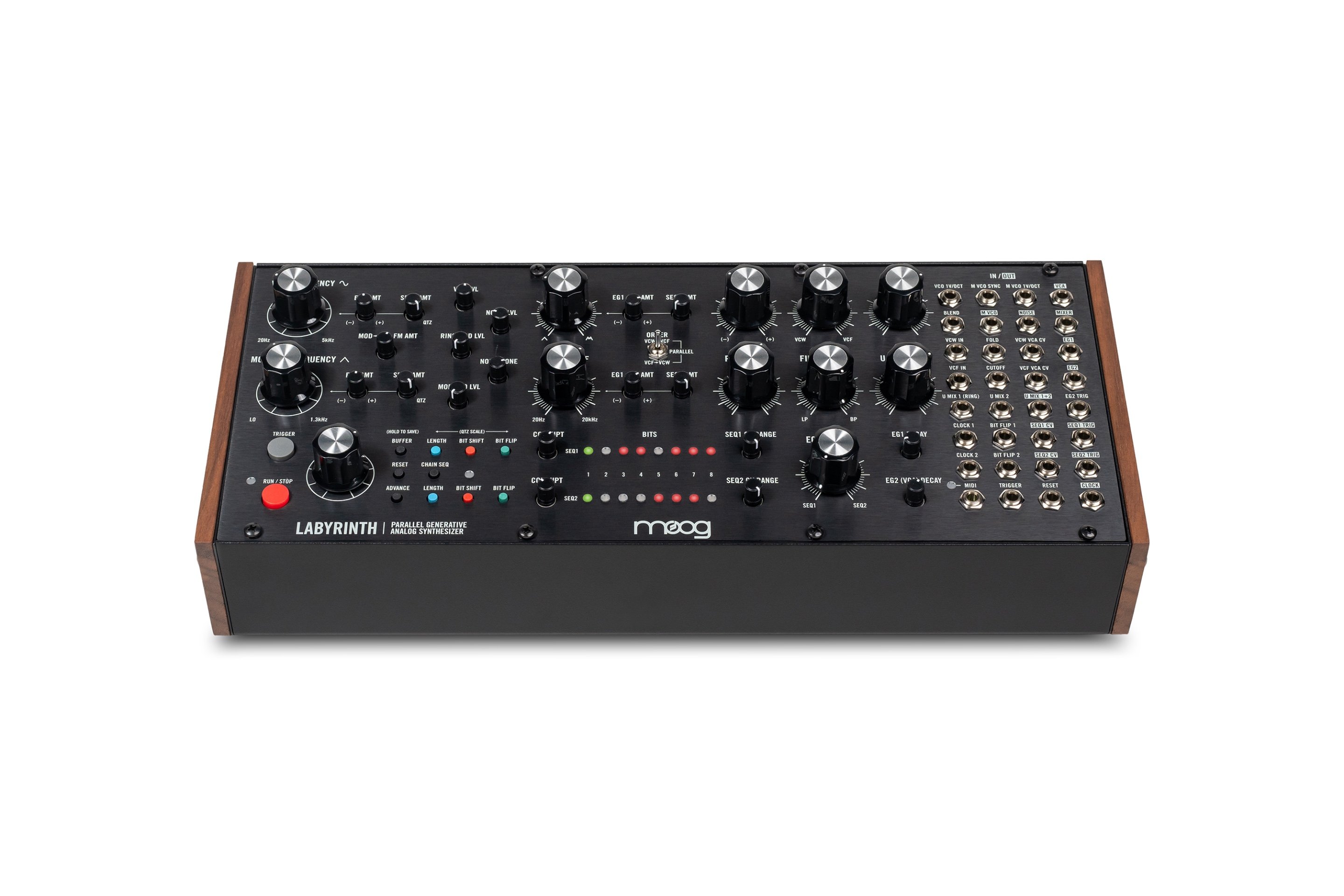

MOOG LABYRINTH

Semi-Modular Parallel Generative Analog Synthesizer Labyrinth is a semi-modular instrument capable of discovering patterns, layers and sound textures capable of sounding familiar or totally new. Two generative sequencers give life to sounds that flourish over time, allowing you to control their evolution and scale, and then make them interact with each other, creating surprising polymetric melodies. With parallel analog signal paths, this unique instrument excels at adding color to the static background of a drum pattern or bass line. Perfectly capable of working alone or adding depth to your existing rack, Labyrinth is at home both on a live set and at the center of a humble home studio. Labyrinth is able to take a study session to explore unexplored creative terrains. The beating heart of Labyrinth is a robust double sequencer, which uses random operations to build two unique eight-step paths that intertwine with each other, forming a fascinating sound path. With a full patch bay, Labyrinth can be synchronized via analog or MIDI clock, while it processes, directs and is influenced by other devices. Tune your instruments together and let Labyrinth improvise in key as you play Matriarch. Connect Labyrinth and Spectravox for animated ghostly motion. Combine Labyrinth with Mavis in a 104HP rack for expanded modularity. These are just a few of the scenarios where Labyrinth fits perfectly. Whatever path you choose, let Labyrinth guide you. Main featuresSine wave oscillators, ring modulators, through-zero FM and saturating mixers give Labyrinth an unconventional but classic Moog sound.A hybrid dio-transistor wavefolder that sounds surprisingly fluid.A variable state filter offers a new nuance to the Moog sound, transforming from low pass to bandpass. Possibility of creative patching for performances together with other instruments An infinite spiral of percussive or melodic sequences that flourish over timeTechnical specificationsAnalog synthesis engineSources: VCO, MOD VCO, RING modulator, NOISE GENERATORSIGNAL PROCESSORS: 1x voltage-controlled Wavefolder, 1 x voltage-controlled variable-state filter, 2x voltage-controlled amplifiersModulators: 2x envelope generators only dual generative sequencer2x Generative 8-Step Digital Sequencer PatchBayjack: 32 x 3.5 mmInputs: 20 Back Jacks Outputs: 12 Output Jacks OreAudio: 1⁄4” TRS Headphones or 1⁄4” TS Instrument POWER: Connection Safety Power Supply: Kensington Block Slot Power adapter (included) TYPE: Wall adapter; bayonet connection; positive central pin Input: 100 — 240 VAC; 50 Hz — 60 Hz Output: +12 VDC; 1200 mA Typical energy consumption: 4.0 W Eurorack specifications CURRENT ABSORPTION: 290 mA (maximum) from +12 VDC (10-pin connector) MOUNTING DIMENSIONS: 60 HP (Module Depth 18 mm) Weights and dimensions Product only Weight (kg): 1.5 kg Measures (cm): 32.61 L x 14.33 D x 10.67 AProduct in the boxWeight (kg): 2.4 kgMeasures (cm): 35.97 L x 20.73 D x 16.76 AWhat's in the Box Labyrinth Semi-Modular Parallel Generative Analog SynthesizerPower Supply/Patch Sheets to be superimposed on the Labyrinth Patch Cables (5 x 12") Registration Postcard/Quick Guide/Cheat Codes/Safety and Warranty Manual
