DB TECHNOLOGIES ES503 STEREO

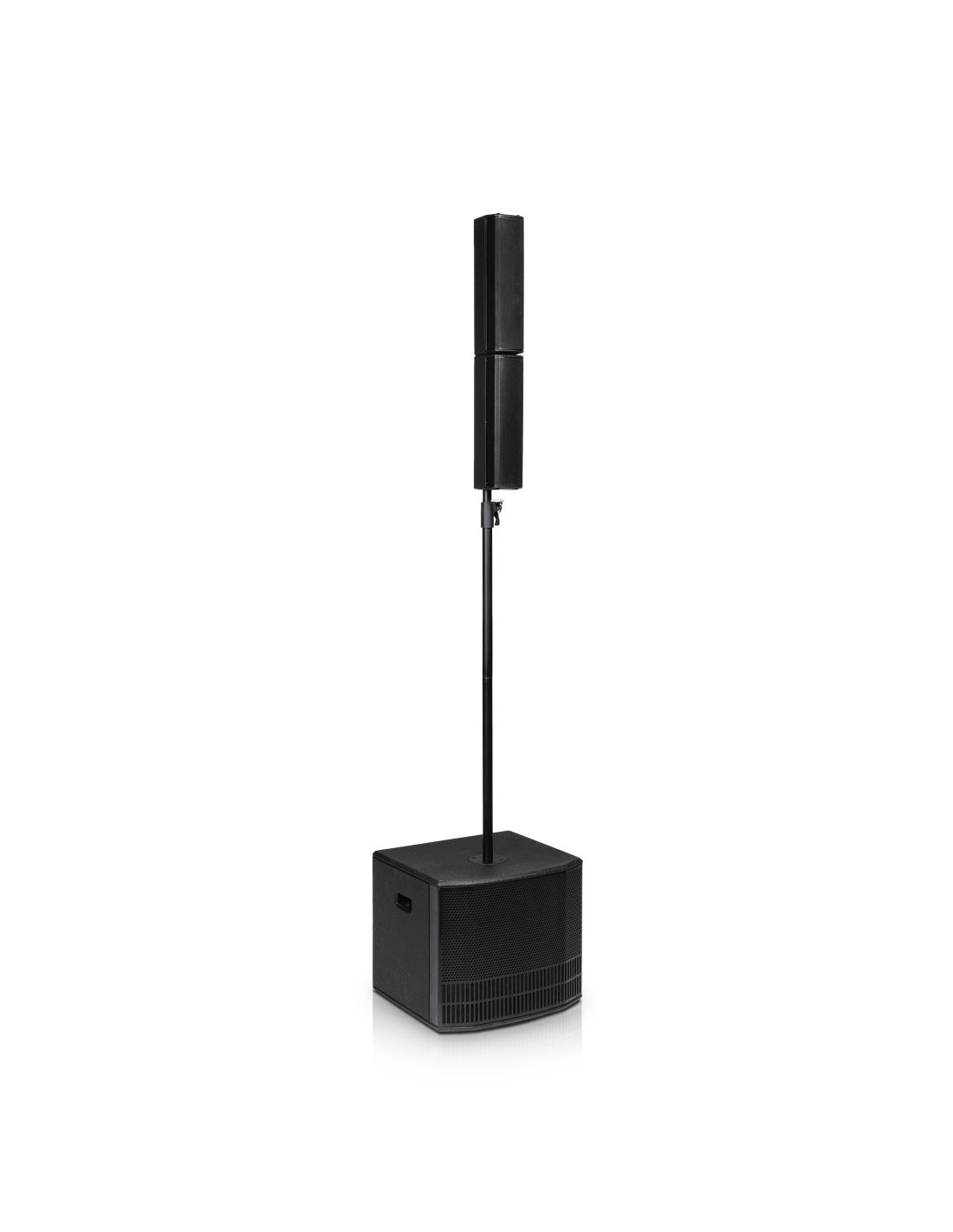

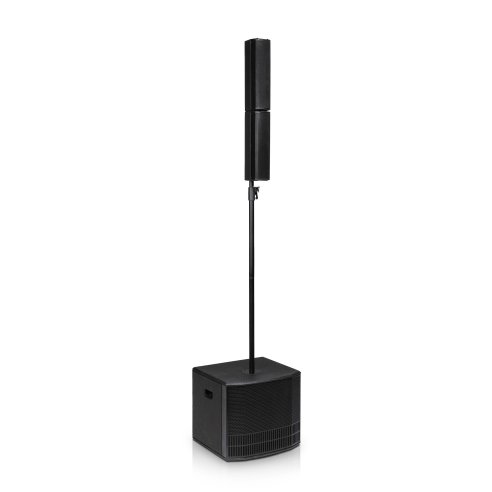

The S503 is a tri-amplified stereo audio system consisting of two passive tops and a 12" subwoofer. The Sub houses the 1000W amplifier module with auto-range and a 3-channel mixer with Bluetooth connection. A powerful DSP, controlled by means of an advanced user interface and an OLED display, manages the dispersion of the system and all the functions of the mixer, making the ES503 a real jewel in terms of audio performance and versatility. The ES series is the result of the experience gained by dBTechnologies in the acoustic design of vertical array systems such as the DVA T and DVA MINI series. The top transducers are mechanically aligned (column array with logarithmic curvature) to increase the coverage of the vertical beam. In addition, there is a special 'double ring rephaser' that increases horizontal coverage and gives a clear, rich and crystal clear sound

Main characteristics

• switch, 1x LED for monitoring the audio signal, 1x USB port (service data)
• Controller: DSP 24 Bit/48 kHz System Preset:
• Factory presets + User defined Limiter:
• Dual Active, Peak, RMS, Thermal Crossover Frequency LF-MF:
• 206 Hz Mic/Instrument Channel: 1x Combo (XLR/Jack) balanced/unbalanced input Line Channels:
• 2x Combo (XLR/jack) balanced/unbalanced inputs Subwoofer Media Channel: 1x integrated receiver Bluetooth Mix Output: 1x balanced
• XLR: 15mm birch plywood
