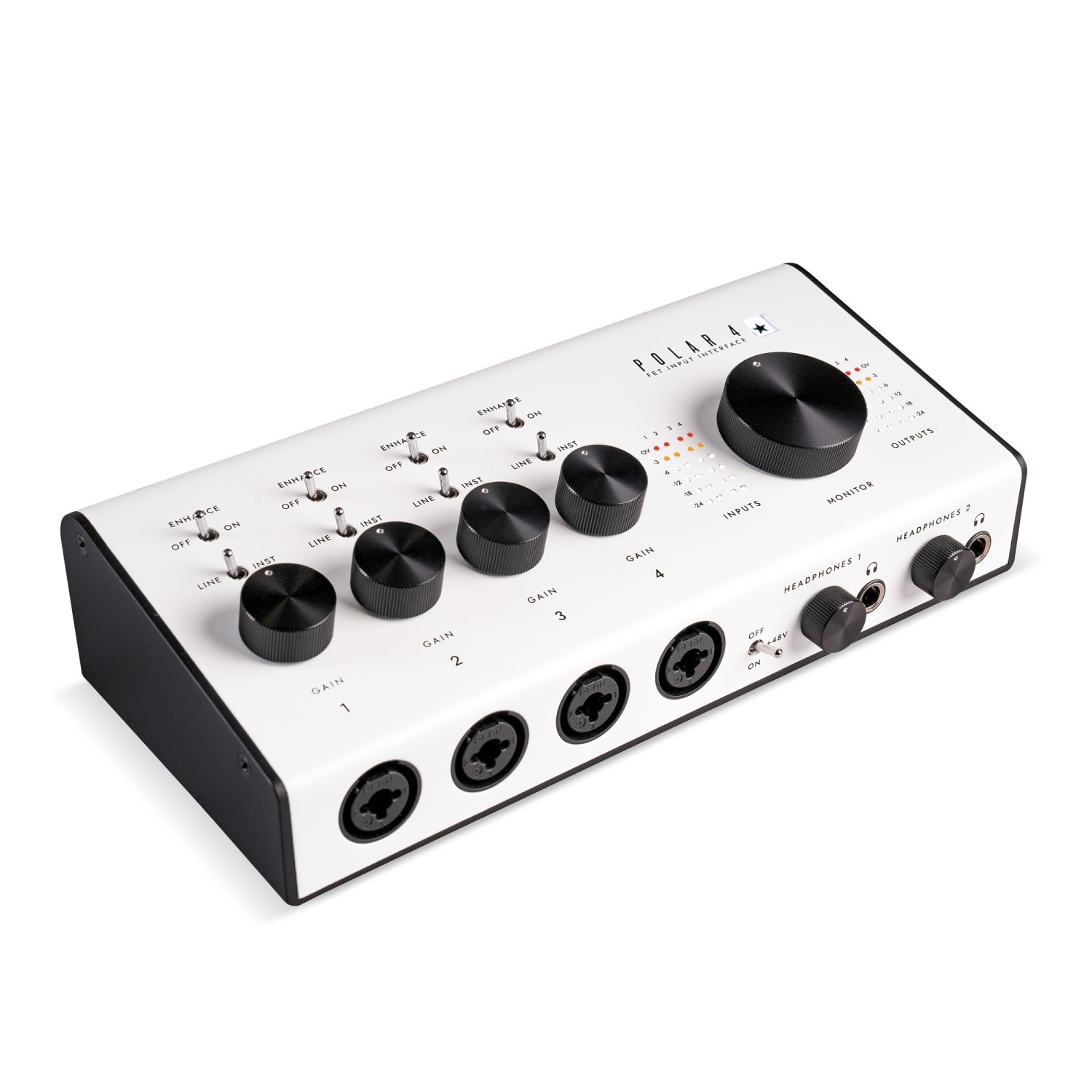

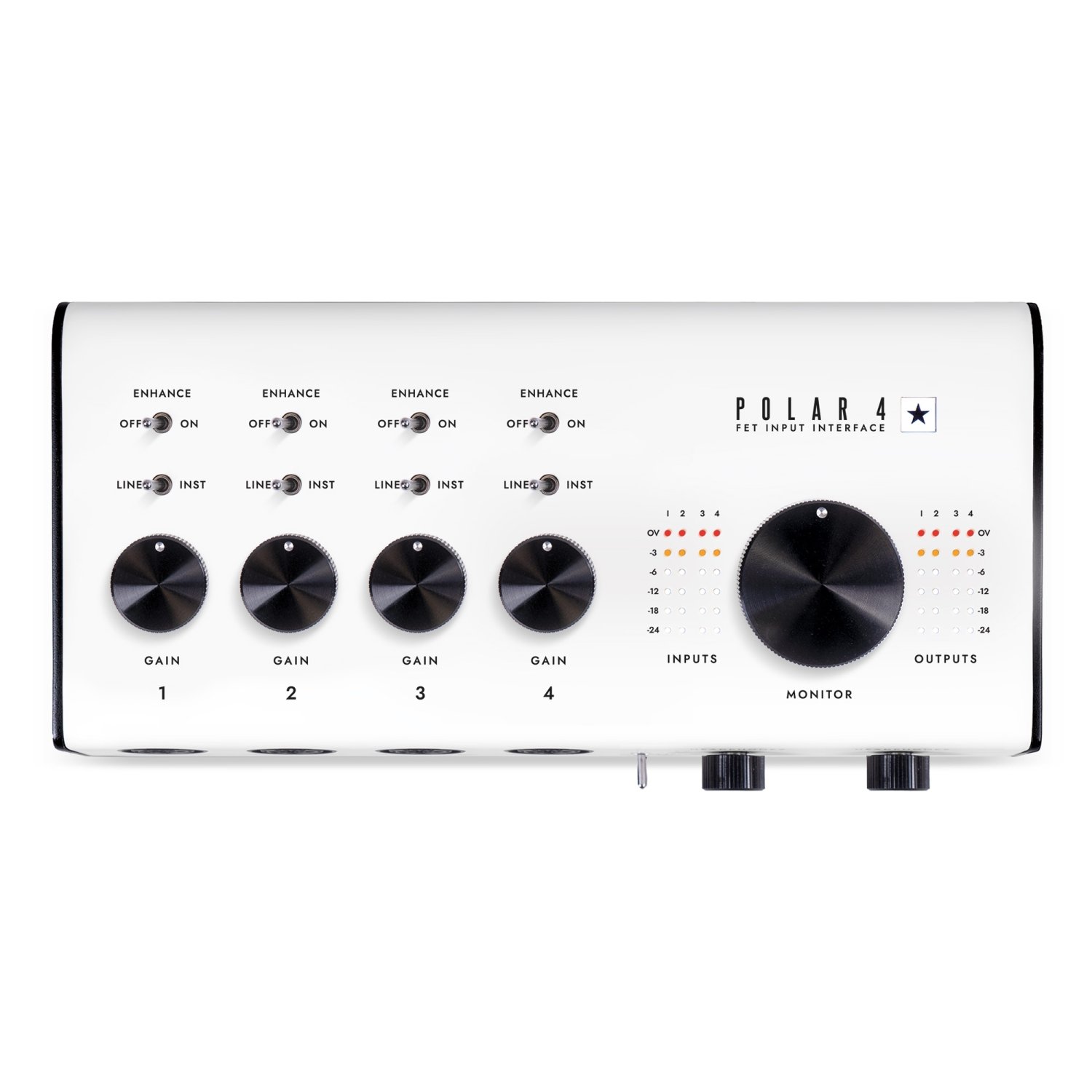

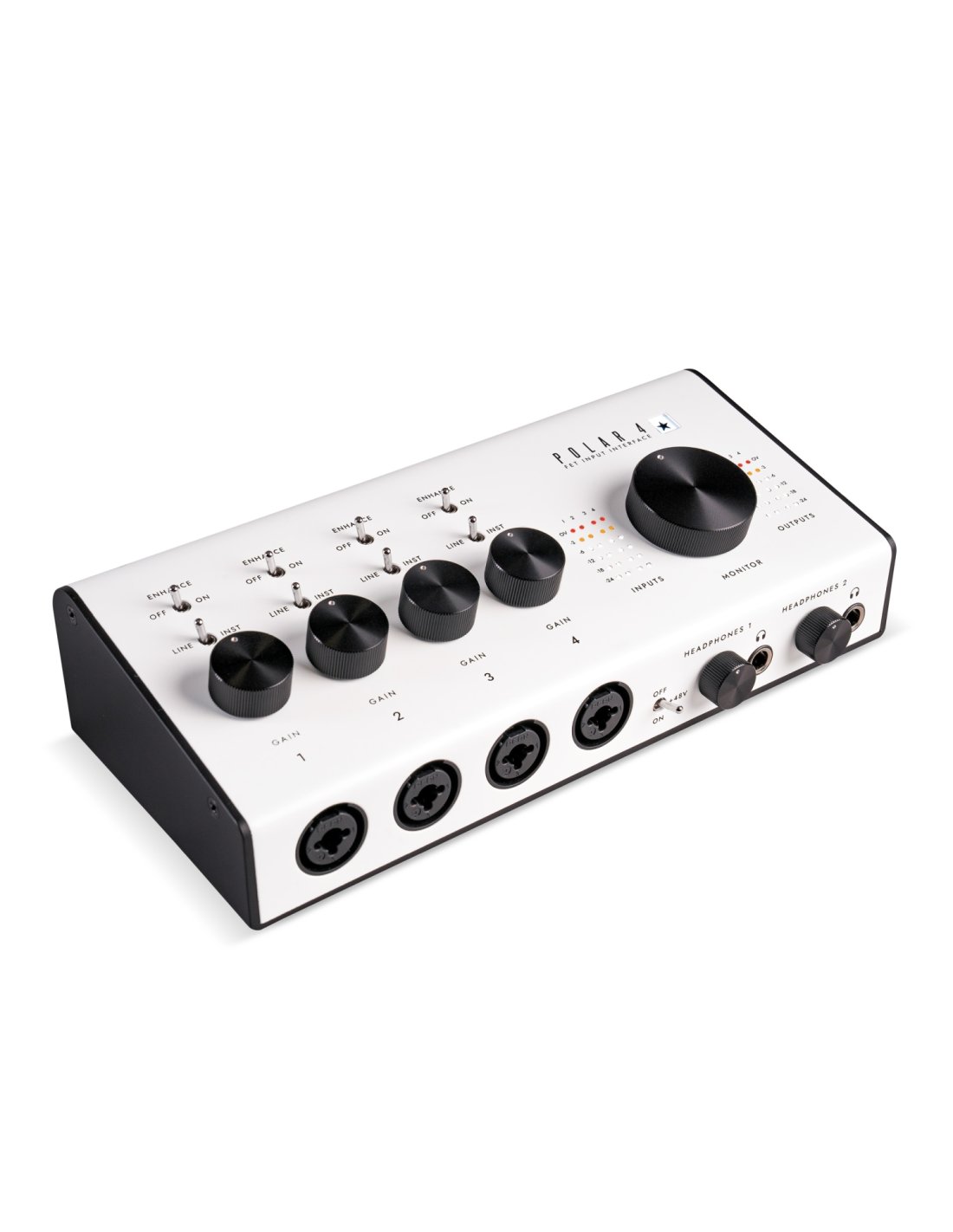

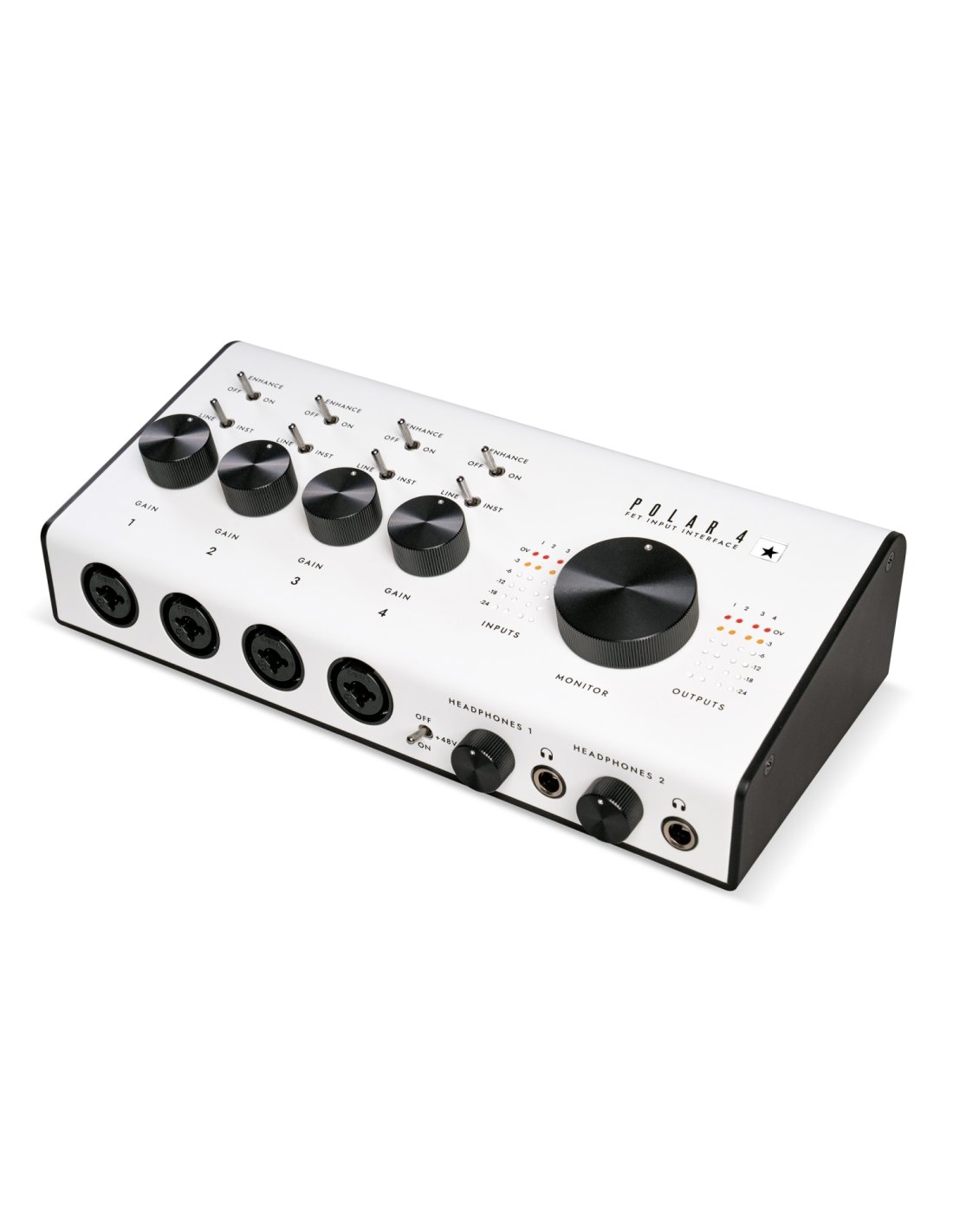

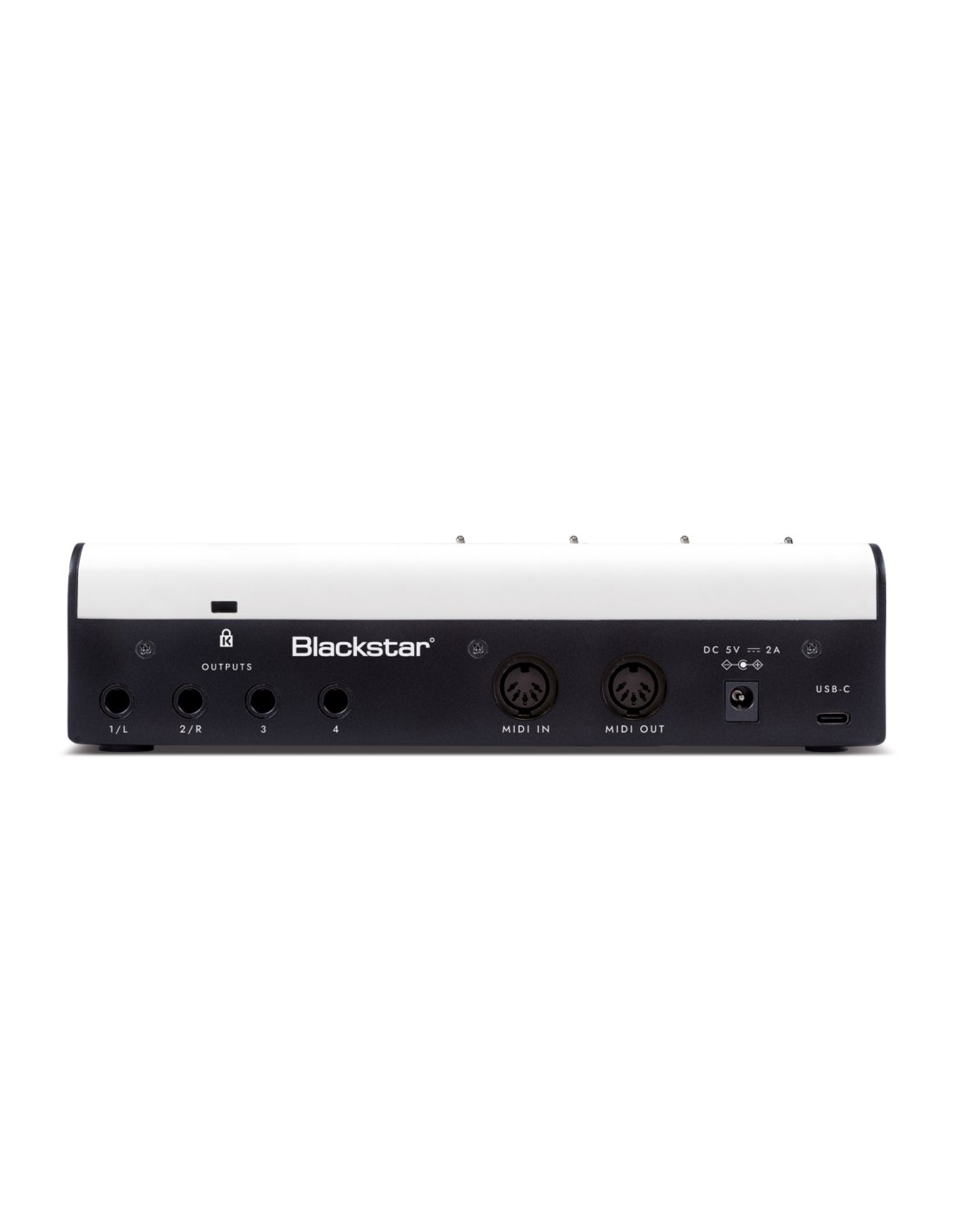

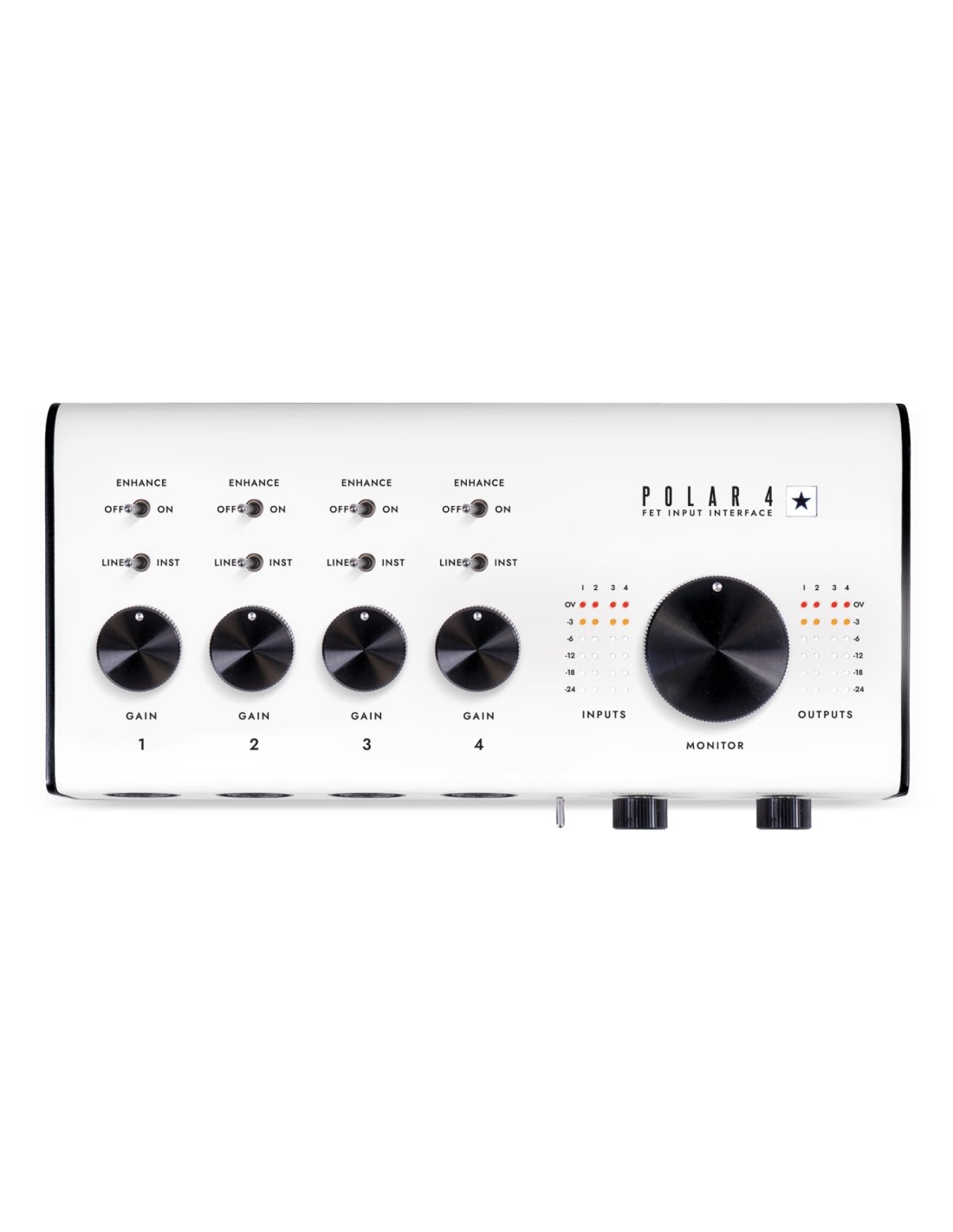

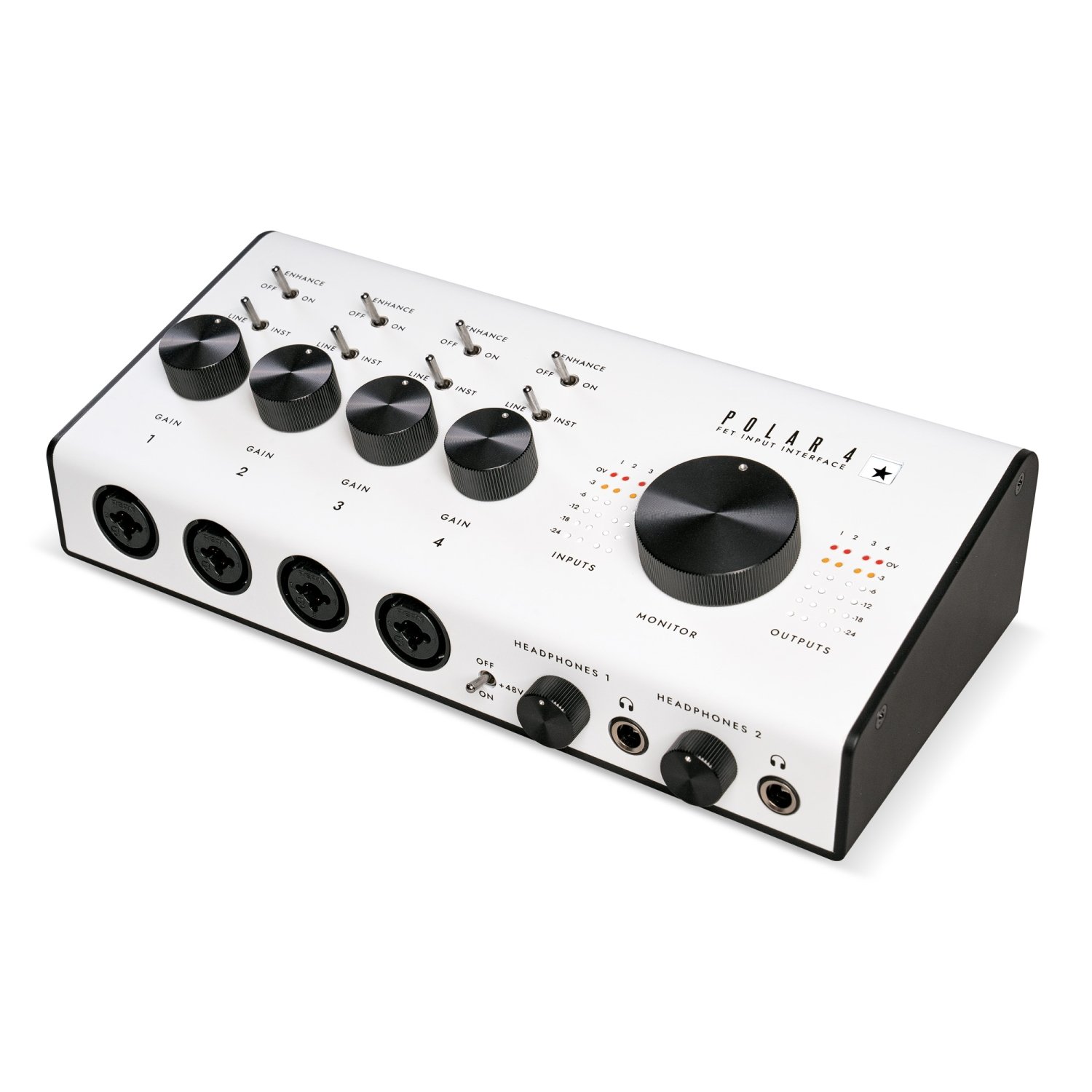

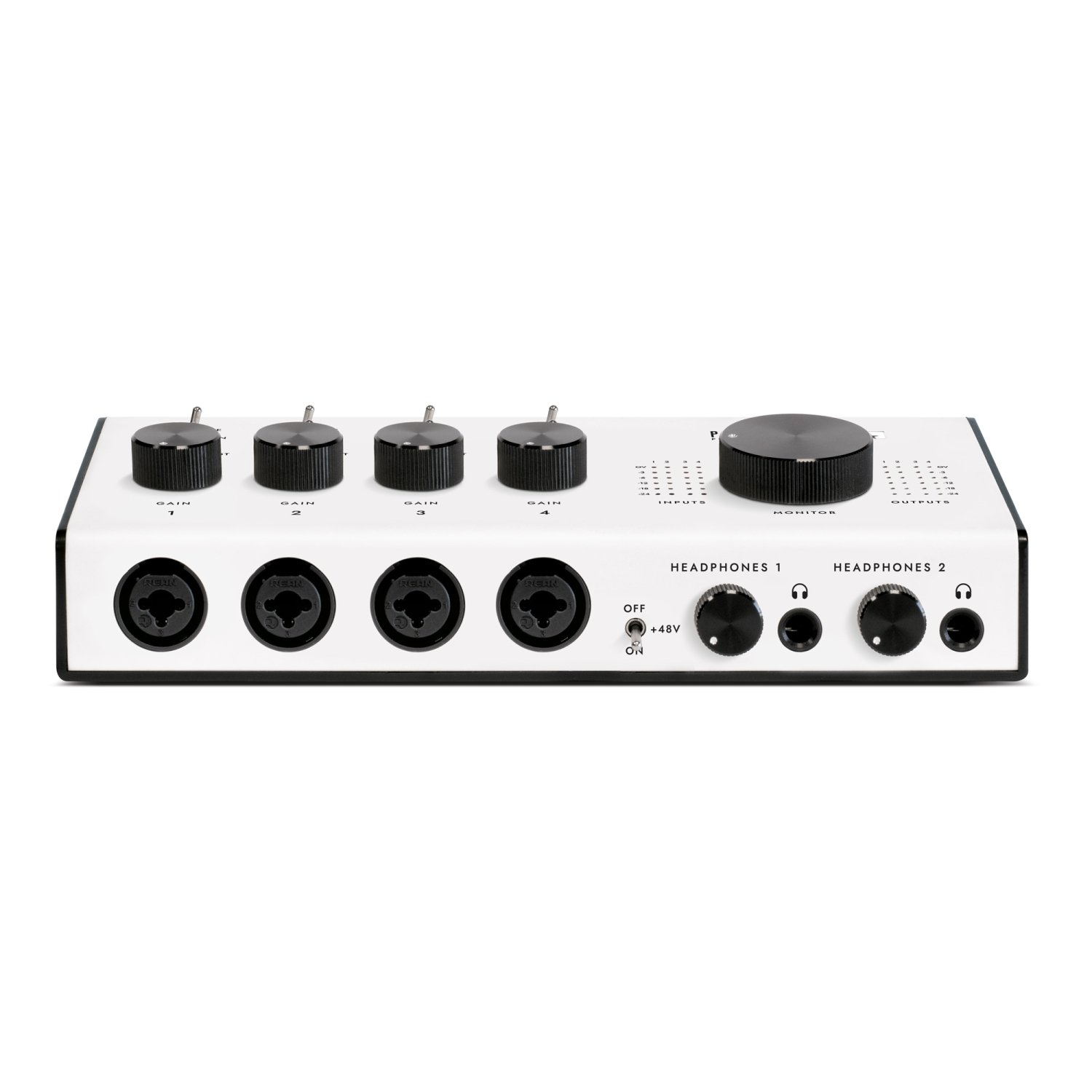

POLAR 4 is a 4-channel USB audio interface built by guitarists and designed for guitarists.
It has 4 FET input channels for instruments, line and microphone, a headphone amplifier, +48V phantom power for condenser microphones, balanced outputs for professional monitoring, visual level meters and Blackstar's unique 'Enhance' switch. Activating the 'Enhance' switch activates an exclusive electronics in the signal path that replicates the input stage of guitar tube amplifiers.
This circuit mimics the behavior and characteristics of tube amplifiers, improving tone, touch, feel, and response. With POLAR 'Enhance' enabled, the innovative Blackstar input stage will never suffer from digital clipping: no more messy recordings, no more hassle and no more confusion when it comes to setting the 'right' levels.
POLAR allows the musician to manage the interface like the gain of a real amplifier's preamp.
Features: 4-channel audio interface designed for recording guitars.
FET input stage that improves tone and signal quality and adapts to a wide range of instrument types, effects pedals, and microphones.
The 'Enhance' function introduces electronics into the signal path that replicates the sound of a guitar amplifier. 'Enhance' completely avoids digital clipping on instrument inputs. Use this interface as if it were a real amplifier and get rid of the hassle of setting the 'right' levels.
The 'Enhance' function on the microphone or line inputs gives natural clarity and brightness to vocal and acoustic guitar recordings. The 'Enhance' function eliminates the need for additional hardware and expensive DIs to acquire a high-quality guitar signal. It's all built into POLAR. It includes St.James Suite, Ableton Live Lite, ReLab LX480 Essentials Reverb, Melodyne Essential, and more*.
Polar 4 has two headphone outputs and a monitor output, with independent monitor and headphone control.
Microphone preamplifier based on the most famous vintage studio preamps.
It includes the 'POLAR Control' software for fine adjustment of monitor levels, panning and routing. It works with USB 3.0 bus power, with a +48 V switch for microphones that require phantom power.
Specifications:
Overview: Number of microphone preamplifiers: 4 Phantom power: yes, 48 V Instrumental inputs: 4 Line inputs: 4 Line outputs: 2 Headphone outputs: 2 Loopback: yes Connectivity: USB Type-C Protocol: USB 2.0 Form factor: Simultaneous desktop I/O: 6 x 6 (including loopback inputs) A/D resolution: 24 bit/192 kHz Bus power: Yes (960 mA) Supported sample rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz 192 kHz Microphone Inputs: Frequency Response: 20
-20kHz ±0.1dB Dynamic Range: 109 dB (A-weighted) THD+N -101dB (-103dB A-weighted), 0dB gain, 950mVrms, 20Hz-24kHz bandwidth EIN Noise -121dBu (A-weighted) Maximum input level 2dBu Gain Range 53dB Impedance 3.3kO Line
Inputs: Frequency
Response 20-20kHz ±0.2dB Dynamic Range 112 dB (A-weighted) THD+N -85dB (-85dB A-weighted), 8dB gain, 380mVrms 20Hz-24kHz BW Maximum Input Level 10dBu Gain Range 55dB Impedance 500kO.
Instrument inputs: Frequency
response 20-20kHz ±0.2dB Dynamic range 112dB (A-weighted) THD+N -82dB (-81dB A-weighted), 3dB gain, 630mVrms, bandwidth 20Hz-24kHz Maximum input level 10dBu Gain range 46dB Impedance 500kO.
Line outputs (balanced): Frequency
response 20-20kHz ±0.15dB Dynamic range 93dB THD+N -80dB Maximum output level 12.8dBu Impedance 1k.
Headphone outputs: Frequency
response 20-20kHz ±0.15dB @ 33O/300O Dynamic Range 110dB @ 33O 107dB @ 300O THD+N -83dB @ 33O -85dB @ 300O Maximum Output Level 7dBu @ 33O 15.2dBu @ 300O Maximum Output Power 85mW @ 33O 66mW @ 300O Impedance 10O.
Analog-to-digital converter:
THD+N -100dB THD+N Dynamic range 114dB Digital-to-analog
converter: THD+N -100dB THD+N Dynamic range 114dB Power supply: USB 960 mA External (optional) 4.8 W Accessories USB A - DC cable, USB A - C cable
