ORTOFON

ORTOFON STYLUS DJ S

Name: ORTOFON STYLUS DJ S
Brand: ORTOFON
SKU: 7110071
Price: 47 EUR
Availability: InStock

Ref. Product: 7110071 | Condition: New Product

€47.00

Tax included

Available

Shipping fees 7,50 € ㅤ ㅤ ㅤ

Payment 100% secure icon-payment

Shipping via express courier (24/48 hours) with tracking

Pay in instalments with Findomestic

Quick and easy returns up to 30 days

2-year extended warranty available

Do you need help? Contact us now Click here or call at (+39) 02 8395060.

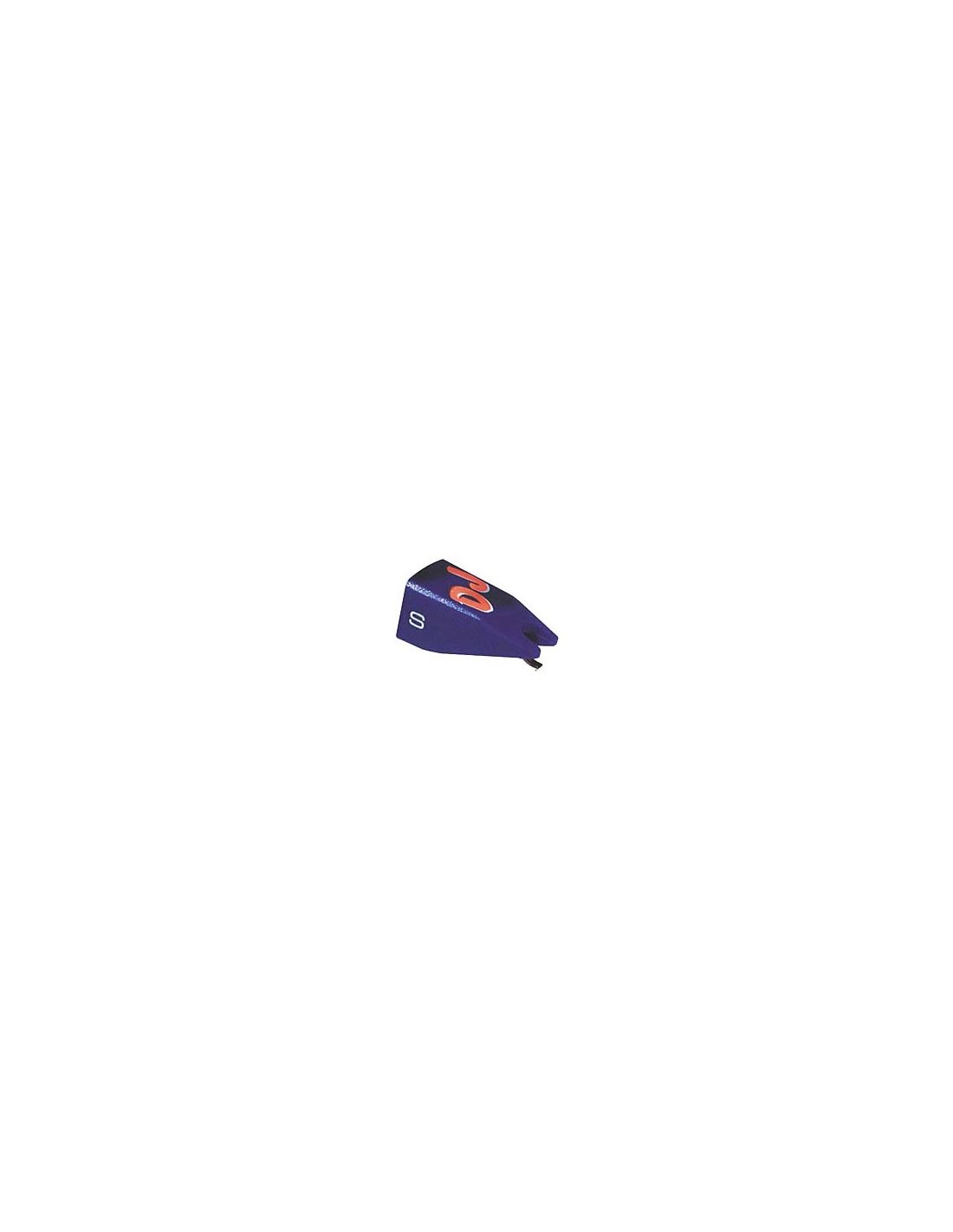

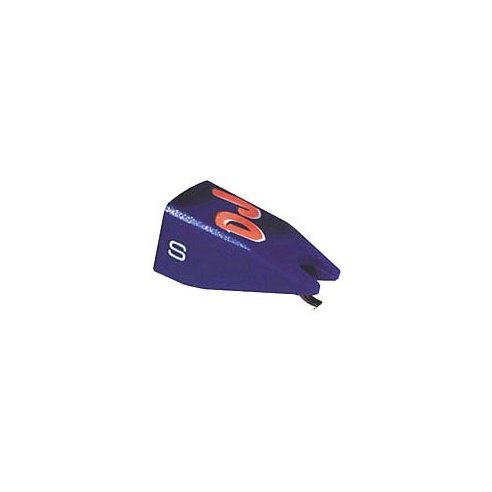

Replacement tip for ORTOFON DJ S head

characteristics:

Output voltage at 1000Hz, 5cm/sec. - 6 mV
Channel balance at 1kHz - 2 dB Channel separation at 1kHz - 23 dB
Channel separation at 15 kHz - 15 dB
Frequency range at -3dB
- 20-20,000 Hz
Frequency response - 20-18,000 Hz 3dB/-2dB
Tracking ability at 315 Hz at recommmende tracking force - 80 μm Compliance, dynamic lateral - 9 μm/m N

Stylus type - Spherical Stylus tip radius - R 18 μm

Tracking force range - 2.0-4.0 g (20-40 mN) Recommended
tracking force - 3.0 g (30 mN)
Tracking angle - 20°
Internal impedance, DC resistance - 750 Ohm
Internal inductance - 450 mH
Recommended load resistance - 47 kOhm
Recommended load capacitance - 200-600 pF Cartridge weight - 18.5 g Compatible with cartridges - DJ S
