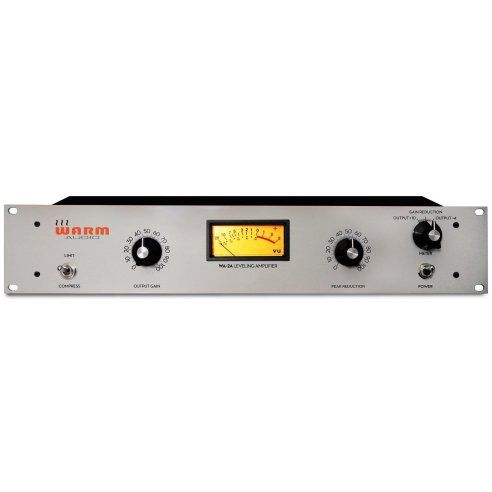

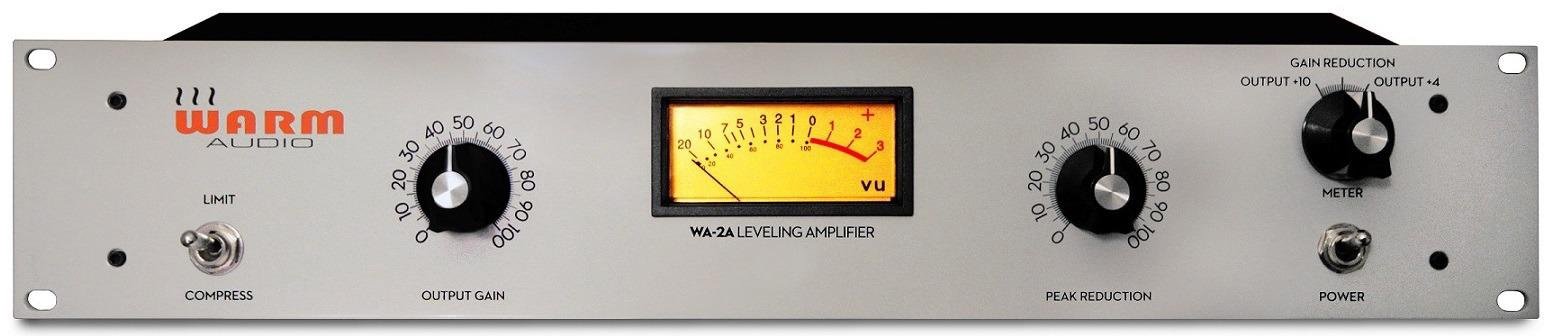

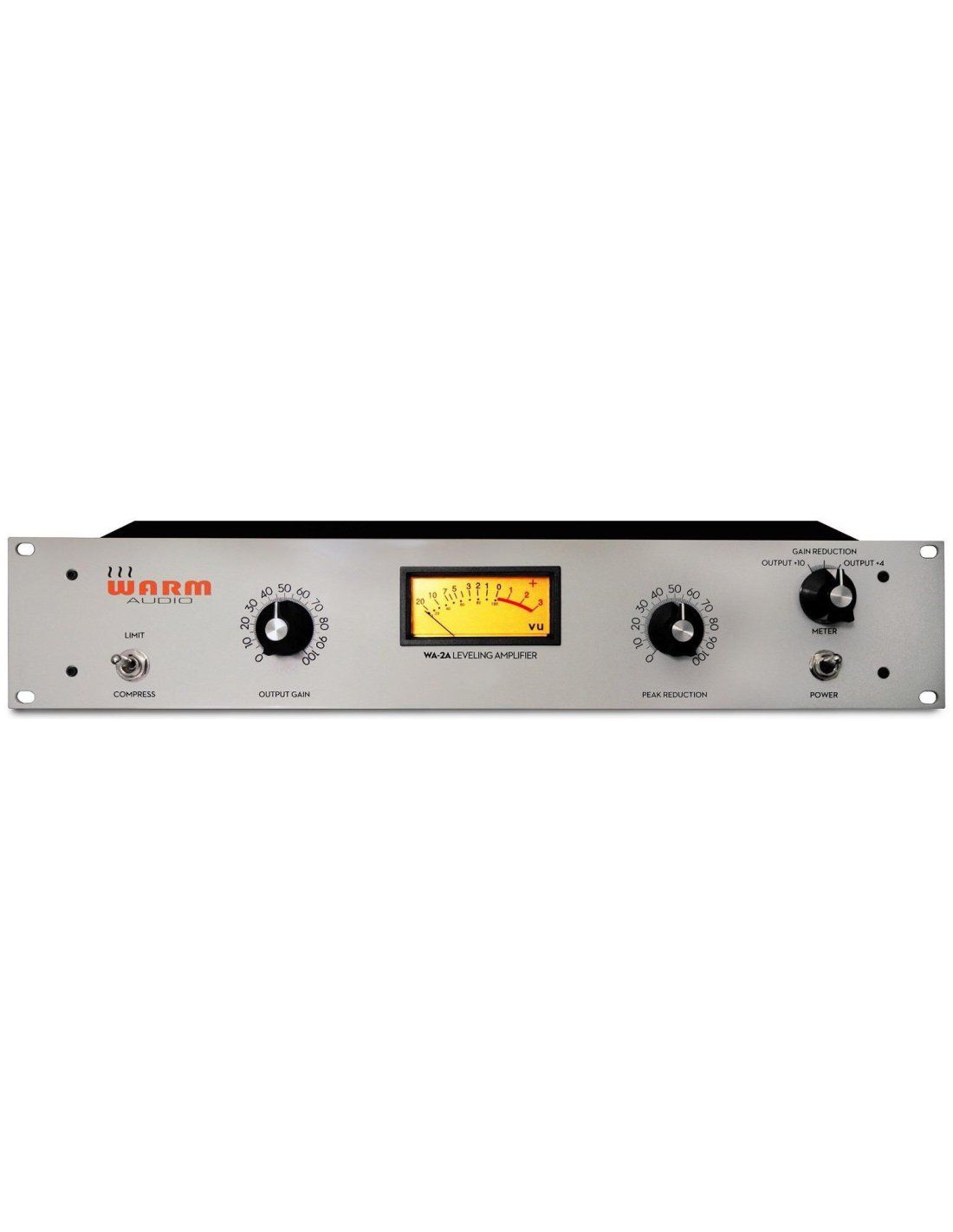

WARM AUDIO WA-2A

Channel Tube Opto Compressor Warm Audio WA-2A

The analog sound.
Although digital technology has made great strides in recent years, at Warm Audio we are convinced that nothing can compare to the warmth and unpredictable nuances that a quality analog outboard can provide. The difference in terms of presence on the bass and detail on the high frequencies is astounding.
On the other hand, high-end analog equipment is often prohibitively expensive for most projects and home studios. Our mission is to empower as many people as possible to record and mix with real analog products.

'2A style compressor - Affordable.

No plug-in or other type of processor can return the same heat, the same 'fluid' sound as a classic '2A' style optical compressor. For decades, this type of compressor has been the most sought after for processing voice, bass and many other types of instruments, thanks to its sweet and velvety character.
Producing the WA-2A at prices that are not accessible to everyone would have been useless. From the first steps in professional audio, Warm Audio has set itself the goal of providing products of absolute quality at reasonable prices, accessible to as many people as possible. This philosophy still guides us today, in every new product we make!

• '2A Style, Transformer balanced, high voltage, opto tube compressor.
• Use premium grade input and output CineMag USA Transformers.
• Use USA made Kenetek opto attenuator.
• Premium Tung-Sol and Electro-Harmonix tubes. 2x 12ax7, 1x 12bh7, 1x 6aq5 • Fully discrete signal path.

• Socketed to allow for retro-fitting with other opto-cells.
• Pre-emphasis variable, allows for compression hipass filtering.
• Stereo-link capability.
• XLR and TRS balanced line level inputs - 600 ohms impedance.
• XLR and TRS balanced line level outputs - 600 ohms impedance.
• Frequency Response +/- 1 dB, 15 Hz to 20kHz.
• Gain 40 dB ±1dB.
• Input Level +16 dB maximum.
• Output Level +10 dB nominal, +16 dB maximum.
• Distortion Less than 0.1% THD at ±10 dBm.
• Noise = -74dB.
• Attack Time - 10 milliseconds.
• Release Time - 0.06 seconds for 50% release.
• 0.5 to 5 seconds for complete release.
• Meter shows both dB gain reduction and dB output.
• Power - 115/230 volts (switchable), 50/60 Hz.
• Dimensions - 19" Rackmount chassis, 2U. 19" x 7" x 3.5".
• Weight - 12 lbs.
