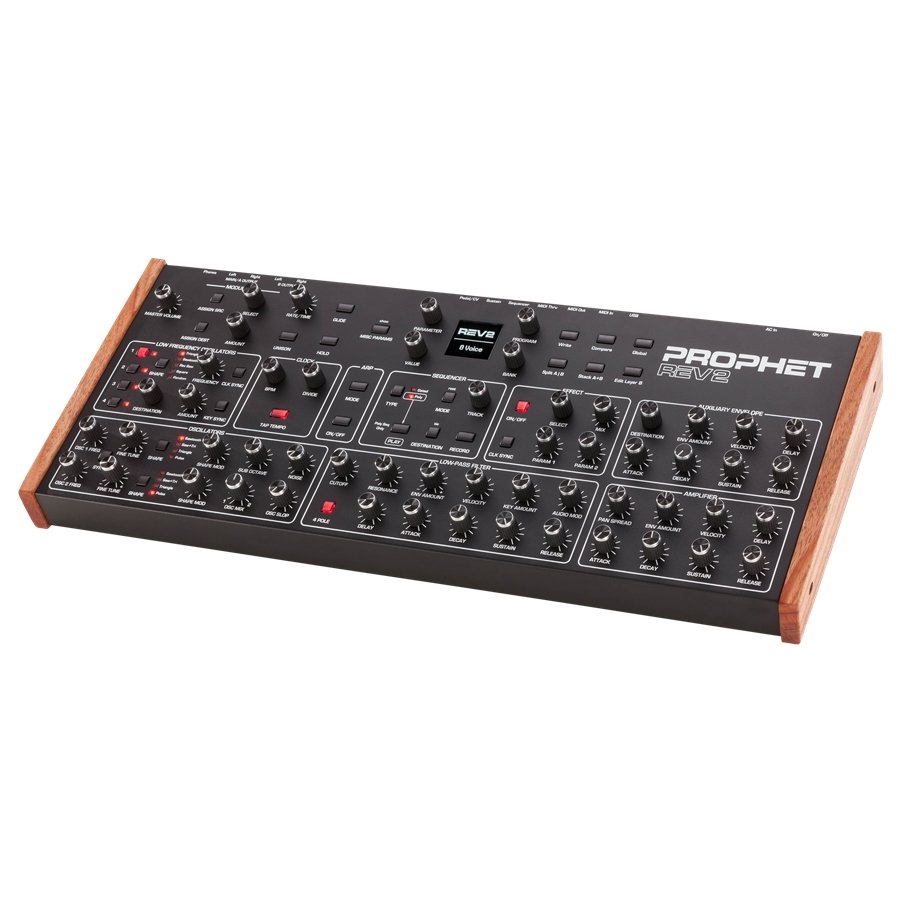

SEQUENTIAL PROPHET REV2-8 MODULE

SEQUENTIAL PROPHET REV2-8 MODULE is an 8-voice polyphonic analog synthesizer module. Technical features include 2 analog oscillators, each with a wide range of waveforms (sawtooth, pulse, triangle, sine) and the possibility of tuning, multi-mode filter with low-pass, high-pass, band-pass and notch modes, 512 factory presets and 512 editable user presets, envelope generator, sequencer, Curtis analog low-pass filter for voice, Reverb, Delay, Chorus, Phase Shifter, Ring modulation, Distortion, analog and MIDI

• Type: desktop synthesizer
• Sound Engines: Analog Oscillators (Digital Control)
• Polyphony: 8 Voices
• Number of presets: 512 factory programs, 512 editable user programs
• Oscillators: 2x Voice (sawtooth, triangle, pulse)
• Envelope Generator: 3x EG (filter, VCA, ADSR)
• Filter: Curtis analog low-pass for voice
• Effect types: Reverb, Delay, Chorus, Phase Shifter, Ring modulation, Distortion
• Arpeggiator: Yes
• Sequencer: 64 steps, 6 notes per step, 16 x 4 gated step sequencer
• Analog outputs: 2x 1/4" (stereo main output), 2x 1/4" (stereo B outputs), 1x 1/4" (headphones)
• MIDI I/O: In/Out/Thru
• Other I/O: 1x 1/4" (Sequencer)
• Pedal inputs: 2x 1/4" (sustain, pedal/cv)
• USB: 1x Type B
• Features: Waveshape modulation on all waveforms, polyphonic step sequencer per layer, 8-slot modulation matrix
• Power supply: standard IEC AC cable
• Dimensions: 548 x 200 x H84mm
• Weight: 3.4 kg
