SSL 500 SIX CHANNEL

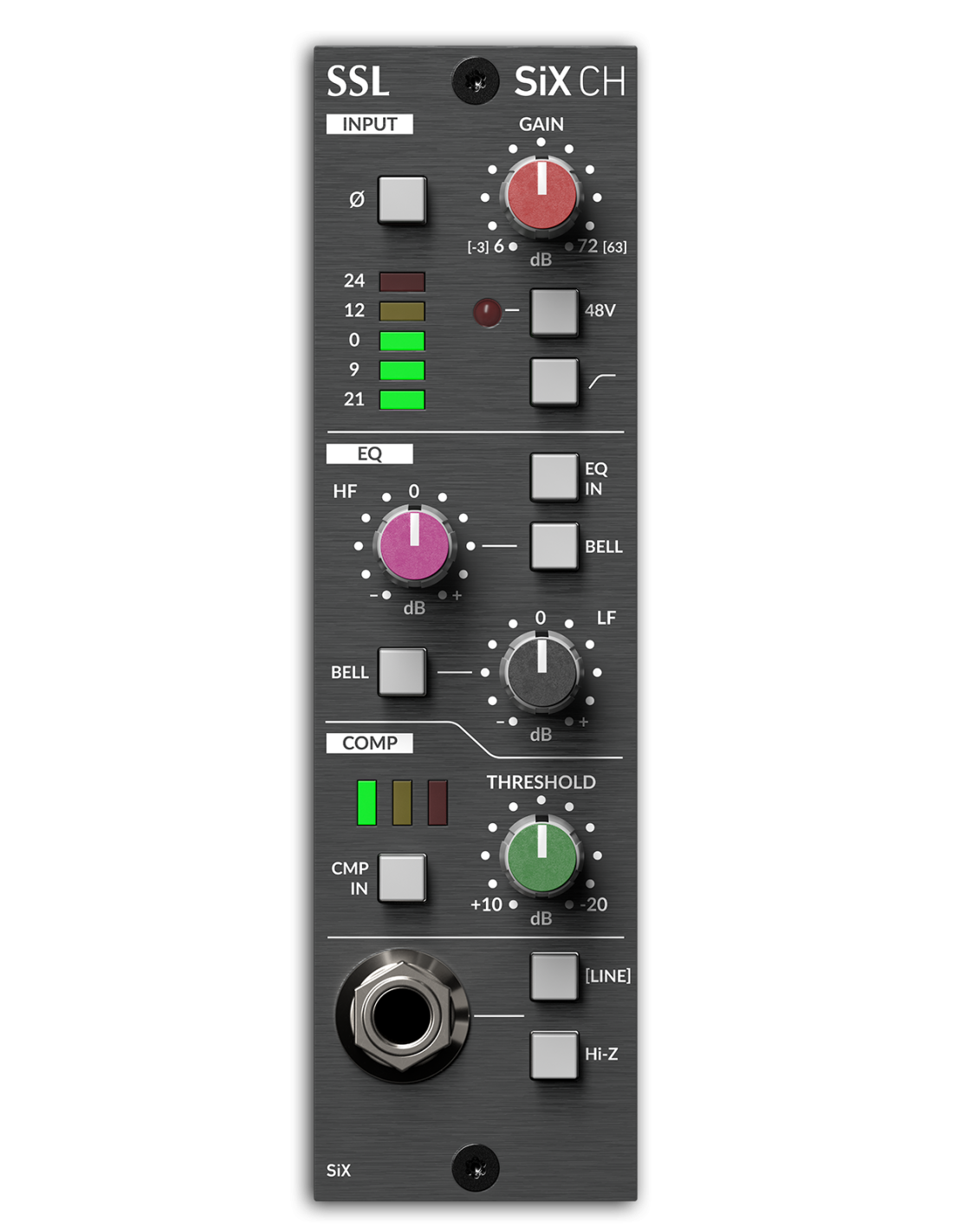

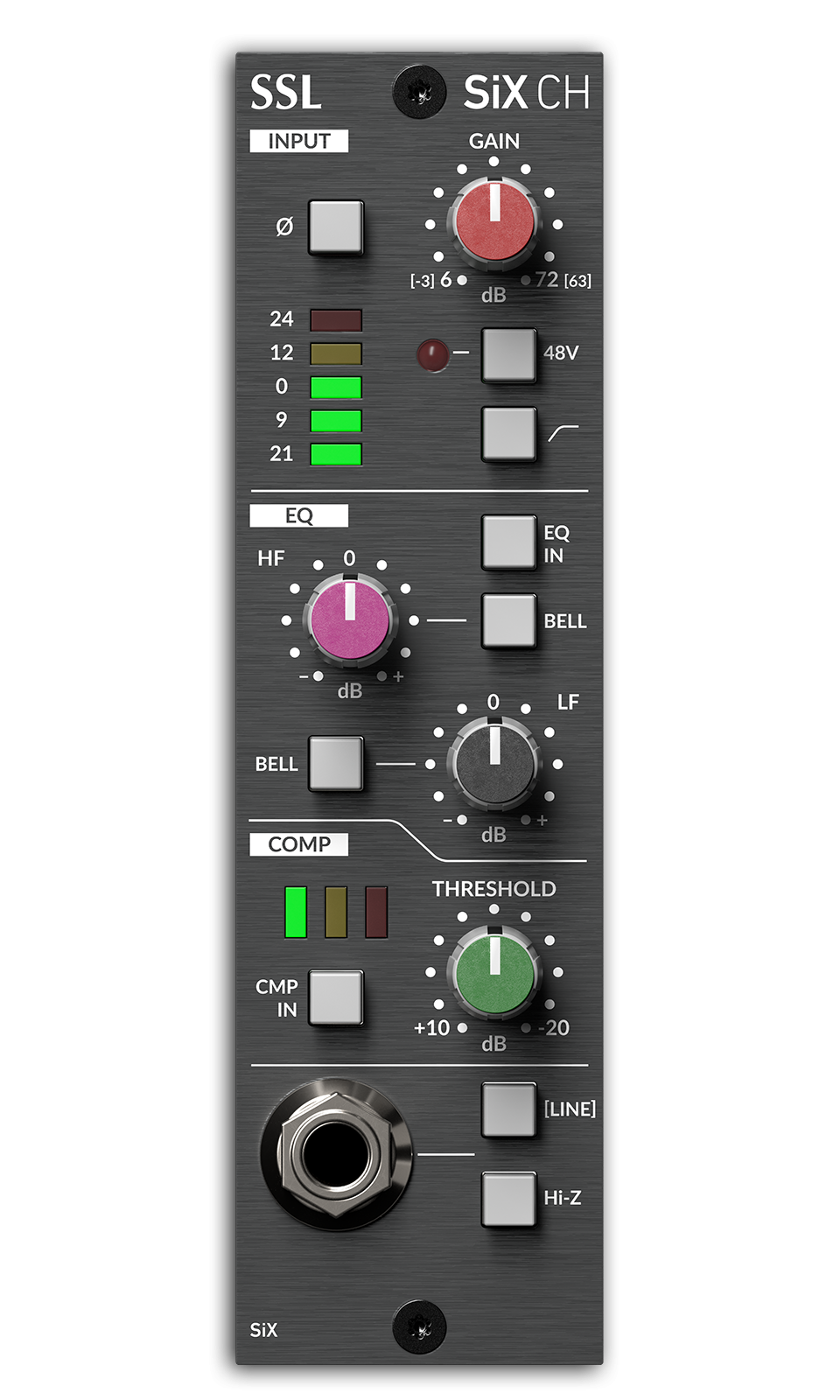

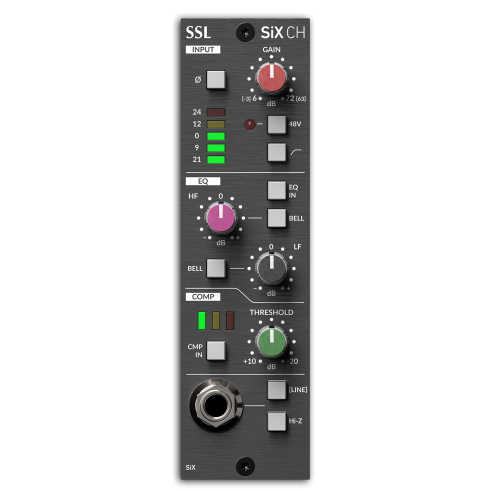

SSL SiX CH (SiX Channel strip)

SSL SiX Channel is a 500 series mini channel strip that uses the Superanalogue channel processing capabilities of the SSL Six console, including the preamp, the EQ and the single-control compressor. The SiX Channel represents an easy way to add a Mic/Line input to the line inputs of any professional audio device, including the Stereo channels of the SiX console. It's also a flexible possibility to create a professional modular mixer with a 500 series rack “adder”.


SuperAnalogue pre-amp input


A wide gain range and a SuperAnalogue design with very low background noise allow you to work with a wide range of audio sources. The nominal line input impedance is 10 kΩ. This can be raised to 1 MΩ using the Hi-Z switch. The 1 MΩ impedance makes this input suitable for any high impedance source such as passive guitar pickups without the need for an external DI Box.


Other features High-Pass 12dB/Oct

filter, 75Hz
Polarity Switch (ø) that reverses the polarity of the rear XLR Mic input.
A five-segment LED meter shows the output level in dBu

EQ.

The EQ adopts a very musical design, with a very wide intervention band, with high and low shelving filters at 3.5 kHz and 60 Hz, adjustable with gain to +/- 15 dB. Each band can be independently switched from shelving to bell. The bell curves change the center of the frequency on which to operate at 5 kHz and 200 Hz, giving great versatility to the two

COMP controls.

A “one knob” compressor with features that offer powerful and versatile performance, despite simple controls. A three-segment LED meter indicates the amount of gain reduction applied. The circuit has an automatic make-up gain, to keep the signal level constant regardless of the threshold values.


Key features

SuperAnalogue Mic Pre with 48V, Polarity and HPF
TRS Line Input on the front panel with Hi-Z switch (1MΩ) selectable 2-band
EQ “one knob”
compressor with variable threshold
High-Pass Filter with 5 selectable frequencies and dedicated trim output Technical
Specifications Signal

type: Mono
Pre-Amp Gain: variable from +6 to +72 dB (Mic), -3 to +63dB (Line) Mic Pre EIN: typically 129dB THD+N: < 0.0015% CMRR: >80dB (Mic), >70dB (Line)
