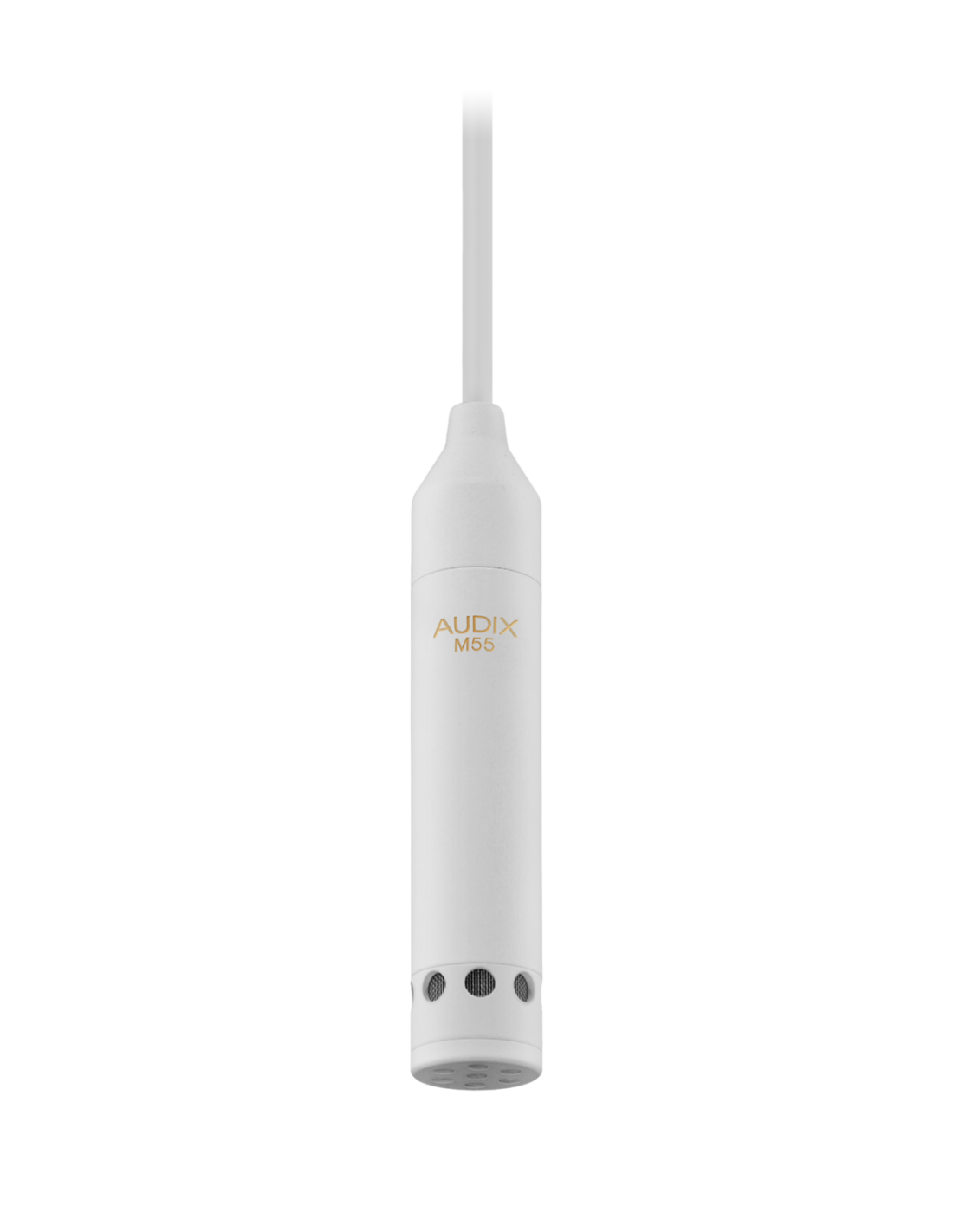

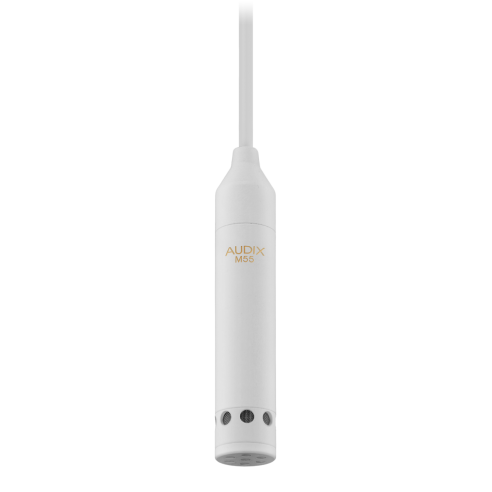

AUDIX M55W

The M55 suspended ceiling microphone system is designed for applications where aesthetics, sound quality, and ease of installation are essential. The main applications of the Ceiling-mounted M55 include video and presentation audio capture or teleconferencing (VTC), remote learning, hospital rooms, surveillance

and environmental microphones. The M55 conference microphone can equip interchangeable capsules with cardioid, hypercardioid, omnidirectional and supercardioid (cannon) coverage patterns. High sensitivity and low noise. Shielded RF interference caused by cell phones and

mobile devices. Installing the M55 hanging microphone requires you to drill only a 5/8-inch hole in the ceiling, without the need for additional tools. The M55 mounting hardware allows you to easily adjust the suspension height up to one and a half meters from the ceiling surface without removing the ceiling plates. An optional orientation clip (MCHANGER) allows you to easily adjust the angle after installation. The cable assembly, with a specific locking connector, is carefully housed in a watertight junction box. A safety cable provides additional seismic restraint

. The M55 is produced in white and with a 4-foot cable terminated in a block-mounted connector

.

M55W - cardioid (white)

M55WHC - hypercardioid (white) M55WS - supercardioid (rifle) (white)

M55WO - omnidirectional (white)

Download the complete data sheet by copying this link into the browser: http://audixusa.com/docs_12/specs_pdf/M55_v4_0916.pdf

Transducer type: Condenser

Frequency response 60 Hz - 10 kHz

Cardioid polar model

Output impedance 150 ohm sensitivity 38 mV (C)/Pa @ 1k Equivalent noise level 22 dB (

weighted A)

Signal-to-Noise Ratio 72 dB

Equivalent Noise Level 22 dB

Maximum SPL ≥130 dB

Dynamic Range 108 dB

Power Requirements 18 - 52V phantom

RJ45 connector

Recommended CAT5, CAT5e, CAT6, CAT6a or CAT7 Materials

/Finish Aluminum and zinc alloy/white finish
