MXR

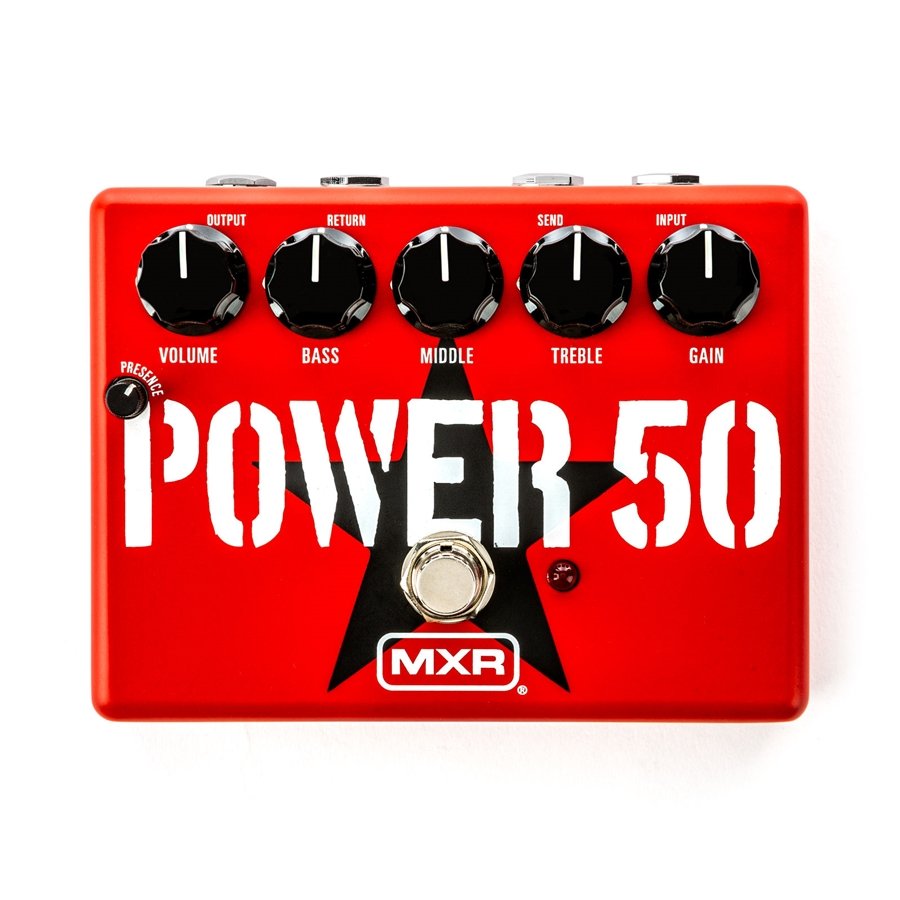

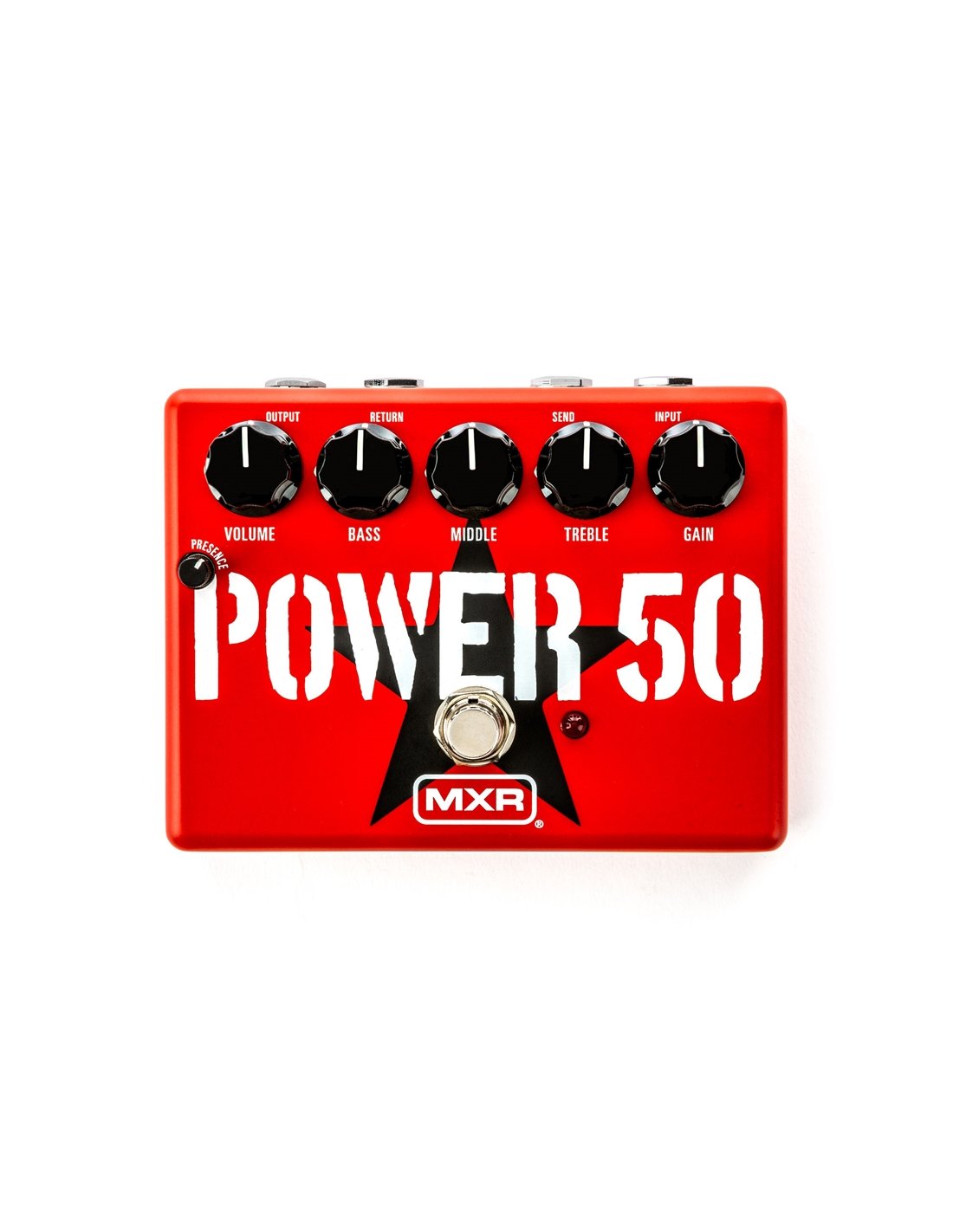

MXR TBM1 TOM MORELLO POWER 50 OVERDRIVE

Name: MXR TBM1 TOM MORELLO POWER 50 OVERDRIVE
Brand: MXR
SKU: 1015098
Price: 159 EUR
Availability: InStock

Ref. Product: 1015098 | Condition: New Product

€159.00

Tax included

Available

Shipping fees 7,50 € ㅤ ㅤ ㅤ

Warranty extension 2 years Price: +€25.00

Payment 100% secure icon-payment

Shipping via express courier (24/48 hours) with tracking

Pay in instalments with Findomestic

Quick and easy returns up to 30 days

2-year extended warranty available

Do you need help? Contact us now Click here or call at (+39) 02 8395060.

TBM1 Tom Morello Power 50 Overdrive is Tom Morello's signature overdrive pedal from MXR by Dunlop. For more than 30 years, the heart of Tom's sound has been his amplifier, and the MXR Power 50 allows everyone to have that sound on the pedalboard.

OVERVIEW

The Power 50 Overdrive emulates the sound that Tom Morello has been using since 1988 and with which he has recorded 21 albums. The Power 50 Overdrive circuit uses MOSFET technology to recreate the sound of Tom Morello's amplifier preamp and has the same controls: Gain, Bass, Middle, Treble, Volume and Presence. In addition, Tom connects all his effects into the FX loop of his amplifier and this pedal allows you to replicate this feature thanks to its integrated effects loop.

If you have a Cry Baby Tom Morello Wah, you can insert it into the effects loop to get its aggressive wah sounds. Placing the Cry Baby Wah in the chain before the Power 50 Overdrive achieves a more subtle sound, while placing it later provides a sound with pronounced highs. The FX loop is also perfect for live use: keeping the Power 50 Overdrive always on to use it as a basic sound and placing all the effects in the pedal loop, you don't have to worry about adjusting all the levels, but just act on the Power 50 controls.

POWER

This pedal can be powered with a 9-volt battery, a 9-volt AC power supply such as the Dunlop ECB003/ECB003EU, or an MXR Brick series power supply.

Presence

CONTROLS

: adjust the high frequencies of the output signal;

Volume: adjust the overall volume of the signal before the effects loop;

Bass: cuts or increases the low frequencies of the signal before the effects loop;

Return: receives the output signal of the effects loop;

Send: transmits the post-EQ signal to the effects loop;

Middle: cuts or increases the frequencies Signal averages before the effects loop;

Treble: cuts or increases the high frequencies of the signal before the effects loop;

Gain: adjusts the intensity of the overdrive.

STRENGTHS OF THE TBM1 TOM MORELLO POWER 50 OVERDRIVE

The sound of Tom Morello since 1988;
Same controls as his amplifier;
Integrated

TECHNICAL SPECIFICATIONS OF THE TBM1 TOM MORELLO POWER 50 OVERDRIVE

Input Impedance: 700 kOhm Output

Impedance: 900 kOhm Return

Impedance: 1 mOhm Send

Impedance: 10 kOhm Nominal Output Level: -12

dBV

Maximum output level: 0 dBV Nominal input

level: -26

dBV Bass: +4 dB, -21 dB, 50 Hz

Mid: ±7 dB, 500 Hz Treble: ±7 dB, -21 dB, 5 kHz

Treble (Mid control at minimum): +7 dB, -21 dB, 5 kHz

Presence: +7 dB, 4 kHz

Bypass: True Hardwire Current consumption: 12 mA Power supply: 9 volts
