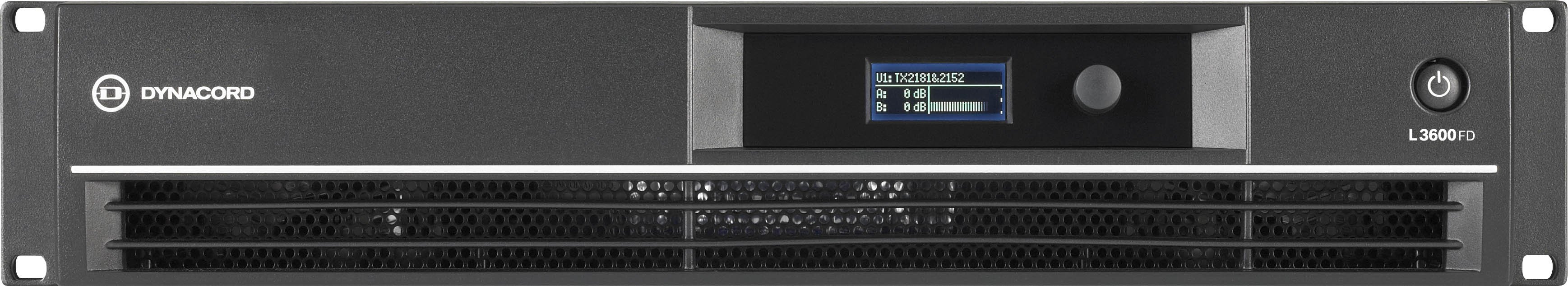

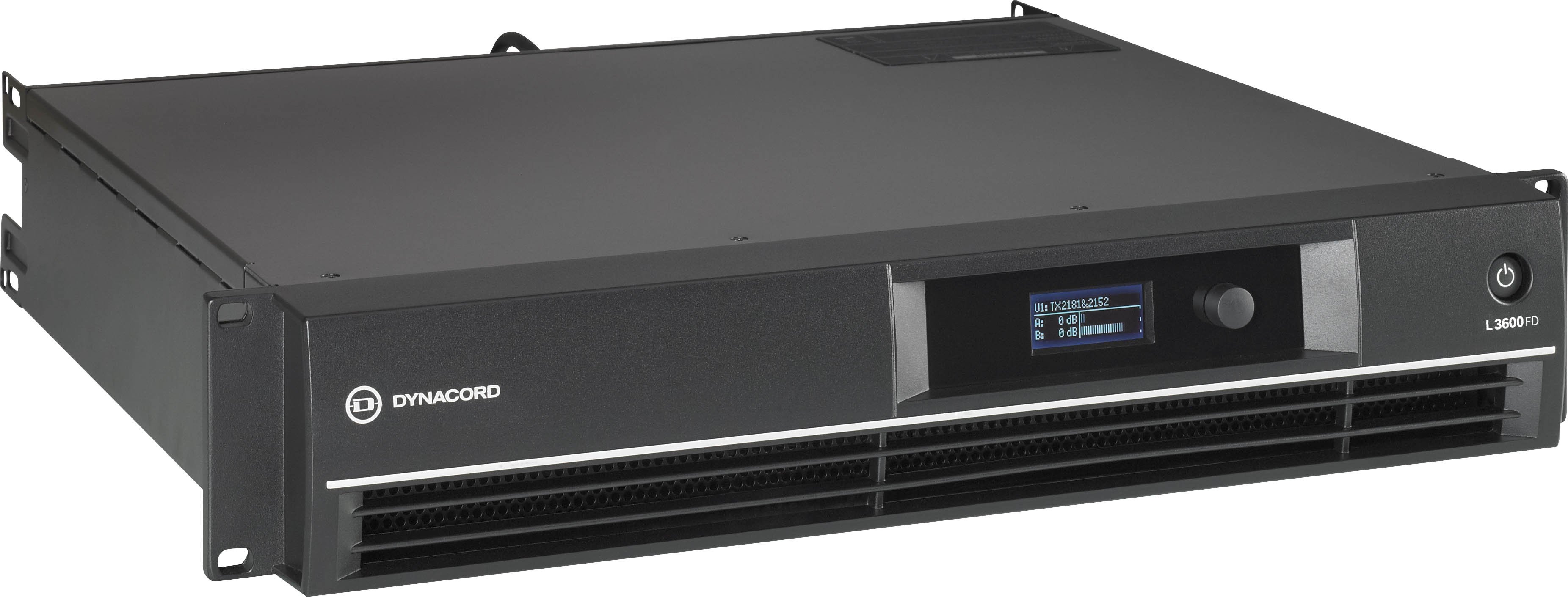

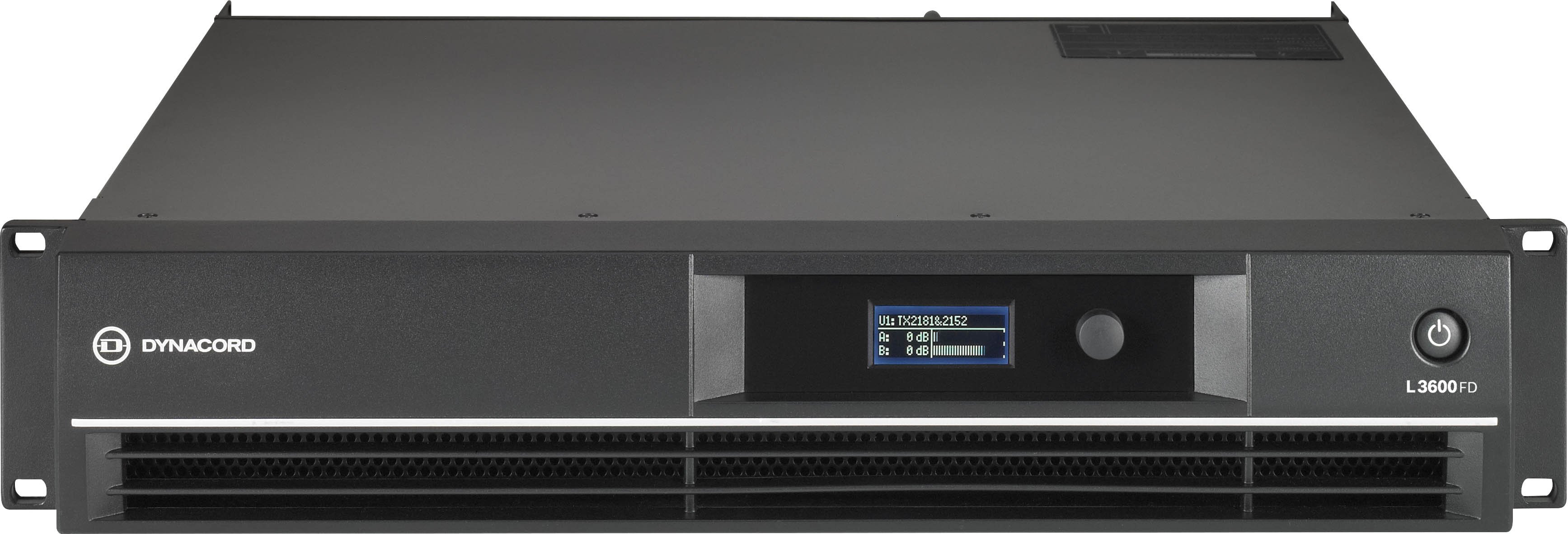

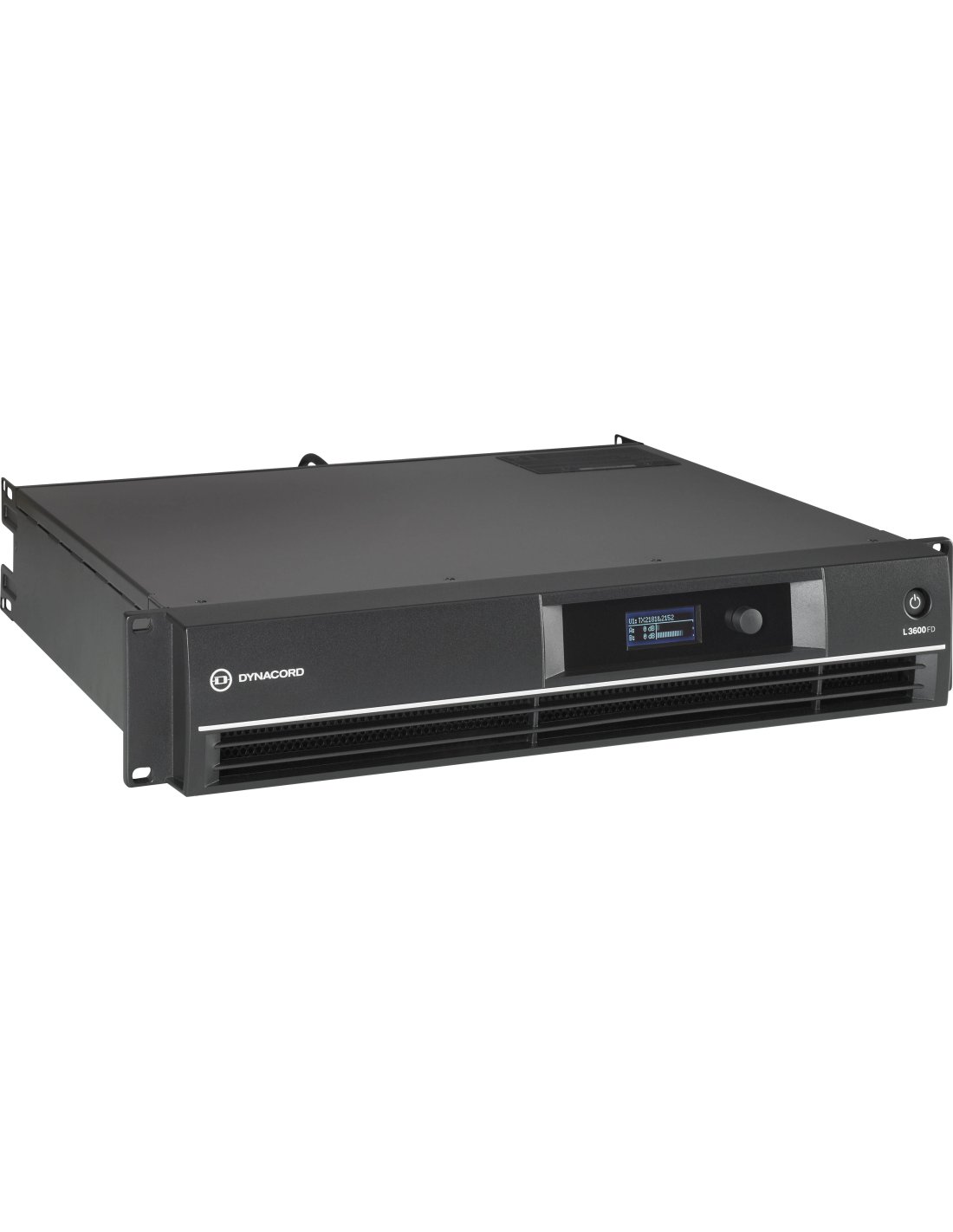

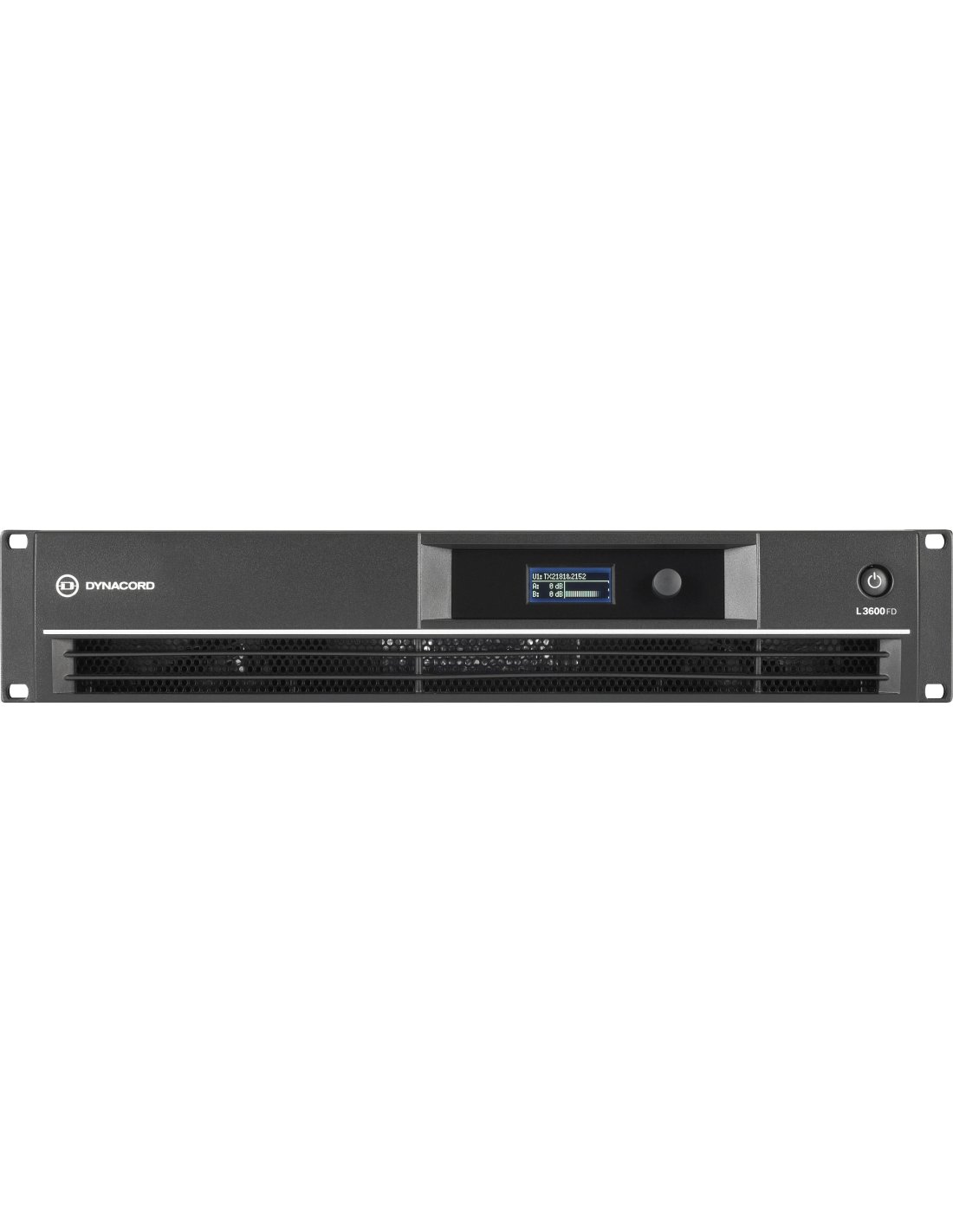

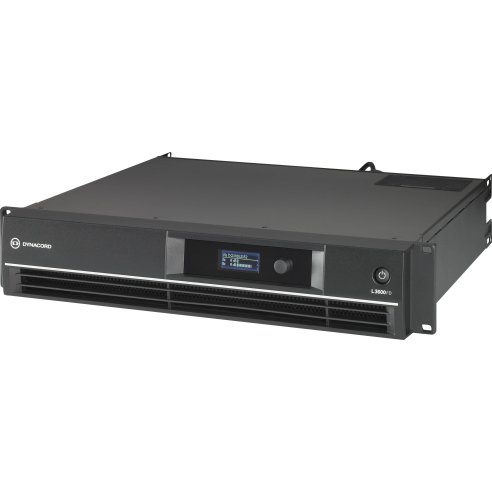

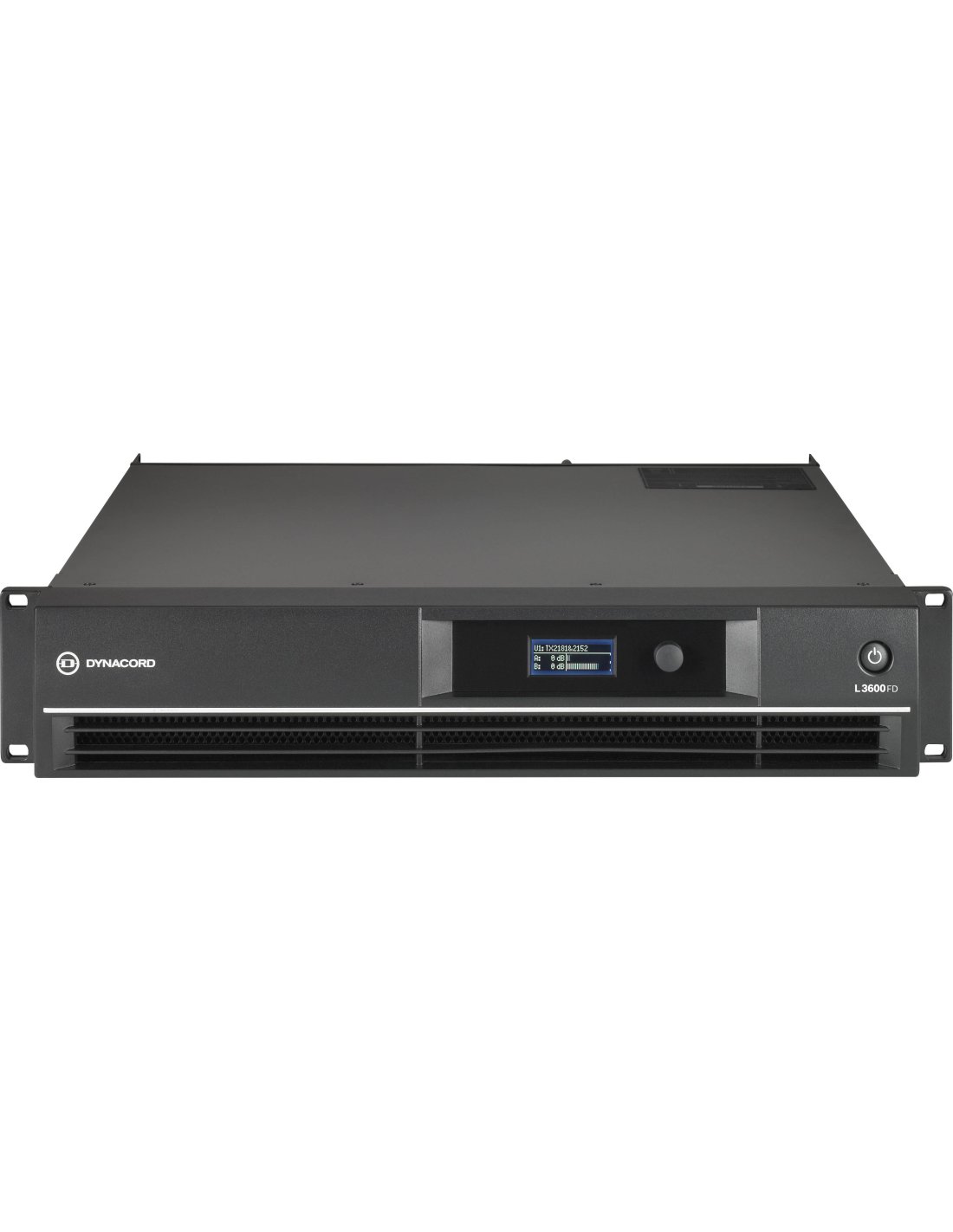

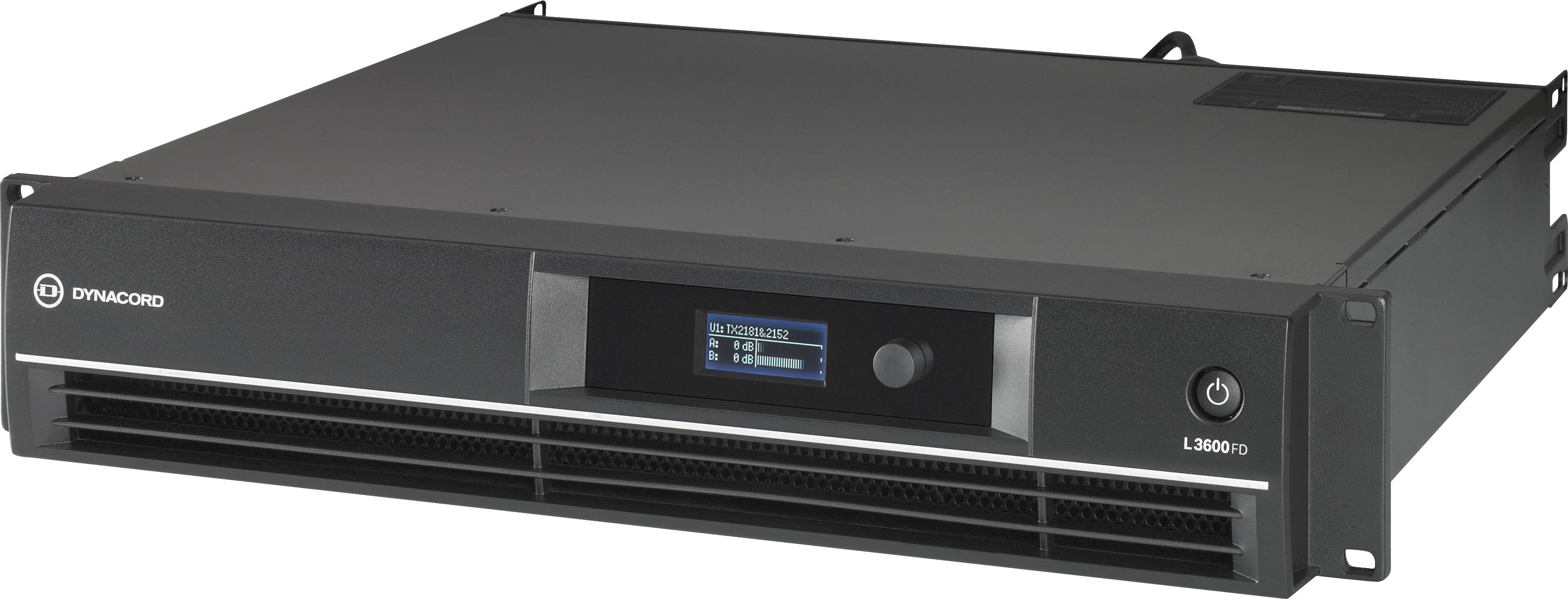

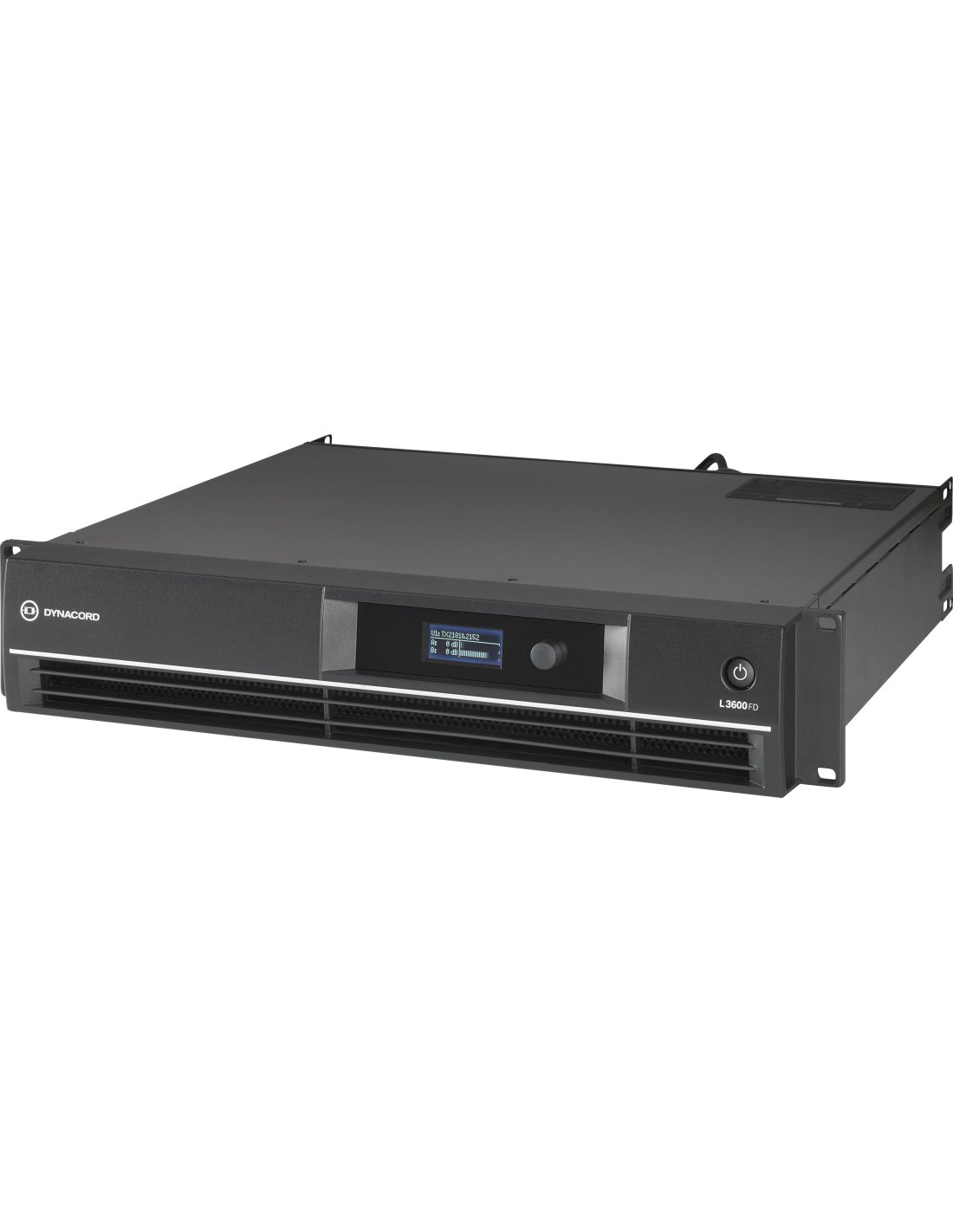

DYNACORD L3600FD

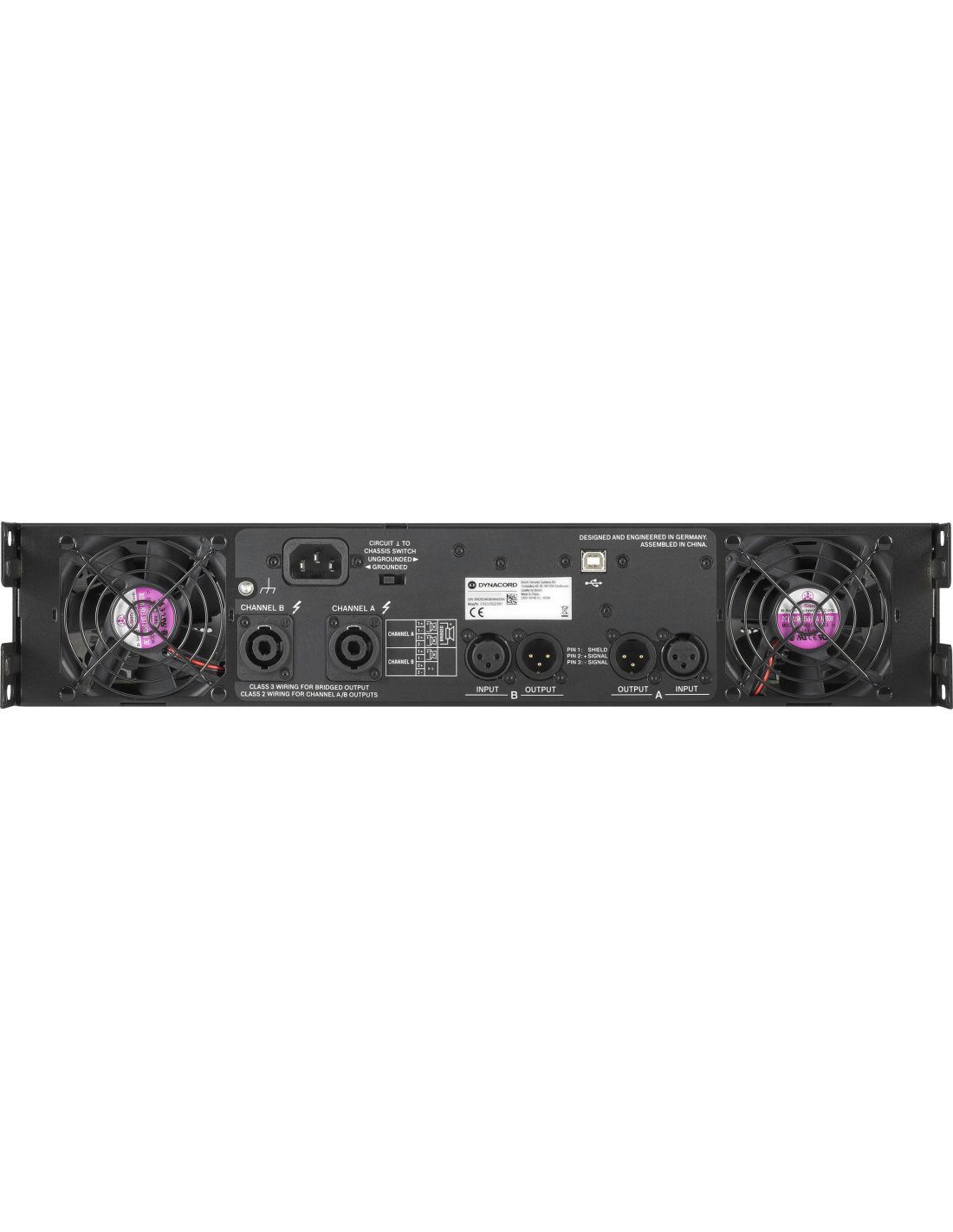

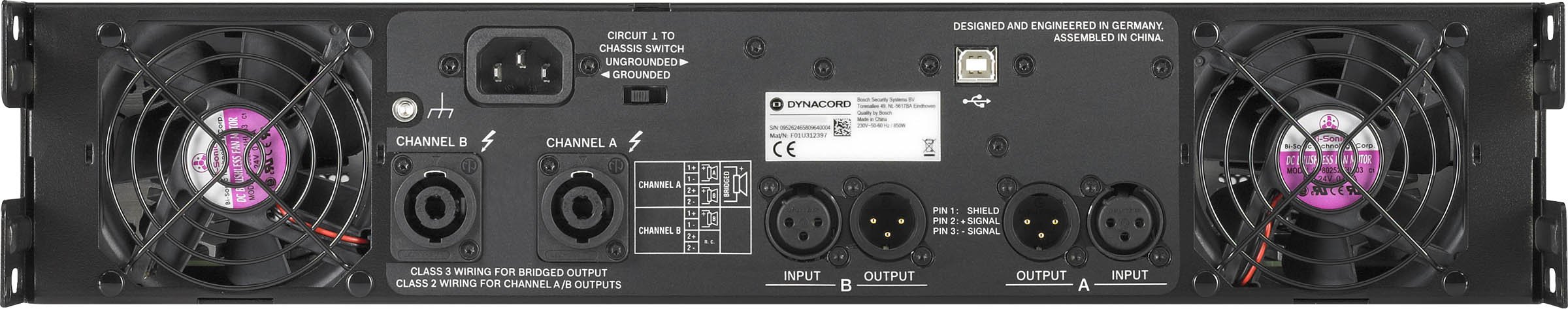

2-channel power amplifier with DSP, FIR filters, limiters, delays, GEQ and PEQ per channel. Class AB topology. Stereo mode output power (THD 1%, 1kHz): 2x 950W at 8, 2x 1800W at 4, 2x 3200W at 2. Output power in bridge mode (THD 1%, 1kHz): 1x 3400W at 8, 1x 6000W at 4. Frequency response: 10Hz to 21kHz (±1dB). Gain: 32 dB. Input sensitivity: +21dBu. Maximum RMS output voltage range: 90.6 V. Power consumption at 4 at maximum output power: 850W. LED display Gain indicators (LEDs) for output level, limiter, protection and power supply on the front. Protection circuits for: overheating, overload, short circuit, EMF return, peak current, inrush current, HF and DC output and soft start. Signal input/output via XLR3. Load output with Speakon connector. Dimensions (W x H x D), mm: 483 (19') x 88 (2U) x 462.4. Weight: 18.2 kg
