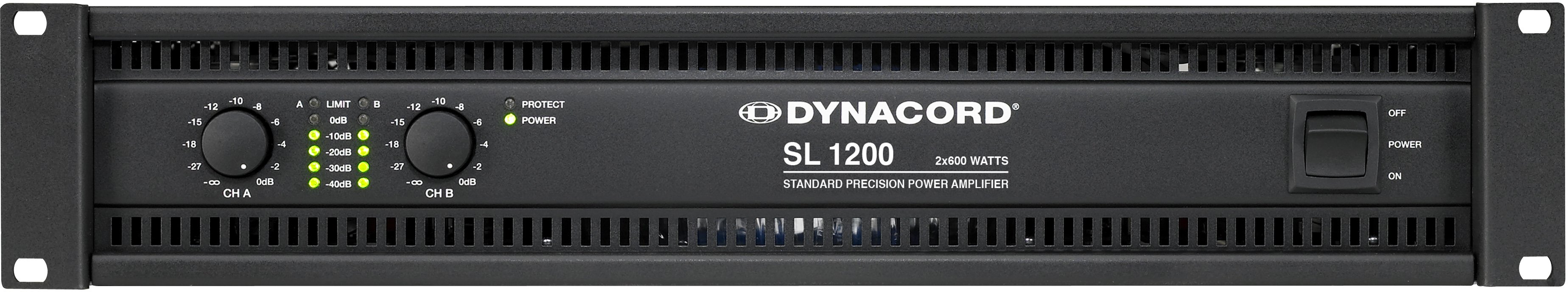

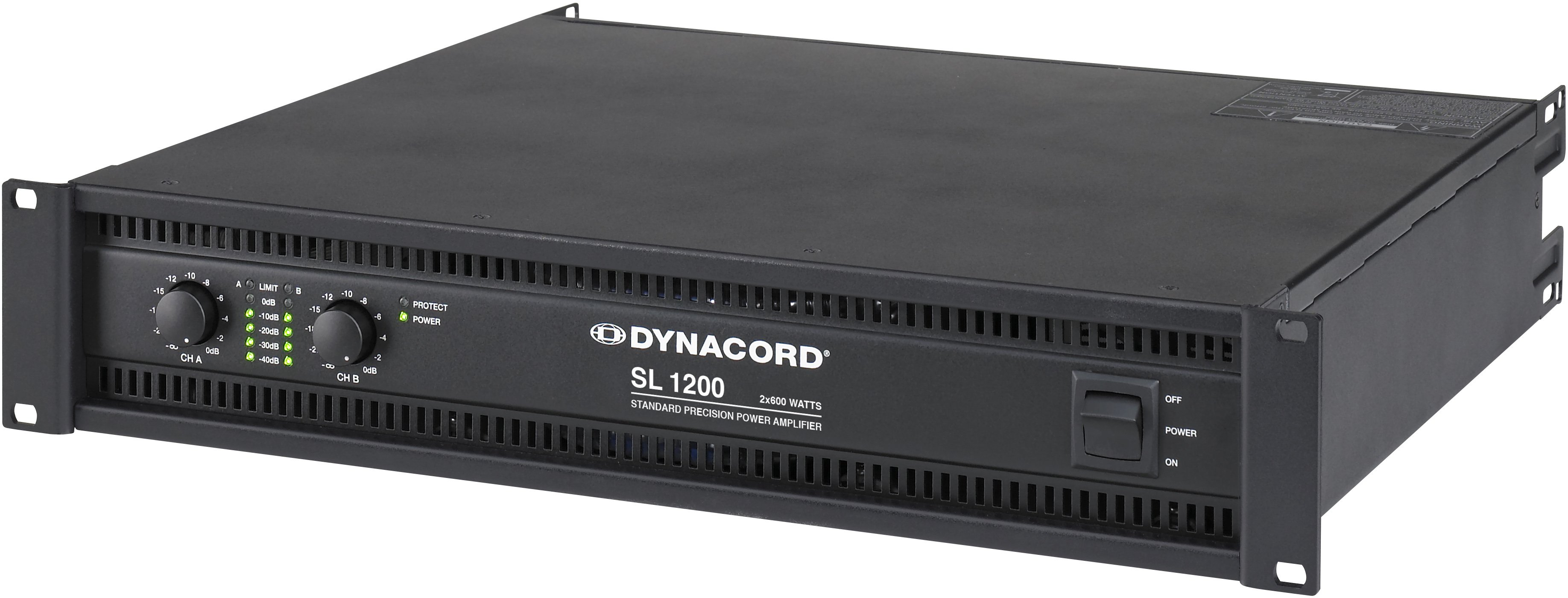

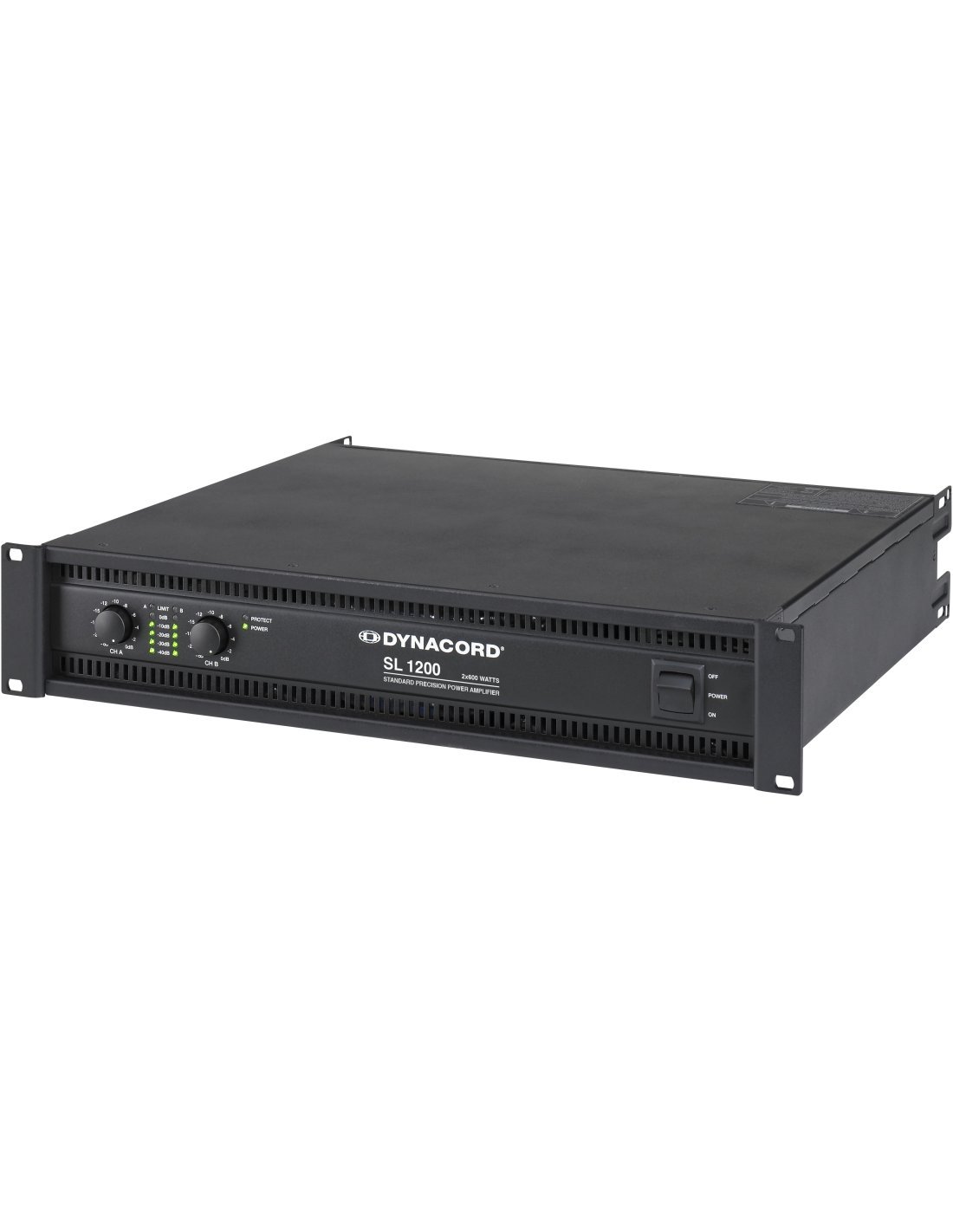

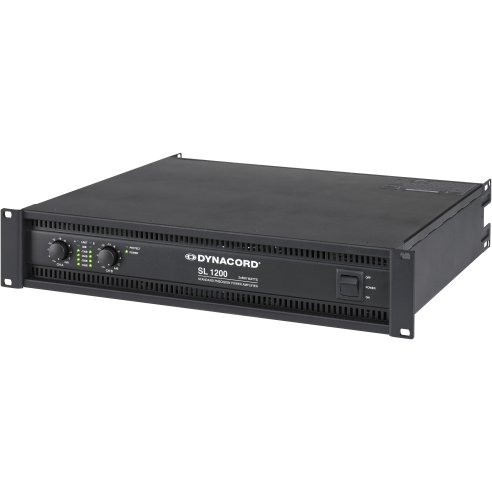

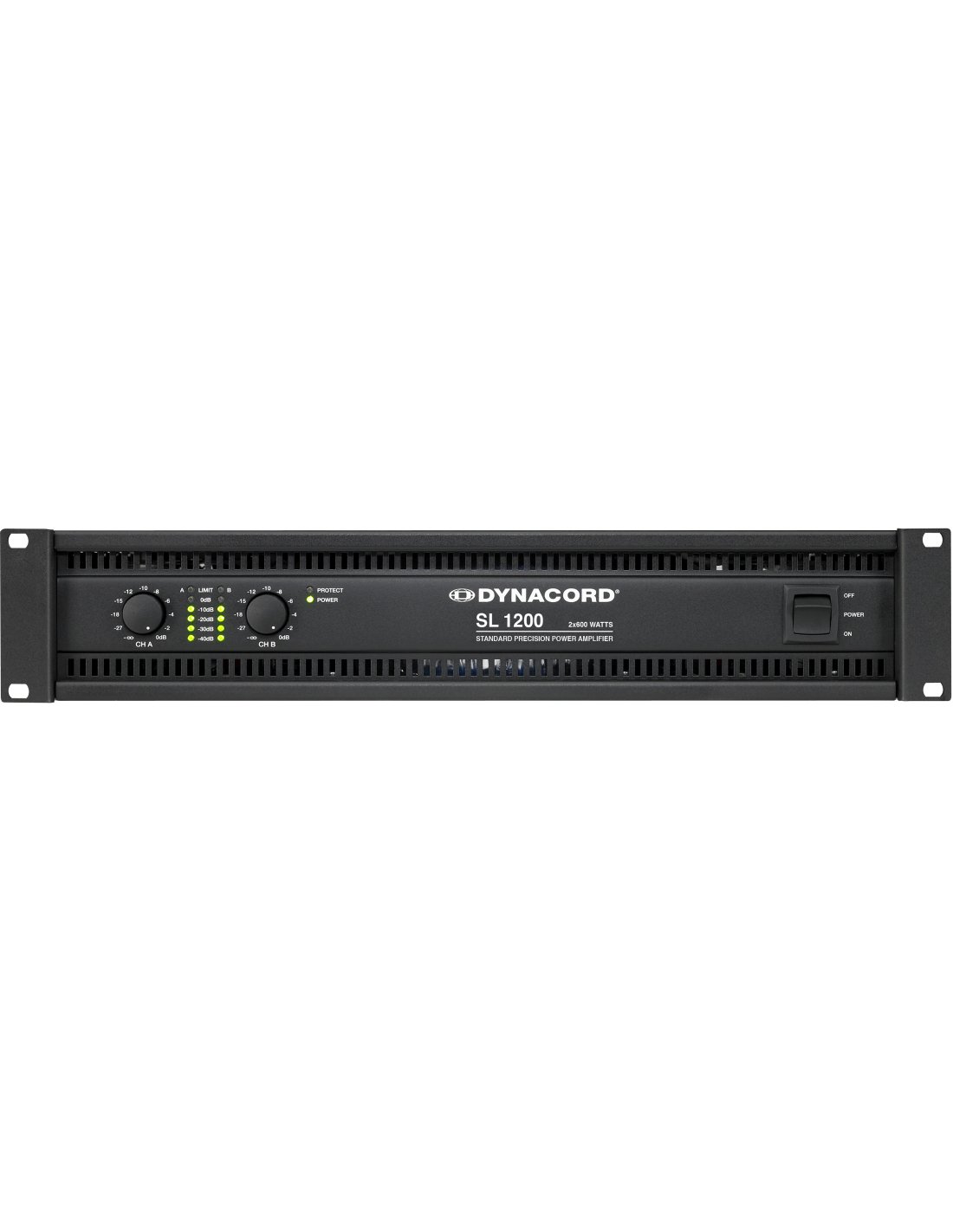

DYNACORD SL 1200

2-channel power amplifier. Class AB topology. Output power in stereo mode (THD 1%, 1kHz): 2x 380W in 8, 2x 600W in 4, 2x 900W in 2. Bridge-mode output power (THD 1%, 1kHz): 1x 1,200W at 8, 1x 1,800W at 4. Frequency response: 10Hz to 40kHz (±1dB). Gain: 32 dB. Input sensitivity: +3.1 dBu. Maximum RMS output voltage range: 65.1 V. Power consumption at 4A of maximum output power: 700W. Built-in gain control and indicators (LEDs) for output level, limiter, protection and power on the front panel. Protection circuits for: overheating, overload, short circuit, EMF return, peak current, inrush current, HF and DC output and soft start. Signal input/output via XLR3. Load output with Speakon connector. Dimensions (W x H x D), mm: 483 (19') x 88.1 (2U) x 421.5. Weight: 14.8 kg
