ART SPLITMIX4

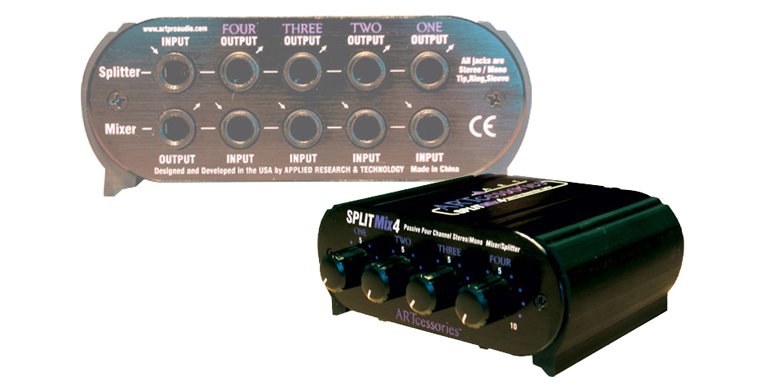

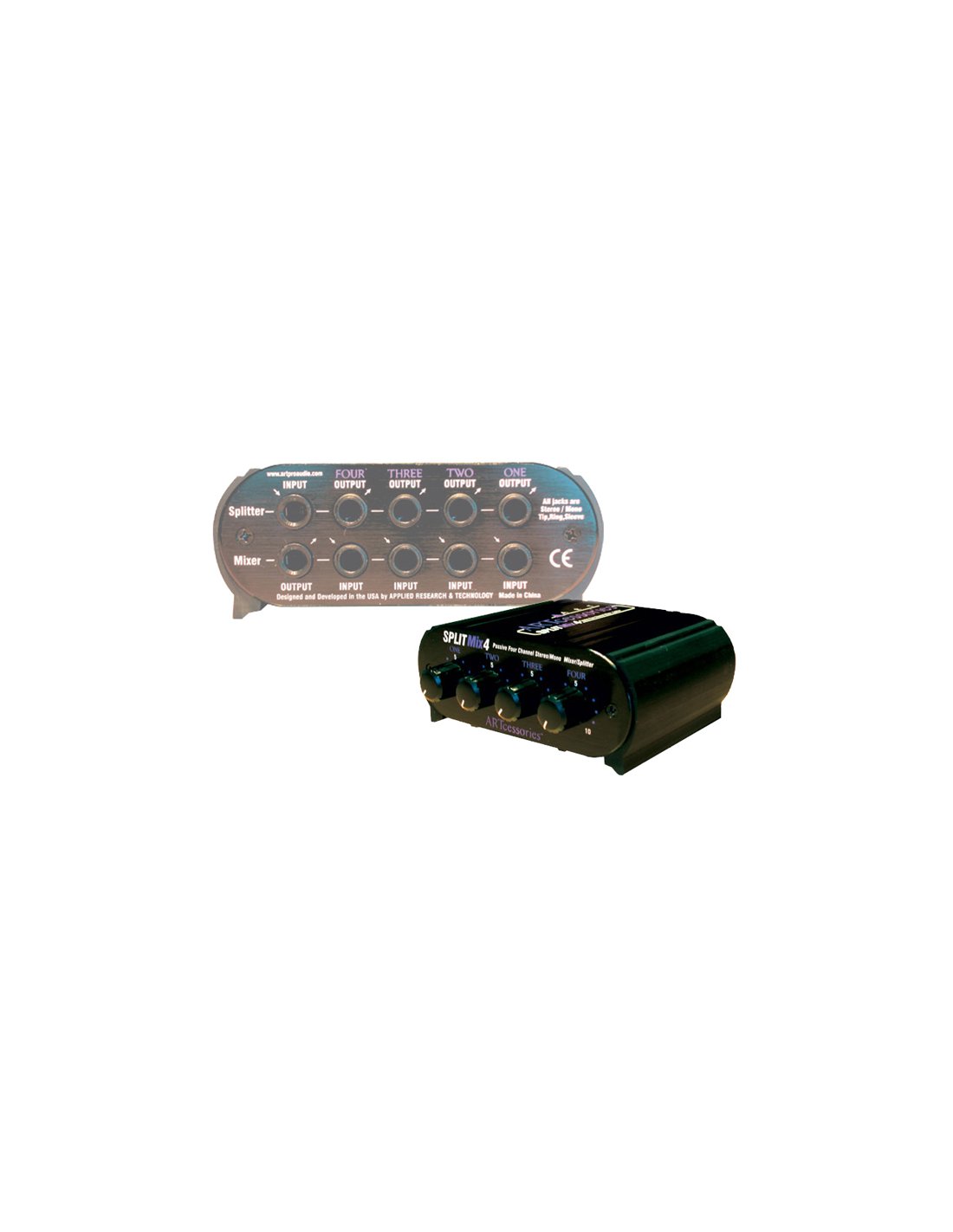

ART SPLITMIX4 is a 4-channel passive Mixer/Splitter designed to mix 4 stereo input channels into a stereo output, split a stereo input signal to distribute it across 4 stereo outputs, or combine configurations. It is also possible to configure the SplitMix4 as 4 stereo input channels that pass through 4 independent level attenuators on 4 stereo output channels. Independent stereo level controls are available on each channel. All connections are stereo 1/4" TRS (Tip, Ring, Sleeve) and are equipped with intelligent switching for a wide range of configurations. The SplitMix4's completely passive design has no circuits to add noise or distortion, and it can handle virtually any signal level. Level attenuators cover a wide range and offer more than 90dB of attenuation and channel isolation. The SplitMix4 was designed primarily as a line-level device, with
