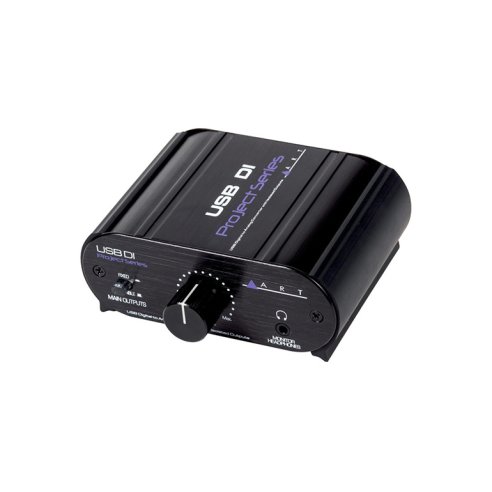

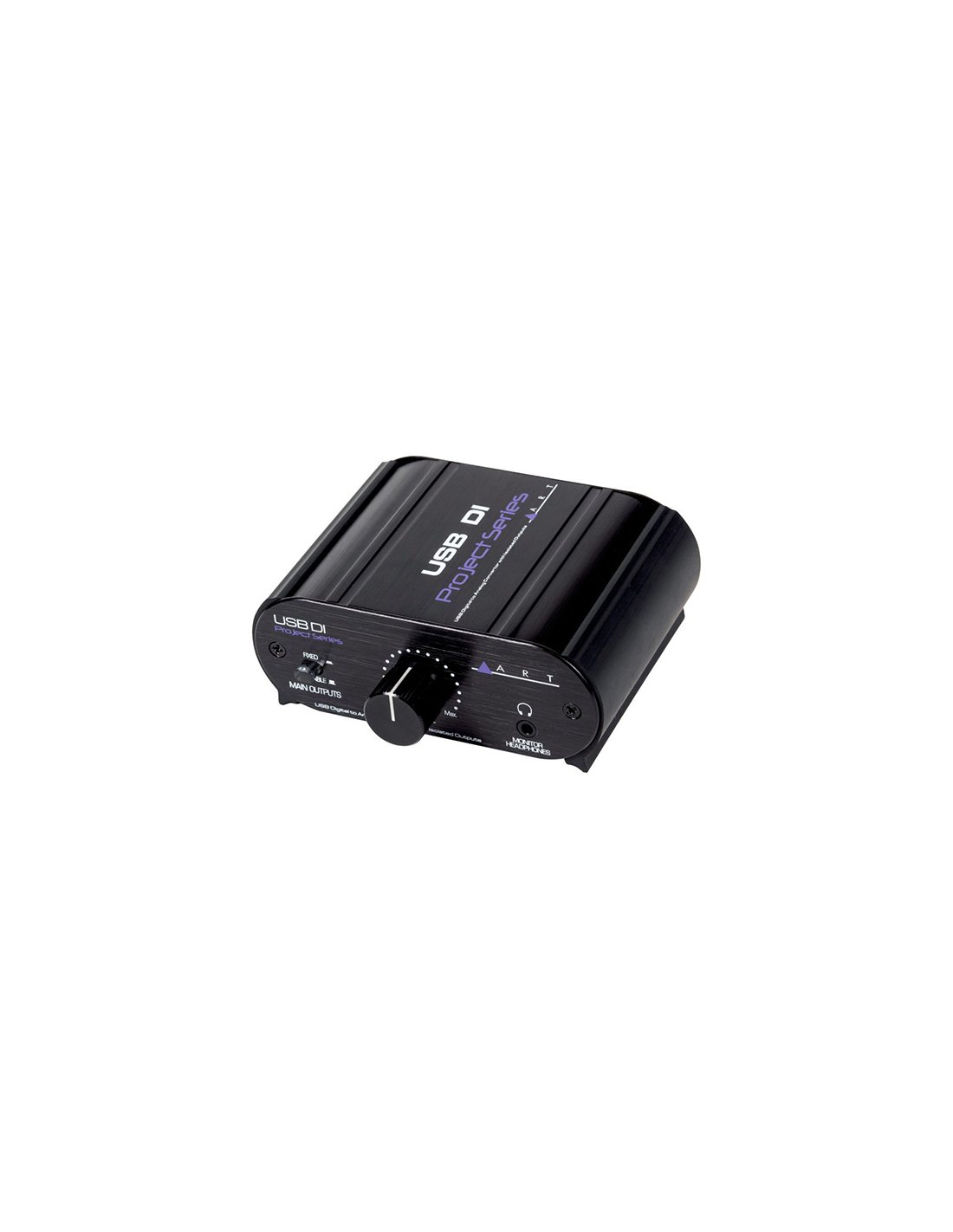

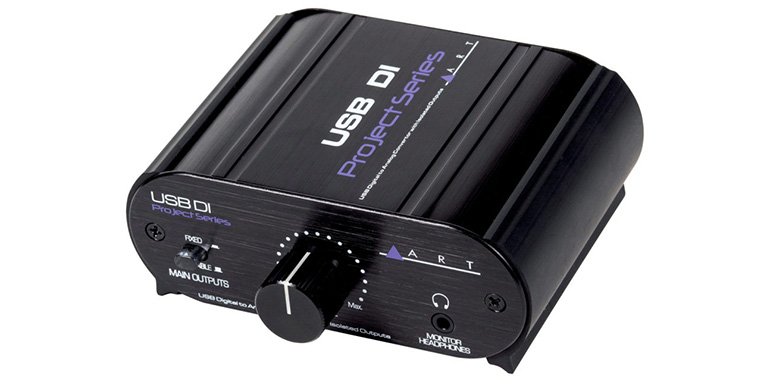

A R T USB DI PROJECT SERIES

The USB DI receives USB audio, converts it to analog audio, and then isolates the output using custom transformers. Output isolation is the key to removing ground loops and other system disturbances between digital and analog audio systems. USB 2.0 input connections. Balanced XLR output connections and 1/8 headphone output. Maximum output level +7.5dBu. Balanced line. Headphone output 150mW/ channel max. Frequency response from 20Hz to 20kHz +/- 1dB. THD; 0.020% (typical). Dynamic range 96 dB typ. To std. Supported sample rates 32kHz, 44.1kHz, 48kHz. Dimensions 1.87 H x 4.61 W x 4.27 D (47.5mm x 117mm x 108mm). Weight 1.89 lbs. (.86 kg) with packaging. USB power requirements, 500mA Max.
