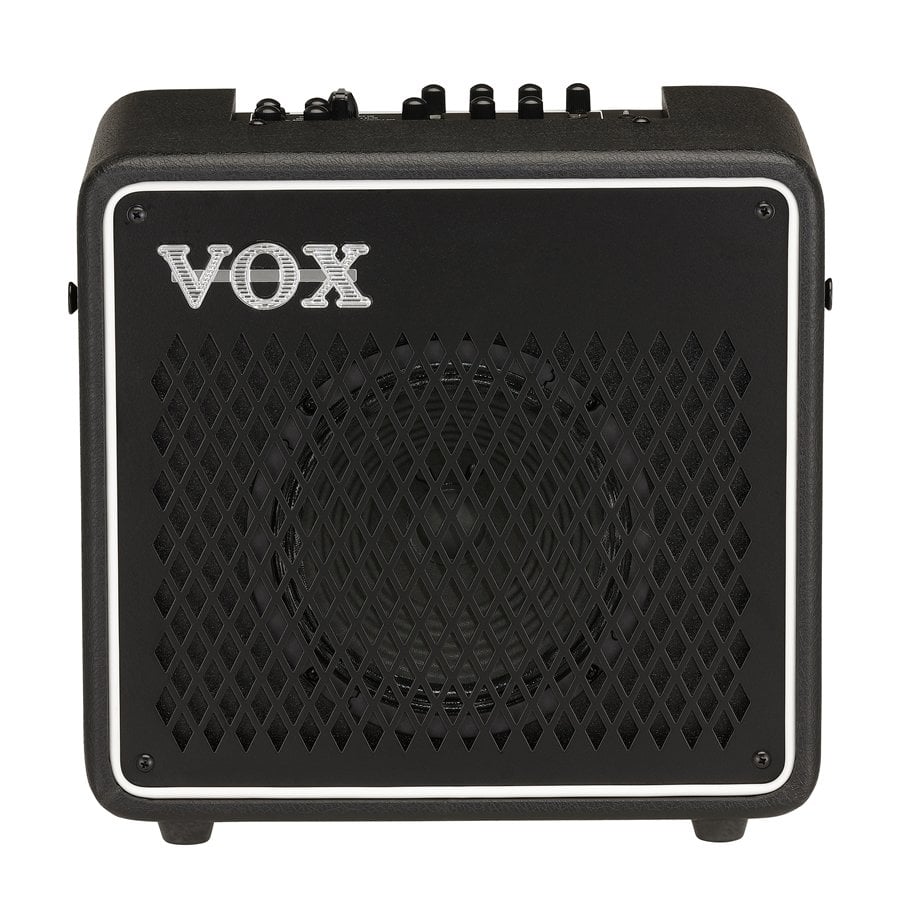

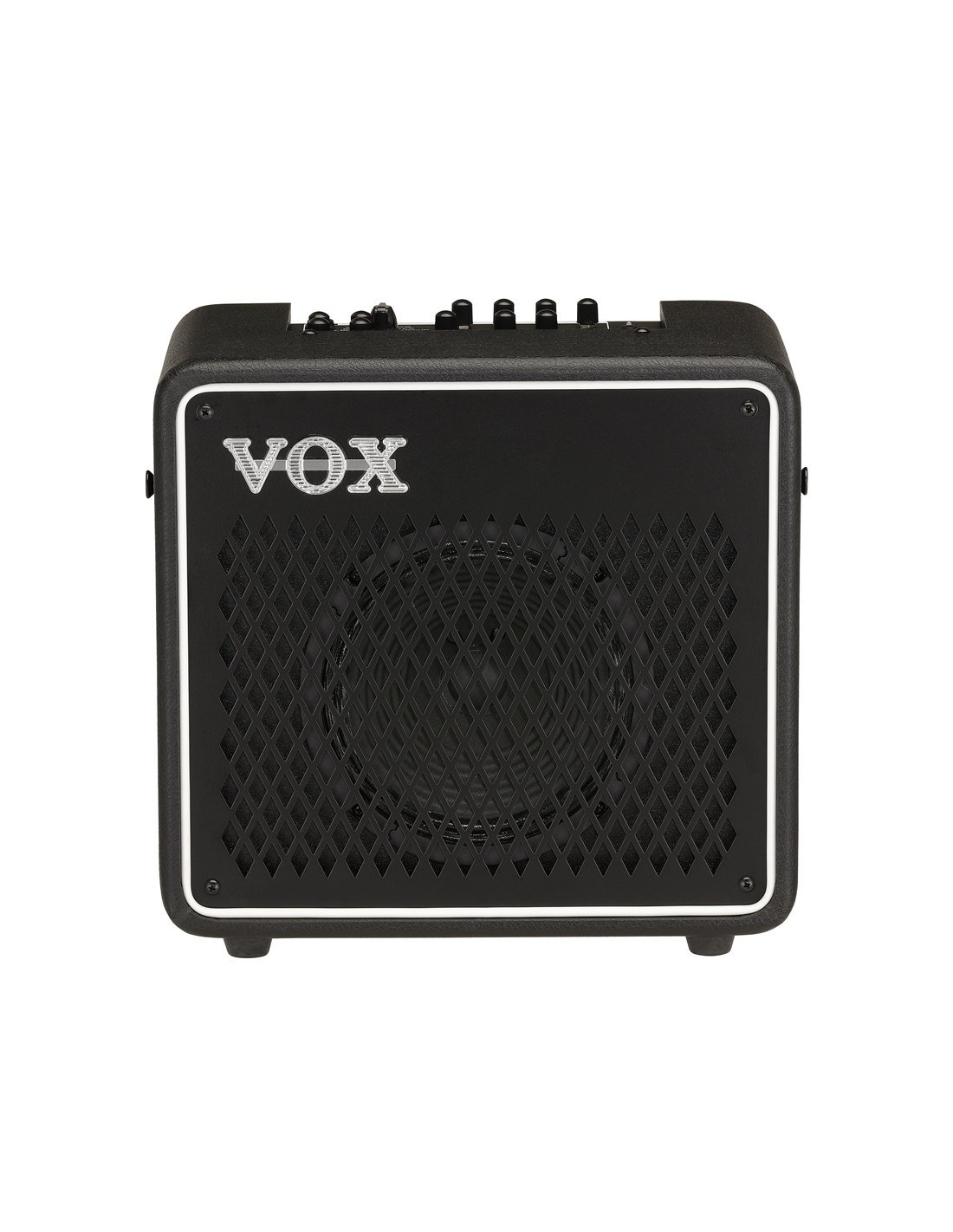

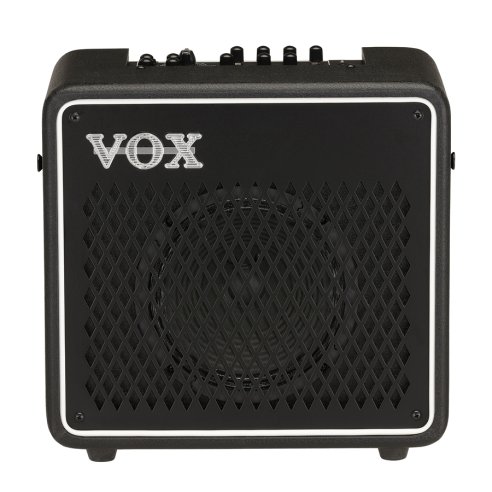

VOX VMG-50

VMG-50 is the VOX Mini Go 50 Watt combo guitar amplifier that was created as an ideal solution for the musician looking for a practical and complete system for use in the rehearsal room, live or for basking

Included in the Mini Go Series are the Mini Go 50 Set, Mini Go 50, Mini Go 3, Mini Go 10 Set and Mini Go 10 versions. Born from the total reinterpretation of the Mini Series, the Mini Go includes important and innovative features. All the items that make up the Mini Go series have a renewed sound inspired by the popular VOX

From the smaller and portable 3 Watt model up to 50 Watt, there are interesting features that substantially facilitate the musician's daily activity. 33 completely reworked rhythm patterns with the PCM capacity increased by 10 times for better sound quality, integrated vocoder that can be used with the microphone that can be connected to the appropriate input jack, octaver also integrated and the possibility of powering Mini Go combos via USB power bank.

Regarding the tone palette, all the products included in the Mini Go series have the ability to manage 11 amplifier models and have 8 types of on-board effects.

Mini Go 50, thanks to the treble and bass controls that can be used with the 10 amplifier simulation models and the treble, medium and bass controls that can be managed when the selection knob is placed on Line, offers versatility that is difficult to find on systems of the same size.

Mini Go 50 is equipped with an 8-inch speaker with 4 Ohm impedance and offers 50 Watts of power in a compact format weighing 7 kg.

In the 50 Watt and 10 Watt versions of the Mini Go Series there is an integrated looper that will give you the opportunity to fully manage your performance. Connect your playback device to the AUX in, your instrument to the INPUT jack, the microphone to the MIN IN jack, and you're ready for your performance on the road. Between one concert and the next, use the PHONES output for daily practice on headphones

AMP MODEL

Deluxe CL, Boutique CL, Boutique OD, VOX AC30, VOX AC30TB, Brit 800, Brit VM, SL-OD, Double Rec, Vocoder, Line

EFFECTS

Chorus, Phaser, Tremolo,

Octave, A. Dly, D. Dly, Spring, Hall

RHYTHM

Rock, Metal, Pop, Blues, Funk,

R&B, Jazz, Latin, Dance, 3/5/7,

Meter SPECIFICATIONS Output Power: 50 watts Speaker Size: 8”







Impedance: 4 Ohms Input

Terminals: Instrument INPUT, MIC IN, AUX IN, FOOT SW (VFS3) Output

Terminals: PHONES OUT AMP

Controls: Model Selector EQ Controls: Gain, Treble, Bass on Models

- High, Mid, Low on Line, Volume MIC IN Controls: Trim, Send EFFECTS

Controls: Modulation Selector, Reverb Selector, Time RHYTHM

Controls:

Selector Genres, Variation, Tempo, Level, START/STOP LOOP

Controls: Level, Rec/Play/Dub

Controls PROGRAM: HOLD WRITE

Dimensions: 390 mm x 250 mm x 355 mm

Weight: 7.3 kg

Accessories included: AC adapter (MINI GO 3/MINI GO 10: DC 12V, MINI GO 50: DC 19V) "

VMG-50 is the VOX Mini Go 50

Included in the Mini Go Series are the Mini Go 50 Set, Mini Go 50, Mini Go 3, Mini Go 10 Set and Mini Go 10 versions. Born from the total reinterpretation of the Mini Series, the Mini Go includes important and innovative features. All the items that make up the Mini Go series have a renewed sound inspired by the popular VOX

From the smaller and portable 3 Watt model up to 50 Watt, there are interesting features that substantially facilitate the musician's daily activity. 33 completely reworked rhythm patterns with the PCM capacity increased by 10 times for better sound quality, integrated vocoder that can be used with the microphone that can be connected to the appropriate input jack, octaver also integrated and the possibility of powering Mini Go combos via USB power bank.

Regarding the tone palette, all the products included in the Mini Go series have the ability to manage 11 amplifier models and have 8 types of on-board effects.

Mini Go 50, thanks to the treble and bass controls that can be used with the 10 amplifier simulation models and the treble, medium and bass controls that can be managed when the selection knob is placed on Line, offers versatility that is difficult to find on systems of the same size.

Mini Go 50 is equipped with an 8-inch speaker with 4 Ohm impedance and offers 50 Watts of power in a compact format weighing 7 kg.

In the 50 Watt and 10 Watt versions of the Mini Go Series there is an integrated looper that will give you the opportunity to fully manage your performance. Connect your playback device to the AUX in, your instrument to the INPUT jack, the microphone to the MIN IN jack, and you're ready for your performance on the road. Between one concert and the next, use the PHONES output for daily practice on headphones

AMP MODEL

Deluxe CL, Boutique CL, Boutique OD, VOX AC30, VOX AC30TB, Brit 800, Brit VM, SL-OD, Double Rec, Vocoder, Line

EFFECTS

Chorus, Phaser, Tremolo,

Octave, A. Dly, D. Dly, Spring, Hall

RHYTHM

Rock, Metal, Pop, Blues, Funk,

R&B, Jazz, Latin, Dance, 3/5/7,

Meter SPECIFICATIONS Output Power: 50 watts Speaker Size: 8”







Impedance: 4 Ohms Input

Terminals: Instrument INPUT, MIC IN, AUX IN, FOOT SW (VFS3) Output

Terminals: PHONES OUT AMP

Controls: Model Selector EQ Controls: Gain, Treble, Bass on Models

- High, Mid, Low on Line, Volume MIC IN Controls: Trim, Send EFFECTS

Controls: Modulation Selector, Reverb Selector, Time RHYTHM

Controls:

Gender, Variation, Time, Level, START/STOP selector LOOP

controls: Level, Rec/Play/Dub Program

controls: HOLD WRITE

Dimensions: 390 mm x 250 mm x 355 mm

Weight: 7.3 kg

Accessories included: AC adapter (MINI GO 3/MINI GO 10: DC 12V, MINI GO 50: DC
