| FULL AMPLIFIED AUDIO SYSTEM 8x3"/1x12" 1000W |

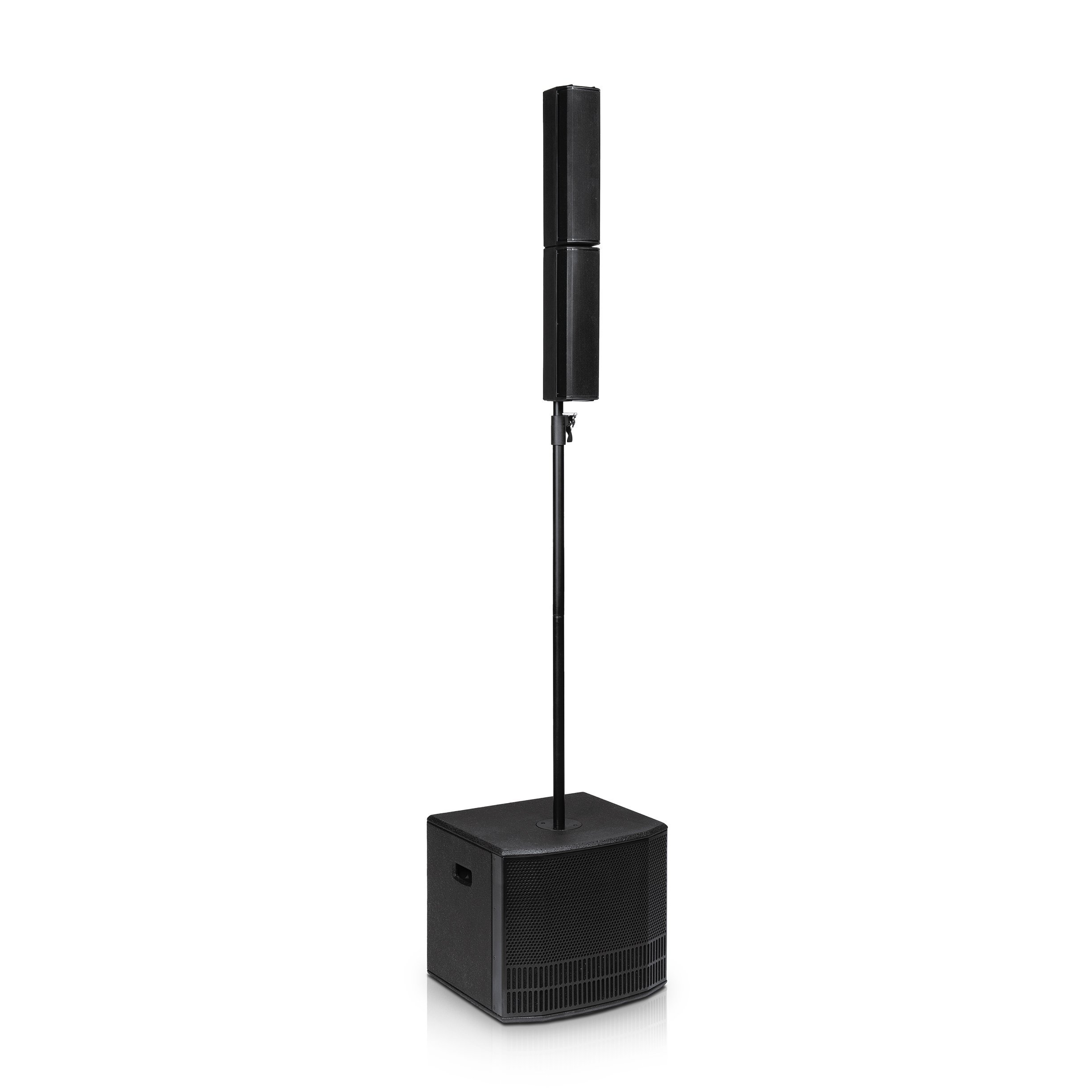

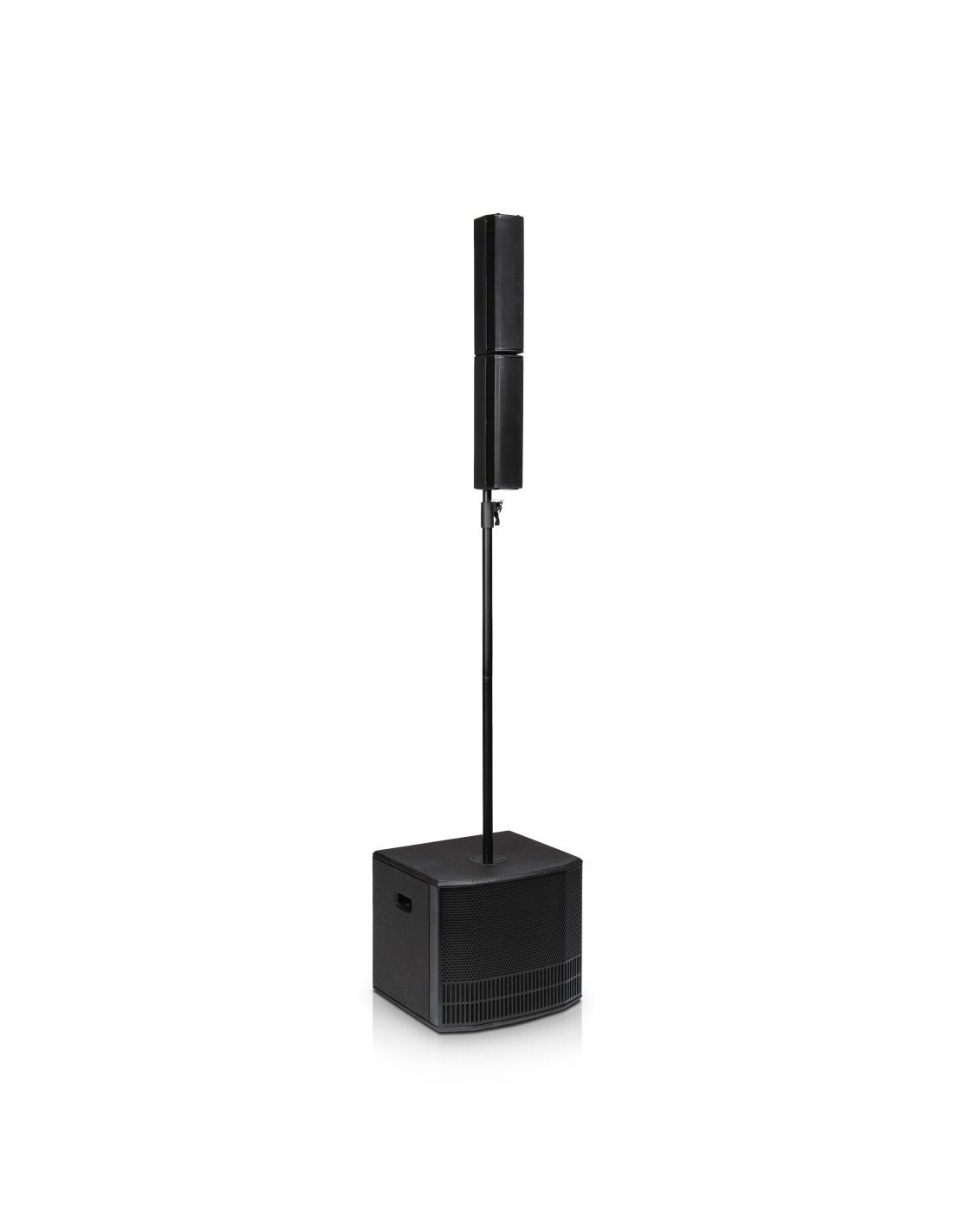

The S503 is a tri-amplified stereo audio system consisting of two passive tops and a 12" subwoofer. The Sub houses the 1000W amplifier module with auto-range and a 3-channel mixer with Bluetooth connection. A powerful DSP, controlled by means of an advanced user interface and an OLED display, manages the dispersion of the system and all the functions of the mixer, making the ES503 a real jewel in terms of audio performance and versatility. The ES series is the result of the experience gained by dBTechnologies in the acoustic design of vertical array systems such as the DVA T and DVA MINI series. The top transducers are mechanically aligned (column array with logarithmic curvature) to increase the coverage of the vertical beam. In addition, there is a special 'double ring rephaser' that increases horizontal coverage and gives a clear, rich and crystal clear sound to the system.Main characteristicsSpeaker: Tri-amplified stereo system with 2 full-range and 1 subwoofer Frequency response [-10dB]: 37Hz - 15kHz Max SPL: 121dB MF-HF Driver: 8x 3" Neodymium Driver: 1x 12" Directivity: 95x65° Amplifier: Digipro G3, Class D Power: 1000W Power: SMPS with Auto-range PSU Connection: VDE socket Cooling: Convection Controls: 1x OLED display with rotary encoder with
|
painted black Satellite: Polypropylene PP Handles: 2x side (subwoofer) Subwoofer dimensions: 465 x H400 x 430mm Subwoofer weight: 16.4 kg Satellite dimensions: 65 x H360 x 137mm Satellite weight:
1.9 kg
