Quik Lok JUST/JJ-3

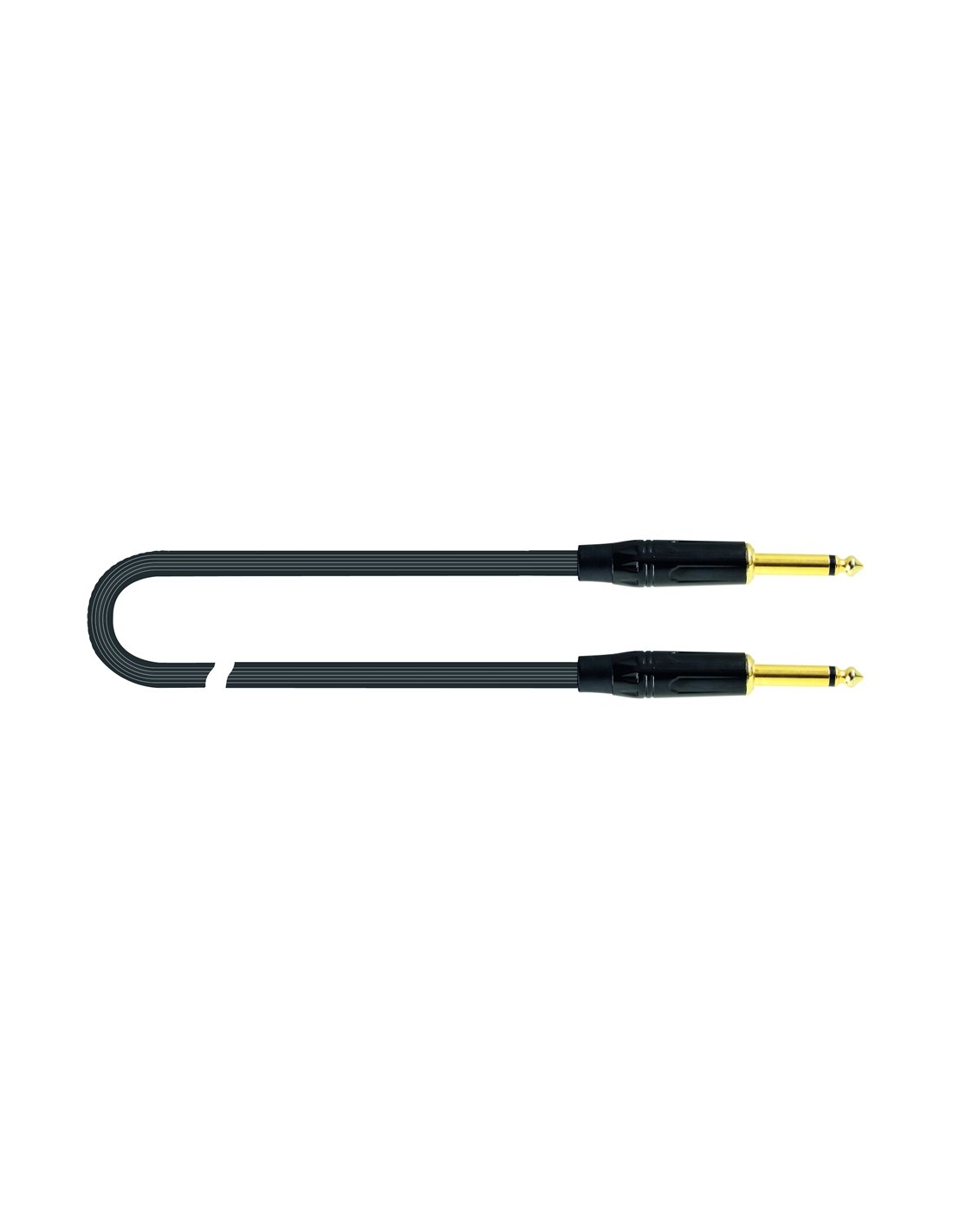

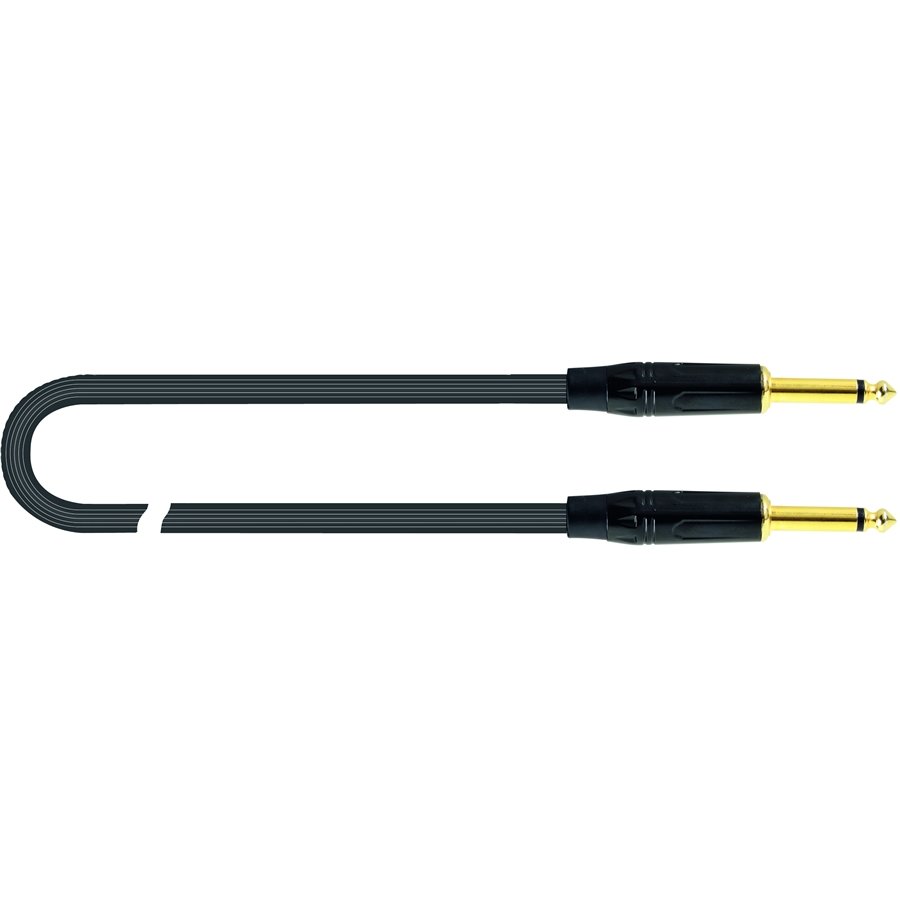

JJ 3 is the 3 m long unbalanced instrument cable with black connectors with 6.3 mm TS (Mono) Jack connection. Included in the JUST series, JJ cables represent the top models among the Made in China cable lines produced by Quik Lok and are particularly suitable for daily use with your electric guitar or electric bass both on stage and in the rehearsal room and during home study sessions.

JJ instrument cables have a conductor cross-section of 0.22 mm² and 20 0.12 mm copper wires. The PVC sheath of the external coating of the cable has a characteristic knurling that guarantees a comfortable grip when rewinding the cable after use as well as ensuring a good degree of protection against impact and bending damage. The specifications of the cable itself allow linear sound transmission so as to allow the transducers used (such as humbucker or single coil pickups, whether they are passive or active pickups) to convert the signal in the best way during concerts, recording situations in home recording

SPECIFICATIONS

External coating

: PVC Conduction Area: 0.22 mm² AWG: 22 Conduction Material: Copper Conductor Composition: 20 x 0.12 mm Conductor Resistance at 20°: <91 Ohm/km Shielding: Spiral-wrapped Copper Socket (0.12 x 32) Electrical Capacity: 86 Pf/m Cable Diameter: 6.0 mm Connector Configuration: 2x TS Jack (Mono) Length:

The JUST Series range of musical instrument cables consists of the models:

- Quik Lok JUST/JJ Jack Mono 6.3 cable <-> Jack Mono 6.3 - Quik Lok JUST/JJ SL Mono 6.3 Jack cable <-> Jack Mono 6.3 (

SL silver connectors) - Quik Lok JUST/JR

Mono 6.3 Jack cable Angled 90° <-> Jack Mono 6.3

- Quik Lok JUST/JR SL Mono 6.3 Jack cable Angled 90° <-> Jack Mono 6.3 (SL silver connectors) - Quik Lok JUST/2JR Mono 6.3 Jack cable Angled 90° <-> Jack Mono 6.3

Angled 90° -

balanced cable Jack Stereo TRS 6.3 <-> Jack Stereo TRS 6.3

- Quik Lok JUST/KEY cable 2 x Jack Mono 6.3 <-> 2 x Jack Mono 6.3 JUST

your cable, your signal, our passion
