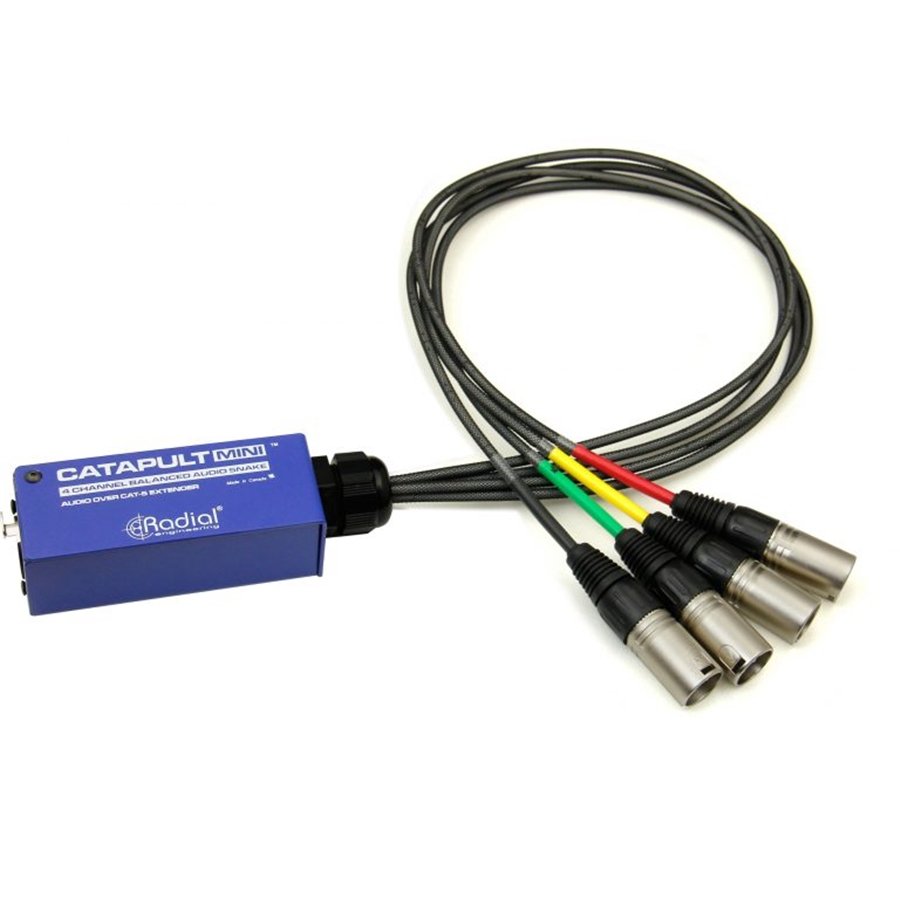

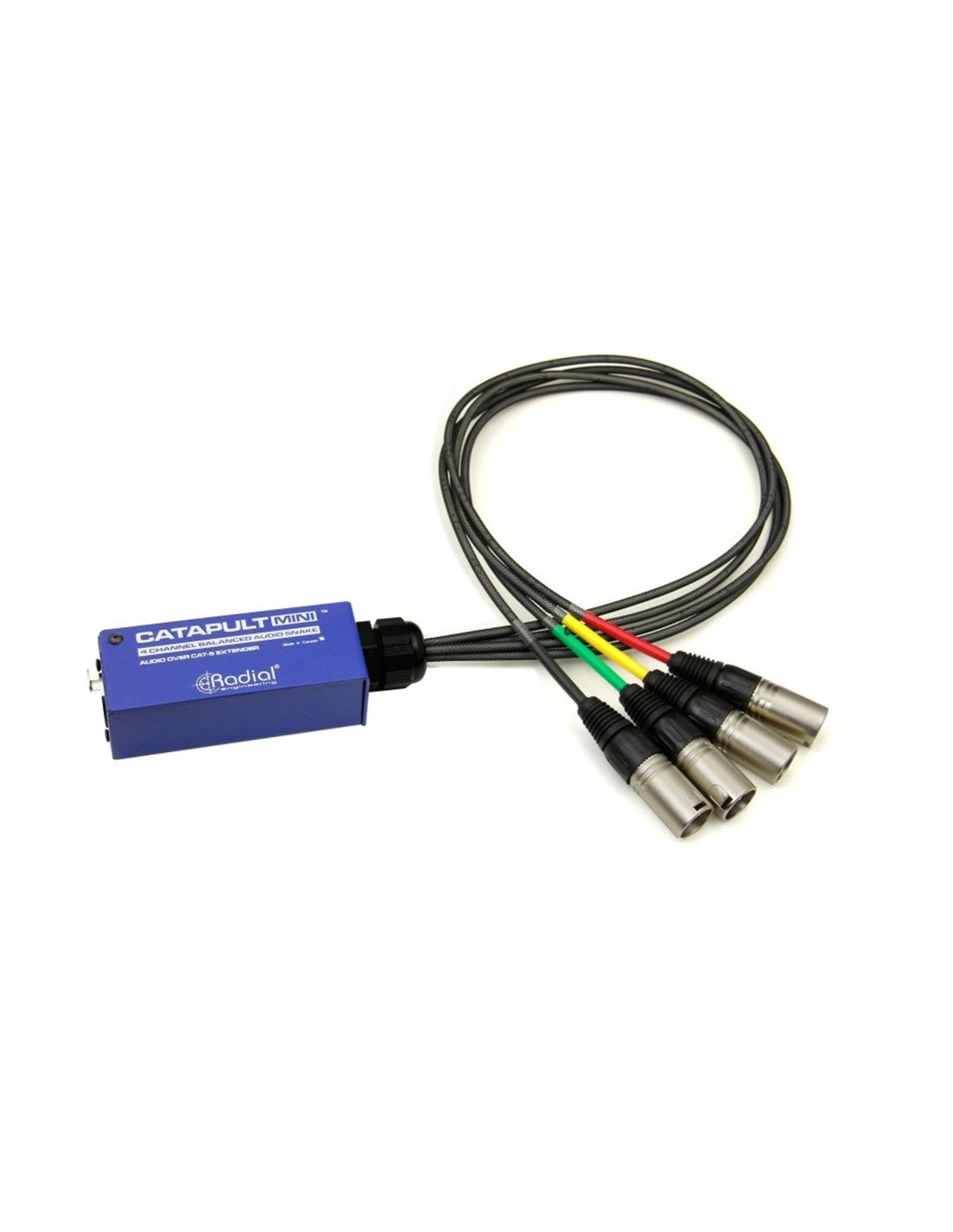

Radial Engineering Catapult Mini TX

Catapult Mini

4-channel audio Snake Cat 5

• • Send four analog audio channels on a single Cat 5/6 cable


• • Works with existing cable systems


• • Compact and lightweight, yet durable and robust


• • Affordable Cat 5/6 cable replaces bulky snakes multichannel audio

The Catapult Mini RX and TX behave like a typical four-channel audio snake; they allow you to send microphone or line signals from one position to another without loss of signal, noise or interference and without digital audio conversion. What makes the Catapult system unique is the use of the widely available, lightweight and affordable Cat 5 Ethernet cable. Simply connect a shielded Cat 5 cable between any two Catapult modules that will use the cable's analog conductors to provide four balanced audio lines to

Operation with direct passive wiring

Catapult
modules do not require power and, since they maintain the signal in the analog world, no digital conversion is necessary. The direct wiring connection from the XLR connectors to the RJ45 connector on a Cat 5 cable guarantees the passage of audio without

Because many buildings are already pre-wired with Cat 5 cables, you can use them to transmit audio between distant rooms without having to install new cables. This eliminates the need for bulky and expensive multichannel audio cables and allows you to benefit from the installed network cable to connect easily from room to

All Radial Catapult modules are compatible with each other and each is sold individually, so you can select the combination that best suits your needs. The Catapult Mini RX and TX can be used paired together to create a compact 4-channel audio snake. However, if you prefer to have a Stage Box to connect microphones, but you want a compact breakout cable that fits in the mixer case, you can combine Catapult TX4 with Catapult Mini RX. The different types of modules allow you to customize the transmitting and receiving devices for any application.
