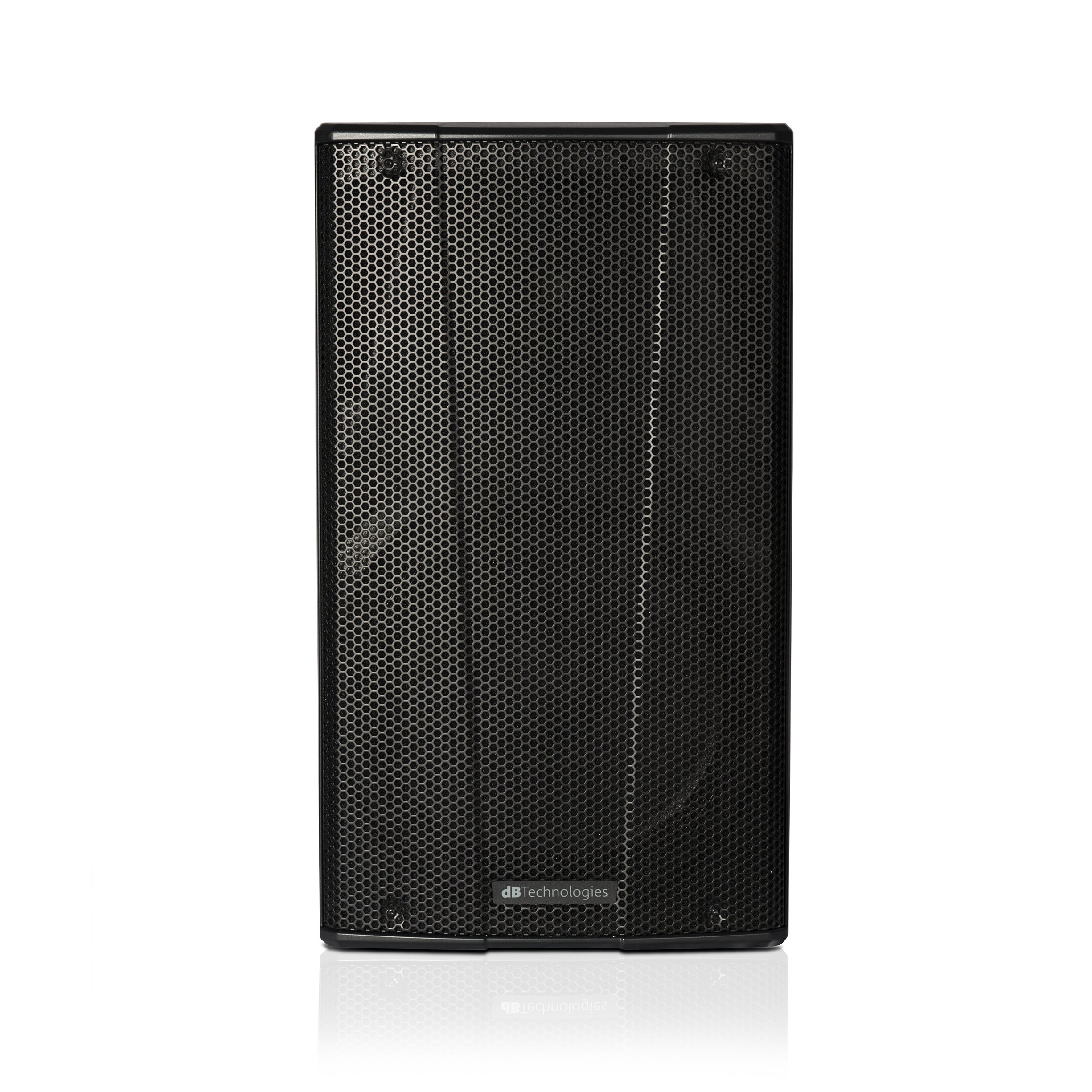

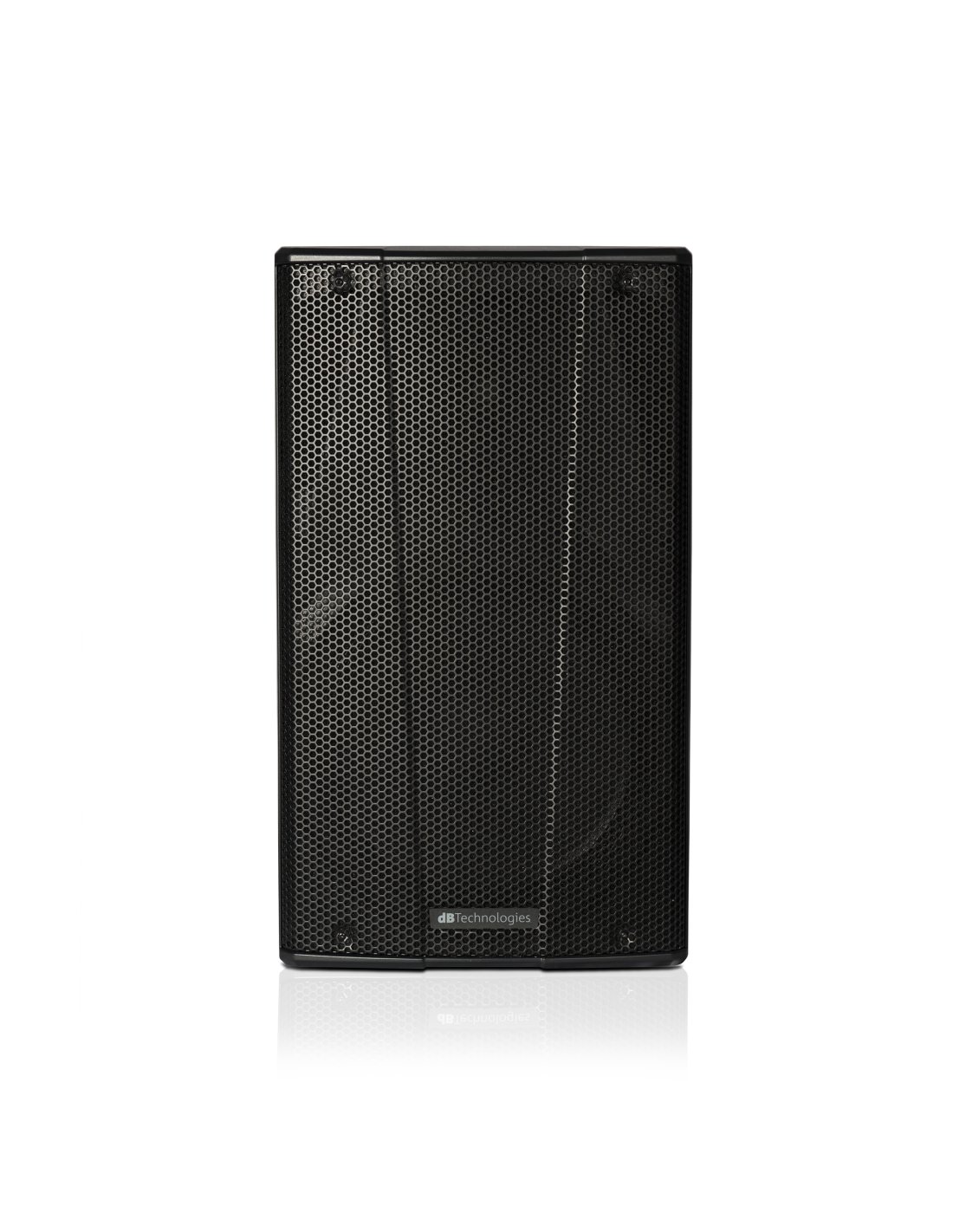

DB TECHNOLOGIES B-HYPE 10

DB TECHNOLOGIES B-HYPE 10 is a 260W Class D 2-way active loudspeaker with Custom Made amplification technology. The horn is a 1" Compression Driver while the woofer is a 10". The frequency response at -6dB is 62-19.6kHz, with a crossover frequency of 2300Hz (24 db/oct.) and Max SPL equal to 121 dB. DB TECHNOLOGIES B-HYPE 10 is equipped with a 28/56 bit DSP processor at 48 kHz, Peak, RMS and Thermal control limiter. The controls are Volume, Audio Input Sensitivity and DSP Preset. The input is a balanced Combo IN (Mic/Line) type while the output is a balanced XLR OUT. The case is made of polypropylene with a metal grid, with a weight of 9 kg.

Main characteristics

• Speaker LF: 10"
• LF Coil: 1.5" Crossover Frequency:
• 2300Hz (24dB/Oct)
• Horizontal Dispersion: Asymmetric, 85° up/120° down Vertical Dispersion: 85° (+25°/-60°) Amp Class: Class-D
• , Passive
cooling (convection)
• RMS Power: 130W
• Peak Power: 260W Controller:
• 28/56bit - 48 kHz Limiter:
• Peak, Thermal, RMS Controls: Volume, Audio Input Sensitivity,
• DSP Preset Network Connections: VDE Signal Input
• : 1x Balanced Combo
In (Mic/Line)
