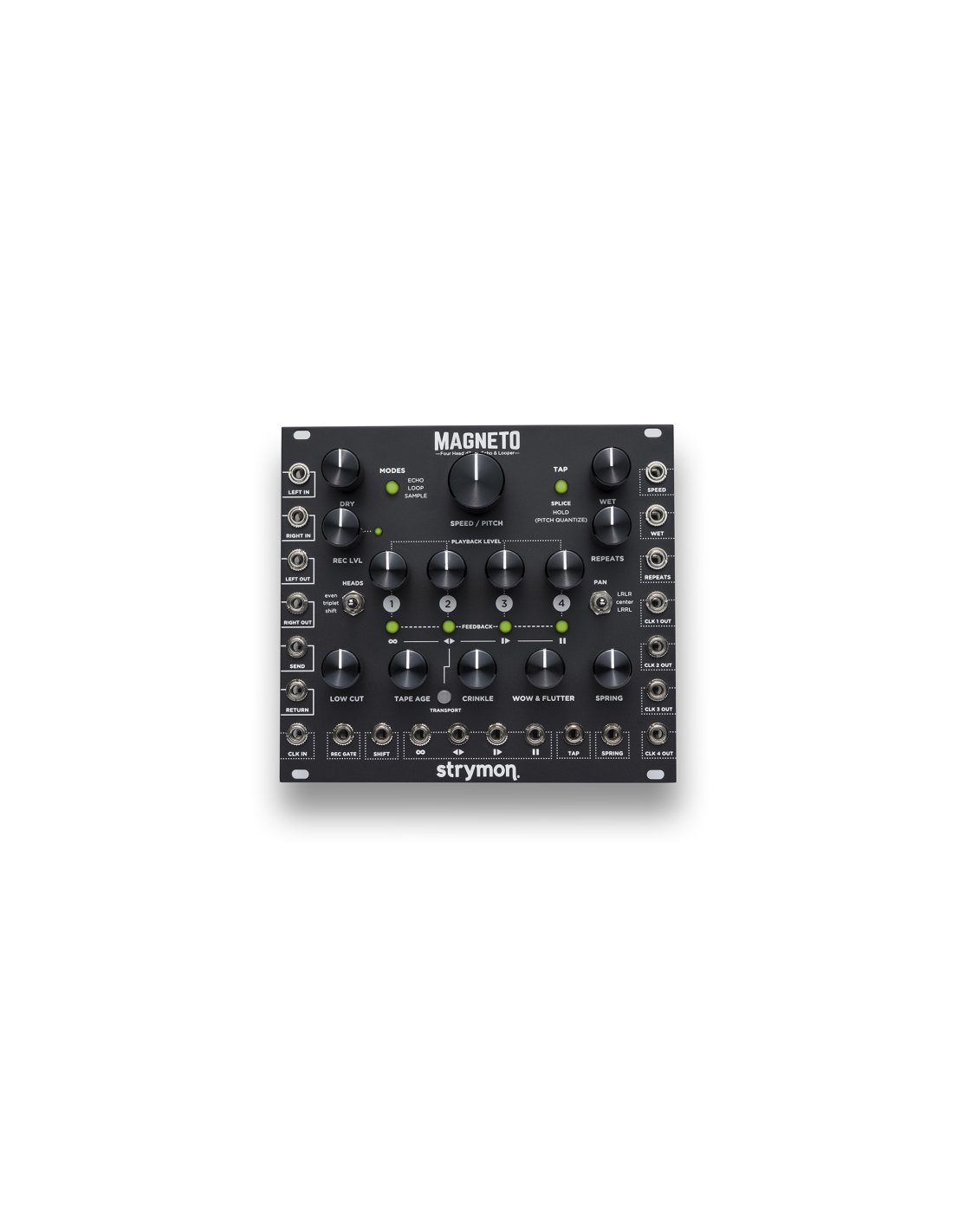

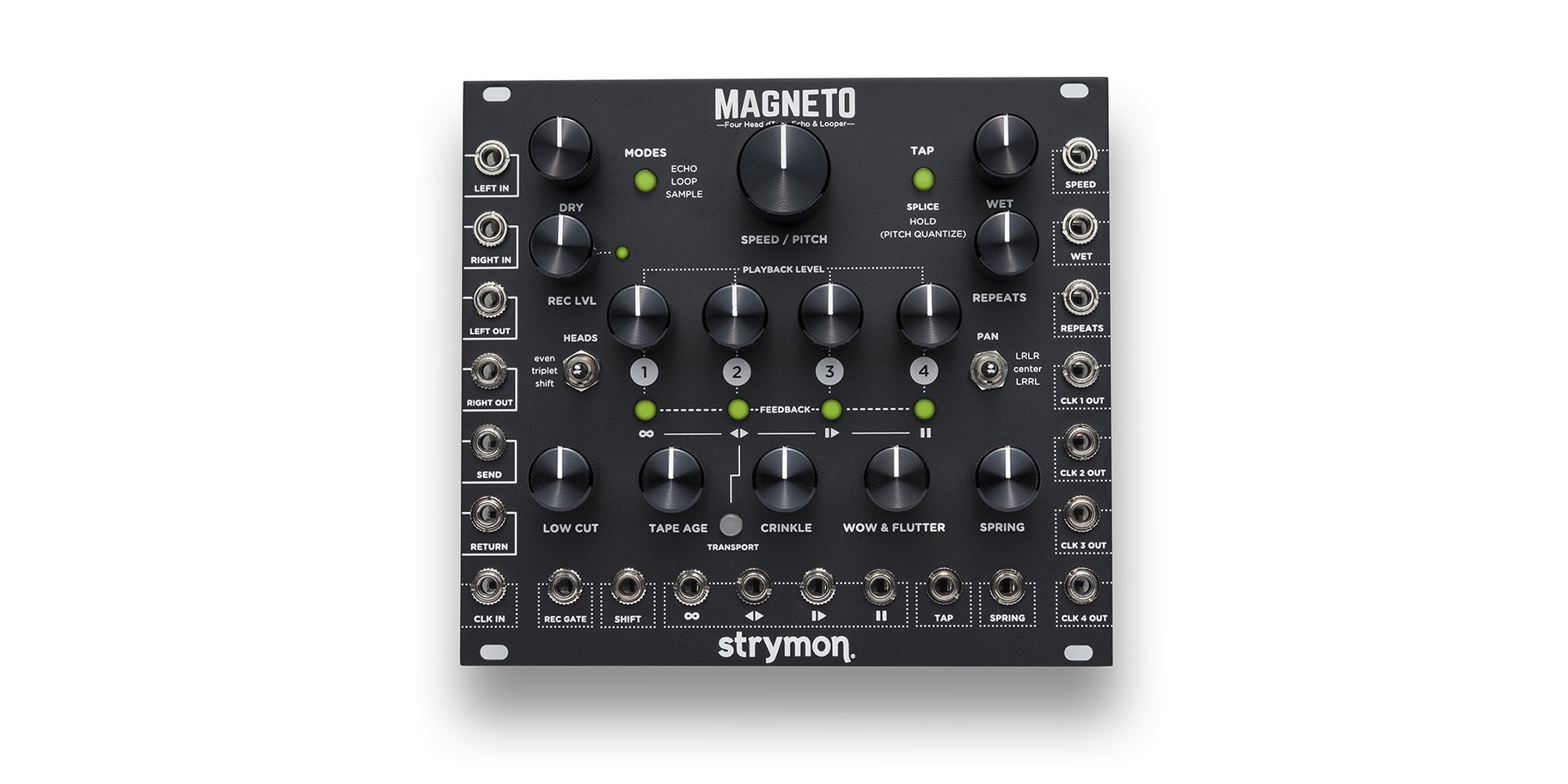

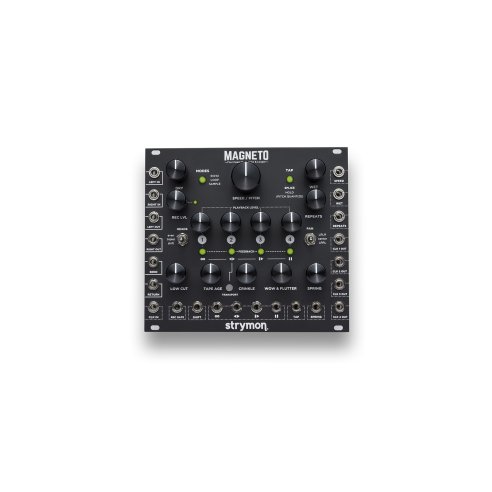

STRYMON MAGNETO

Tape Delay and Looper

• Eurorack module
• 4 Playback heads and 1 recording head
• 3 Modes: Echo, Sound On Sound Looper and Phrase Sampler
• Varispeed algorithm
• Self-oscillating for sound generation
• Independent spring reverb
• Integrated Sharc DSP
• Dedicated control of tape mechanics state and sound: Low Cut, Tape Age, Crinkle, Wow & Flutter, Transport Section
• Phase-aligned clock output (CLK OUT) CVs synchronized with clock input (CLK IN) CVs
• Maximum delay / loop duration: 15 Seconds at maximum speed and 2 minutes at minimum speed
• Sample Rate: 96 kHz
• Power requirement: +12 V / 210 mA / -12 V / 210 mA / +5 V / 0 mA
• Dimensions (W x D): 28 TE x 41 mm
