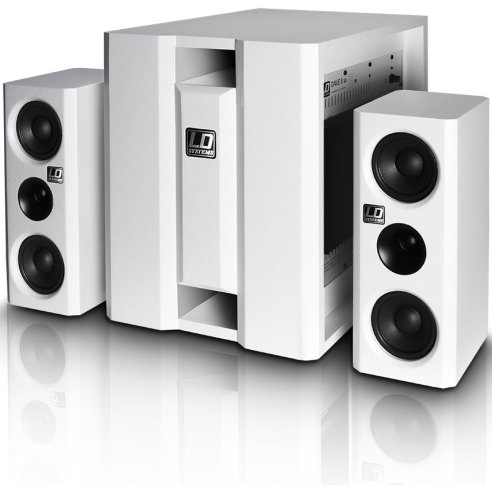

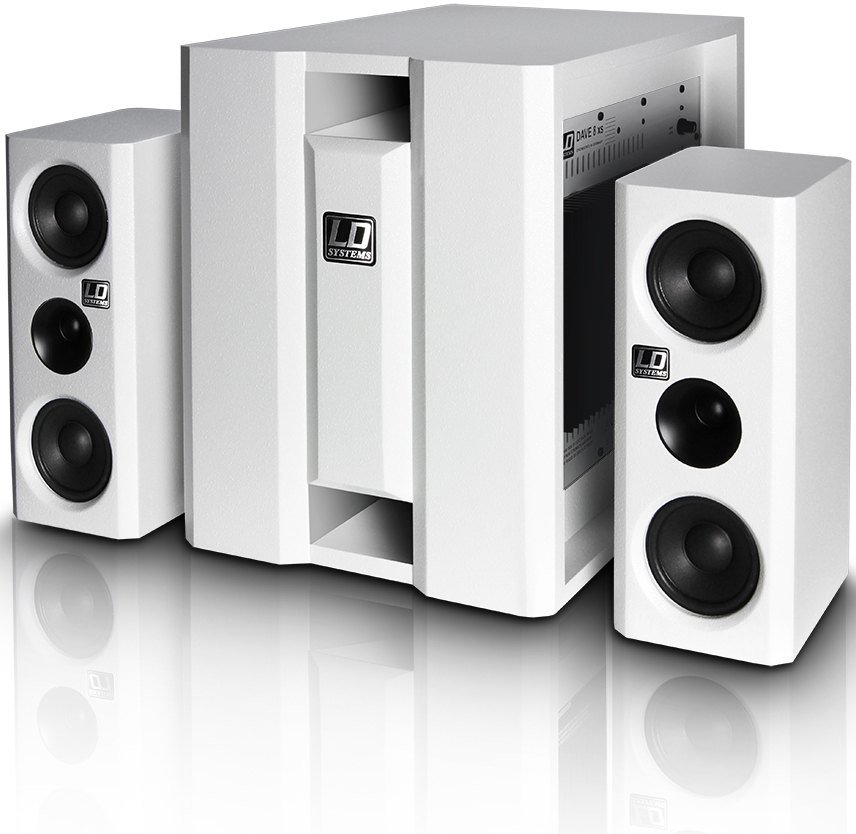

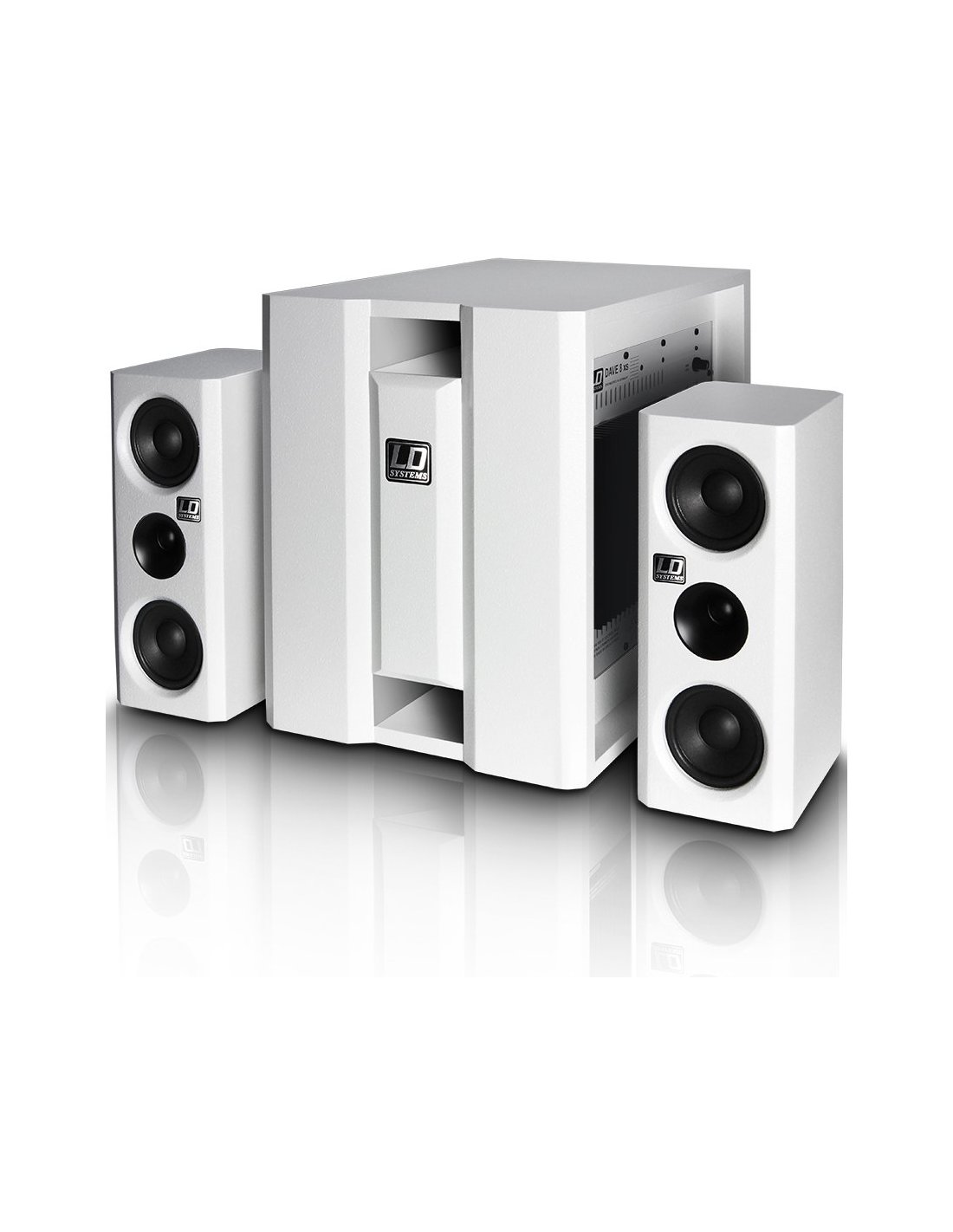

LD SYSTEMS DAVE8XS WHITE

Il DAVE8XS WHITE della LD Systems è un sistema composto da 1 subwoofer con woofer da 8” da 150 Watt RMS e 2 satelliti con altoparlante da 4” pollici e tweeter da 1” da 100 Watt, amplificazione Class A/B, risposta in frequenza tra 45Hz e 19kHz, SPL massimo 117dB, main switch (on/off), Subwoofer Phase reverse, controllo del volume e del volume del subwoofer. Il DAVE8XS WHITE ha 2 ingressi combo XLR/Jack da 6.3mm e 1 ingresso RCA.

The DAVE8XS is a portable and compact 2.1 multimedia system. It is equipped of a powerful 8“ Bandpass subwoofer and 2 x 4“ + 1“ silk dome satellites.

It delivers a crystal clear sound and was designed for all kinds of multimedia applications such as home recording, AV applications, DJ & Keyboard monitoring, PA for small sized public facilities (such as bars/pubs) etc. The class A/B amplification module integrated in the subwoofer delivers a high output and powers both sub and satellites. The LD DAVE 8XS features XLR and RCA Phono Line inputs, as well as all common protective circuits. The integrated limiter keeps your system safe from an overload and will guarantee a long operational life. On the side of the sub you will find an on/off switch, an 180° phase reverse and a separate subwoofer volume knob allowing you to find the perfect sound balance between crystal clear high tones, punchy mids and powerful bass.

From serial no. 130818000001 the satellite loudspeakers feature a 16 mm poole-mount flange for compatibility with the LDDAVE8SET2 loudspeaker stands.

Specifications

• Model name: LDDAVE8XSW
• Type:
  • Subwoofer: Band Pass
  • Satellites: Sealed
• Components:
  • Subwoofer: 1 x 8" Custom Made
  • Satellites:
    • LF: 2 x 4" Custom Made
    • HF: 1" Custom Made
  • Amplification: Class A / B
• Dispersion: 60° x 60°
• Power Output (RMS): 350 W
• Power Output (Peak): 1400 W
• Frequency Range: 45 Hz - 19 kHz
• SPL (1 W / 1 m): 96 dB
• Max SPL: 117 db
• Protection: Short circuit, Over-current, Limiter
• Controls: Volume, Sub Level, 180 ° Phase Reverse, On / Off Switch
• Indicators: Power
• Connectors:
  • Subwoofer:
    • Input: Line: XLR, RCA
    • Output: Speakon compatible: Powered output for passive Satellites
  • Satellites:
    • Input: Speakon compatible
• Cooling system: Heatsink
• Power supply: Transformer
• Cabinet Material:
  • Subwoofer: 15 mm MDF
  • Satellites: 12 mm MDF
• Cabinet Surface: Painting
• Dimensions (W x H x D):
  • Subwoofer: 352 x 430 x 434 mm
  • Satellites: 144 x 350 x 170 mm
• Features: Grilles for satellites included

Tutte le caratteristiche sono soggette a modifica senza preavviso
