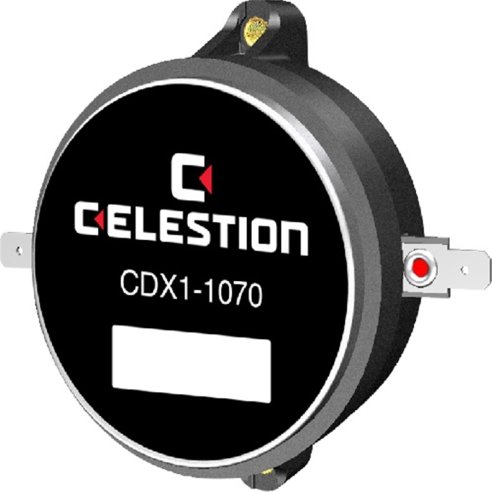

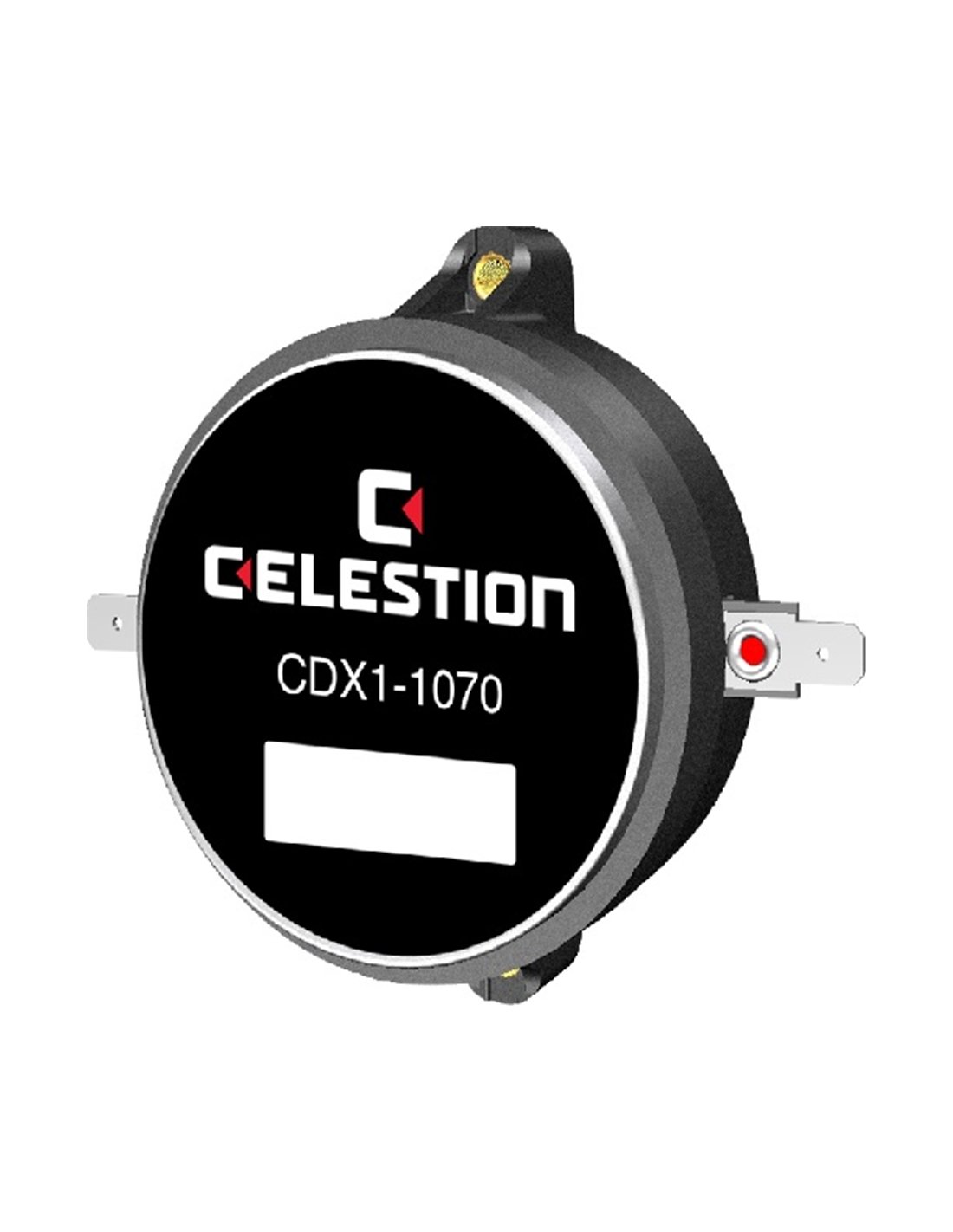

Celestion CDX1-1070 12W 8ohm HF Ferrite

Caratteristiche

- 1" exit lightweight, low-profile ferrite magnet compression driver with 1" copper clad aluminium voice coil

- 12Wrms (AES standard) power handling and 106dB sensitivity, 1500Hz - 20kHz frequency range

- Single piece PETP film diaphragm and surround

- Finite element analysis (FEA) used to optimise magnetic, acoustic and electromechanical design

- Ideal for two-way sound reinforcement cabinets

Specifiche Generali

Power rating(1): 12Wrms

Continuous power rating(2): 24W

Nominal impedance: 8ohm

Frequency range: 1500-20,000Hz

Sensitivity(3): 106dB

Recommended min. crossover (12dB/oct): 2200Hz

Voice coil diameter: 25mm/1in

Voice coil material: Copper clad aluminium

Magnet type: Ferrite

Diaphragm material: PETP film

Surround material: PETP film

Informazioni di Montaggio

Width: 70mm/2.8in

Depth: 50mm/2in

Weight: 0.7kg/1.5lb

Fitting: Flange (2xM6 holes on 76mm/3in PCD)

Throat exit: 2.5mm/1in

Trombe Compatibili

H1-9040P, H1-7050 "No Bell"

Note

(1)Tested for two hours on plane wave tube using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance.

(2)Continuous Power Handling is defined as 3dB greater than the AES rating.

(3)Measured on axis at 1W, 1m, using typical horn, in 2 anechoic environment.
